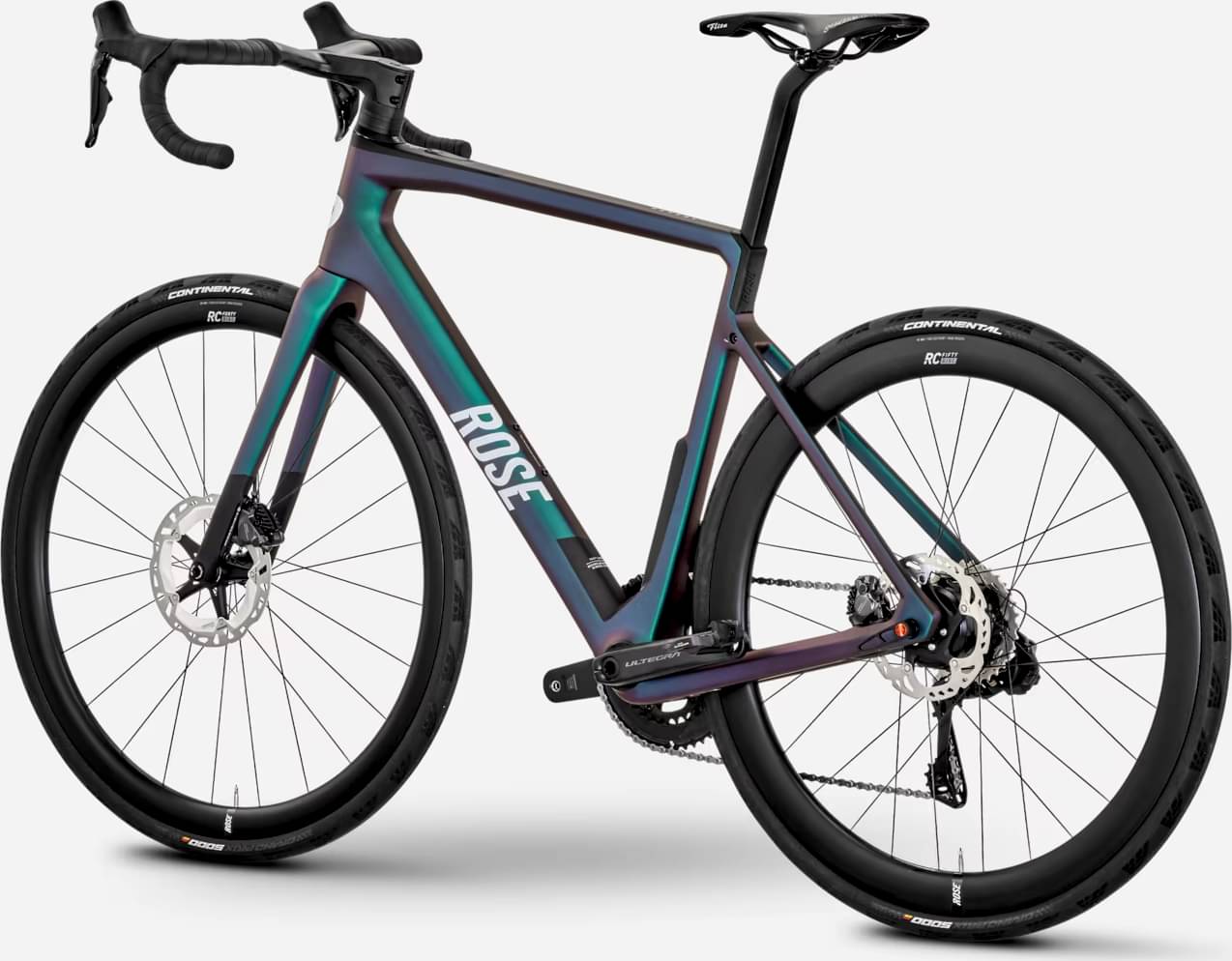

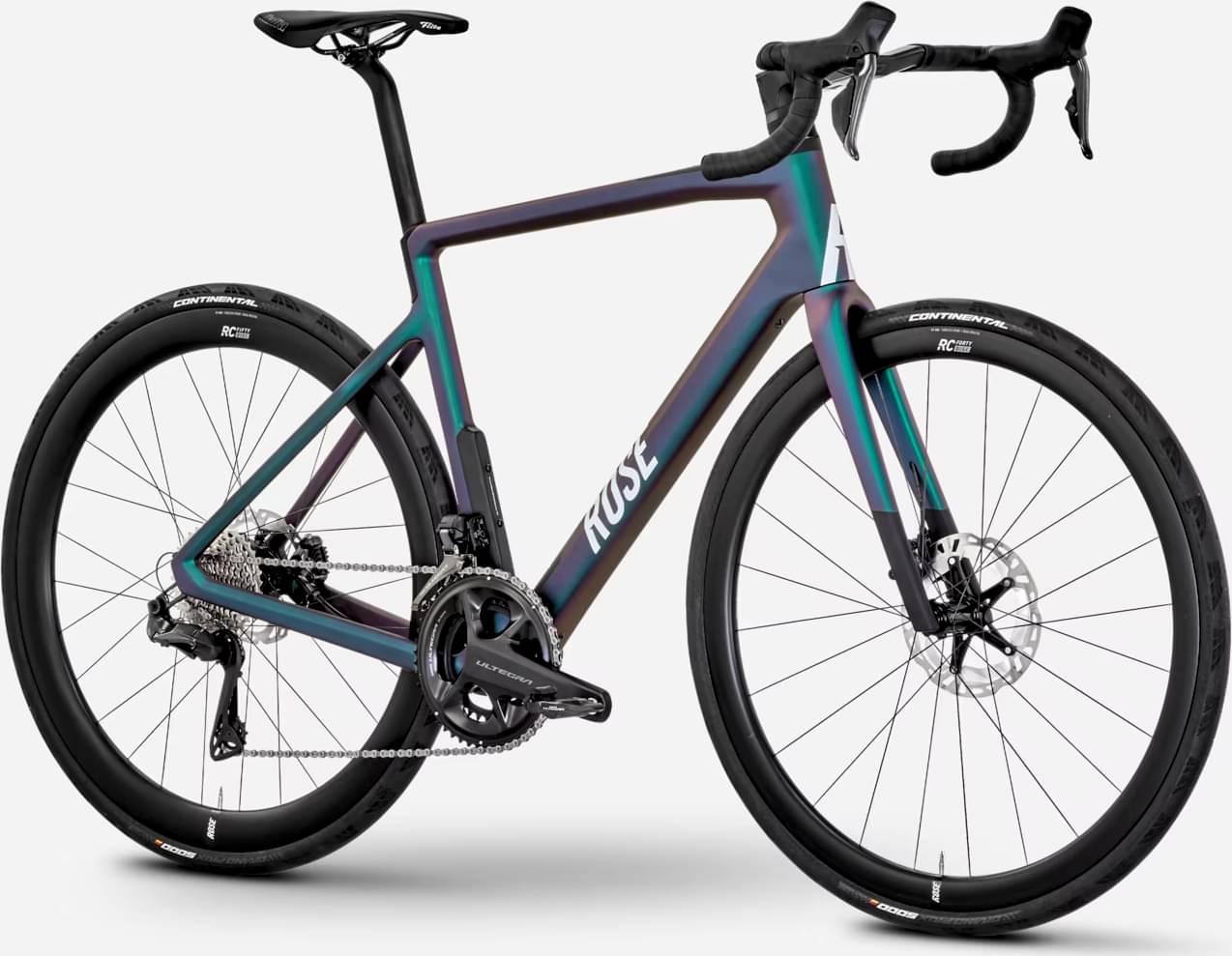

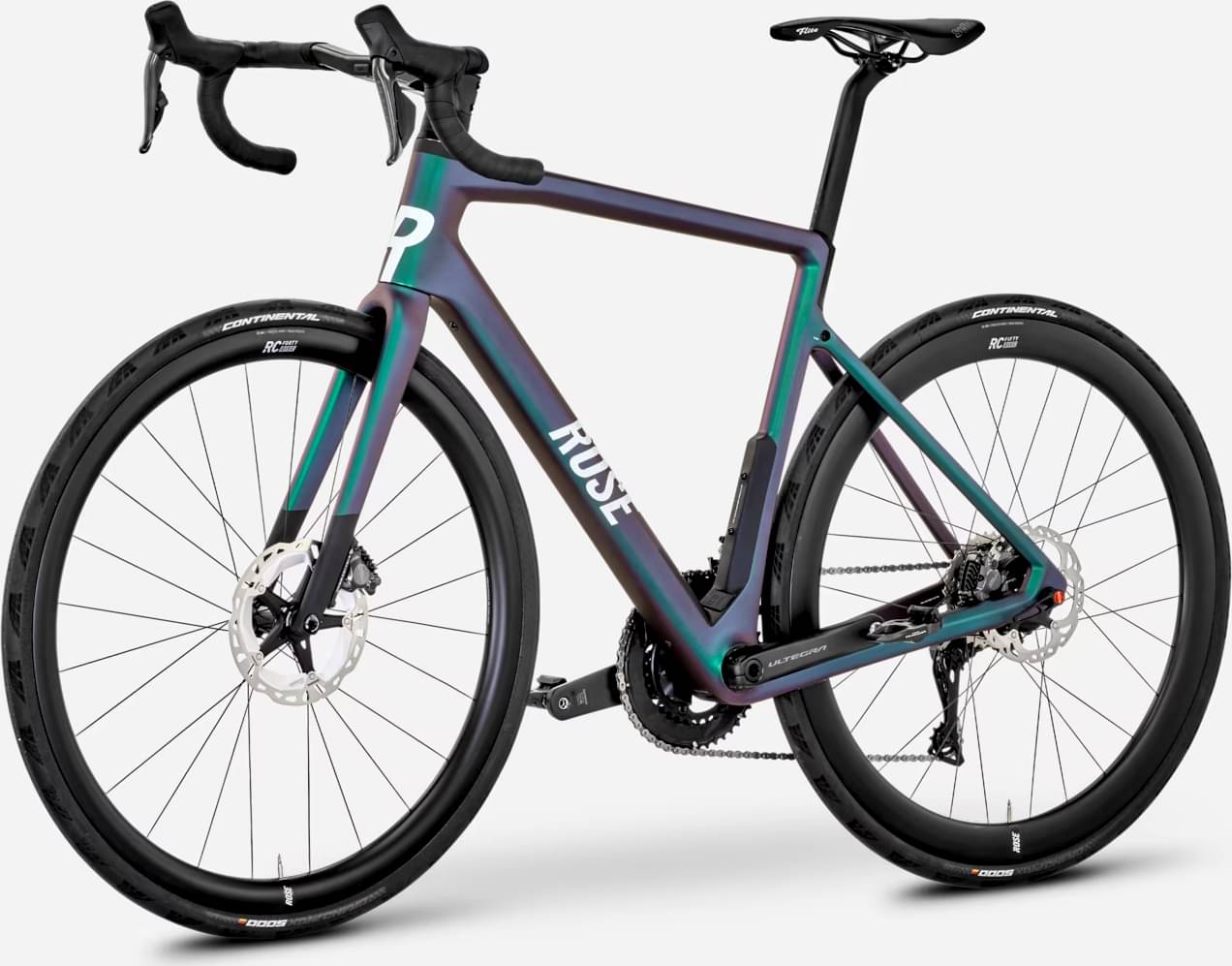

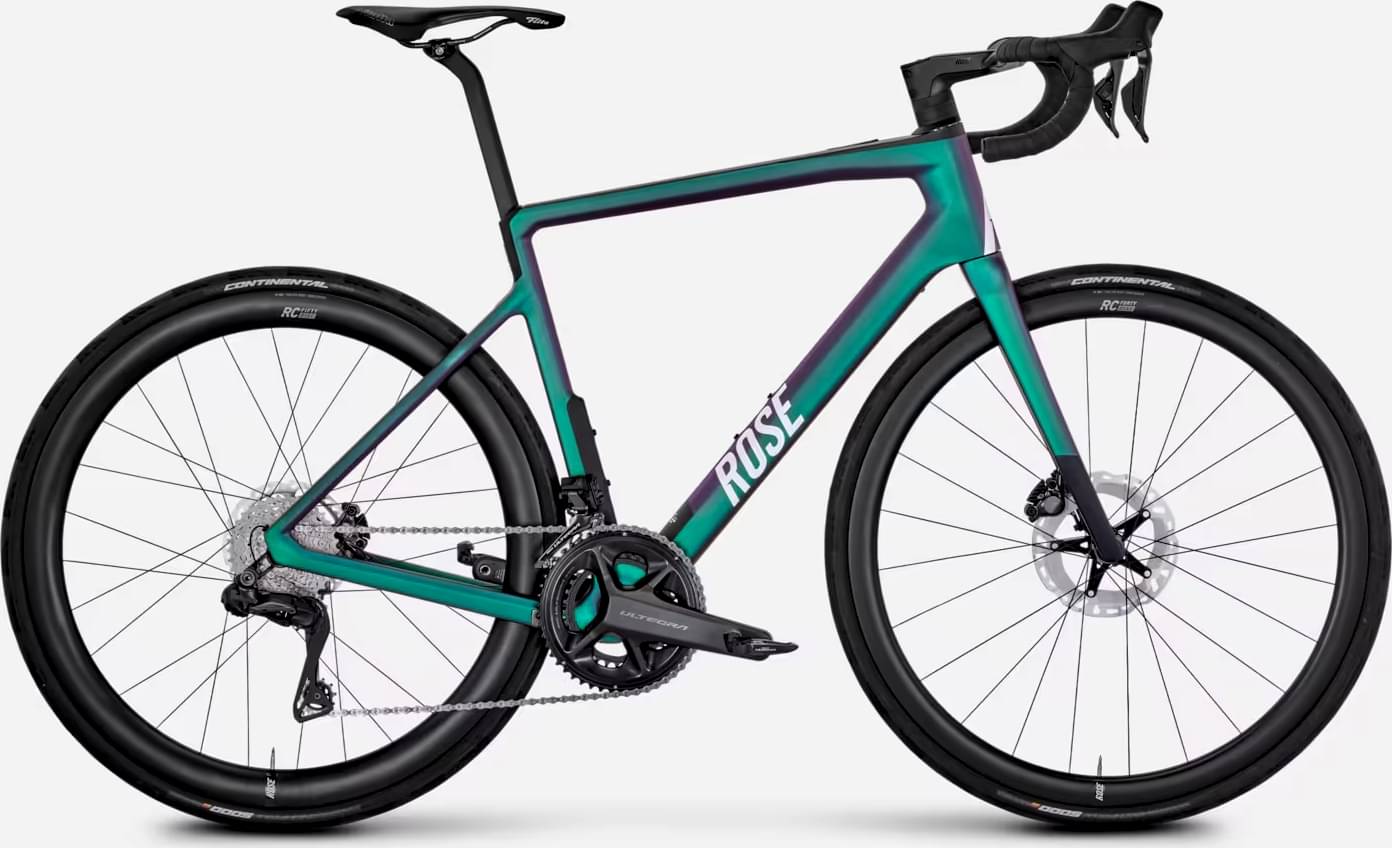

Rose REVEAL PLUS ULTEGRA Di2 2023
2023 Road
Estimate price |
7,454$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Battery 250 Wh -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
REVEAL PLUS, Borealis Green M
Suspension Fork
REVEAL PLUS, Borealis Green
Drivetrain
Rear Derailleur
Shimano Ultegra Di2, RD-R8150, 12-speed
Front Derailleur
Shimano Ultegra Di2, FD-R8150, 12-speed,
Shift Levers
Mahle ONE Head Unit
Crank
Shimano Ultegra, FC-R8100, 50/34T, 172.5mm
Chain
Shimano Deore XT, CN-M8100
Pedals
ROSE VP-836 black
Wheels
Rims
ROSE RC Forty Disc, carbon 24 holes
Tires
Continental Grand Prix 5000, black/black. 700x32C
Brakes
Brakes
Brake disc: Shimano RT-MT800, Ø180mm
Seat
Saddle
Selle Italia Flite Flow, black/black
Seatpost
ROSE, 25mm offset, 490mm
Motor & Battery
Battery
250 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.49 mm | 1.51 mm | 1.52 mm | 1.55 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 264 mm | 264 mm | 264 mm |
| Front Center | 581 mm | 584 mm | 596 mm | 614 mm | 634 mm |
| Rake | 46 mm | 42 mm | 46 mm | 45 mm | 46 mm |
| Trail | 68 mm | 66 mm | 56 mm | 57 mm | 56 mm |
| Stack | 531 mm | 553 mm | 575 mm | 599 mm | 626 mm |
| Reach | 362 mm | 371 mm | 382 mm | 393 mm | 405 mm |
| Top Tube Length | 501 mm | 524 mm | 543 mm | 566 mm | 592 mm |
| Seat Tube Angle | 75.5 ° | 74.75 ° | 74.5 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 445 mm | 478 mm | 505 mm | 537 mm | 576 mm |
| Head Tube Angle | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 120 mm | 140 mm | 162 mm | 187 mm | 215 mm |
| Chainstay Length | 406 mm | 406 mm | 409 mm | 411 mm | 412 mm |
| Wheelbase | 975 mm | 978 mm | 994 mm | 1014 mm | 1036 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 72 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
REVEAL PLUS ULTEGRA Di2 is part of the Rose Reveal model. There are 59 bikes that carry this model name. Take a sneak peek at all Rose Reveal bikes models from 2023, by clicking here.
Model range prices
Rose REVEAL AL 105 2023 is the most affordable bike of this model and has a price of 1963$. On the other hand, Rose REVEAL SIX DISC Red eTap AXS 2023, is the most expensive and costs 7962$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Endurance bikes average price
If you want an acceptable Endurance bike you should know that the average price is 2346$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6901$. If we compare this with the average Endurance bike cost we notice that the price is 194.16% more expensive.
REVEAL PLUS ULTEGRA Di2 components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When it comes to wheels, the REVEAL PLUS ULTEGRA Di2 bike is equipped with the 700c carbon model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Rose REVEAL PLUS ULTEGRA Di2 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
REVEAL PLUS ULTEGRA Di2 comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
