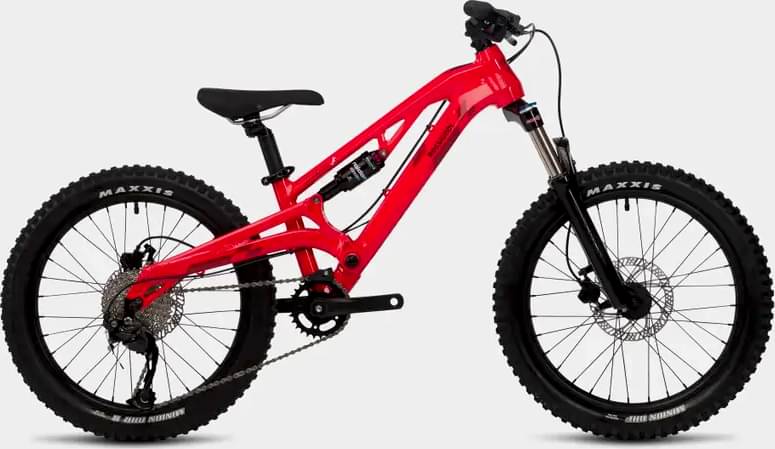

rossignol Mandate JR 20 2023
2023 Mountain
Estimate price |
1,399$
Weight | 12.25 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 20" -
Travel Front 80mm -
Travel Rear 80mm -
Fork Suntour XCR Air
-
Groupset Alivio -
Suspension Full -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Rossignol Trail JR 80mm travel | 6061 Alloy
Suspension Fork
SR Suntour XCR Air, LO, 24", 9x135, 80mm
Rear Shock
SR Suntour Raidon R, 152x31, 22x8mm hardware
Drivetrain
Rear Derailleur
Shimano Alivio M3100, SGS
Shift Levers
Shimano Alivio M3100
Cassette
Shimano HG400, 11-34
Crank
Lasco, MTB Trail JR, 28T, 140mm
Bottom Bracket
Square taper
Chain
KMC X9
Chain Guide
Seat tube mounted guide
Pedals
MTB platform pedal
Wheels
Front Hub
Alex | J-bend, 6 bolt, 32h, TA 9x100
Rear Hub
Alex | J-bend, 6 bolt, 32h, QR 135
Rims
Shining DBX 25 with Alex hubs
Tires
Maxxis Minion DHF 20x 2.4
Brakes
Brakes
Hydraulic Disc
Brake Levers
Tektro M285
Cockpit
Stem
Rossignol JR MTB | 6061 Aluminum; 31.8Ø, 40mm
Handlebar
Rossignol JR MTB | 6061 Aluminum, 25mm rise, 620mm
Grips
Rossignol lock on, diamond design with waffle grip
Headset
FSA 43, 47cm: IS (IS-2) / 51, 54cm: IS (NO.44) / 56, 58, 61cm: IS (NO.42)
Seat
Saddle
MTB JR Trail saddle
Seatpost
Butted 6061, dual-bolt micro-adjust, Ø31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 20" | 24" |
|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.46 mm |
| Front Center | 574 mm | 622 mm |
| Rake | 37 mm | 37 mm |
| Stack | 477 mm | 515 mm |
| Reach | 322 mm | 353 mm |
| Top Tube Length | 464 mm | 501 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 260 mm | 310 mm |
| Head Tube Angle | 66 ° | 66 ° |
| Head Tube Length | 110 mm | 115 mm |
| Chainstay Length | 341 mm | 411 mm |
| Wheelbase | 915 mm | 1033 mm |
| Bottom Bracket Drop | 15 mm | 15 mm |
| Wheels | 20" | 24" |
About this model
Mandate JR 20 is a Rossignol Mandate model. 13 bikes variations carry this model name so far. Take a sneak peek at all Rossignol Mandate bikes models from 2023, by clicking here.
Model range prices
Rossignol Mandate UNO Balance Bike 2023 is the cheapest bike model and costs 139$. Rossignol Mandate XT 2023 is the most expensive one and costs 4699$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2023 and its price was 1399$. Comparing the average cost of a Crosscountry bike to this one, you will see that Mandate JR 20 price is 36.17% lower.
Crosscountry bikes average weight
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Mandate JR 20 weighs 12.25 kg (27.01 lbs) and is slightly lighter than the average. To sum up, it’s 1.22% lighter than the average weight of Crosscountry bikes.
Mandate JR 20 components
Fork
The Mandate JR 20 comes factory-installed with the Suntour XCR Air fork. This has a travel range of 80mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Rossignol Mandate JR 20 bike has the SR Suntour Raidon R model installed, and has a travel of 80mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
As for the wheels, Rossignol Mandate JR 20 2023, has a 20″ aluminum model. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, you can use them better on-road, and less on technical terrain.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
