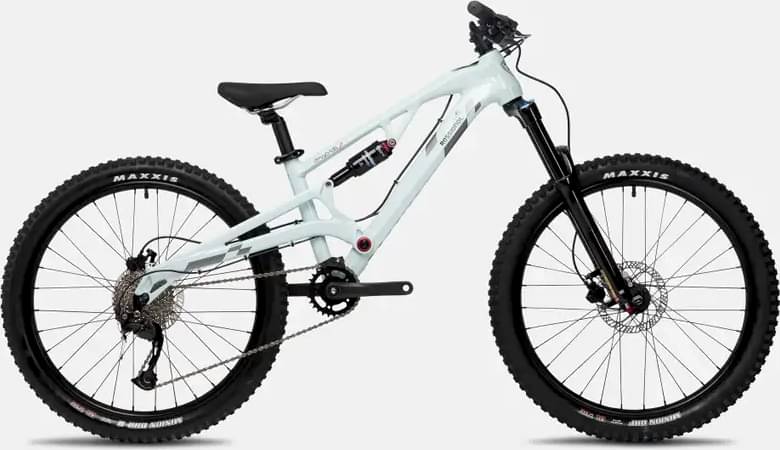

rossignol Mandate JR 24 2023
2023 Mountain
Estimate price |
1,499$
Weight | 13.15 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 20" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Suntour X1
-
Groupset Alivio -
Suspension Full -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Rossignol Trail JR 120mm travel | 6061 Alloy
Suspension Fork
SR Suntour Raindon 32, LOR, 26", 15x100, 120mm
Rear Shock
SR Suntour Raidon R, 165x38, 22x8mm hardware
Drivetrain
Rear Derailleur
Shimano Alivio M3100, SGS
Shift Levers
Shimano Alivio M3100
Cassette
Shimano HG400, 11-34
Crank
Lasco, MTB Trail JR, 28T, 155mm
Bottom Bracket
Square taper
Chain
KMC X9
Chain Guide
Seat tube mounted guide
Pedals
MTB platform pedal
Wheels
Front Hub
Alex | J-bend, 6 bolt, 32h, TA 15x100
Rear Hub
Shimano M475 | J-bend, 6 bolt, 32h, QR 135
Rims
Shining DBX 25 with Shimano rear hub
Tires
Maxxis Minion DHF 24x 2.4
Brakes
Brakes
Hydraulic Disc
Brake Levers
Tektro M285
Cockpit
Stem
Rossignol JR MTB | 6061 Aluminum; 31.8Ø, 40mm
Handlebar
Rossignol JR MTB | 6061 Aluminum, 25mm rise, 620mm
Grips
Rossignol lock on, diamond design with waffle grip
Headset
FSA 43, 47cm: IS (IS-2) / 51, 54cm: IS (NO.44) / 56, 58, 61cm: IS (NO.42)
Seat
Saddle
MTB JR Trail saddle
Seatpost
Butted 6061, dual-bolt micro-adjust, Ø31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 20" | 24" |
|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.46 mm |
| Front Center | 574 mm | 622 mm |
| Rake | 37 mm | 37 mm |
| Stack | 477 mm | 515 mm |
| Reach | 322 mm | 353 mm |
| Top Tube Length | 464 mm | 501 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 260 mm | 310 mm |
| Head Tube Angle | 66 ° | 66 ° |
| Head Tube Length | 110 mm | 115 mm |
| Chainstay Length | 341 mm | 411 mm |
| Wheelbase | 915 mm | 1033 mm |
| Bottom Bracket Drop | 15 mm | 15 mm |
| Wheels | 20" | 24" |
Model Overview
Mandate JR 24 is a Rossignol Mandate model. Rossignol released 13 bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Rossignol Mandate UNO Balance Bike 2023 has a starting price of 139$. Rossignol Mandate XT 2023 on the other hand is the most expensive at 4699$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2023 and its price was 1499$. If we compare this with the average Trail bike cost we notice that the price is 84.26% smaller.
Average weight for Trail bikes
Trail bikes weigh an average of 12.98 kg (28.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 13.15 kg (28.99 lbs), Rossignol bike is slightly heavier than average. In short, the average Trail bike weight is 1.31% lower than this one.
Overview of components
Fork
The Mandate JR 24 comes factory-installed with the Suntour X1 fork. This has a travel range of 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The Mandate JR 24 has a rear shock with a travel of 120mm. The model SR Suntour Raidon R is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
As for the wheels, Rossignol Mandate JR 24 2023, has a 20″ aluminum model. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, you can use them better on-road, and less on technical terrain.
Brakes
Nothing is more important on a bike than its ability to brake properly. Rossignol Mandate JR 24 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
