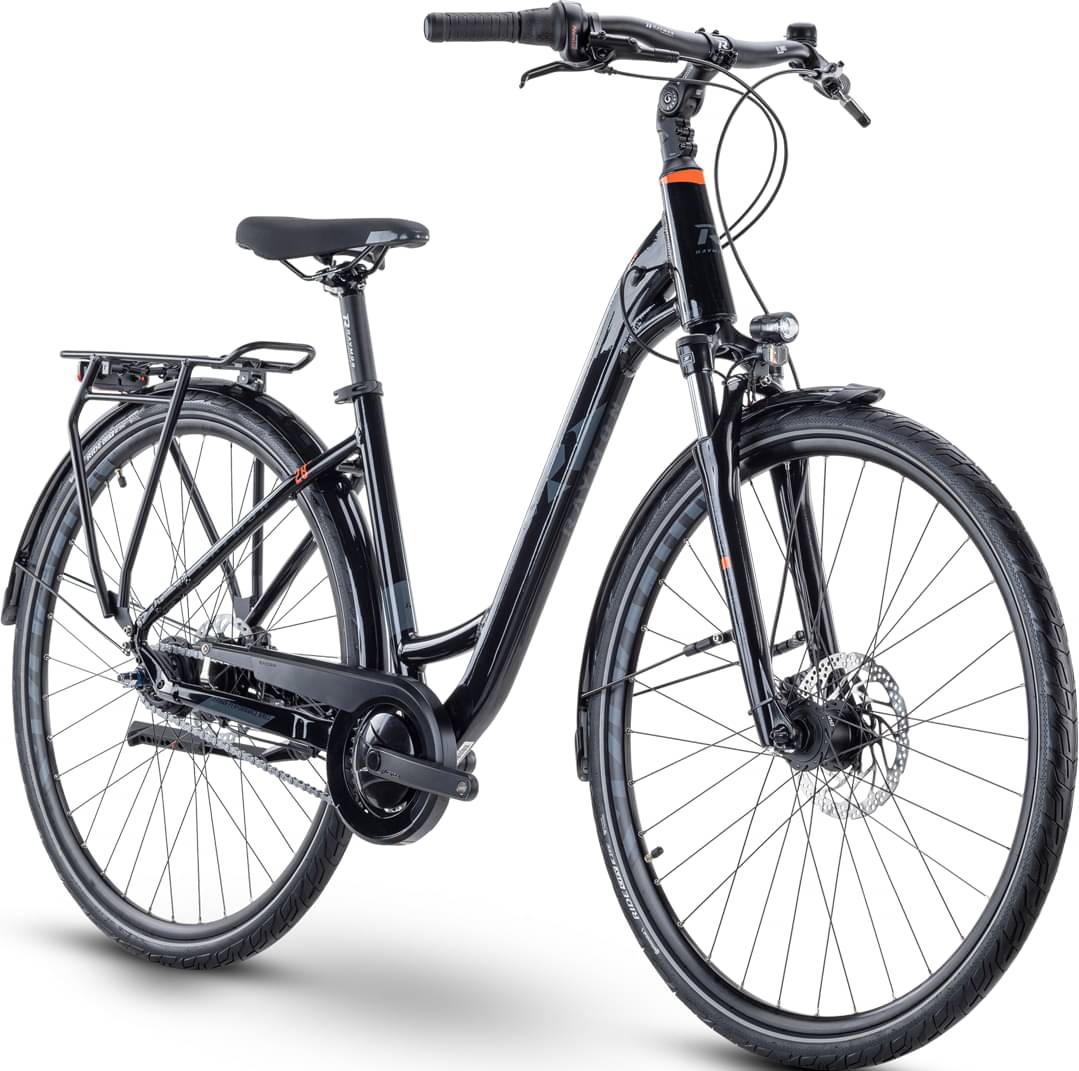

rraymon R RAYMON CityRay 2.0 CB 2021
2021 Urban
Estimate price |
1,162$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Nexus -
Suspension Hardtail -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", Alloy 6061
Suspension Fork
SR SUNTOUR NEX-E25, Coil, 63 mm
Drivetrain
Shift Levers
Shimano Nexus, SL-C6000, Revoshift
Cassette
Shimano SM-Gear, 19
Crank
R Raymon, Alloy
Chain
KMC Z1
Pedals
R Raymon, plastic
Wheels
Rims
Shimano SM-Gear, 19
Tires
Continental Ride City, Reflex, 42-622, 28x1.6
Brakes
Brakes
Shimano BR-MT200, 2-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 31.8, adjustable
Handlebar
R Raymon Riser 31.8 mm, 640 mm, Sweep: 30 °, Rise: 16 mm
Grips
R Raymon Ergo, Lock-on grips
Seat
Seatpost
R Raymon, 30.9 mm, Patent
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.7 mm | 1.64 mm | 1.58 mm |
| Front Center | 653 mm | 668 mm | 683 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Trail | 76 mm | 76 mm | 76 mm |
| Stack | 664 mm | 664 mm | 664 mm |
| Reach | 390 mm | 405 mm | 420 mm |
| Top Tube Length | 599 mm | 614 mm | 629 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 170 mm | 170 mm | 170 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1090 mm | 1105 mm | 1120 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
CityRay 2.0 CB completes the Rraymon Cityray model. R RAYMON released 2 bikes variations of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
R RAYMON CityRay 2.0 CB 2021 is the most affordable bike of this model and has a price of 1061$. On the other hand, R RAYMON CityRay 4.0 CB 2021, is the most expensive and costs 1273$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Commuter bikes average price
According to our math, the average price for a trustworthy Commuter bike is 762$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2021 for 1061$. Doing a quick comparison, we notice that CityRay 2.0 CB price is 39.24% higher than the average cost of a Commuter bike.
CityRay 2.0 CB components
Fork
This bike has the Suntour NEX fork installed. The fork’s travel is 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
As for the wheels, R RAYMON CityRay 2.0 CB 2021, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The CityRay 2.0 CB has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
R RAYMON CityRay 2.0 CB bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
