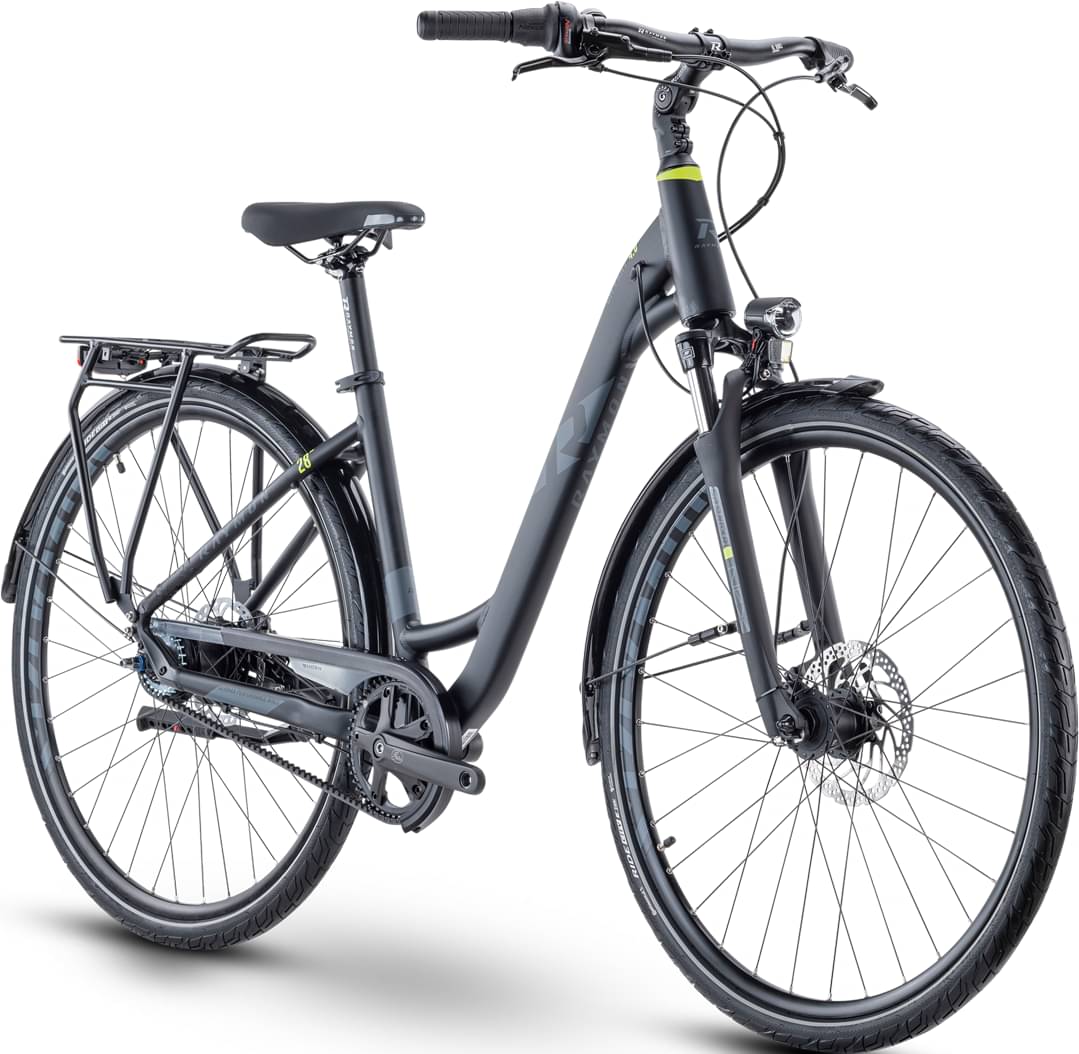

rraymon R RAYMON CityRay 4.0 CB 2021
2021 Urban
Estimate price |
1,395$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Fork Suntour NEX -
Groupset Nexus -
Suspension Hardtail -
Drivetrain Belt Drive, IGH -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", Alloy 6061
Suspension Fork
SR SUNTOUR NEX-E25
Drivetrain
Shift Levers
Shimano Nexus, SL-C6000, Revoshift
Cassette
Gates SureFit, 24
Crank
Gates CDN S150, Alloy
Chain
Gates CDN
Pedals
R Raymon, plastic
Wheels
Rims
Gates SureFit, 24
Tires
Continental Ride City, Reflex, 42-622, 28x1.6
Brakes
Brakes
Shimano BR-MT200, 2-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 31.8, adjustable
Handlebar
R Raymon Riser 31.8 mm, 640 mm, Sweep: 30 °, Rise: 16 mm
Grips
R Raymon Ergo, Lock-on grips
Seat
Seatpost
R Raymon, 30.9 mm, Patent
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.7 mm | 1.64 mm | 1.58 mm |
| Front Center | 653 mm | 668 mm | 683 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Trail | 76 mm | 76 mm | 76 mm |
| Stack | 664 mm | 664 mm | 664 mm |
| Reach | 390 mm | 405 mm | 420 mm |
| Top Tube Length | 599 mm | 614 mm | 629 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 170 mm | 170 mm | 170 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1090 mm | 1105 mm | 1120 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
CityRay 4.0 CB completes the Rraymon Cityray model. R RAYMON launched 2 bikes of this model so far. You can easily view all of the Rraymon Cityray bikes models from 2021, here.
Model range prices
R RAYMON CityRay 2.0 CB 2021 is the most economical model, with a starting price of 1061$. R RAYMON CityRay 4.0 CB 2021 on the other hand costs 1273$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Commuter bikes average price
According to our math, the average price for a trustworthy Commuter bike is 762$. However, you could also get a good Commuter bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, R RAYMON CityRay 4.0 CB price was 1273$. If we compare this with the average Commuter bike cost we notice that the price is 67.06% higher.
CityRay 4.0 CB components
Fork
The CityRay 4.0 CB comes factory-installed with the Suntour NEX fork. This has a travel range of mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the CityRay 4.0 CB model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. R RAYMON CityRay 4.0 CB has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
