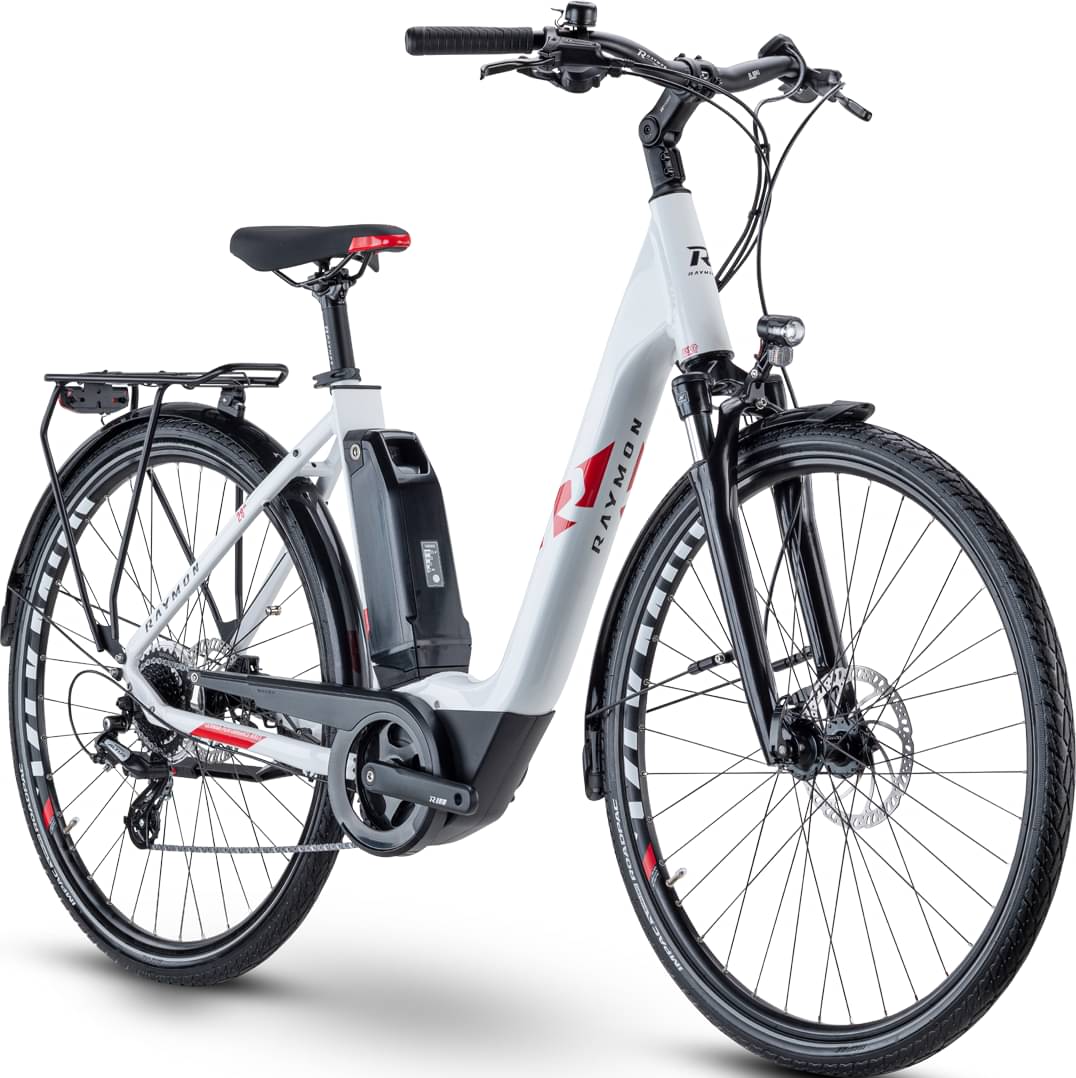

rraymon R RAYMON CityRay E 1.0 2021
2021 E-bike
Estimate price |
2,907$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Fork Suntour NEX -
Groupset Altus -
Suspension Hardtail -
Motor Yamaha 250W 50Nm mid-drive -
Battery Yamaha EX500, 500 Wh, 36 V -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
26", Alloy 6061, External battery
Suspension Fork
SR SUNTOUR NEX-E25
Drivetrain
Rear Derailleur
Shimano Altus, RD-M310, 8-S
Shift Levers
Shimano Altus, SL-M315, Rapidfire Plus, 8-speed
Chain
KMC X8
Pedals
R Raymon, Alloy
Wheels
Rims
Rim: Mach1 630E, Front Hub: R Raymon MD-JA159F, 9x100mm, Rear Hub: R Raymon MD-JA259R, 9x135mm
Tires
Impac Roadpac, Reflex, 47-559, 26x1.85
Brakes
Brakes
Tektro HD-T275, 2-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 31.8, adjustable
Handlebar
R Raymon 31.8 mm, 640 mm, Sweep: 35 °, Rise: 25 mm
Grips
R Raymon Ergo, Lock-on grips
Seat
Saddle
R Raymon Ergo
Seatpost
R Raymon, 30.9 mm
Motor & Battery
Motor
Yamaha PW-CE, 250W, 50Nm
Battery
Yamaha EX500, 500 Wh, 36 V
Remote
Yamaha Display A, LCD-Display
Charger
Yamaha rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.62 mm | 1.62 mm |
| Front Center | 681 mm | 691 mm | 702 mm |
| Rake | 49 mm | 48 mm | 49 mm |
| Trail | 75 mm | 76 mm | 75 mm |
| Stack | 661 mm | 671 mm | 680 mm |
| Reach | 407 mm | 414 mm | 421 mm |
| Top Tube Length | 627 mm | 637 mm | 647 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 450 mm | 500 mm | 540 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 180 mm | 190 mm | 200 mm |
| Chainstay Length | 484 mm | 484 mm | 484 mm |
| Wheelbase | 1159 mm | 1169 mm | 1180 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
CityRay E 1.0 completes the Rraymon E Cityray model. R RAYMON launched 21 e-bikes of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
R RAYMON CityRay E 1.0 2021 is the cheapest e-bike model and costs 2653$. R RAYMON CityRay E 7.0 CB 2021 is the most expensive one and costs 3397$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Commuter e-bikes
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2021 and its price was 2653$. Comparing the average cost of a Commuter e-bike to this one, you will see that CityRay E 1.0 price is 3.27% more expensive.
CityRay E 1.0 components
Fork
The fork installed on this bike is the Suntour NEX model. The travel on this model is mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When leaving the production line, the CityRay E 1.0 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. R RAYMON CityRay E 1.0 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
CityRay E 1.0 comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
