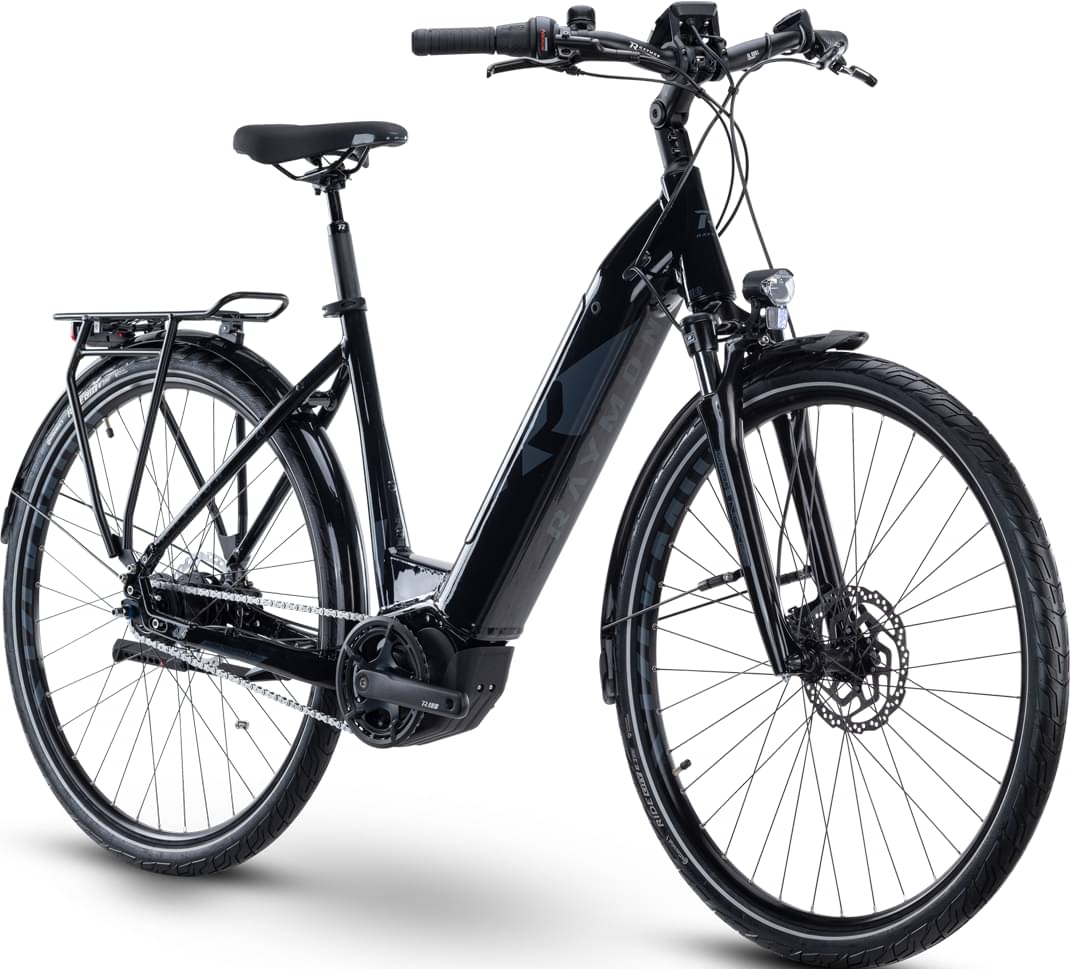

rraymon R RAYMON CityRay E 7.0 CB 2021
2021 E-bike
Estimate price |
3,722$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Fork Suntour NEX -
Groupset Nexus -
Suspension Hardtail -
Motor Yamaha 250W 50Nm mid-drive -
Battery Yamaha ML500, 500 Wh, 36 V -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
26", Alloy 6061, Integrated battery
Suspension Fork
SR SUNTOUR NEX-E25
Drivetrain
Shift Levers
Shimano Nexus, SL-C6000-8, Revo Shift, 8-speed
Chain
KMC Z1 EPT
Pedals
R Raymon, Alloy
Wheels
Rims
Rim: Mach1 630E, Front Hub: Shimano HB-TX505, 9x100mm, Rear Hub: Shimano SG-C6001-8CD
Tires
Continental Ride City, Reflex, 47-622, 28x1.75
Brakes
Brakes
Shimano BR-MT200, 2-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 31.8, adjustable
Handlebar
R Raymon 31.8 mm, 640 mm, Sweep: 35 °, Rise: 25 mm
Grips
R Raymon Ergo, Lock-on grips
Seat
Saddle
R Raymon Ergo
Seatpost
R Raymon, 30.9 mm, lowerable
Motor & Battery
Motor
Yamaha PW-CE, 250W, 50Nm
Battery
Yamaha ML500, 500 Wh, 36 V
Remote
Yamaha Display C, LCD-Display, Bluetooth
Charger
Yamaha rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | LG | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.43 mm | 1.41 mm |
| Front Center | 705 mm | 717 mm | 729 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 84 mm | 84 mm | 84 mm |
| Stack | 630 mm | 634 mm | 639 mm |
| Reach | 432 mm | 442 mm | 452 mm |
| Top Tube Length | 615 mm | 626 mm | 637 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 155 mm | 160 mm | 165 mm |
| Chainstay Length | 467 mm | 467 mm | 467 mm |
| Wheelbase | 1166 mm | 1178 mm | 1190 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 |
About this model
CityRay E 7.0 CB belongs to the Rraymon E Cityray model. R RAYMON launched 21 e-bikes of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
The most economical model, the R RAYMON CityRay E 1.0 2021 has a starting price of 2653$. R RAYMON CityRay E 7.0 CB 2021 on the other hand is the most expensive at 3397$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Commuter e-bikes average price
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
When R RAYMON released this model in 2021, its price was 3397$. If we compare this with the average Commuter e-bike cost we notice that the price is 32.23% higher.
CityRay E 7.0 CB components
Fork
The Suntour NEX is included from the factory. It has a travel distance of mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When it comes to wheels, the CityRay E 7.0 CB e-bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The CityRay E 7.0 CB comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
