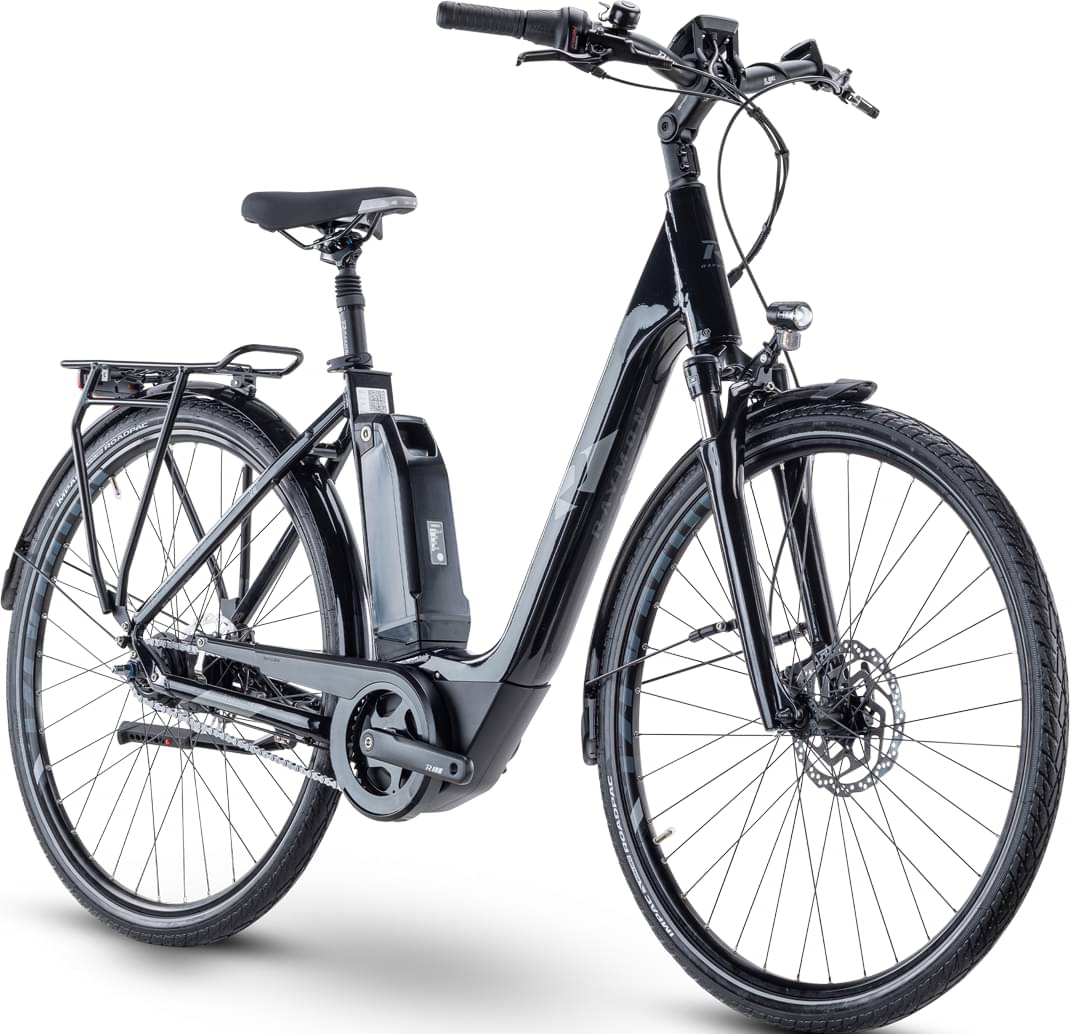

rraymon R RAYMON CityRay E 4.0 CB 2022
2022 E-bike
Estimate price |
3,373$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Travel Front 50mm -
Fork Suntour NEX
-
Suspension Hardtail -
Motor Yamaha 250W 50Nm mid-drive -
Battery Yamaha EX500, 500 Wh, 36 V -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
26", Alloy 6061, External battery
Suspension Fork
SR SUNTOUR NEX-E25, Coil, 50 mm
Drivetrain
Shift Levers
Yamaha C
Cassette
Shimano SM-Gear, 19
Crank
R Raymon, 38 T
Chain
KMC Z1
Pedals
R Raymon, aluminum
Wheels
Rims
Shimano SM-Gear, 19
Tires
Impac Roadpac, Reflex, 47-559, 26x1.85
Brakes
Brakes
Shimano BR-MT200, 2-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 31.8, adjustable
Handlebar
R Raymon 31.8 mm, 640 mm, Sweep: 35 °, Rise: 25 mm
Grips
R Raymon Ergo, Lock-on grips
Seat
Seatpost
R Raymon, 30.9 mm, lowerable
Motor & Battery
Motor
Yamaha PW-CE, 250 W, 50 Nm
Battery
Yamaha EX500, 500 Wh, 36 V
Remote
Yamaha Display C, LCD-Display, Bluetooth
Charger
Yamaha rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.62 mm | 1.62 mm |
| Front Center | 681 mm | 691 mm | 702 mm |
| Rake | 49 mm | 48 mm | 49 mm |
| Trail | 75 mm | 76 mm | 75 mm |
| Stack | 661 mm | 671 mm | 680 mm |
| Reach | 407 mm | 414 mm | 421 mm |
| Top Tube Length | 627 mm | 637 mm | 647 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 180 mm | 190 mm | 200 mm |
| Chainstay Length | 484 mm | 484 mm | 484 mm |
| Wheelbase | 1159 mm | 1169 mm | 1180 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
CityRay E 4.0 CB is a Rraymon E Cityray model. R RAYMON launched 21 e-bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
R RAYMON CityRay E 1.0 400 2022 is the most affordable e-bike of this model and has a price of 2653$. On the other hand, R RAYMON CityRay E 7.0 CB 2022, is the most expensive and costs 3503$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Commuter e-bikes
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2022 and its price was 3078$. Comparing this to the average Commuter e-bike price, we see that the price is 19.81% more expensive.
Overview of components
Fork
The fork installed on this bike is the Suntour NEX model. The travel on this model is 50mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
As for the wheels, R RAYMON CityRay E 4.0 CB 2022, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. R RAYMON CityRay E 4.0 CB has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
