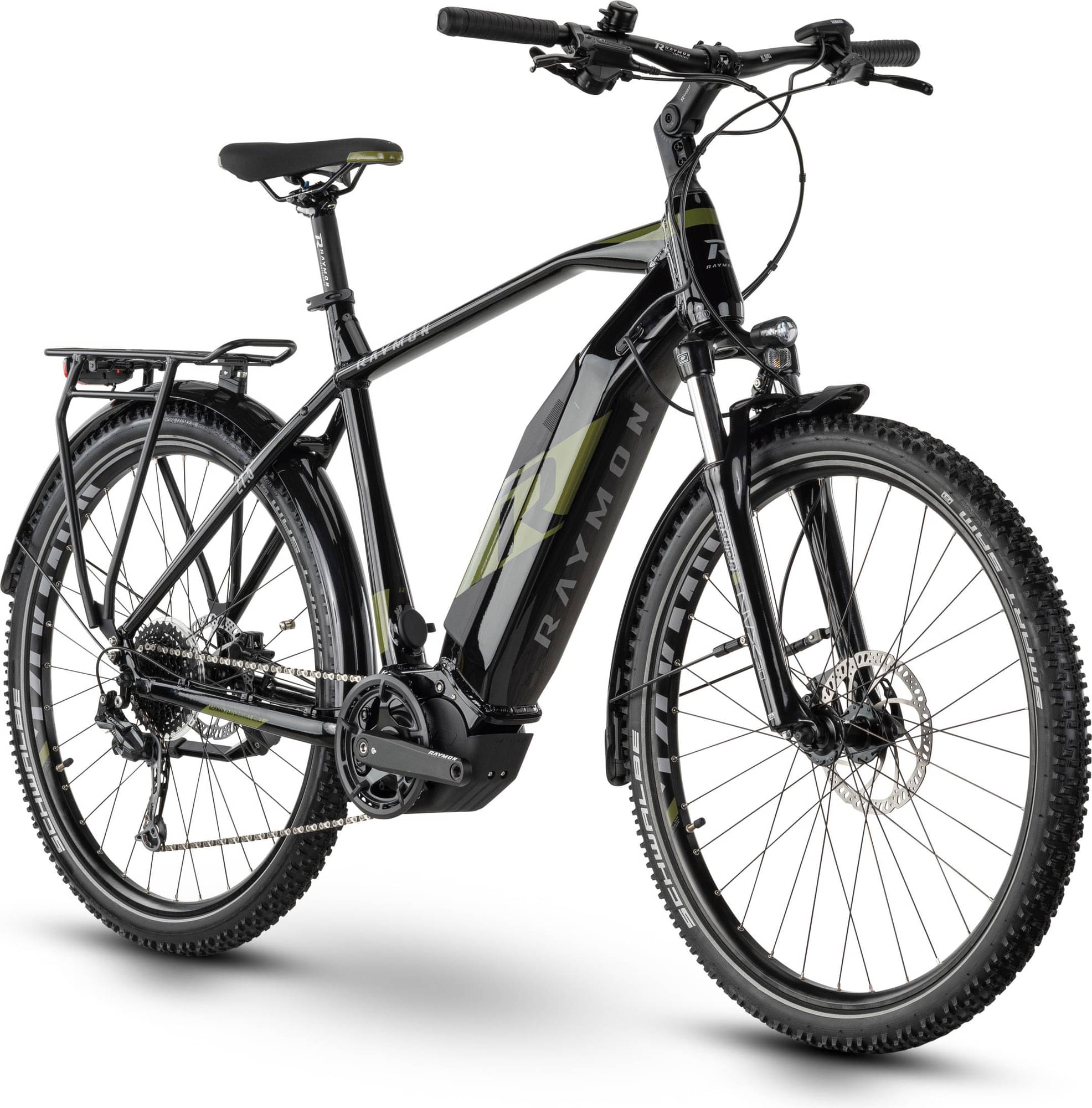

rraymon R RAYMON CrossRay E 4.0 2021
2021 E-bike
Estimate price |
3,256$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Fork Suntour -
Groupset Deore, Altus -
Suspension Hardtail -
Motor Yamaha 250W 60Nm mid-drive -
Battery Yamaha EX500, 500 Wh, 36 V -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
27.5", Alloy 6061, Partially integrated battery
Suspension Fork
SR SUNTOUR NVX
Drivetrain
Rear Derailleur
Shimano Deore, RD-M592 Shadow, 9-S
Shift Levers
Shimano Altus, SL-M2010-9R, Rapidfire Plus
Cassette
Shimano CS-HG200, 11-36 T
Chain
KMC e9s
Pedals
R Raymon, Alloy
Wheels
Rims
Rim: Mach1 Trucky30, Front Hub: R Raymon MD-JA159F, 9x100mm, Rear Hub: R Raymon MD-JA251R, 9x141mm
Tires
Schwalbe Smart Sam, Active, Reflex, 54-584, 27.5x2.1
Brakes
Brakes
Tektro HD-T275, 2-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 31.8, adjustable
Handlebar
R Raymon 31.8 mm, 700 mm, Sweep: 9 °, Rise: 15 mm
Grips
R Raymon Ergo, Lock-on grips
Seat
Saddle
R Raymon Ergo
Seatpost
R Raymon, 30.9 mm, Patent
Motor & Battery
Motor
Yamaha PW-TE, 250W, 60Nm
Battery
Yamaha EX500, 500 Wh, 36 V
Remote
Yamaha Display A, LCD-Display
Charger
Yamaha rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.43 mm | 1.43 mm |
| Front Center | 683 mm | 694 mm | 704 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 73 mm | 73 mm | 73 mm |
| Stack | 611 mm | 621 mm | 630 mm |
| Reach | 427 mm | 434 mm | 441 mm |
| Top Tube Length | 615 mm | 625 mm | 635 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1142 mm | 1153 mm | 1163 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
CrossRay E 4.0 belongs to the Rraymon E Crossray model. 13 e-bikes variations carry this model name so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
R RAYMON CrossRay E 4.0 2021 is the most economical model, with a starting price of 2972$. R RAYMON CrossRay E 8.0 2021 on the other hand costs 4246$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Hybrid e-bikes
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When R RAYMON released this model in 2021, its price was 2972$. In conclusion, this e-bike price is 19.84% more expensive than the price of the average Hybrid e-bike.
Overview of components
Fork
The fork installed on this bike is the Suntour model. The travel on this model is mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The wheels on CrossRay E 4.0 are the aluminum type. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. R RAYMON CrossRay E 4.0 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
R RAYMON CrossRay E 4.0 e-bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
