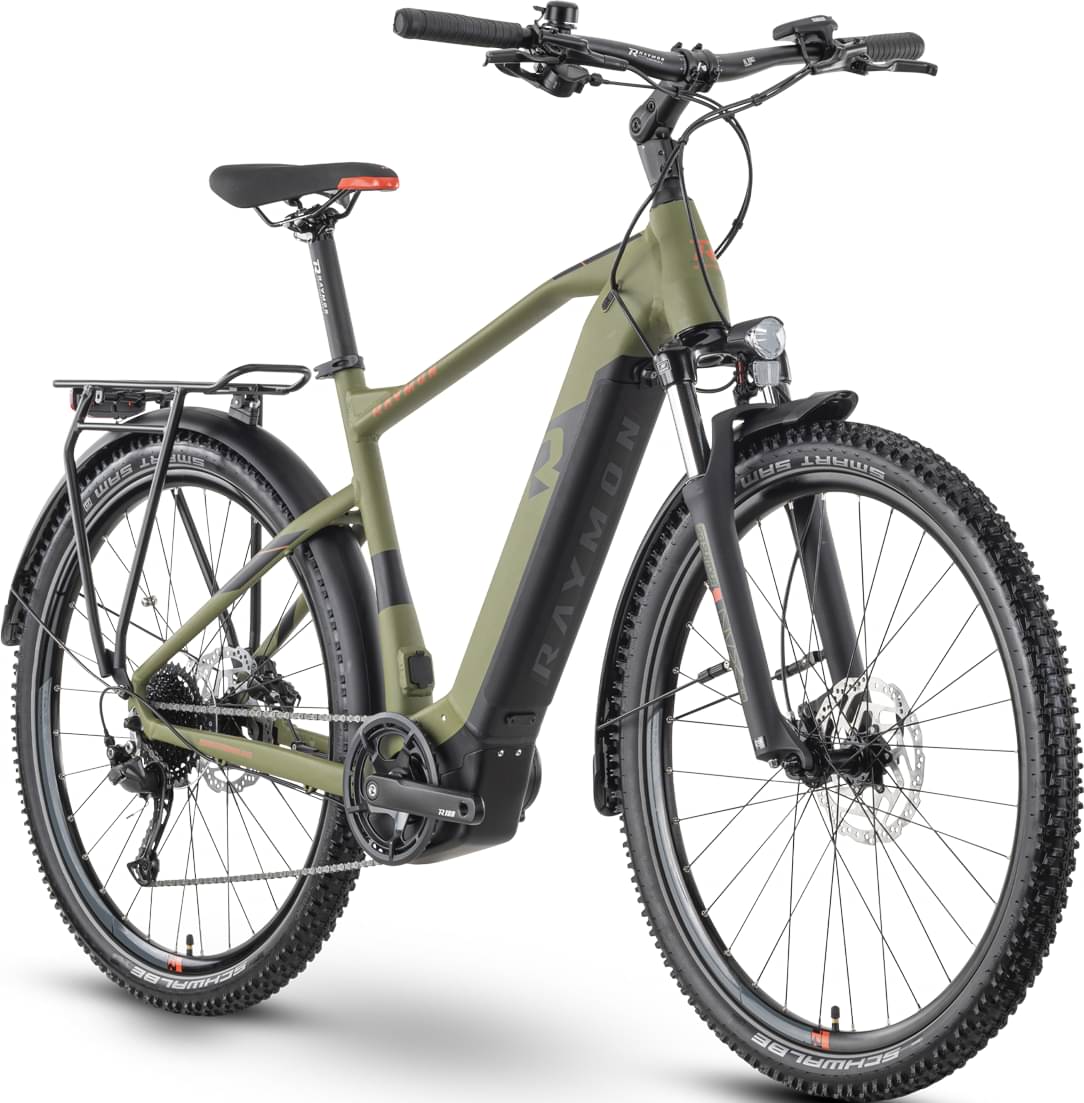

rraymon R RAYMON CrossRay E 5.0 2022
2022 E-bike
Estimate price |
3,440$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 80mm -
Fork Suntour XCM
-
Groupset Alivio -
Suspension Hardtail -
Motor Yamaha 250W 60Nm mid-drive -
Battery Yamaha ML500, 500 Wh, 36 V -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
27.5", Alloy 6061, Integrated battery
Suspension Fork
SR SUNTOUR XCM32 NLO, Coil, 80 mm, tapered
Drivetrain
Rear Derailleur
Shimano Alivio, RD-M3100, Shadow, 9-S
Shift Levers
Integrated into display
Cassette
Shimano CS-HG200, 11-36 T
Crank
R Raymon, 38 T
Chain
KMC Z9
Pedals
R Raymon, aluminum
Wheels
Rims
Shimano CS-HG200, 11-36 T
Tires
Schwalbe Smart Sam, Active, Reflex, 54-584, 27.5x2.1
Brakes
Brakes
Shimano BR-MT200, 2-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 31.8, Ahead, adjustable
Handlebar
R Raymon Riser 31.8 mm, 700 mm, Sweep: 9 °, Rise: 12 mm
Grips
R Raymon Ergo, Lock-on grips
Seat
Seatpost
R Raymon, 31.6 mm, 350 mm, Patent
Motor & Battery
Motor
Yamaha PW-TE, 250 W, 60 Nm
Battery
Yamaha ML500, 500 Wh, 36 V
Remote
Yamaha Display A, LCD-Display
Charger
Yamaha rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.5 mm | 1.51 mm | 1.51 mm |
| Front Center | 681 mm | 675 mm | 680 mm | 691 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 80 mm | 73 mm | 73 mm | 73 mm |
| Stack | 620 mm | 625 mm | 634 mm | 644 mm |
| Reach | 414 mm | 418 mm | 420 mm | 427 mm |
| Top Tube Length | 604 mm | 609 mm | 614 mm | 624 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm | 600 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 140 mm | 140 mm | 150 mm | 160 mm |
| Chainstay Length | 459 mm | 459 mm | 459 mm | 459 mm |
| Wheelbase | 1133 mm | 1127 mm | 1132 mm | 1143 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
CrossRay E 5.0 is a Rraymon E Crossray model. R RAYMON launched 13 e-bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
R RAYMON CrossRay E 3.0 2022 is the most economical model, with a starting price of 2972$. R RAYMON CrossRay E 8.0 2022 on the other hand costs 4777$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Hybrid e-bikes
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2022 and its price was 3184$. If we compare this with the average Hybrid e-bike cost we notice that the price is 28.39% higher.
CrossRay E 5.0 components
Fork
The Suntour XCM is included from the factory. It has a travel distance of 80mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The wheels on CrossRay E 5.0 are the aluminum type. After 700c wheels, 650b is the second most popular choice for road bikes. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The CrossRay E 5.0 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
