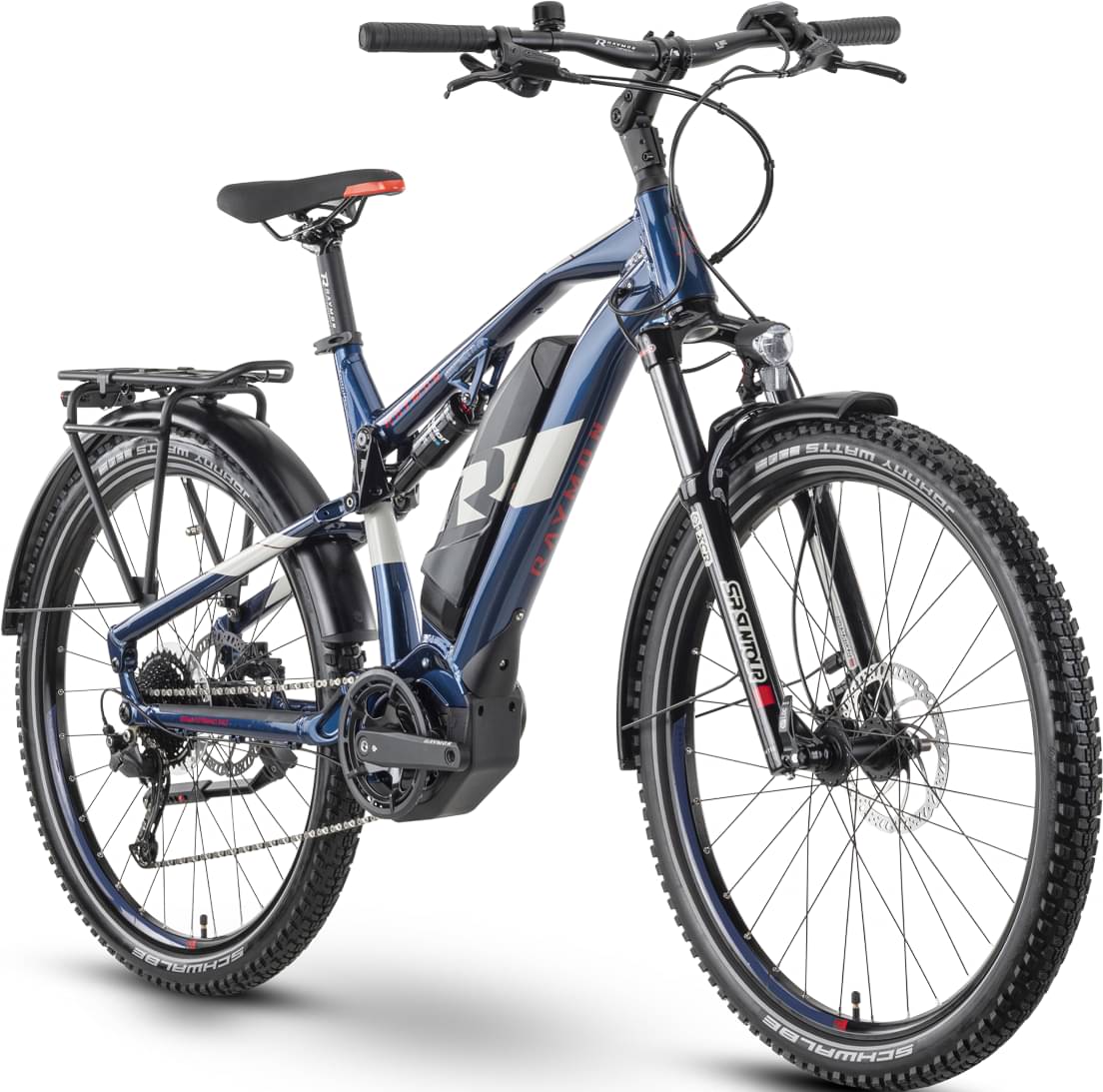

rraymon R RAYMON CrossRay FS E 4.0 2022
2022 E-bike
Estimate price |
4,013$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 120mm -
Travel Rear 120mm -
Fork Suntour XCR 34
-
Groupset Alivio -
Suspension Full -
Motor Yamaha 250W 60Nm mid-drive -
Battery Yamaha DT500, 500 Wh, 36 V -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", Alloy 6061, External battery, 120 mm
Suspension Fork
SR SUNTOUR XCR34 Boost LO, Coil, 120 mm, tapered
Rear Shock
SR SUNTOUR Raidon R, Air, 190x51 mm
Drivetrain
Rear Derailleur
Shimano Alivio, RD-M3100, Shadow, 9-S
Shift Levers
Integrated into display
Cassette
Shimano CS-HG200, 11-36 T
Crank
R Raymon, 38 T
Chain
KMC X9
Pedals
R Raymon, aluminum
Wheels
Rims
Shimano CS-HG200, 11-36 T
Tires
Schwalbe Johnny Watts, Performance, Reflex, 60-584, 27.5x2.35
Brakes
Brakes
Clarks M2, 2-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 31.8, Ahead, adjustable
Handlebar
R Raymon Riser 31.8 mm, 700 mm, Sweep: 9 °, Rise: 12 mm
Grips
R Raymon Ergo, Lock-on grips
Seat
Seatpost
R Raymon, 31.6 mm, Patent
Motor & Battery
Motor
Yamaha PW-TE, 250 W, 60 Nm
Battery
Yamaha DT500, 500 Wh, 36 V
Remote
Yamaha Display A, LCD-Display
Charger
Yamaha rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.412 mm | 1.412 mm | 1.363 mm | 1.319 mm | 1.277 mm |
| Front Center | 688 mm | 709 mm | 730 mm | 750 mm | 771 mm |
| Rake | 22 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 110 mm | 88 mm | 88 mm | 88 mm | 88 mm |
| Stack | 603 mm | 603 mm | 608 mm | 612 mm | 617 mm |
| Reach | 427 mm | 427 mm | 446 mm | 464 mm | 483 mm |
| Top Tube Length | 580 mm | 600 mm | 620 mm | 640 mm | 660 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 120 mm | 125 mm | 130 mm | 135 mm | 140 mm |
| Chainstay Length | 477 mm | 477 mm | 477 mm | 477 mm | 477 mm |
| Wheelbase | 1165 mm | 1186 mm | 1207 mm | 1227 mm | 1248 mm |
| Bottom Bracket Drop | 16 mm | 16 mm | 16 mm | 16 mm | 16 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
CrossRay FS E 4.0 is part of the Rraymon E Crossray model. There are 13 e-bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
R RAYMON CrossRay E 3.0 2022 is the most economical model, with a starting price of 2972$. R RAYMON CrossRay E 8.0 2022 on the other hand costs 4777$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Hybrid e-bikes average price
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3715$. Comparing the average cost of a Hybrid e-bike to this one, you will see that CrossRay FS E 4.0 price is 49.8% higher.
CrossRay FS E 4.0 components
Fork
The Suntour XCR 34 is included from the factory. It has a travel distance of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
R RAYMON CrossRay FS E 4.0 e-bike has the SR SUNTOUR Raidon R model installed, and has a travel of 120mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The CrossRay FS E 4.0 2022 e-bike is equipped with aluminum wheels when leaving the factory. After 700c wheels, 650b is the second most popular choice for road bikes. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
For your safety, it is important to have quality breaks on your bike. R RAYMON CrossRay FS E 4.0 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
R RAYMON CrossRay FS E 4.0 e-bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
