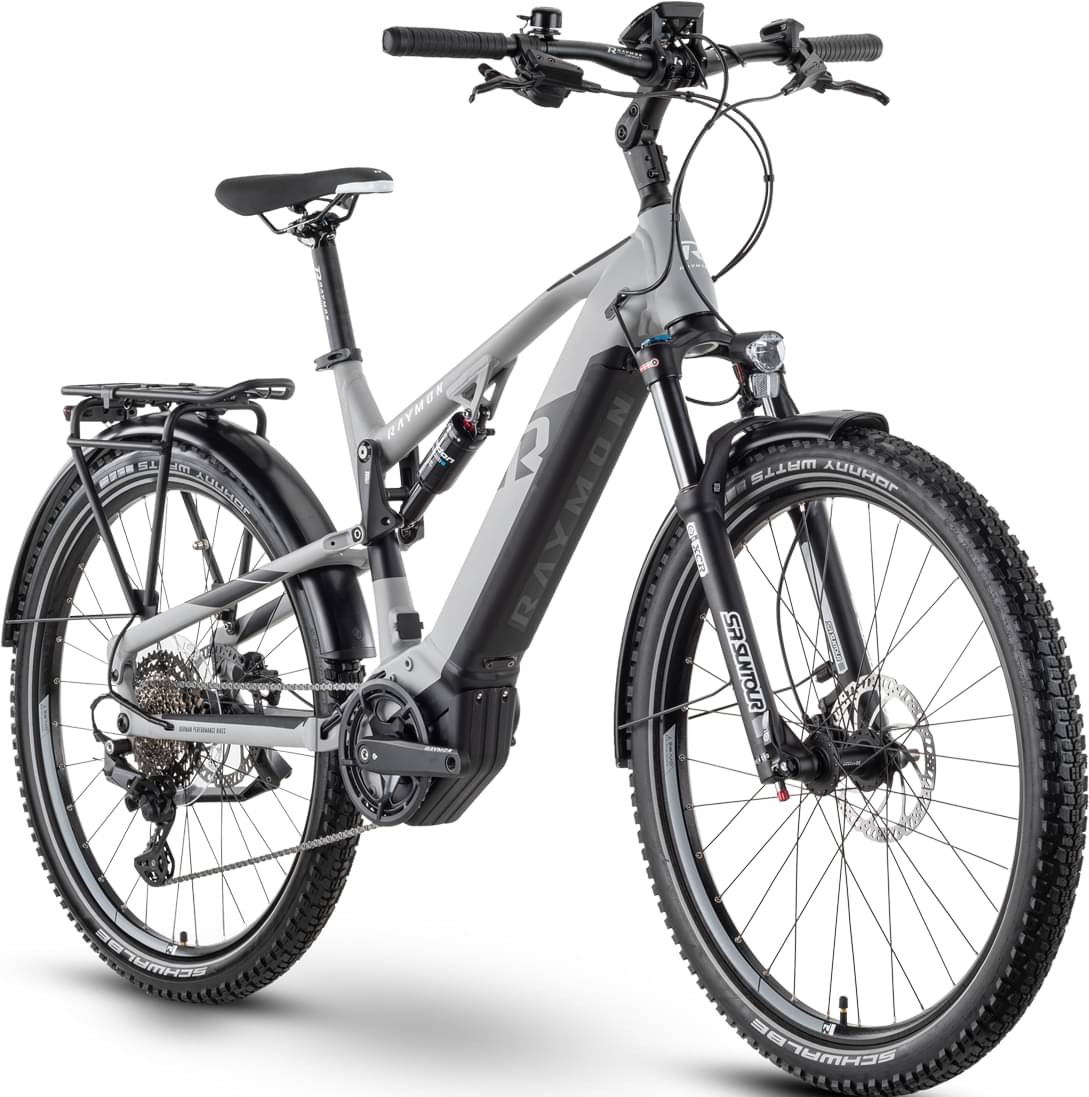

rraymon R RAYMON CrossRay FS E 5.0 2022
2022 E-bike
Estimate price |
4,536$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 120mm -
Travel Rear 120mm -
Fork Suntour XCR 34
-
Groupset Deore -
Suspension Full -
Motor Yamaha 250W 70Nm mid-drive -
Battery Simplo EnergyTube, 630 Wh, 36 V -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", Alloy 6061, Integrated battery, Boost, 120 mm
Suspension Fork
SR SUNTOUR XCR34 Boost LOR, Air, 120 mm, tapered
Rear Shock
SR SUNTOUR Raidon R, Air, 190x51 mm
Drivetrain
Rear Derailleur
Shimano Deore LG, RD-M5130, Shadow Plus, 10-S
Shift Levers
Yamaha C
Cassette
Shimano CS-LG400, 11-43 T
Crank
R Raymon, 38 T
Chain
Shimano CN-LG500
Pedals
R Raymon, aluminum
Wheels
Rims
Shimano CS-LG400, 11-43 T
Tires
Schwalbe Johnny Watts, Performance, Reflex, 60-584, 27.5x2.35
Brakes
Brakes
Clarks M2, 2-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 31.8, Ahead, adjustable
Handlebar
R Raymon Riser 31.8 mm, 700 mm, Sweep: 9 °, Rise: 12 mm
Grips
R Raymon Ergo, Lock-on grips
Seat
Seatpost
R Raymon, 31.6 mm, 300 mm, Patent
Motor & Battery
Motor
Yamaha PW-ST, 250 W, 70 Nm
Battery
Simplo EnergyTube, 630 Wh, 36 V
Remote
Yamaha Display C, LCD-Display, Bluetooth, Micro-USB
Charger
Simplo rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.36 mm | 1.31 mm | 1.27 mm |
| Front Center | 710 mm | 710 mm | 750 mm | 771 mm |
| Rake | 42 mm | 23 mm | 41 mm | 42 mm |
| Trail | 88 mm | 109 mm | 89 mm | 88 mm |
| Stack | 614 mm | 614 mm | 619 mm | 623 mm |
| Reach | 432 mm | 452 mm | 471 mm | 489 mm |
| Top Tube Length | 606 mm | 626 mm | 646 mm | 666 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 130 mm | 130 mm | 135 mm | 140 mm |
| Chainstay Length | 483 mm | 483 mm | 483 mm | 483 mm |
| Wheelbase | 1193 mm | 1193 mm | 1233 mm | 1254 mm |
| Bottom Bracket Drop | 16 mm | 16 mm | 16 mm | 16 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
CrossRay FS E 5.0 completes the Rraymon E Crossray model. R RAYMON released 13 e-bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the R RAYMON CrossRay E 3.0 2022 has a starting price of 2972$. R RAYMON CrossRay E 8.0 2022 on the other hand is the most expensive at 4777$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Hybrid e-bikes average price
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4140$. In conclusion, this e-bike price is 66.94% higher than the price of the average Hybrid e-bike.
Overview of components
Fork
The CrossRay FS E 5.0 comes factory-installed with the Suntour XCR 34 fork. This has a travel range of 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the SR SUNTOUR Raidon R rear shock model, which has a travel of 120mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
As for the wheels, R RAYMON CrossRay FS E 5.0 2022, has a aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. R RAYMON CrossRay FS E 5.0 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
