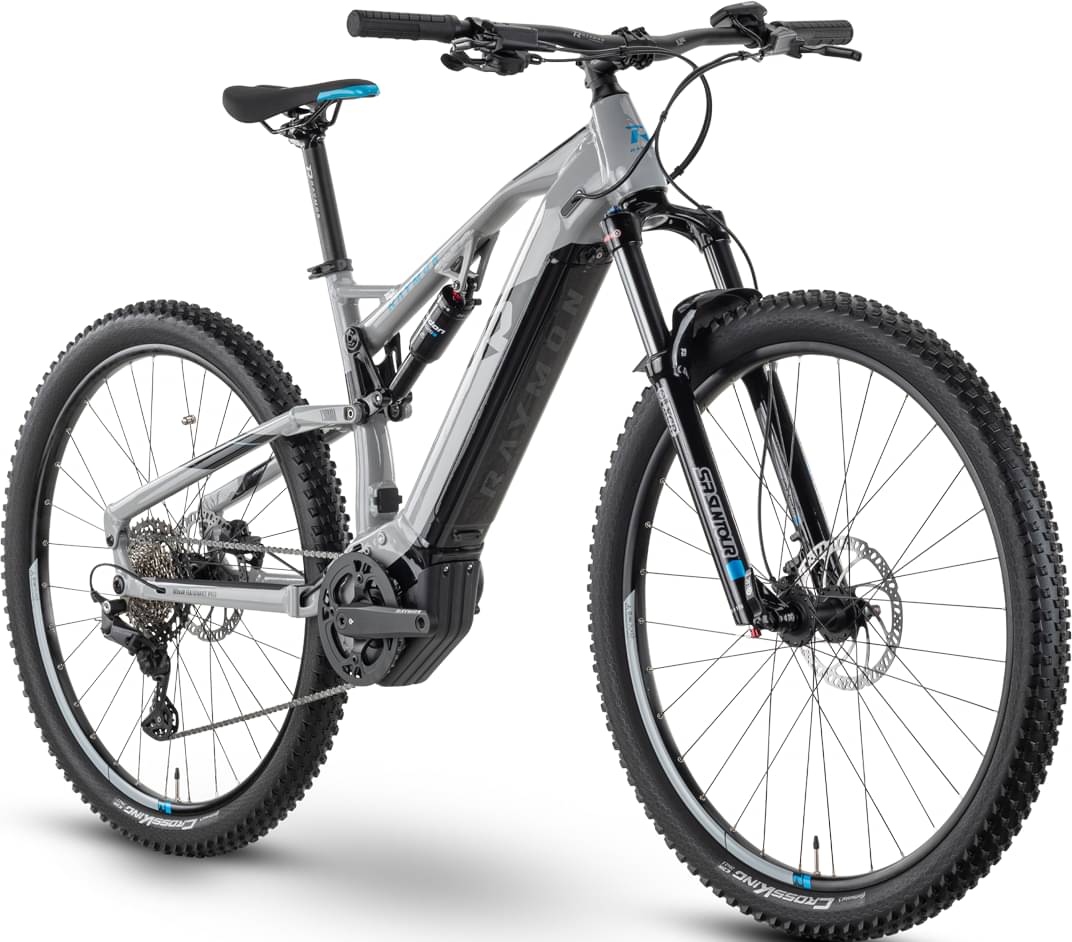

rraymon R RAYMON FullRay 130E 5.0 2022
2022 E-bike
Estimate price |
4,243$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork Suntour XCR 34
-
Groupset Deore -
Suspension Full -
Motor Yamaha 250W 70Nm mid-drive -
Battery Yamaha ML500, 500 Wh, 36 V -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29", Alloy 6061, Integrated battery, Boost, 130 mm
Suspension Fork
SR SUNTOUR XCR34 Boost LOR, remote lockout, Air, 130 mm, tapered
Rear Shock
SR SUNTOUR Raidon R, Air, 210x55 mm
Drivetrain
Rear Derailleur
Shimano Deore LG, RD-M5130, Shadow Plus, 10-S
Shift Levers
Integrated into display
Cassette
Shimano CS-LG400, 11-43 T
Crank
R Raymon, Narrow Wide, 38 T
Chain
Shimano CN-LG500
Pedals
R Raymon, aluminum
Wheels
Rims
Shimano CS-LG400, 11-43 T
Tires
Continental Cross King, 58-622, 29x2.3
Brakes
Brakes
Tektro Draco, 2-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 31.8, 7 °, Ahead
Handlebar
R Raymon Riser 31.8 mm, 780 mm, Sweep: 6 °, Rise: 15 mm
Grips
R Raymon MTB, Lock-on grips
Seat
Seatpost
R Raymon, 31.6 mm, 350 mm, Patent
Motor & Battery
Motor
Yamaha PW-ST, 250 W, 70 Nm
Battery
Yamaha ML500, 500 Wh, 36 V
Remote
Yamaha Display A, LCD-Display
Charger
Yamaha rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.36 mm | 1.29 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm |
| Front Center | 750 mm | 779 mm | 813 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 111 mm | 111 mm | 111 mm |
| Stack | 618 mm | 628 mm | 637 mm |
| Reach | 438 mm | 463 mm | 493 mm |
| Top Tube Length | 575 mm | 602 mm | 633 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 478 mm | 478 mm | 478 mm |
| Wheelbase | 1226 mm | 1255 mm | 1289 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
FullRay 130E 5.0 is a Rraymon E Fullray model. R RAYMON released 19 e-bikes variations of this model so far. You can easily view all of the Rraymon E Fullray e-bikes models from 2022, here.
Model range prices
R RAYMON FullRay 130E 4.0 2022 is the most affordable e-bike of this model and has a price of 3715$. On the other hand, R RAYMON FullRay 150E 11.0 2022, is the most expensive and costs 5945$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail e-bikes
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When R RAYMON released this model in 2022, its price was 3928$. Doing a quick comparison, we notice that FullRay 130E 5.0 price is 16.73% higher than the average cost of a Trail e-bike.
Overview of components
Fork
This e-bike has the Suntour XCR 34 fork installed. The fork’s travel is 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this e-bike is SR SUNTOUR Raidon R, with a travel distance of 130mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When it comes to wheels, the FullRay 130E 5.0 e-bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
