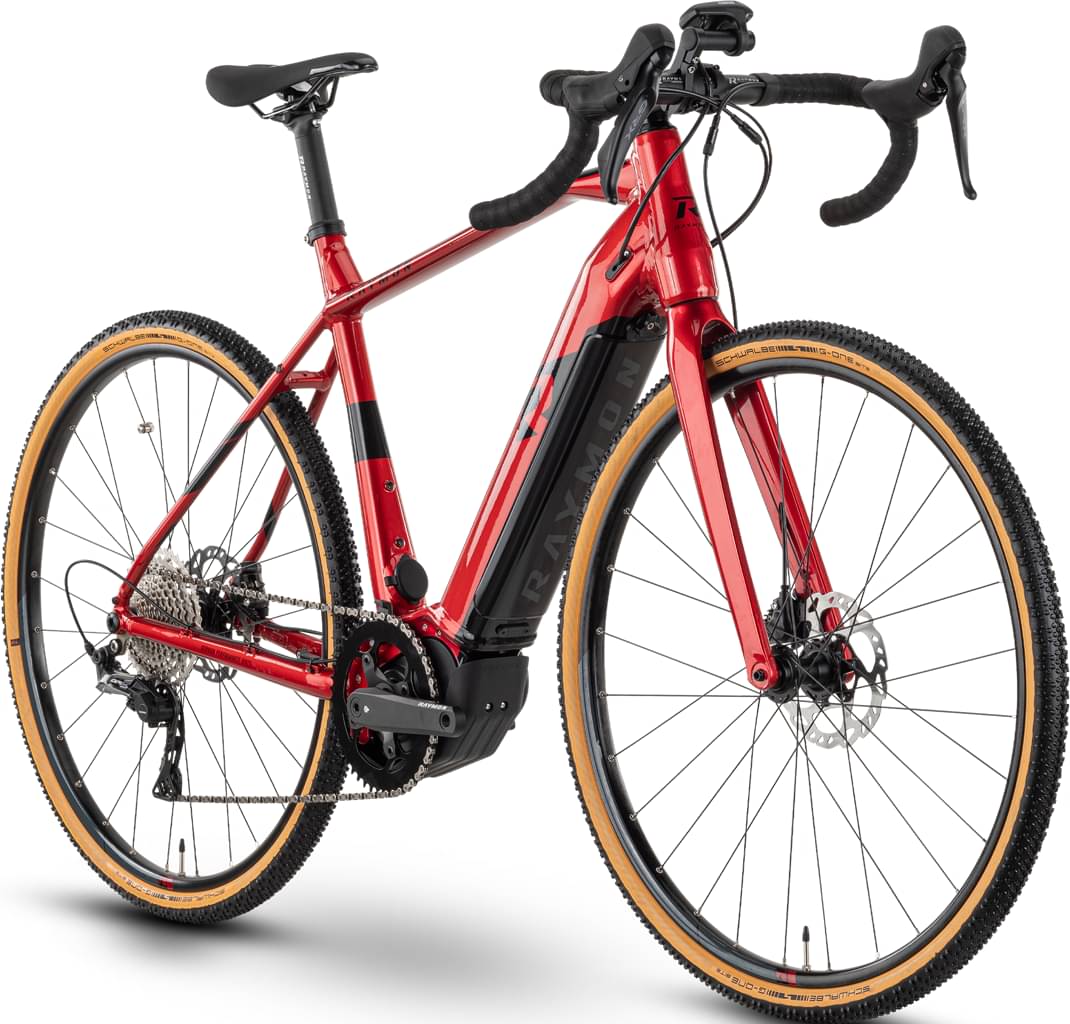

rraymon R RAYMON GravelRay E 7.0 2022
2022 E-bike
Estimate price |
4,652$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset GRX 800 -
Suspension Rigid -
Motor Yamaha 250W 70Nm mid-drive -
Battery Yamaha ML500, 500 Wh, 36 V -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", Alloy 6061, Integrated battery
Suspension Fork
Alloy Gravel Disc, tapered
Drivetrain
Rear Derailleur
Shimano GRX, RD-RX812, Shadow Plus, 11-S
Shift Levers
Integrated into display
Cassette
Shimano CS-M5100, 11-42 T
Crank
R Raymon, Narrow Wide, 48 T
Chain
KMC e11S
Wheels
Rims
Shimano CS-M5100, 11-42 T
Tires
Schwalbe G-One Bite, Performance, 40-622, 28x1.5
Brakes
Brakes
Shimano BR-RX400, 2-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 31.8, 6 °, Ahead
Handlebar
R Raymon Drop 31.8 mm, 440 mm, Drop: 116 mm
Grips
R Raymon Tape
Seat
Seatpost
R Raymon, 31.6 mm, 350 mm, Patent
Motor & Battery
Motor
Yamaha PW-ST, 250 W, 70 Nm
Battery
Yamaha ML500, 500 Wh, 36 V
Remote
Yamaha Display A, LCD-Display
Charger
Yamaha rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.42 mm | 1.42 mm | 1.42 mm |
| Bottom Bracket Height | 277 mm | 277 mm | 277 mm | 277 mm |
| Front Center | 636 mm | 651 mm | 664 mm | 679 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 63 mm | 63 mm | 63 mm | 63 mm |
| Stack | 584 mm | 599 mm | 613 mm | 627 mm |
| Reach | 411 mm | 421 mm | 431 mm | 441 mm |
| Top Tube Length | 587 mm | 601 mm | 615 mm | 630 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 510 mm | 540 mm | 570 mm | 600 mm |
| Head Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 165 mm | 180 mm | 195 mm | 210 mm |
| Chainstay Length | 464 mm | 464 mm | 464 mm | 464 mm |
| Wheelbase | 1090 mm | 1105 mm | 1119 mm | 1134 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
GravelRay E 7.0 belongs to the Rraymon E Gravelray model. R RAYMON launched 5 e-bikes of this model so far. Take a sneak peek at all Rraymon E Gravelray e-bikes models from 2022, by clicking here.
Model range prices
R RAYMON GravelRay E 6.5 2022 is the most economical model, with a starting price of 4034$. R RAYMON GravelRay E 7.5 2022 on the other hand costs 4458$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Gravel e-bikes average price
If you want an acceptable Gravel e-bike you should know that the average price is 3642$. However, you could also get a good Gravel e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2022 for 4246$. In conclusion, this e-bike price is 16.58% more expensive than the price of the average Gravel e-bike.
Overview of components
Fork material
When it comes to the fork, this e-bike has an aluminum one, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels
The GravelRay E 7.0 2022 e-bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. R RAYMON GravelRay E 7.0 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
