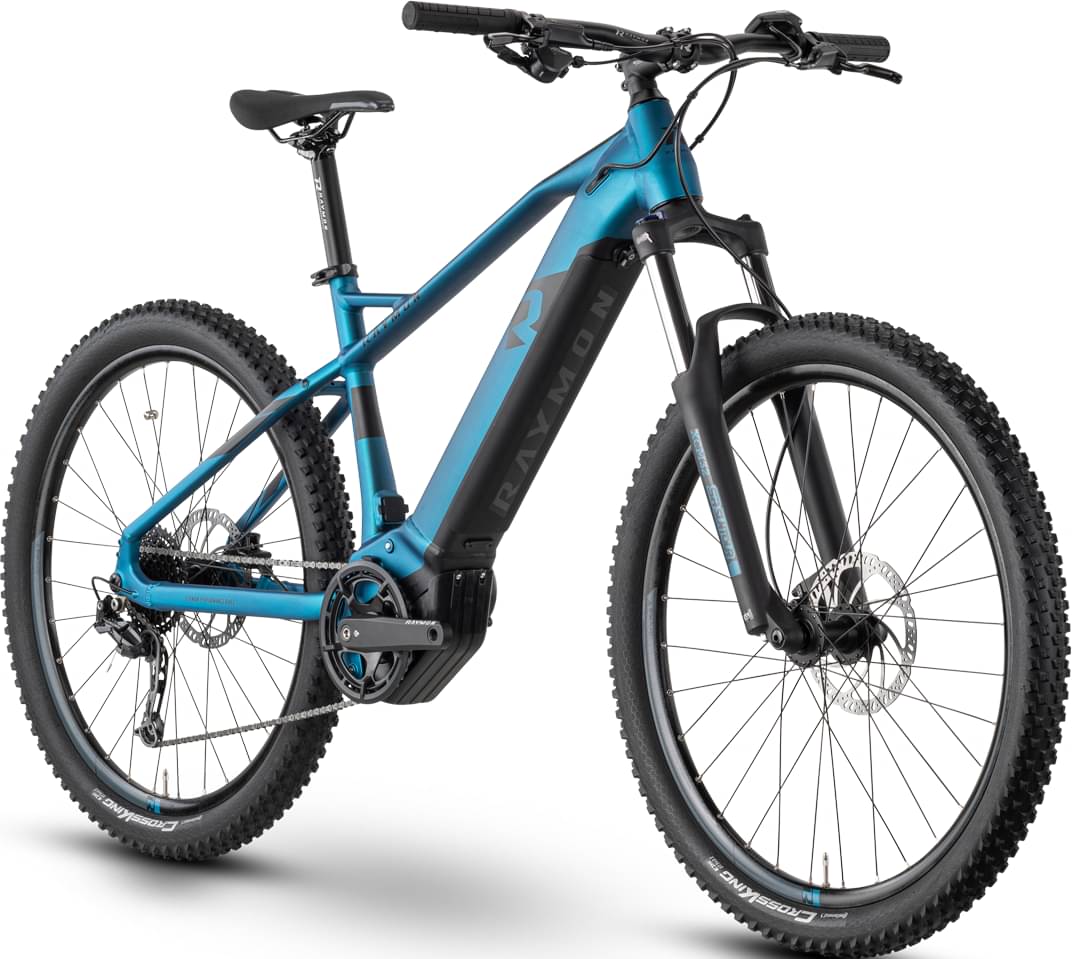

rraymon R RAYMON HardRay E 5.0 2022
2022 E-bike
Estimate price |
3,669$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 27.5" -
Travel Front 120mm -
Fork Suntour XCM
-
Groupset Alivio -
Suspension Hardtail -
Motor Yamaha 250W 70Nm mid-drive -
Battery Simplo EnergyTube, 630 Wh, 36 V -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
27.5", Alloy 6061, Integrated battery, Boost
Suspension Fork
SR SUNTOUR XCM32 NLO, Coil, 120 mm, tapered
Drivetrain
Rear Derailleur
Shimano Alivio, RD-M3100, Shadow, 9-S
Shift Levers
Integrated into display
Cassette
Shimano CS-HG200, 11-36 T
Crank
R Raymon, 38 T
Chain
KMC Z9
Pedals
R Raymon, aluminum
Wheels
Rims
Shimano CS-HG200, 11-36 T
Tires
Continental Cross King, 58-584, 27.5x2.3
Brakes
Brakes
Clarks M2, 2-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 31.8, 7 °, Ahead
Handlebar
R Raymon Riser 31.8 mm, 720 mm, Sweep: 6 °, Rise: 15 mm
Grips
R Raymon MTB, Lock-on grips
Seat
Seatpost
R Raymon, 31.6 mm, 350 mm, Patent
Motor & Battery
Motor
Yamaha PW-ST, 250 W, 70 Nm
Battery
Simplo EnergyTube, 630 Wh, 36 V
Remote
Yamaha Display A, LCD-Display
Charger
Simplo rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.457 mm | 1.468 mm | 1.458 mm | 1.446 mm |
| Bottom Bracket Height | 315 mm | 295 mm | 295 mm | 295 mm |
| Front Center | 710 mm | 737 mm | 751 mm | 764 mm |
| Rake | 42 mm | 42 mm | 42 mm | 41 mm |
| Trail | 105 mm | 105 mm | 105 mm | 106 mm |
| Stack | 612 mm | 646 mm | 656 mm | 665 mm |
| Reach | 420 mm | 440 mm | 450 mm | 460 mm |
| Top Tube Length | 596 mm | 625 mm | 638 mm | 651 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm | 460 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 465 mm | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1172 mm | 1206 mm | 1220 mm | 1233 mm |
| Bottom Bracket Drop | 40 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
HardRay E 5.0 belongs to the Rraymon E Hardray model. 23 e-bikes variations carry this model name so far. You can easily view all of the Rraymon E Hardray e-bikes models from 2022, here.
Model range prices
The most economical model, the R RAYMON HardRay E 1.0 2022 has a starting price of 2441$. R RAYMON HardRay E 7.0 2022 on the other hand is the most expensive at 4246$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail e-bikes average price
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When R RAYMON released this model in 2022, its price was 3397$. Comparing the average cost of a Trail e-bike to this one, you will see that HardRay E 5.0 price is 0.95% more expensive.
Overview of components
Fork
The HardRay E 5.0 comes factory-installed with the Suntour XCM fork. This has a travel range of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When leaving the production line, the HardRay E 5.0 model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The HardRay E 5.0 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
