Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Fork Suntour NEX -
Groupset Altus, Shimano -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", Alloy 6061
Suspension Fork
SR SUNTOUR NEX-E25
Drivetrain
Rear Derailleur
Shimano Altus, RD-M310, 7-S
Shift Levers
Shimano ST-EF505, Rapidfire Plus
Cassette
Shimano CS-HG200, 12-32 T
Crank
Shimano Tourney, FC-TY301
Chain
KMC HV500
Pedals
R Raymon, plastic
Wheels
Rims
Shimano CS-HG200, 12-32 T
Tires
Impac StreetPac, Reflex, 42-622, 28x1.6
Brakes
Brakes
Shimano BR-MT200, 2-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 25.4, adjustable
Handlebar
R Raymon Riser 25.4 mm, 640 mm, Sweep: 15 °, Rise: 16 mm
Grips
R Raymon Ergo, Lock-on grips
Seat
Seatpost
R Raymon, 27.2 mm, Patent
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.57 mm | 1.57 mm | 1.54 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm | 276 mm |
| Front Center | 626 mm | 656 mm | 665 mm | 682 mm |
| Rake | 39 mm | 42 mm | 42 mm | 43 mm |
| Trail | 74 mm | 71 mm | 71 mm | 70 mm |
| Stack | 624 mm | 634 mm | 643 mm | 653 mm |
| Reach | 381 mm | 404 mm | 410 mm | 423 mm |
| Top Tube Length | 574 mm | 600 mm | 609 mm | 625 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 140 mm | 150 mm | 160 mm | 170 mm |
| Chainstay Length | 445 mm | 445 mm | 441 mm | 445 mm |
| Wheelbase | 1064 mm | 1094 mm | 1099 mm | 1120 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

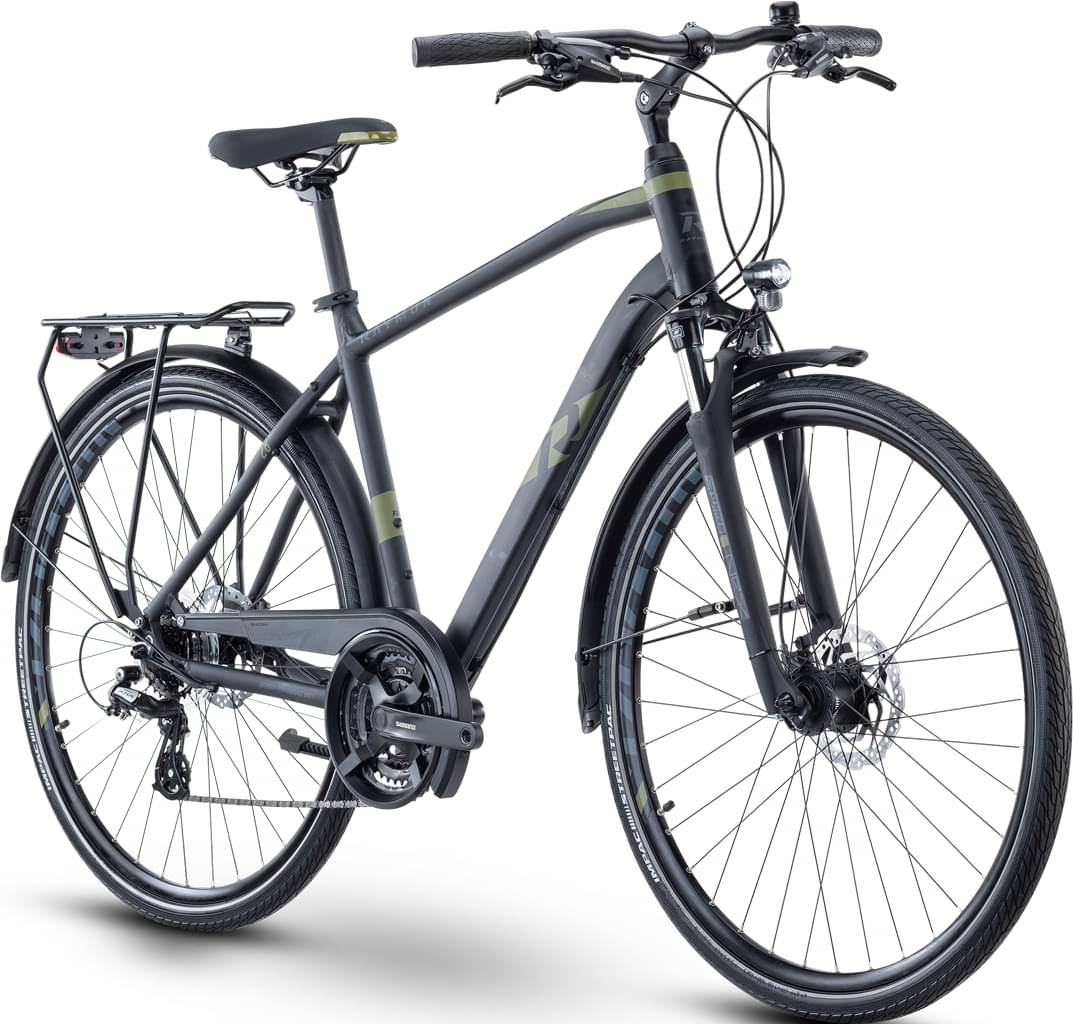

TourRay 2.0 is a Rraymon Tourray model. There are 6 bikes that carry this model name. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
The most economical model, the R RAYMON TourRay 1.0 2021 has a starting price of 721$. R RAYMON TourRay 6.0 2021 on the other hand is the most expensive at 1645$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Touring bikes average price
If you want to purchase a solid Touring bike, it is important to know that the average cost is 1007$. However, even though the average price of a Touring bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 827$. In conclusion, this bike price is 21.77% smaller than the price of the average Touring bike.
TourRay 2.0 components
Fork
R RAYMON TourRay 2.0 2021 bike is equipped with the Suntour NEX fork, and has mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The TourRay 2.0 2021 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The TourRay 2.0 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
TourRay 2.0 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
