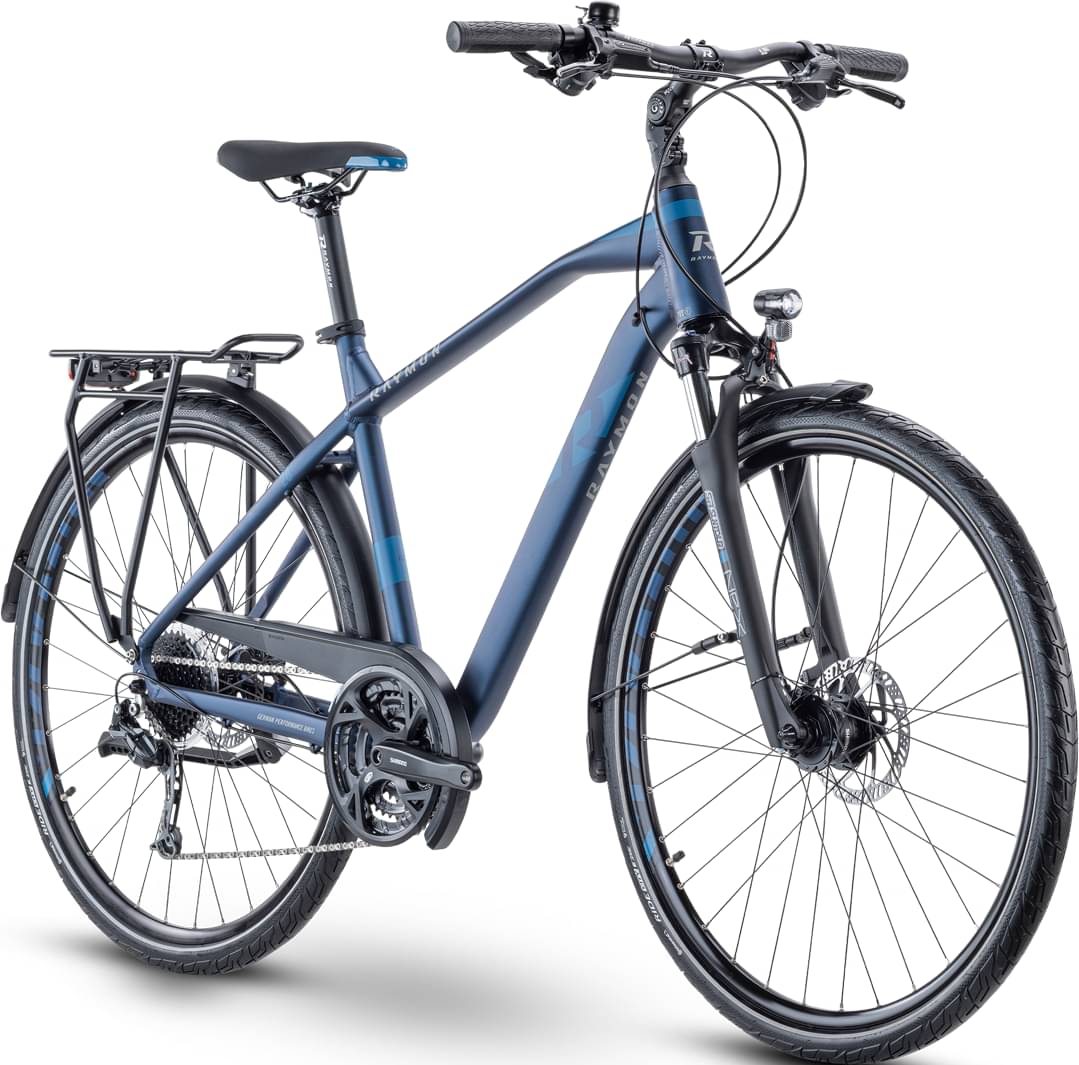

rraymon R RAYMON TourRay 4.0 2021
2021 Road
Estimate price |
1,139$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Fork Suntour NEX -
Groupset Deore, Altus -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", Alloy 6061
Suspension Fork
SR SUNTOUR NEX-E25
Drivetrain
Rear Derailleur
Shimano Deore, RD-M592, Shadow, 9-S
Shift Levers
Shimano Altus, SL-M2010, Rapidfire Plus
Cassette
Shimano CS-HG200, 11-34 T
Crank
Shimano Altus, FC-M371, Alloy
Chain
KMC X9
Pedals
R Raymon, plastic
Wheels
Rims
Shimano CS-HG200, 11-34 T
Tires
Continental Ride City, Reflex, 42-622, 28x1.6
Brakes
Brakes
Tektro HD-T275, 2-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 31.8, adjustable
Handlebar
R Raymon Riser 31.8 mm, 640 mm, Sweep: 6 °, Rise: 18 mm
Grips
R Raymon Ergo, Lock-on grips
Seat
Seatpost
R Raymon, 30.9 mm, Patent
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.57 mm | 1.57 mm | 1.54 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm | 276 mm |
| Front Center | 630 mm | 656 mm | 665 mm | 682 mm |
| Rake | 43 mm | 42 mm | 42 mm | 43 mm |
| Trail | 70 mm | 71 mm | 71 mm | 70 mm |
| Stack | 624 mm | 634 mm | 643 mm | 653 mm |
| Reach | 381 mm | 404 mm | 410 mm | 423 mm |
| Top Tube Length | 574 mm | 600 mm | 609 mm | 625 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 140 mm | 150 mm | 160 mm | 170 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1064 mm | 1090 mm | 1099 mm | 1116 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
TourRay 4.0 is part of the Rraymon Tourray model. 6 bikes variations carry this model name so far. You can easily view all of the Rraymon Tourray bikes models from 2021, here.
Model range prices
The most economical model, the R RAYMON TourRay 1.0 2021 has a starting price of 721$. R RAYMON TourRay 6.0 2021 on the other hand is the most expensive at 1645$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Touring bikes
If you want to purchase a solid Touring bike, it is important to know that the average cost is 1007$. However, this doesn’t mean that if you spend less money on a Touring bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When R RAYMON released this model in 2021, its price was 1039$. Doing a quick comparison, we notice that TourRay 4.0 price is 3.18% higher than the average cost of a Touring bike.
Overview of components
Fork
The Suntour NEX is included from the factory. It has a travel distance of mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The TourRay 4.0 2021 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
