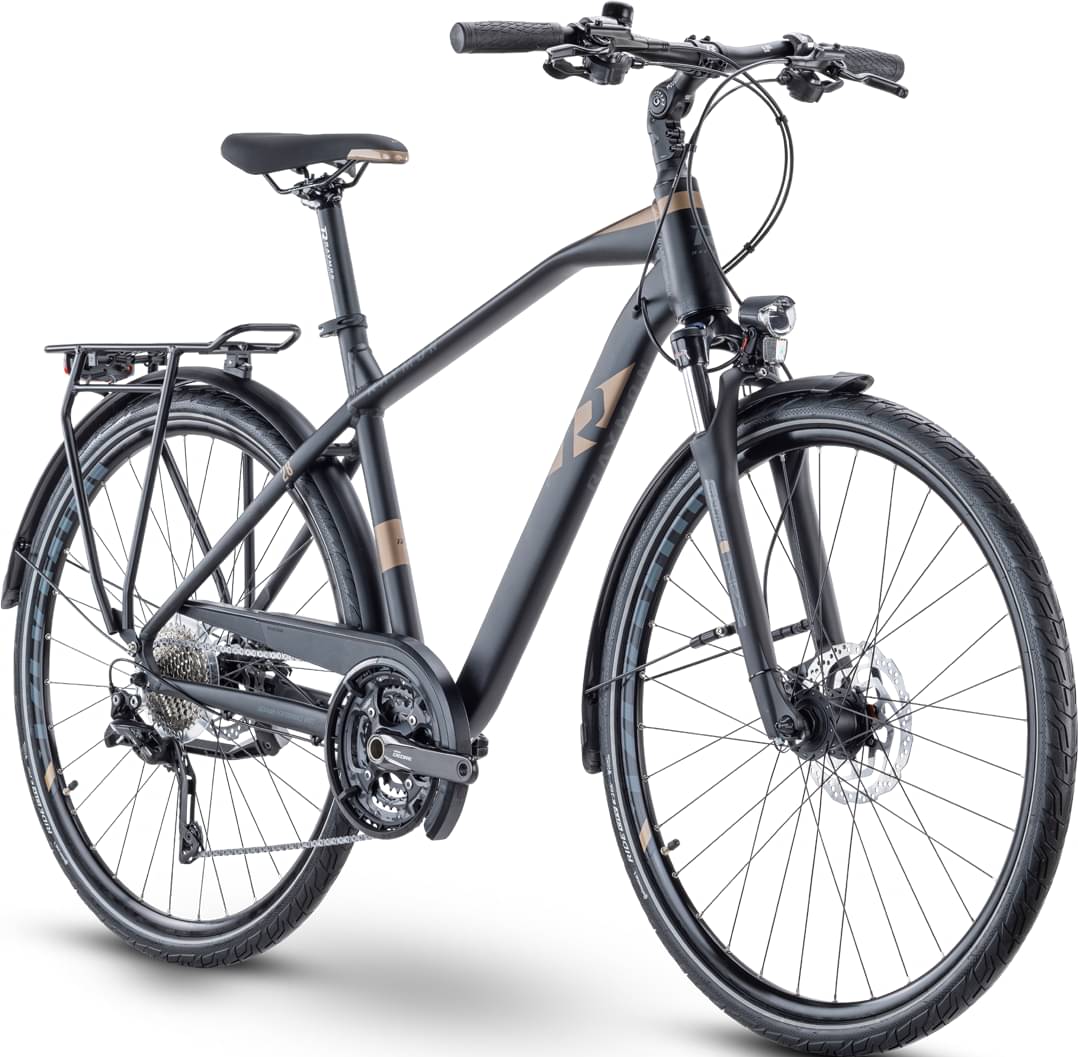

rraymon R RAYMON TourRay 5.0 2021
2021 Road
Estimate price |
1,453$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Fork Suntour NEX -
Groupset XT -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", Alloy 6061
Suspension Fork
SR SUNTOUR NEX-E25, Coil, 63 mm
Drivetrain
Rear Derailleur
Shimano Deore XT, RD-T8000, Shadow, 10-S
Shift Levers
Shimano Deore XT, SL-T8000, Rapidfire Plus
Cassette
Shimano CS-HG500, 11-34 T
Crank
, 48/36/26 T
Chain
KMC X10
Pedals
R Raymon, aluminum
Wheels
Rims
Shimano CS-HG500, 11-34 T
Tires
Continental Ride City, Reflex, 42-622, 28x1.6
Brakes
Brakes
Shimano BR-MT200, 2-piston, Hydraulic disc brake
Cockpit
Stem
Promax MA551S, Ahead
Handlebar
R Raymon Riser 31.8 mm, 640 mm, Sweep: 6 °, Rise: 18 mm
Grips
R Raymon Ergo, Lock-on grips
Seat
Seatpost
R Raymon, 30.9 mm, Patent
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.57 mm | 1.57 mm | 1.54 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm | 276 mm |
| Front Center | 630 mm | 656 mm | 665 mm | 682 mm |
| Rake | 43 mm | 42 mm | 42 mm | 43 mm |
| Trail | 70 mm | 71 mm | 71 mm | 70 mm |
| Stack | 624 mm | 634 mm | 643 mm | 653 mm |
| Reach | 381 mm | 404 mm | 410 mm | 423 mm |
| Top Tube Length | 574 mm | 600 mm | 609 mm | 625 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 140 mm | 150 mm | 160 mm | 170 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1064 mm | 1090 mm | 1099 mm | 1116 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
TourRay 5.0 is a Rraymon Tourray model. There are 6 bikes that carry this model name. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
R RAYMON TourRay 1.0 2021 is the cheapest bike model and costs 721$. R RAYMON TourRay 6.0 2021 is the most expensive one and costs 1645$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Touring bikes average price
According to our math, the average price for a trustworthy Touring bike is 1007$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Touring bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When R RAYMON released this model in 2021, its price was 1326$. Comparing the average cost of a Touring bike to this one, you will see that TourRay 5.0 price is 31.68% more expensive.
Overview of components
Fork
The fork installed on this bike is the Suntour NEX model. The travel on this model is mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When it comes to wheels, the TourRay 5.0 bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The TourRay 5.0 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
