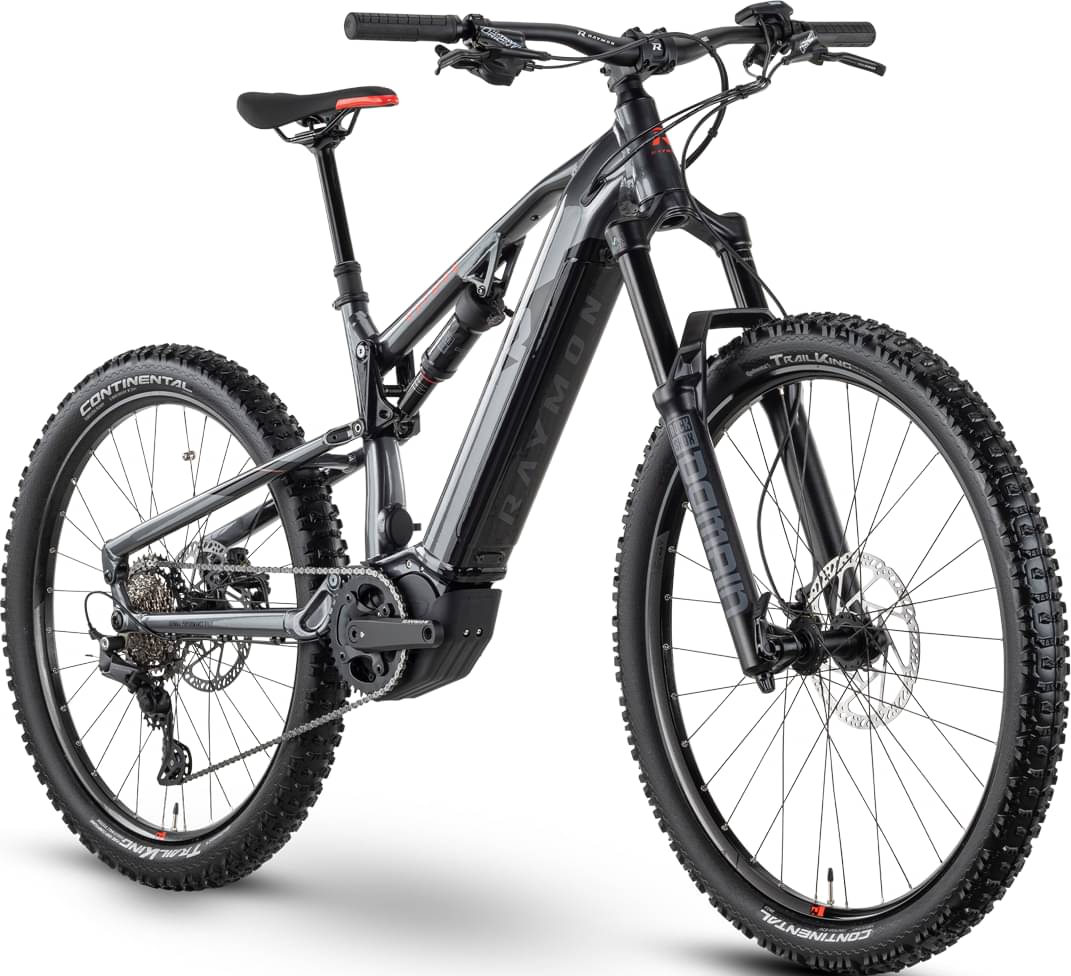

rraymon R RAYMON TrailRay 160E 8.0 2022
2022 E-bike
Estimate price |
5,467$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox Domain
-
Groupset Deore -
Suspension Full -
Motor Yamaha 250W 80Nm mid-drive -
Battery Simplo EnergyTube, 630 Wh, 36 V -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29/27.5", Alloy 6061, Integrated battery, Boost, 160 mm
Suspension Fork
RockShox Domain R, DebonAir, Air, 160 mm, tapered
Rear Shock
RockShox Deluxe Select, Air, 230x65 mm
Drivetrain
Rear Derailleur
Shimano Deore LG, RD-M5130, Shadow Plus, 10-S
Shift Levers
Integrated into display
Cassette
Shimano CS-LG400, 11-43 T
Crank
R Raymon, Narrow Wide, 38 T
Chain
Shimano CN-LG500
Pedals
R Raymon, aluminum
Wheels
Rims
Shimano CS-LG400, 11-43 T
Tires
Continental Trail King, 60-622, 29x2.4
Brakes
Brakes
Tektro HD-M745, 4-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 35, 0 °, Ahead
Handlebar
R Raymon Riser 35 mm, 780 mm, Sweep: 9 °, Rise: 20 mm
Grips
R Raymon MTB, Lock-on grips
Seat
Seatpost
R Raymon Pro, 31.6 mm, Dropper post
Motor & Battery
Motor
Yamaha PW-X2, 250 W, 80 Nm
Battery
Simplo EnergyTube, 630 Wh, 36 V
Remote
Yamaha Display A, LCD-Display, Micro-USB
Charger
Simplo rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.34 mm | 1.33 mm | 1.27 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 765 mm | 785 mm | 813 mm | 833 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 108 mm | 108 mm | 108 mm | 108 mm |
| Stack | 628 mm | 628 mm | 646 mm | 646 mm |
| Reach | 447 mm | 467 mm | 487 mm | 507 mm |
| Top Tube Length | 602 mm | 622 mm | 646 mm | 666 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 390 mm | 430 mm | 470 mm | 510 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 120 mm | 120 mm | 140 mm | 140 mm |
| Chainstay Length | 482 mm | 482 mm | 482 mm | 482 mm |
| Wheelbase | 1247 mm | 1267 mm | 1295 mm | 1315 mm |
| Bottom Bracket Drop | 5 mm | 5 mm | 5 mm | 5 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
TrailRay 160E 8.0 is a Rraymon E Trailray model. 14 e-bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the R RAYMON TrailRay 140E 7.0 2022 has a starting price of 4565$. R RAYMON TrailRay 140E 11.0 2022 on the other hand is the most expensive at 7325$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2022 for 4989$. Comparing this to the average Enduro e-bike price, we see that the price is 4.26% higher.
TrailRay 160E 8.0 components
Fork
R RAYMON TrailRay 160E 8.0 2022 e-bike is equipped with the RockShox Domain fork, and has 160mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
As for the rear shock, this e-bike has the RockShox Deluxe Select model, with a travel of 160mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When it comes to wheels, the TrailRay 160E 8.0 e-bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The TrailRay 160E 8.0 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
The R RAYMON model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
