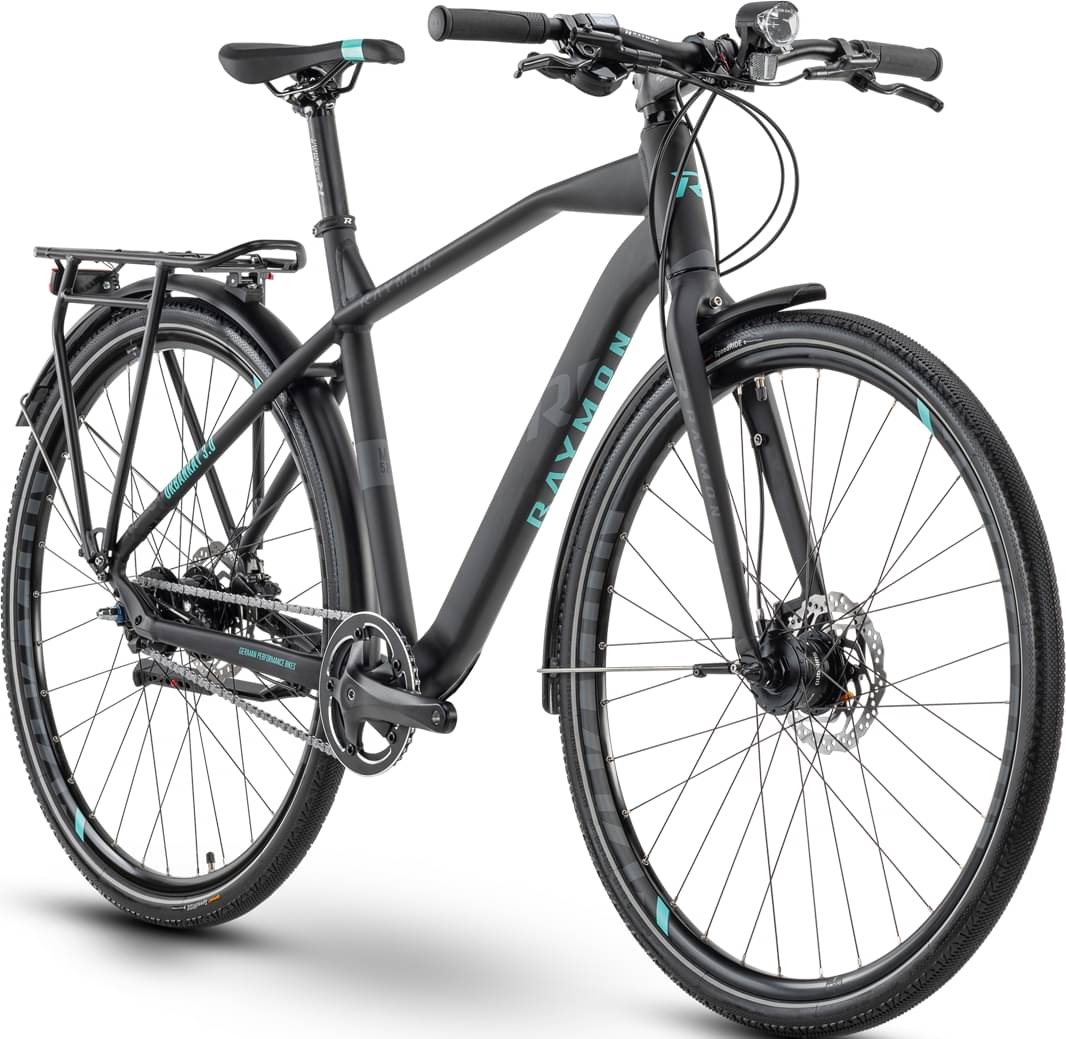

rraymon R RAYMON UrbanRay 3.0 2021
2021 Urban
Estimate price |
1,569$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 700c -
Groupset Alfine -
Suspension Rigid -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28", Alloy 6061
Suspension Fork
R Raymon Alloy
Drivetrain
Shift Levers
Shimano Alfine, SL-S700, Rapidfire Plus
Cassette
Shimano SM-Gear, 18
Crank
R Raymon, Alloy
Chain
KMC Z1 Wide
Pedals
R Raymon, plastic
Wheels
Rims
Shimano SM-Gear, 18
Tires
Continental Speed RIDE, Reflex, 42-622, 28x1.6
Brakes
Brakes
Shimano BR-MT200, 2-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 31.8
Handlebar
R Raymon Riser 31.8 mm, 640 mm, Rise: 18 mm
Grips
R Raymon Ergo
Seat
Seatpost
R Raymon, 30.9 mm, Patent
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.39 mm | 1.39 mm | 1.34 mm |
| Front Center | 628 mm | 649 mm | 660 mm | 685 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 76 mm | 76 mm | 76 mm | 76 mm |
| Stack | 570 mm | 579 mm | 589 mm | 598 mm |
| Reach | 398 mm | 416 mm | 424 mm | 446 mm |
| Top Tube Length | 574 mm | 595 mm | 605 mm | 630 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 140 mm | 150 mm | 160 mm | 170 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1063 mm | 1084 mm | 1095 mm | 1120 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
UrbanRay 3.0 completes the Rraymon Urbanray model. R RAYMON launched 3 bikes of this model so far. Take a sneak peek at all Rraymon Urbanray bikes models from 2021, by clicking here.
Model range prices
R RAYMON UrbanRay 1.0 2021 is the most affordable bike of this model and has a price of 933$. On the other hand, R RAYMON UrbanRay 3.0 2021, is the most expensive and costs 1432$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for General Urban bikes
According to our math, the average price for a trustworthy General Urban bike is 499$. However, you could also get a good General Urban bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2021 and its price was 1432$. Comparing the average cost of a General Urban bike to this one, you will see that UrbanRay 3.0 price is 186.97% higher.
UrbanRay 3.0 components
Fork material
The fork on this bike is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
The wheels on UrbanRay 3.0 are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
UrbanRay 3.0 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
