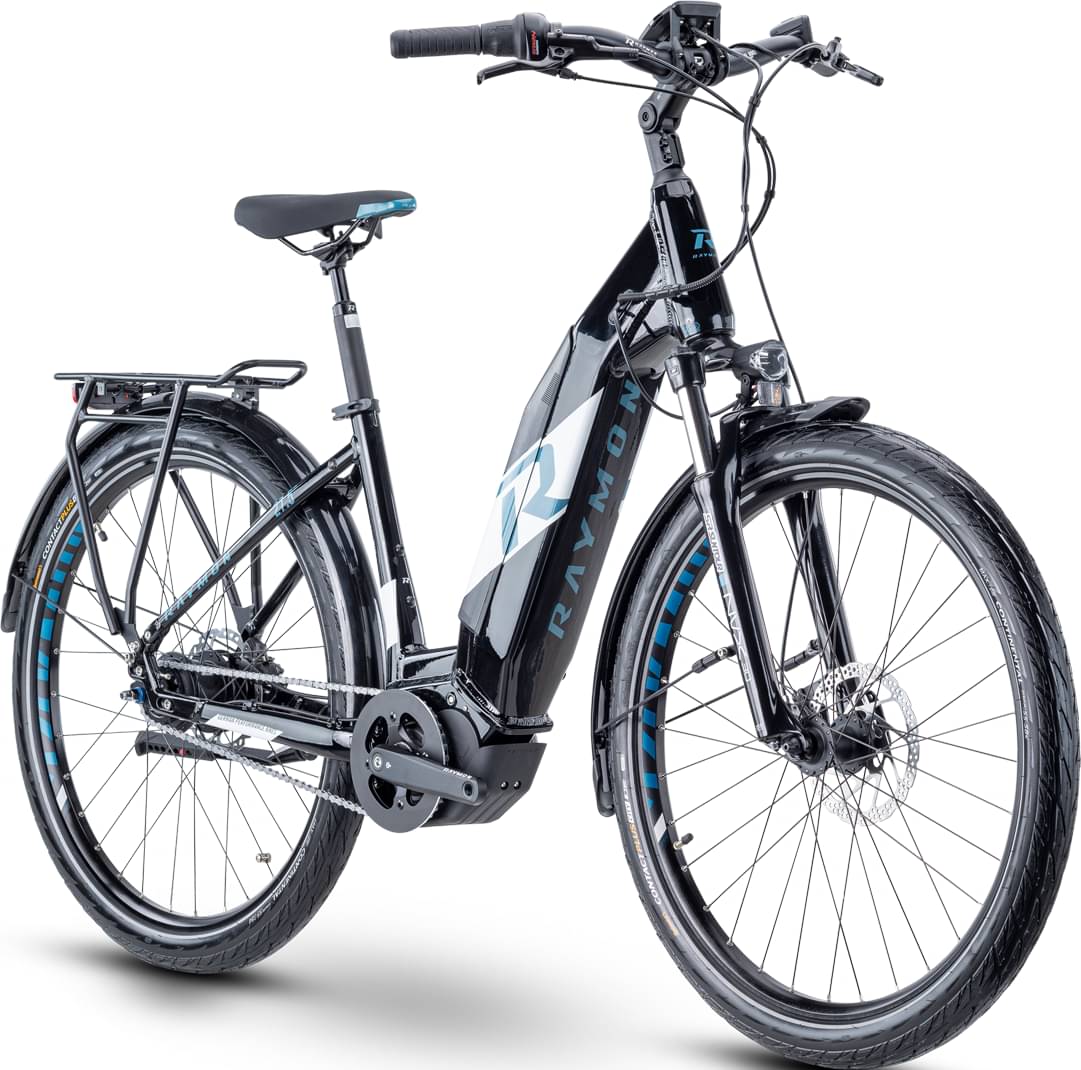

rraymon R RAYMON UrbanRay E 7.0 2021
2021 E-bike
Estimate price |
3,489$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Fork Suntour -
Groupset Nexus -
Suspension Hardtail -
Motor Yamaha 250W 50Nm mid-drive -
Battery Yamaha EX500, 500 Wh, 36 V -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
27.5", Alloy 6061, Partially integrated battery
Suspension Fork
SR SUNTOUR NVX
Drivetrain
Shift Levers
Shimano Nexus, SL-C6000-8, Revo Shift, 8-speed
Chain
KMC Z1 Narrow
Pedals
R Raymon, Alloy
Wheels
Rims
Rim: Mach1 Trucky30, Front Hub: R Raymon DB600F, 9x100mm, Rear Hub: Shimano SG-C6001-8CD
Tires
Continental CONTACT Plus City, Reflex, 56-584, 27.5x2.2
Brakes
Brakes
Shimano BR-MT200, 2-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 31.8, adjustable
Handlebar
R Raymon 31.8 mm, 640 mm, Sweep: 35 °, Rise: 25 mm
Grips
R Raymon Ergo, Lock-on grips
Seat
Saddle
R Raymon Ergo
Seatpost
R Raymon, 30.9 mm, lowerable
Motor & Battery
Motor
Yamaha PW-CE, 250W, 50Nm
Battery
Yamaha EX500, 500 Wh, 36 V
Remote
Yamaha Display C, LCD-Display, Bluetooth
Charger
Yamaha rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.58 mm | 1.55 mm | 1.51 mm |
| Front Center | 677 mm | 686 mm | 696 mm | 706 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 72 mm | 72 mm | 72 mm | 72 mm |
| Stack | 669 mm | 669 mm | 669 mm | 669 mm |
| Reach | 413 mm | 423 mm | 433 mm | 443 mm |
| Top Tube Length | 616 mm | 626 mm | 636 mm | 646 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520.01 mm | 560.01 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 180 mm | 180 mm | 180 mm | 180 mm |
| Chainstay Length | 476 mm | 476 mm | 476 mm | 476 mm |
| Wheelbase | 1146 mm | 1156 mm | 1166 mm | 1176 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
UrbanRay E 7.0 is part of the Rraymon E Urbanray model. R RAYMON released 4 e-bikes variations of this model so far. Take a sneak peek at all Rraymon E Urbanray e-bikes models from 2021, by clicking here.
Model range prices
R RAYMON UrbanRay E 7.0 2021 is the most economical model, with a starting price of 3184$. R RAYMON UrbanRay E 8.0 2021 on the other hand costs 3503$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for General Urban e-bikes
According to our calculations, the average cost of a General Urban e-bike that is reliable is 2098$. However, even though the average price of a General Urban e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3184$. Comparing this to the average General Urban e-bike price, we see that the price is 51.76% more expensive.
UrbanRay E 7.0 components
Fork
The UrbanRay E 7.0 comes factory-installed with the Suntour fork. This has a travel range of mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When leaving the production line, the UrbanRay E 7.0 model has aluminum wheels. After 700c wheels, 650b is the second most popular choice for road bikes. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. R RAYMON UrbanRay E 7.0 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
