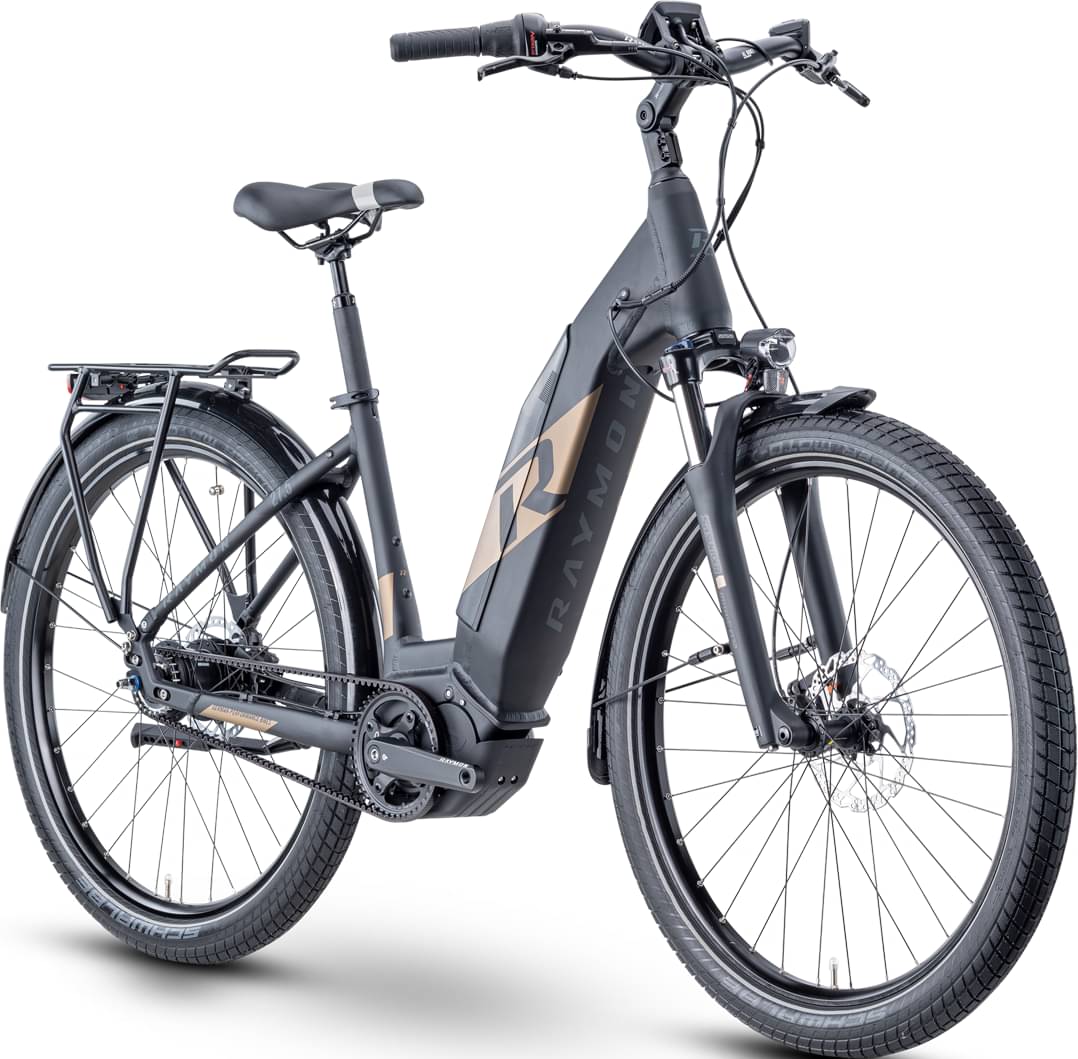

rraymon R RAYMON UrbanRay E 8.0 2021
2021 E-bike
Estimate price |
3,838$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Fork Suntour MOBIE -
Groupset Nexus -
Suspension Hardtail -
Motor Yamaha 250W 50Nm mid-drive -
Battery Yamaha EX500, 500 Wh, 36 V -
Drivetrain Belt Drive, IGH -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
27.5", Alloy 6061, Partially integrated battery
Suspension Fork
SR SUNTOUR Mobie-A32
Drivetrain
Shift Levers
Shimano Nexus, SL-C6000-8, Revo Shift, 8-speed
Chain
Gates CDX Belt
Pedals
R Raymon, Alloy
Wheels
Rims
Rim: Mach1 Trucky30, Front Hub: R Raymon DB600F, 9x100mm, Rear Hub: Shimano SG-C6001-8CD
Tires
Schwalbe Super Moto-X, Performance, Reflex, 62-584, 27.5x2.4
Brakes
Brakes
Shimano BR-MT200, 2-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 31.8, adjustable
Handlebar
R Raymon 31.8 mm, 640 mm, Sweep: 35 °, Rise: 25 mm
Grips
R Raymon Ergo, Lock-on grips
Seat
Saddle
R Raymon Ergo
Seatpost
R Raymon, 30.9 mm, lowerable
Motor & Battery
Motor
Yamaha PW-CE, 250W, 50Nm
Battery
Yamaha EX500, 500 Wh, 36 V
Remote
Yamaha Display C, LCD-Display, Bluetooth
Charger
Yamaha rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.58 mm | 1.55 mm | 1.51 mm |
| Front Center | 677 mm | 686 mm | 696 mm | 706 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 72 mm | 72 mm | 72 mm | 72 mm |
| Stack | 669 mm | 669 mm | 669 mm | 669 mm |
| Reach | 413 mm | 423 mm | 433 mm | 443 mm |
| Top Tube Length | 616 mm | 626 mm | 636 mm | 646 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520.01 mm | 560.01 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 180 mm | 180 mm | 180 mm | 180 mm |
| Chainstay Length | 476 mm | 476 mm | 476 mm | 476 mm |
| Wheelbase | 1146 mm | 1156 mm | 1166 mm | 1176 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
UrbanRay E 8.0 completes the Rraymon E Urbanray model. R RAYMON launched 4 e-bikes of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
R RAYMON UrbanRay E 7.0 2021 is the most affordable e-bike of this model and has a price of 3184$. On the other hand, R RAYMON UrbanRay E 8.0 2021, is the most expensive and costs 3503$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
General Urban e-bikes average price
According to our math, the average price for a trustworthy General Urban e-bike is 2098$. However, even if your budget is less than the average, you might still be able to get a top-quality General Urban e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
When R RAYMON released this model in 2021, its price was 3503$. Comparing the average cost of a General Urban e-bike to this one, you will see that UrbanRay E 8.0 price is 66.97% more expensive.
UrbanRay E 8.0 components
Fork
The fork installed on this bike is the Suntour MOBIE model. The travel on this model is mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
As for the wheels, R RAYMON UrbanRay E 8.0 2021, has a aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The UrbanRay E 8.0 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
