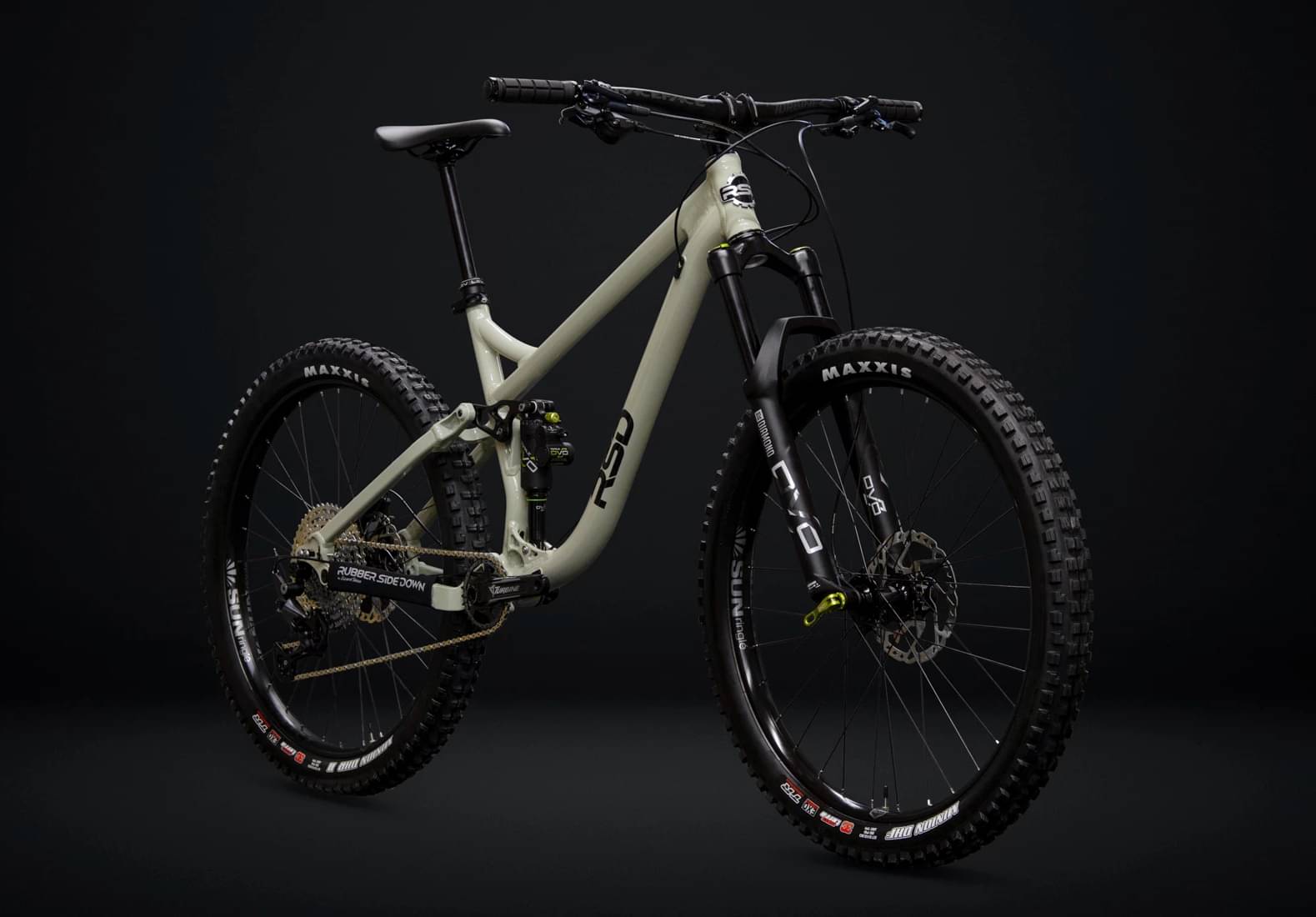

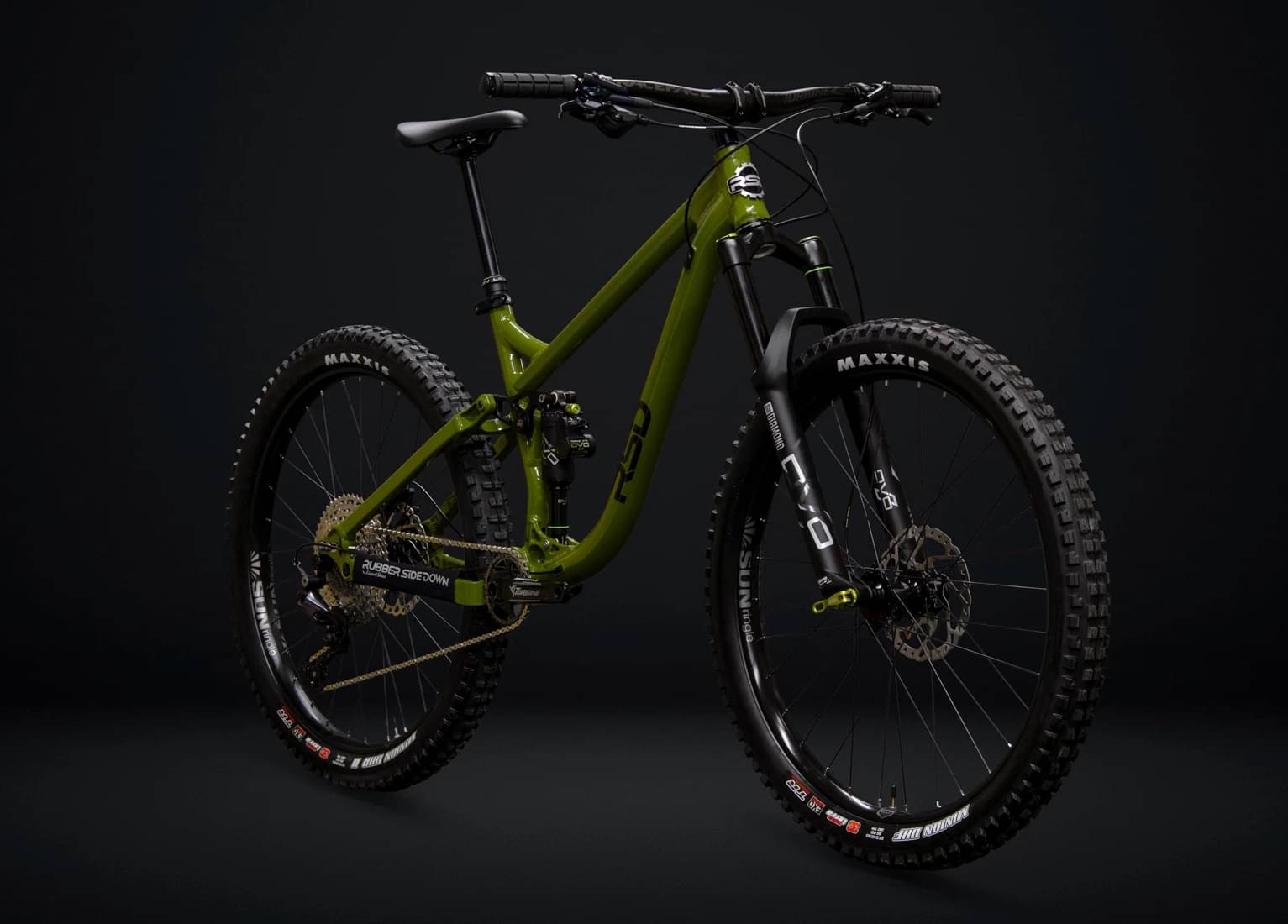

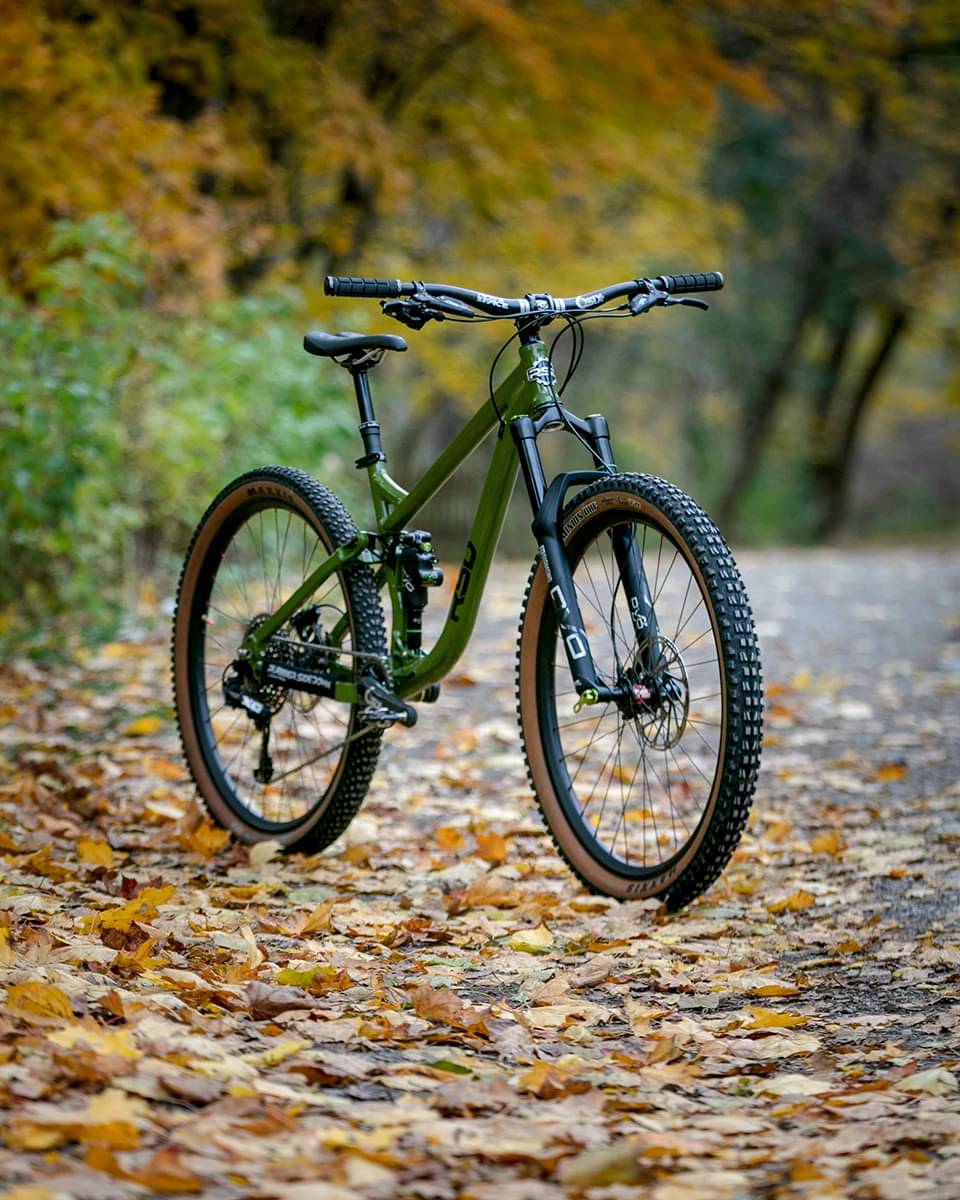

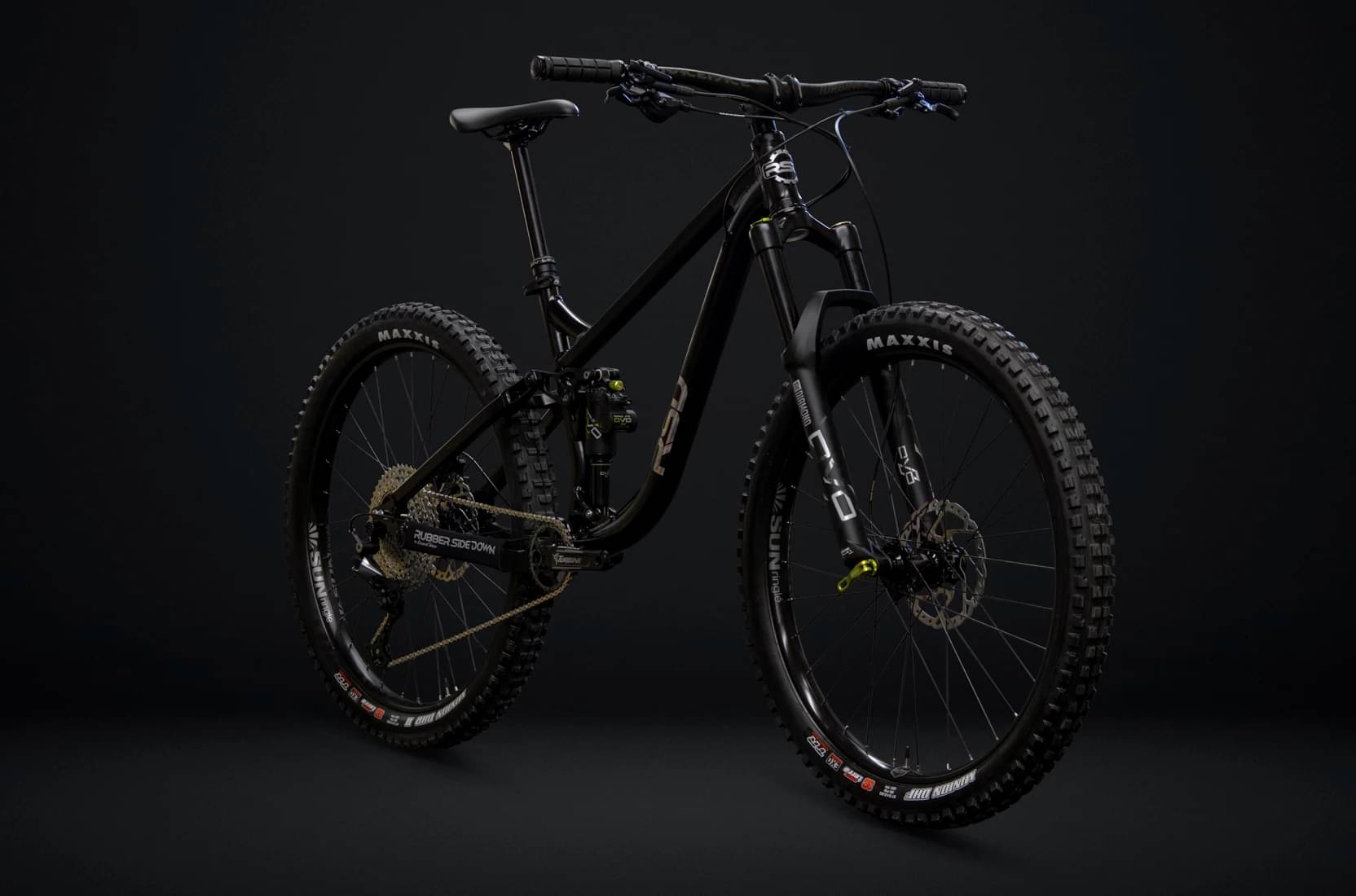

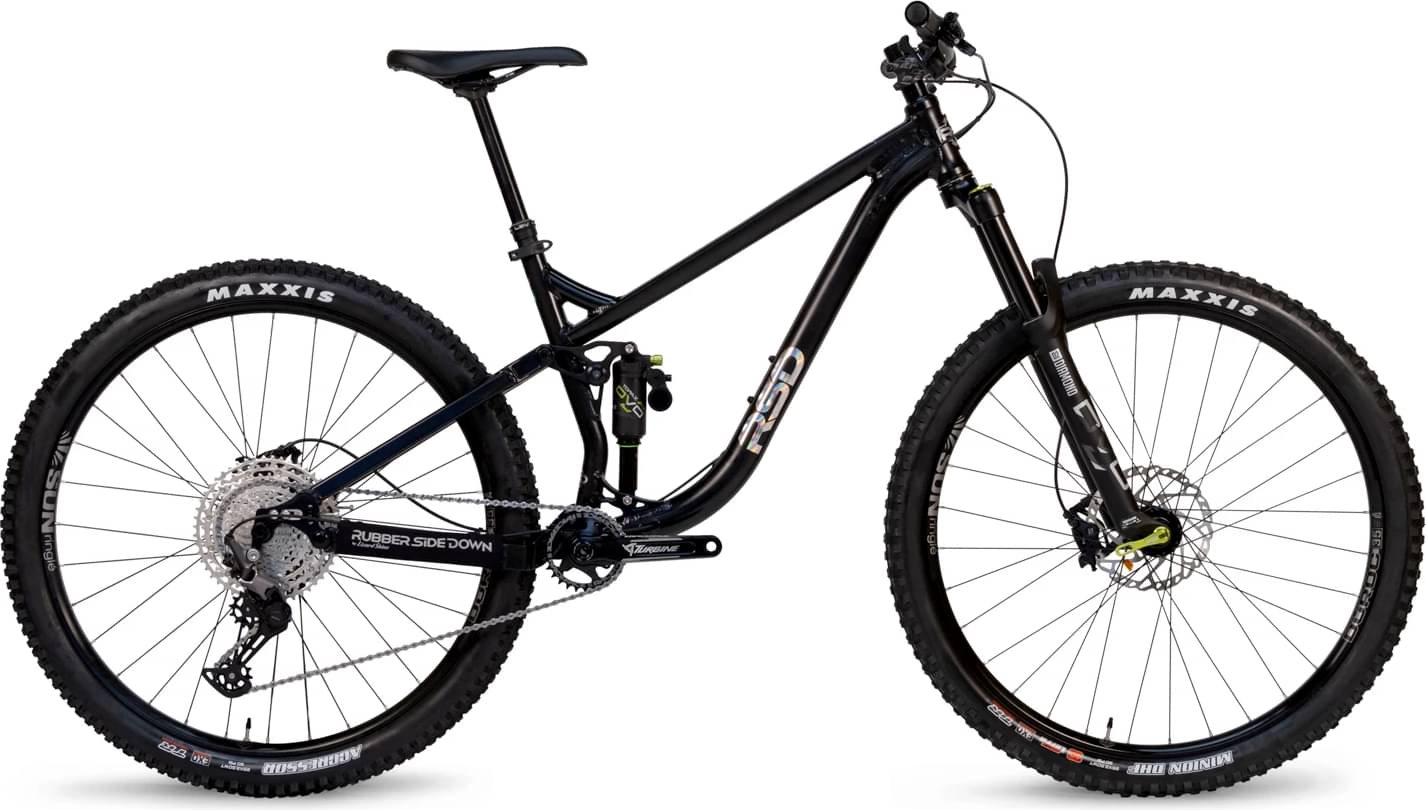

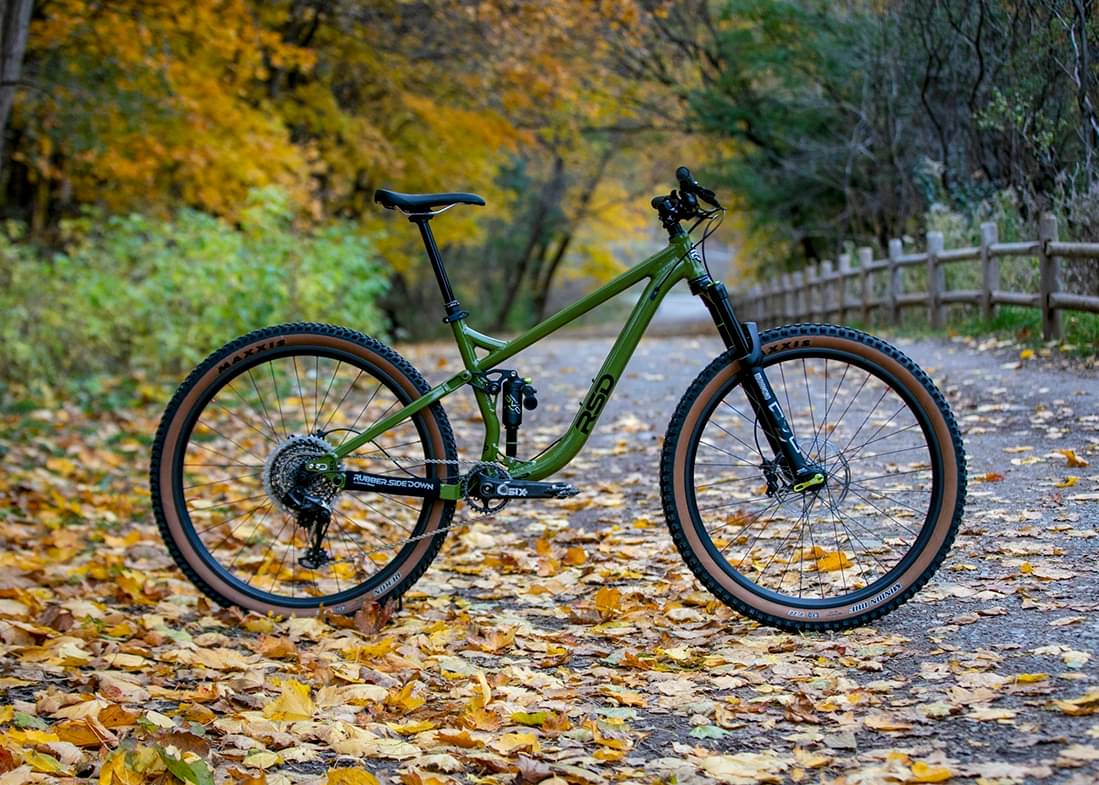

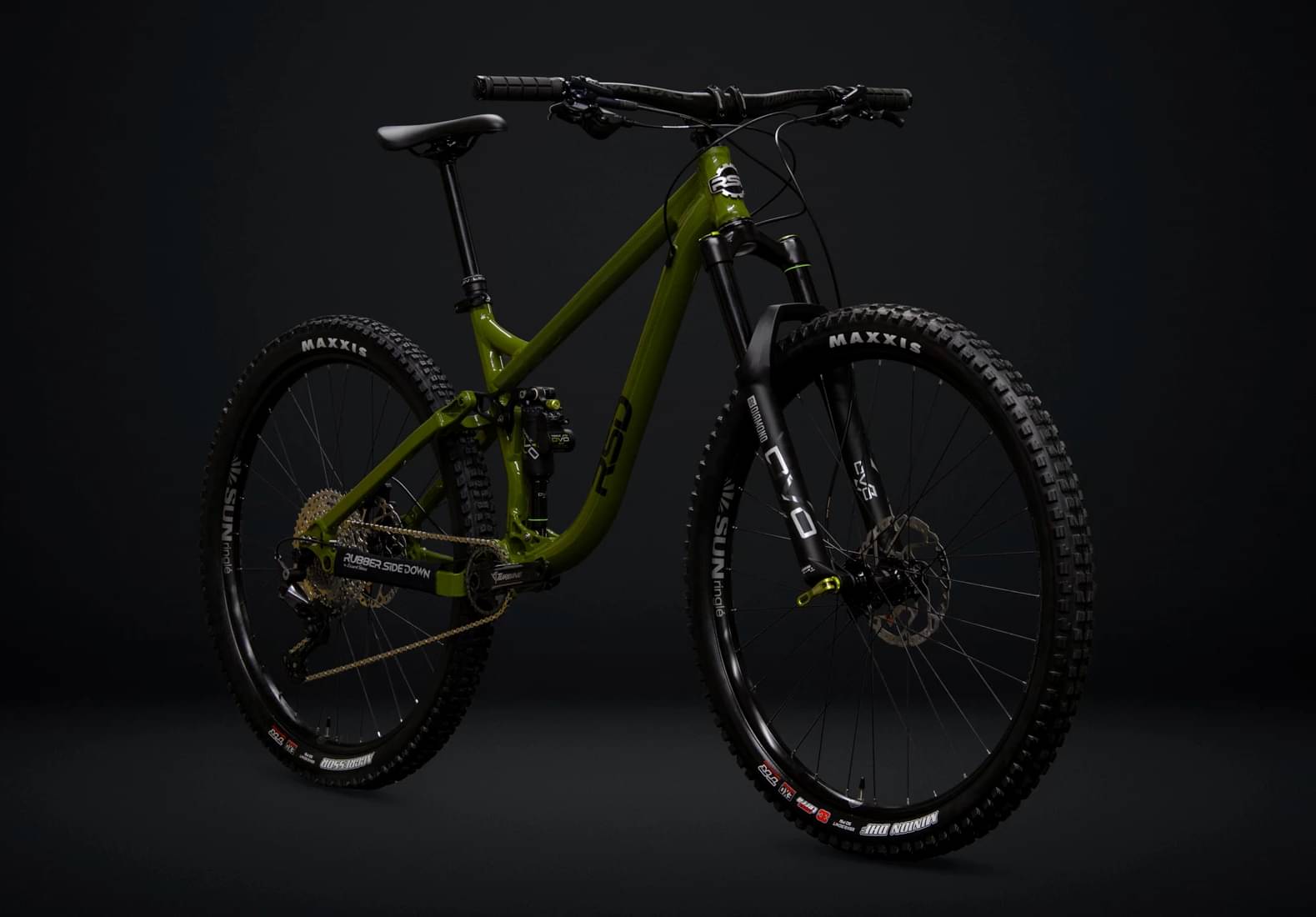

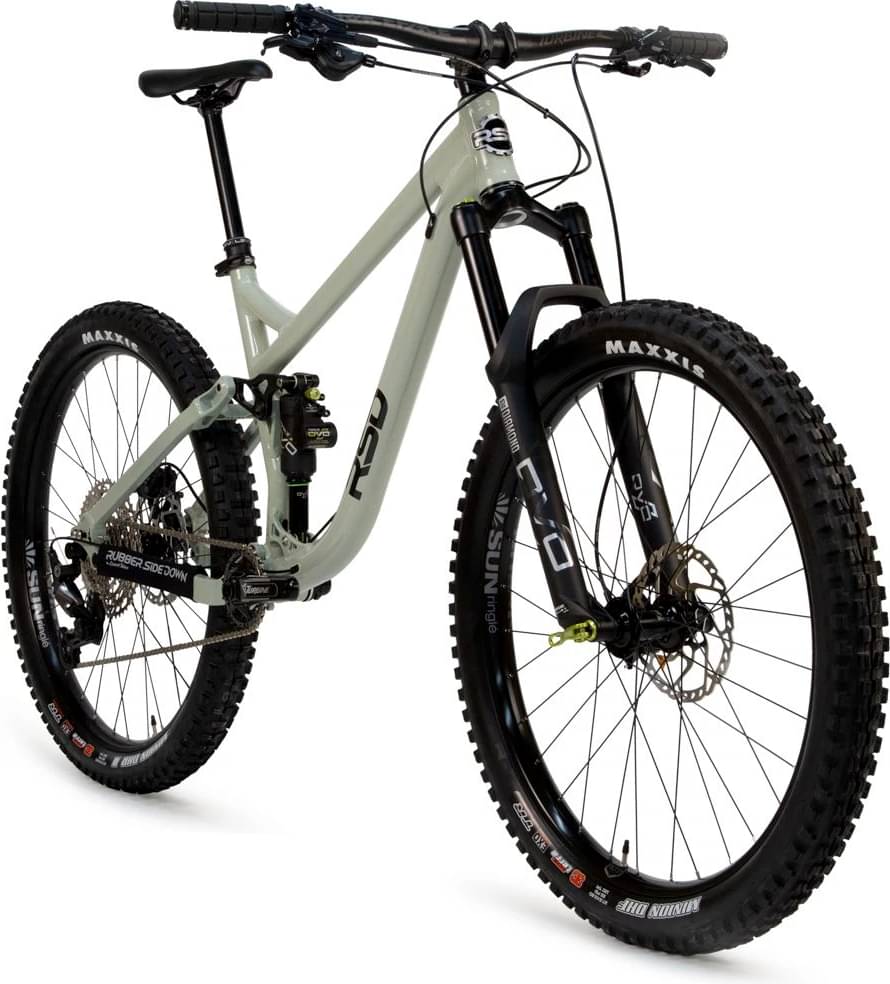

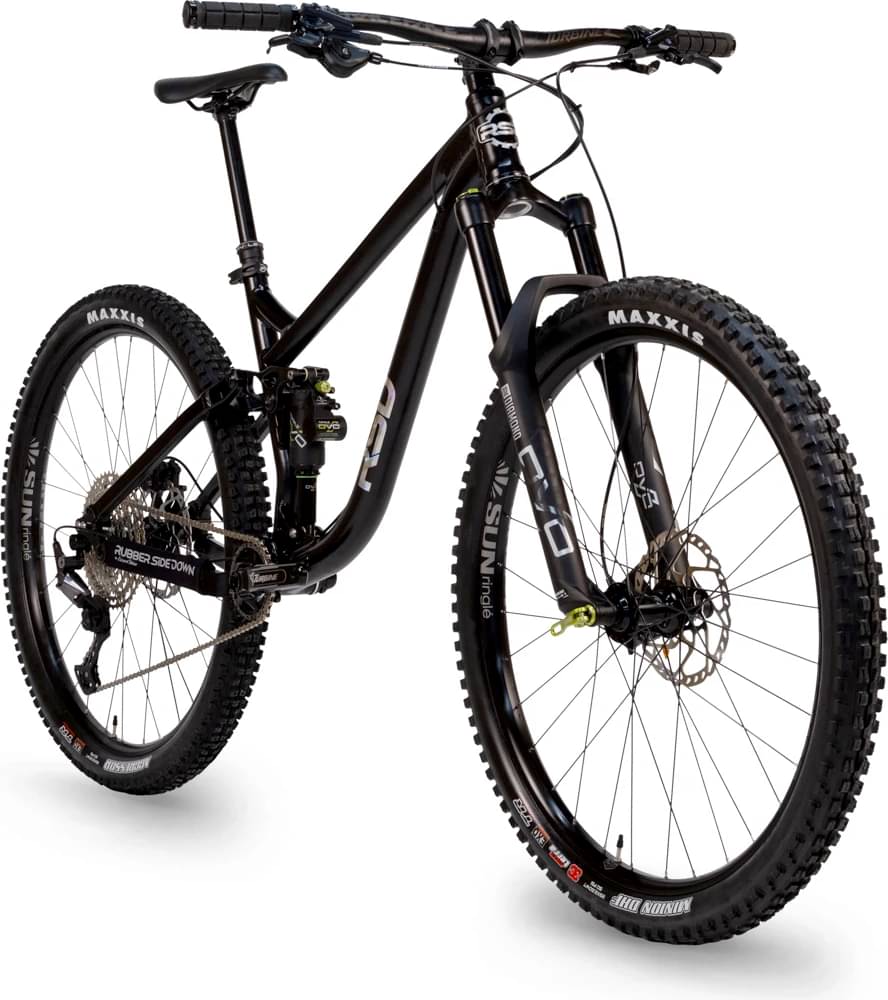

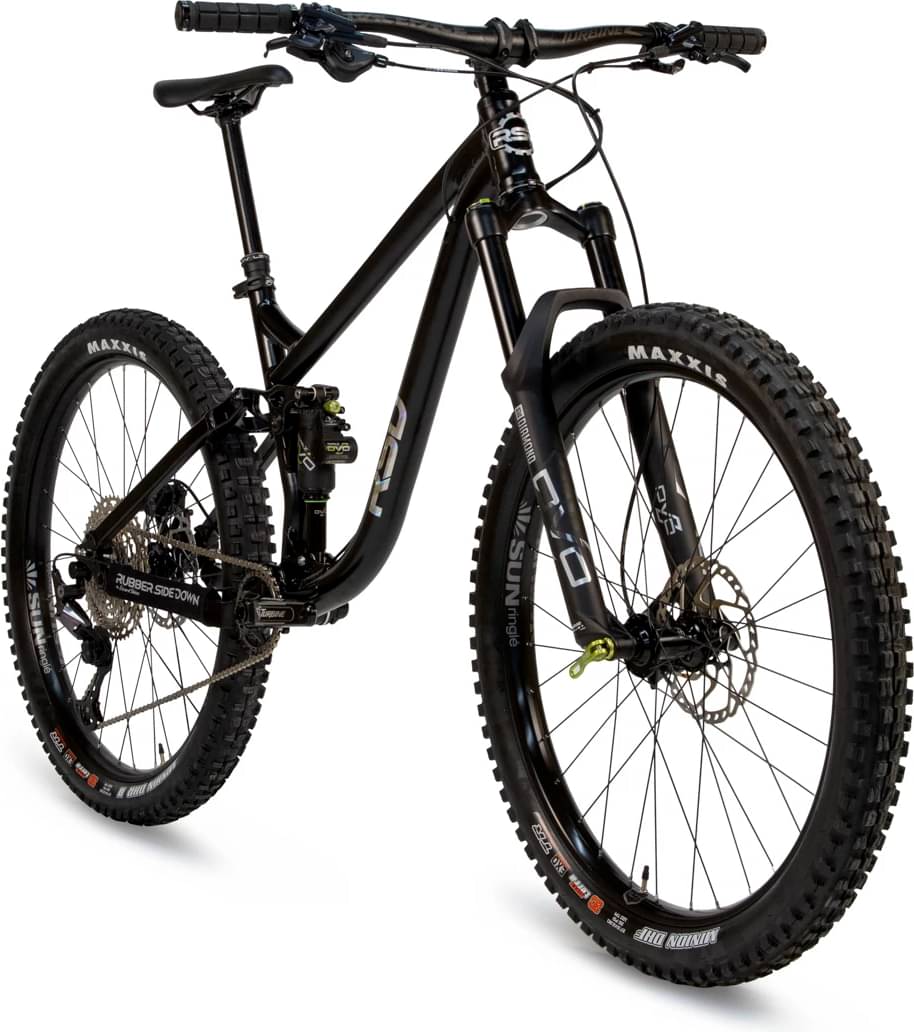

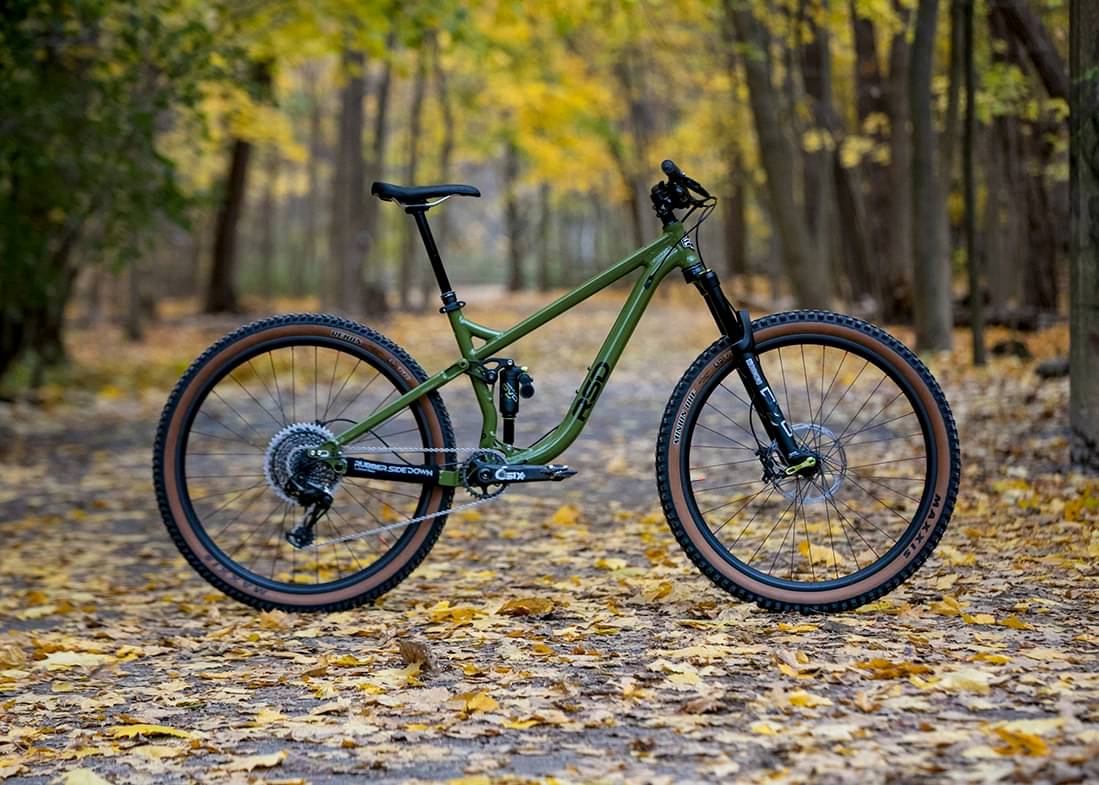

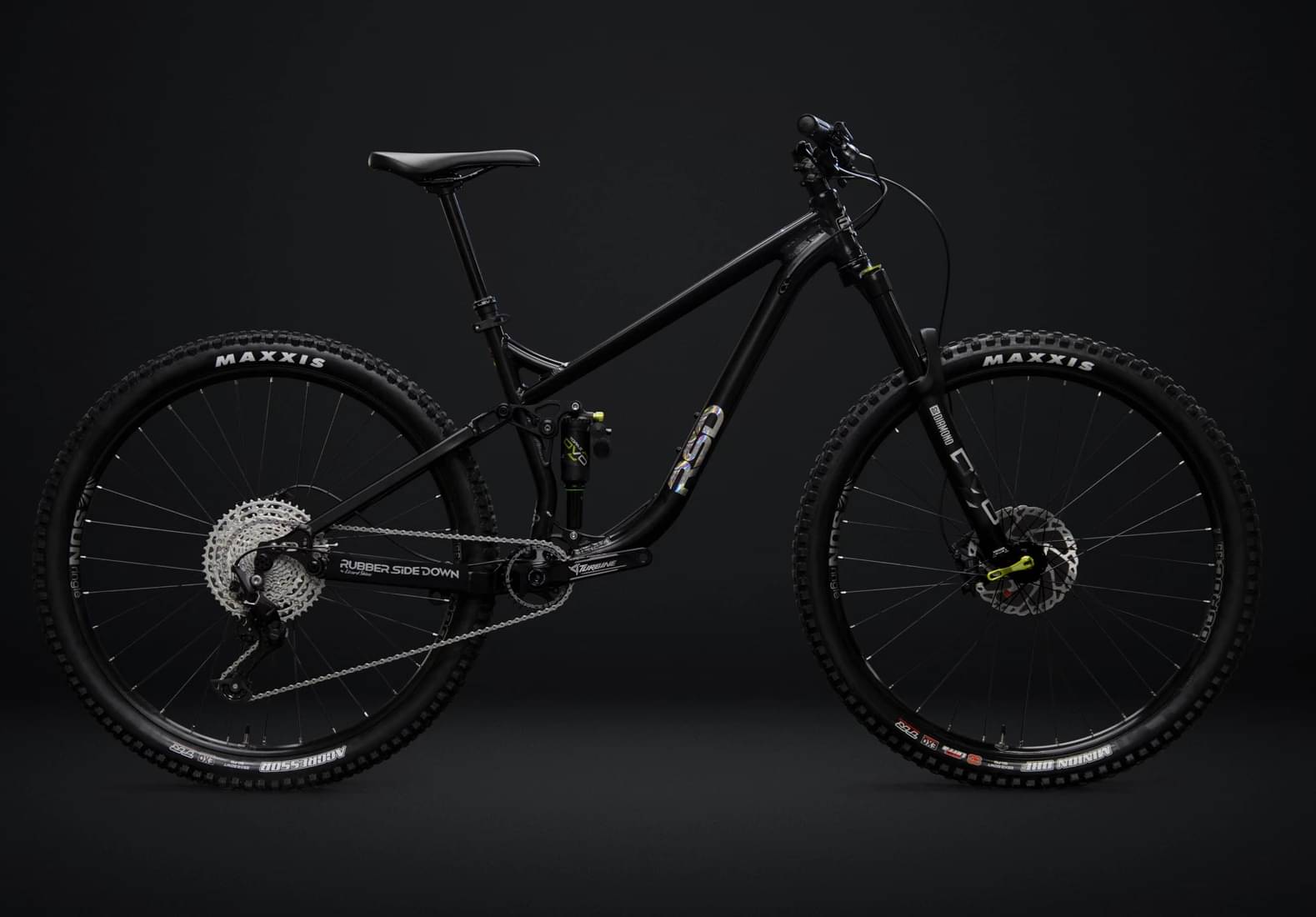

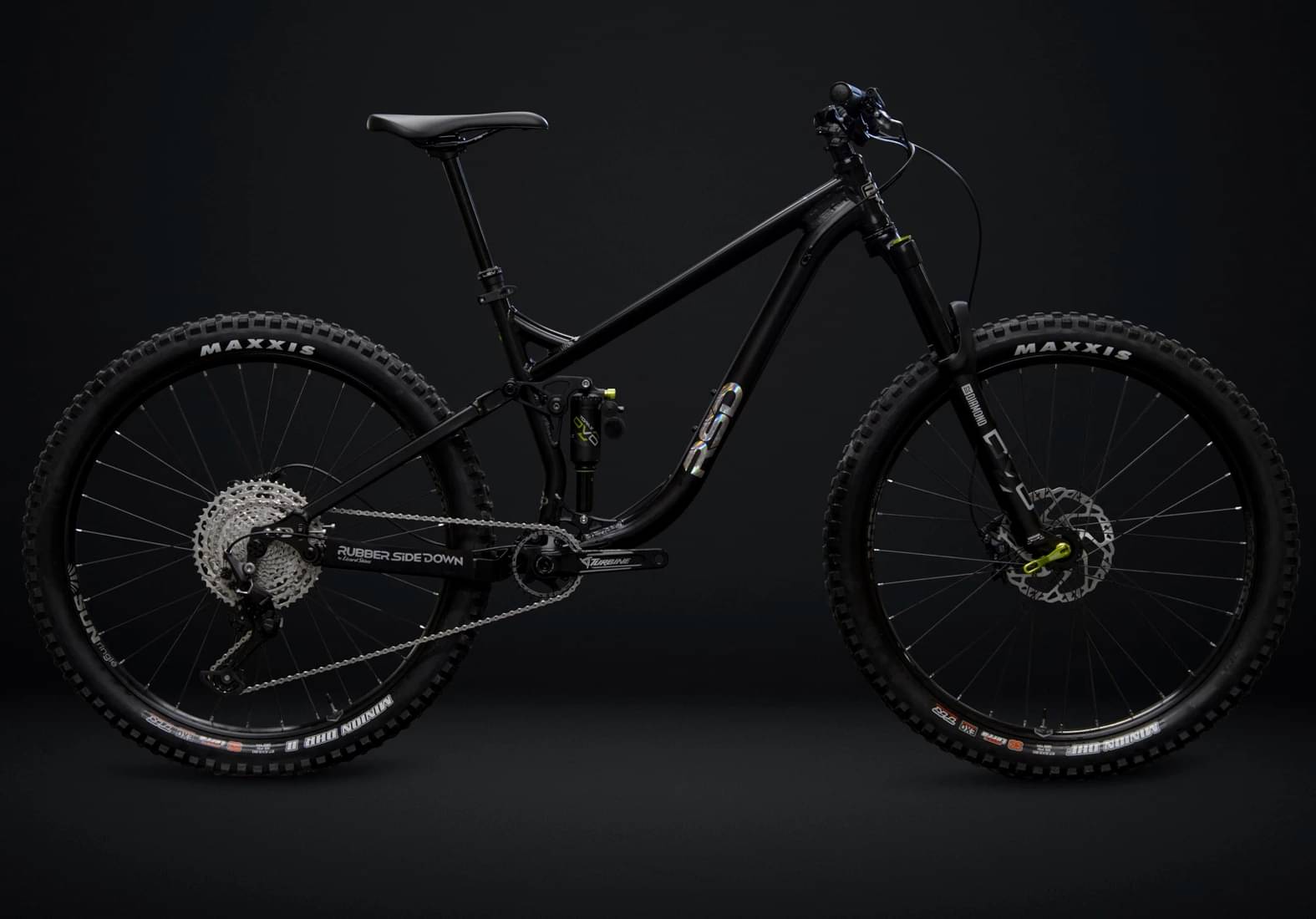

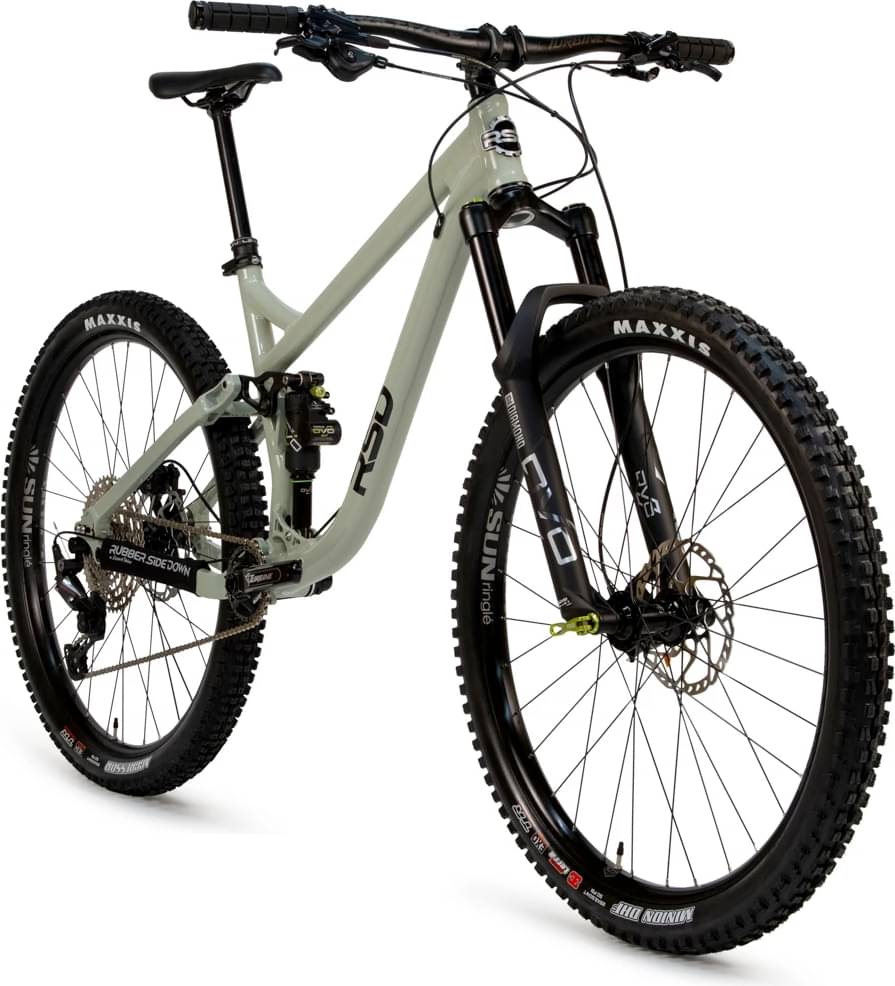

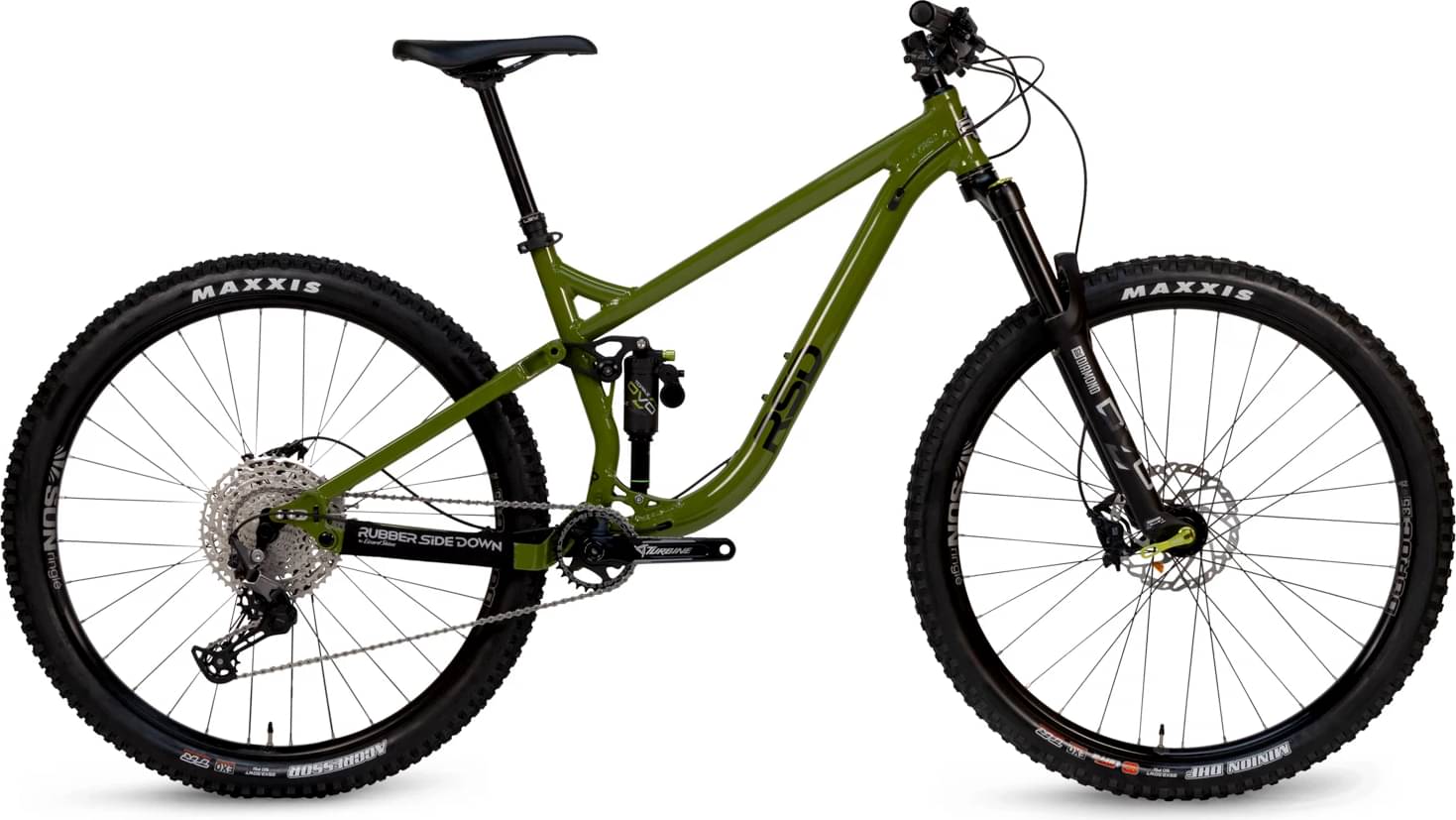

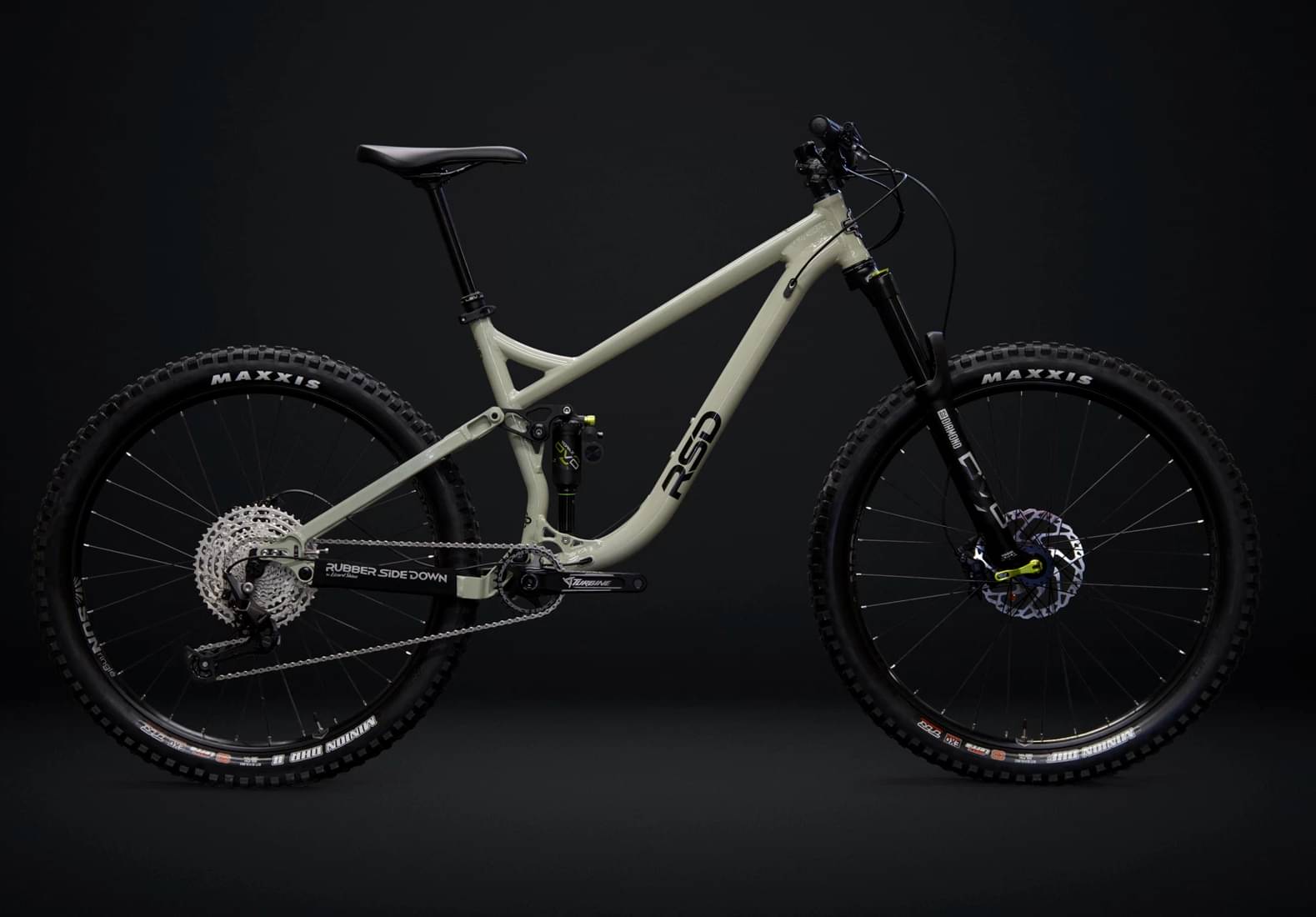

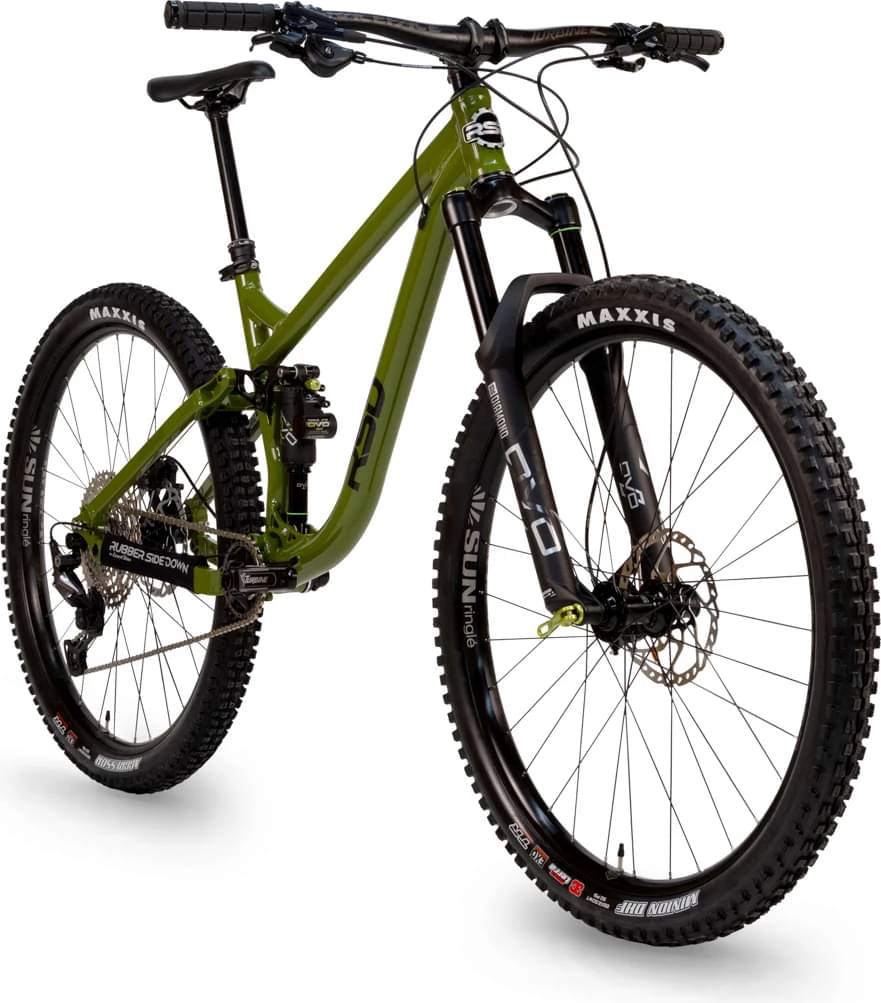

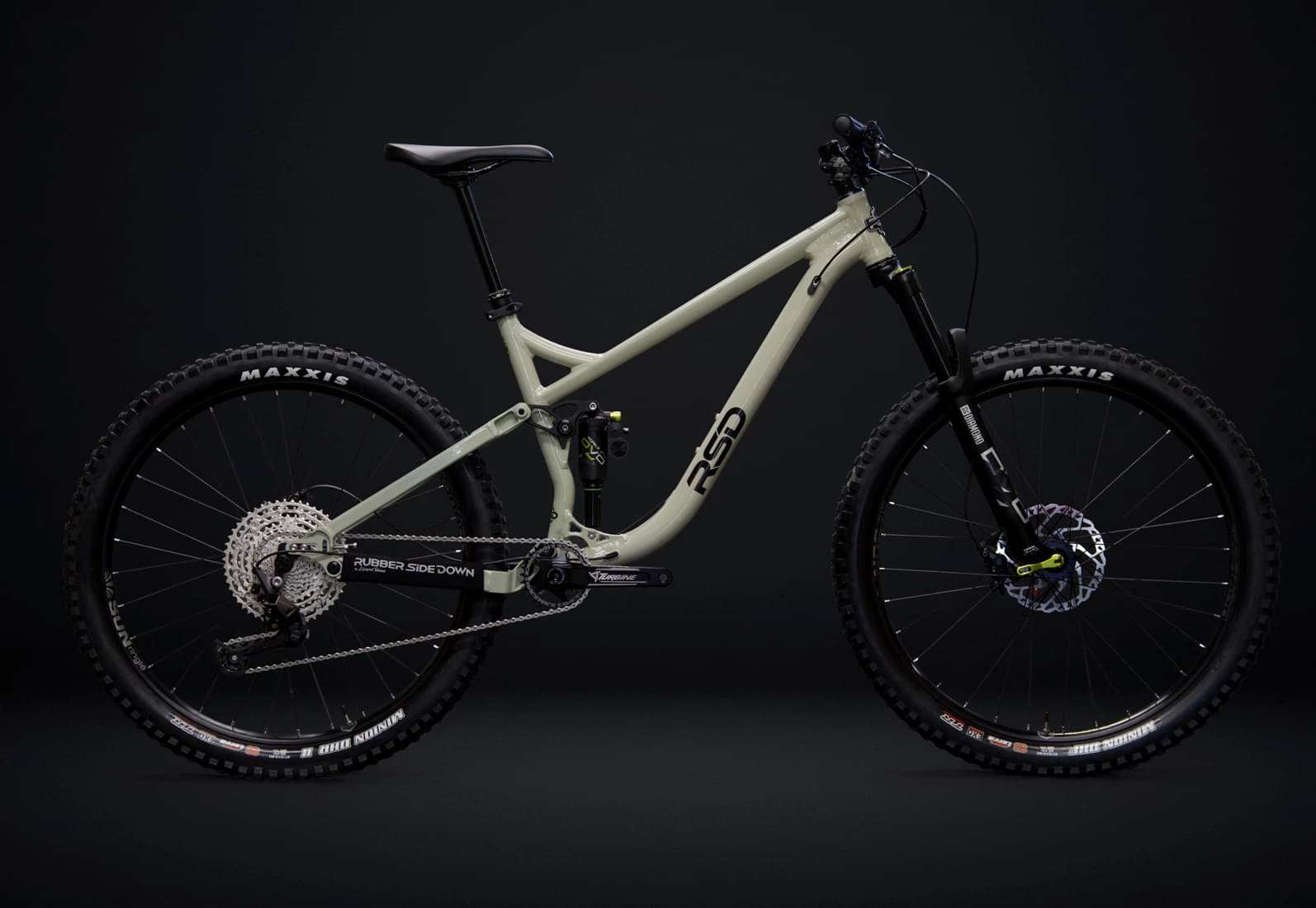

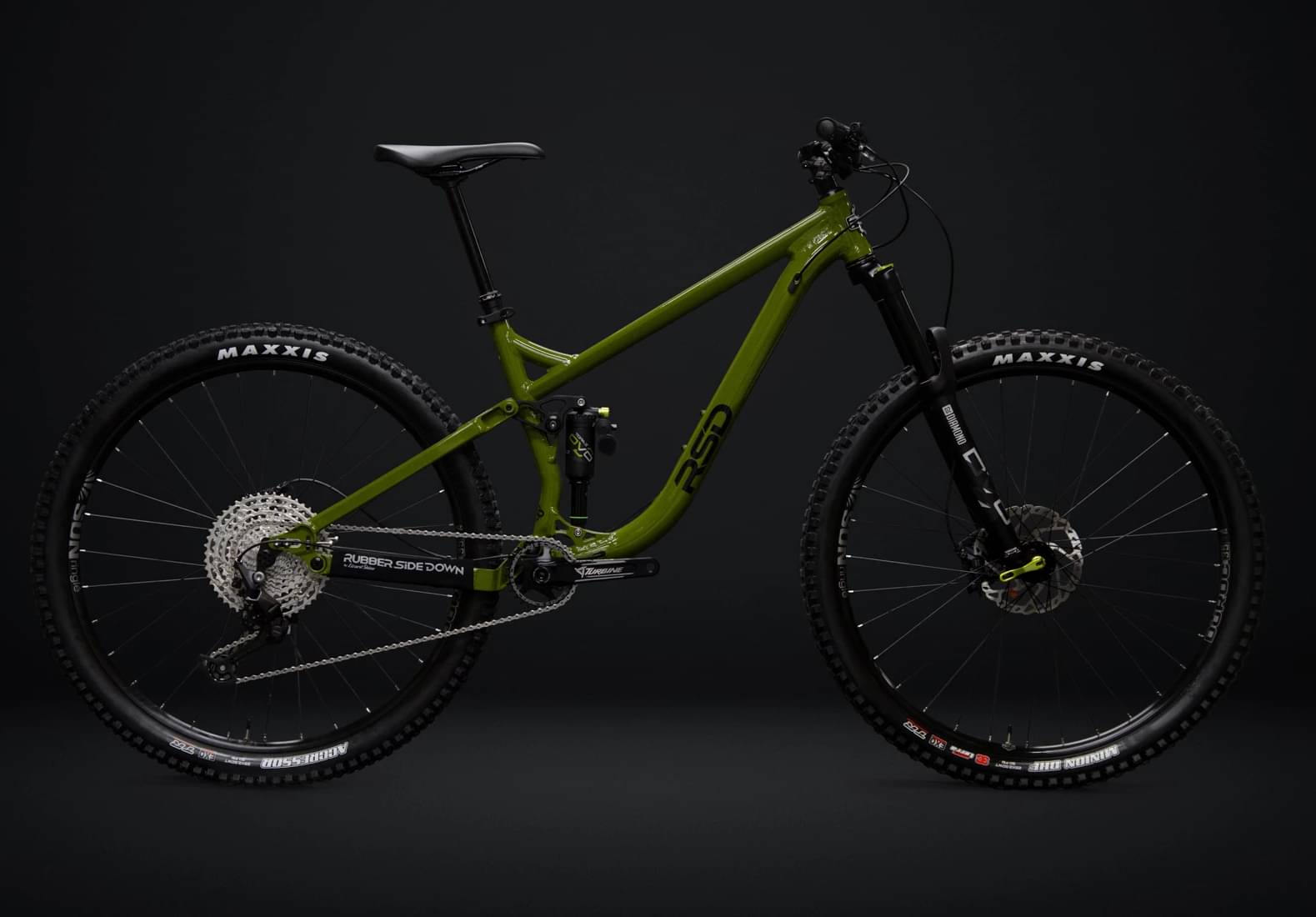

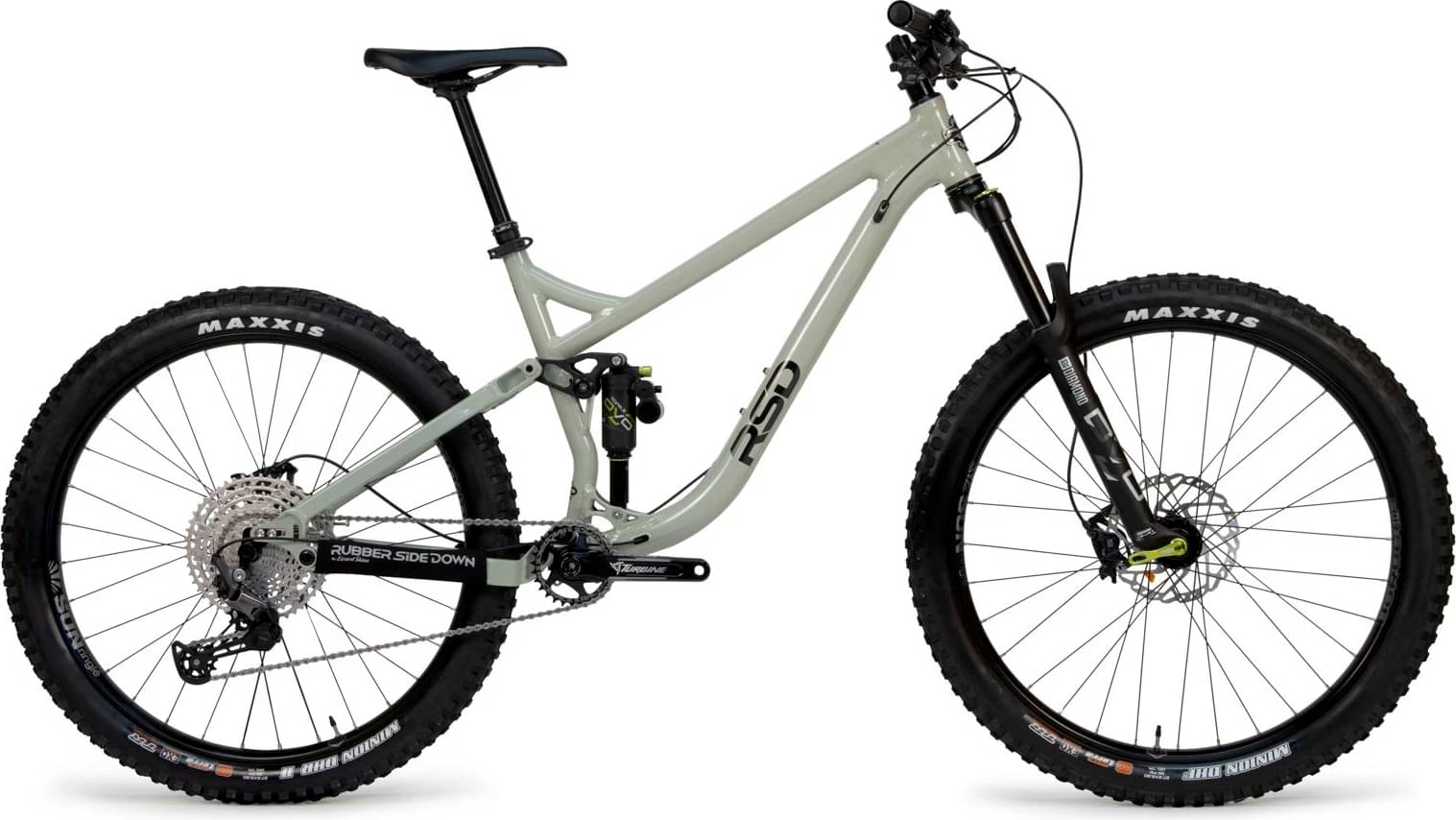

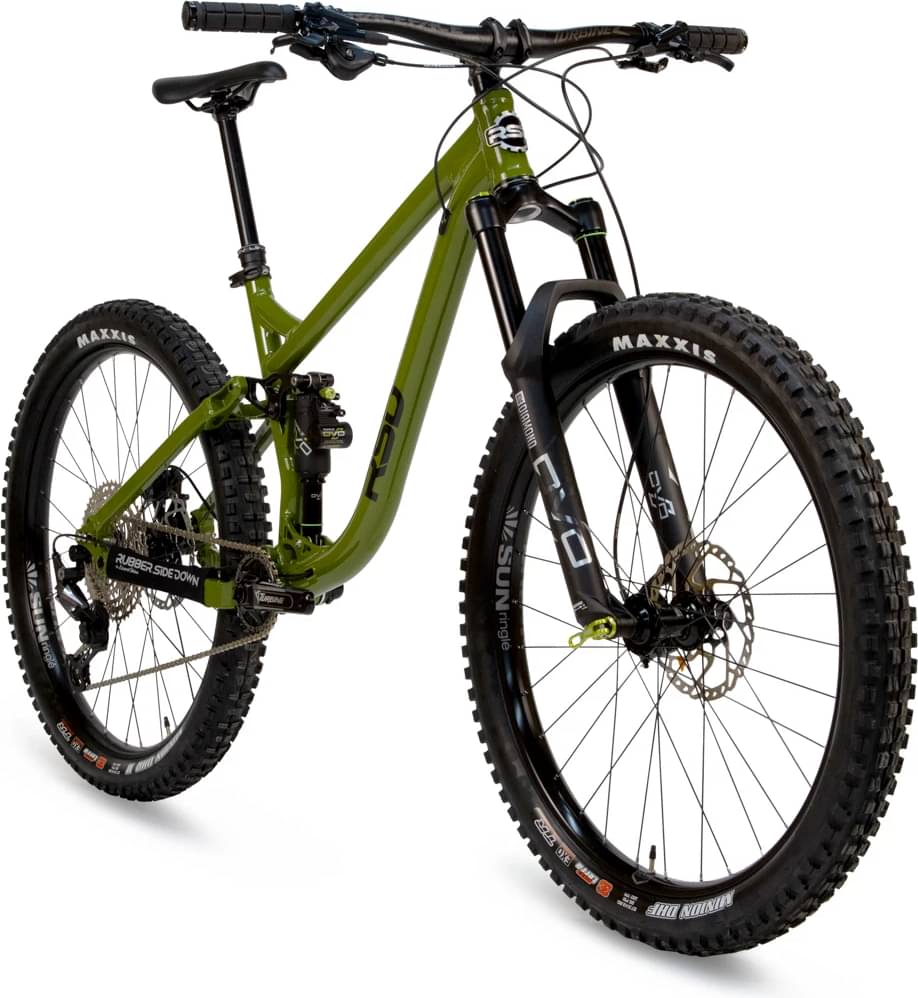

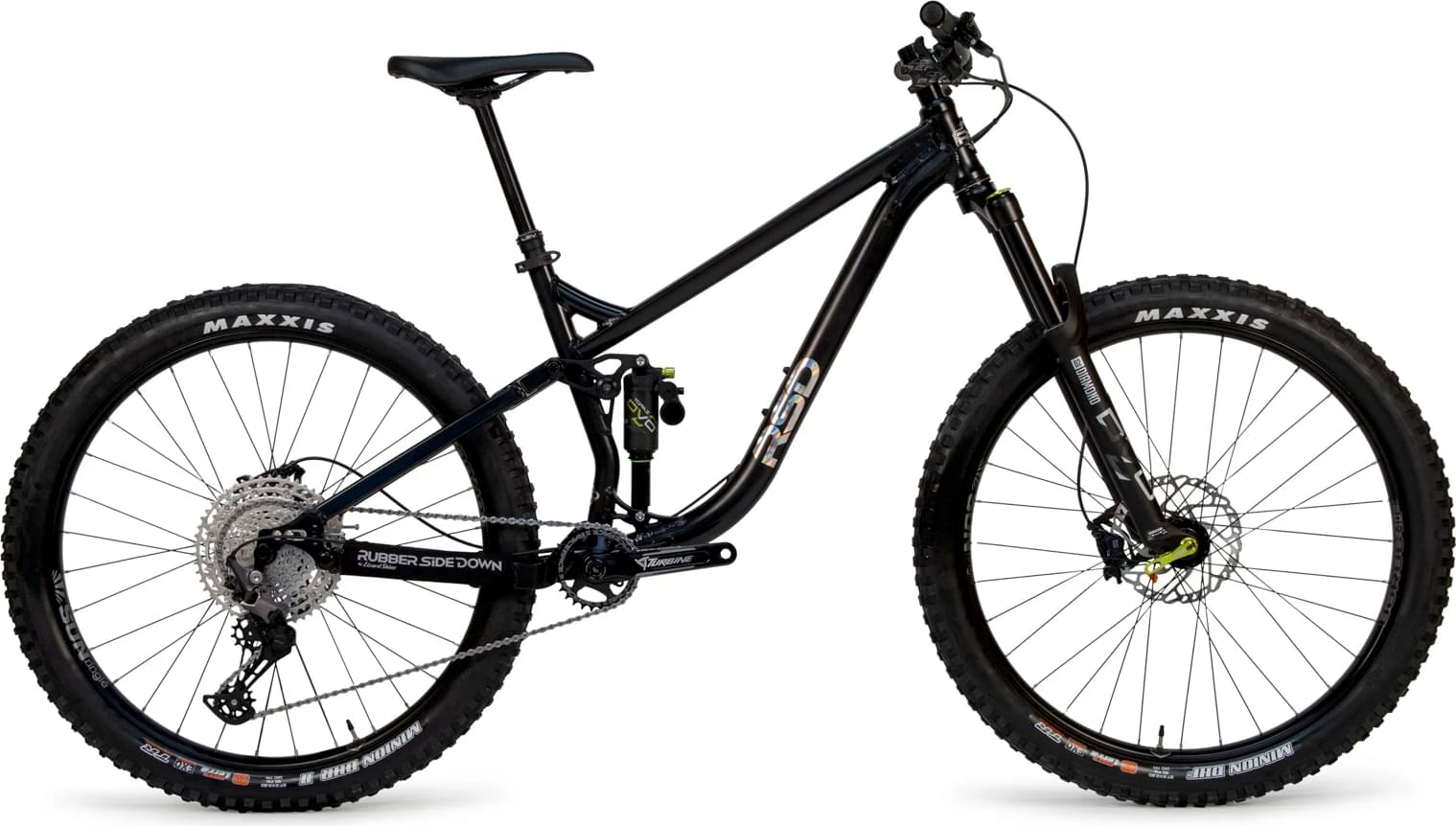

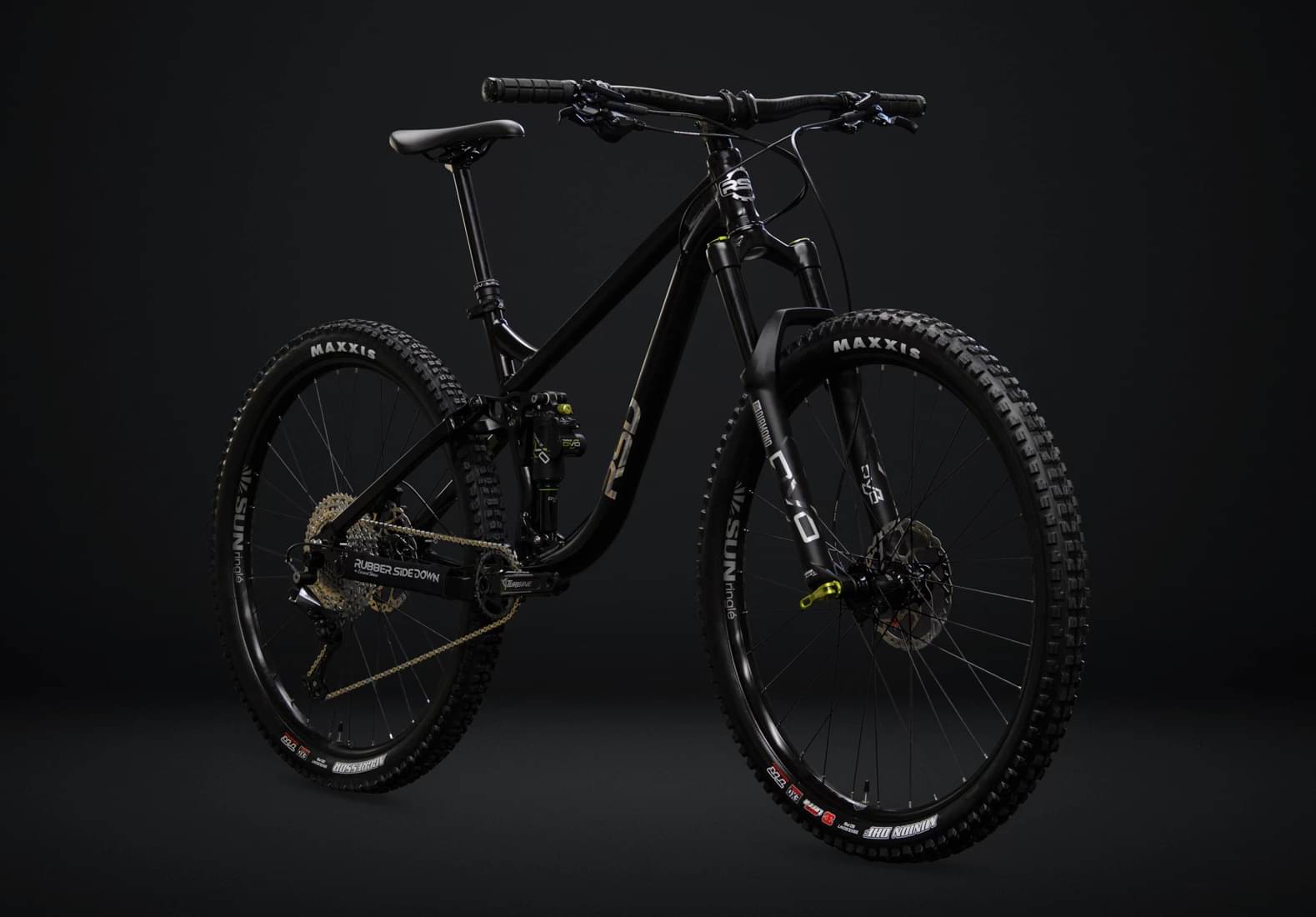

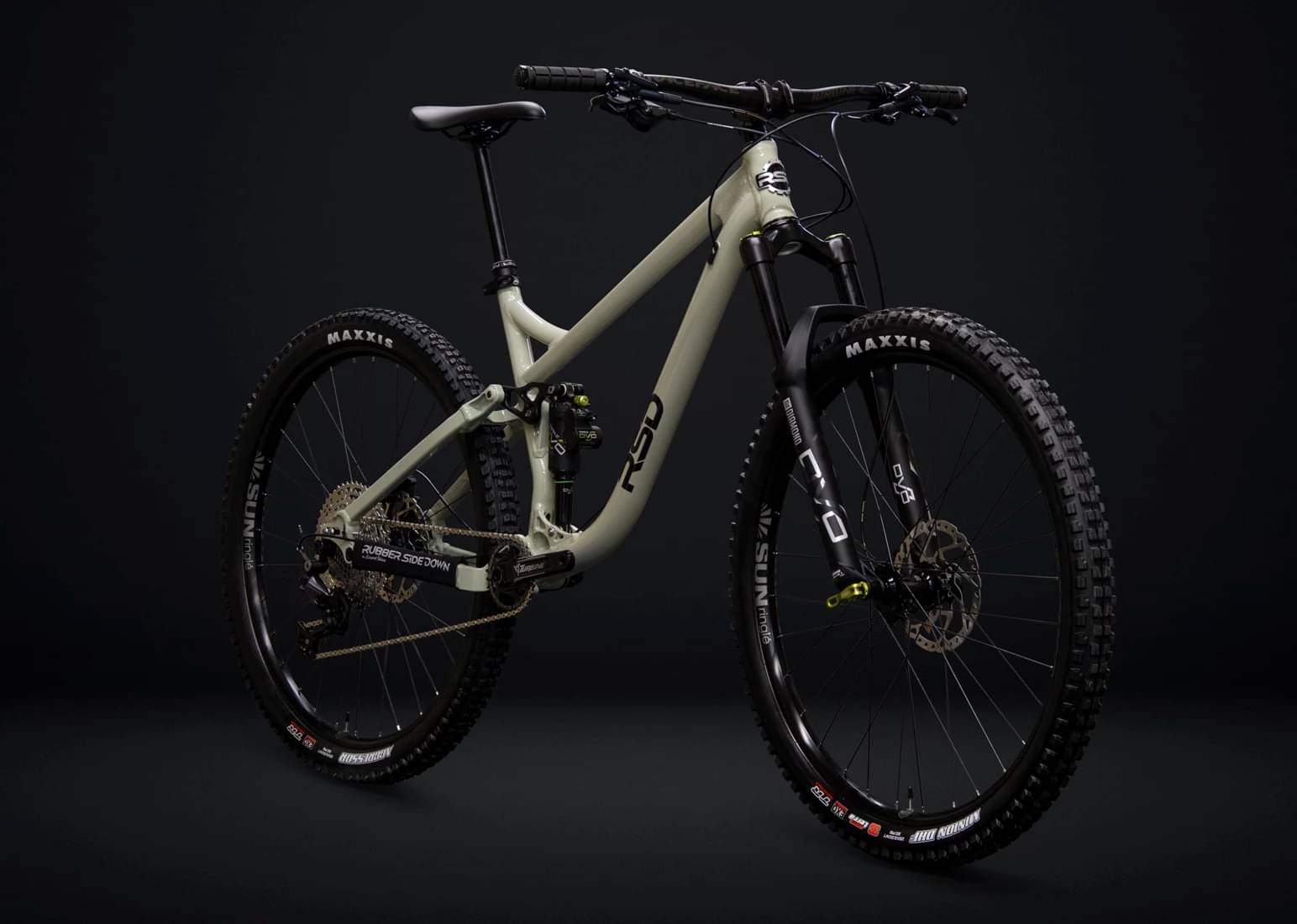

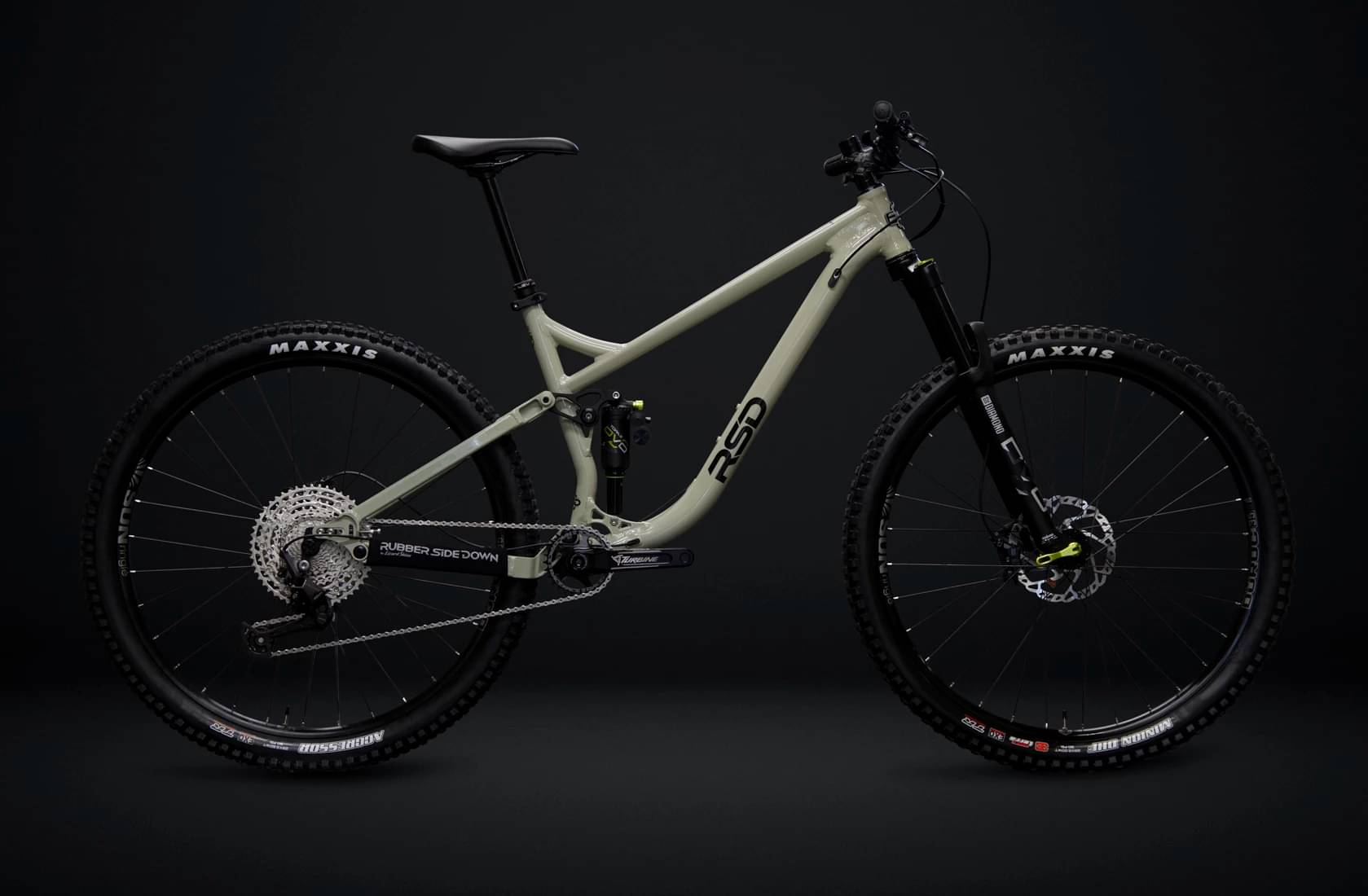

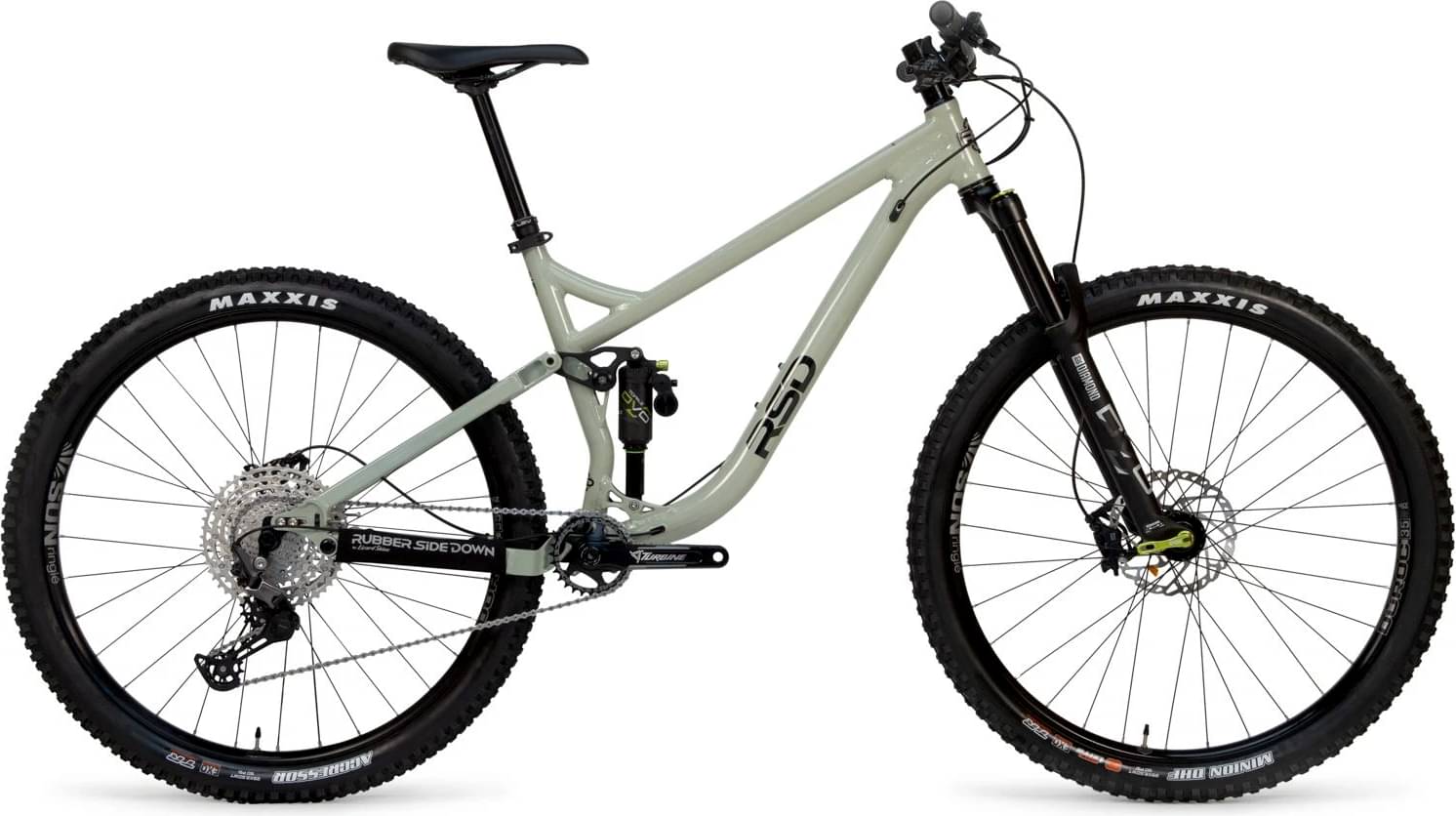

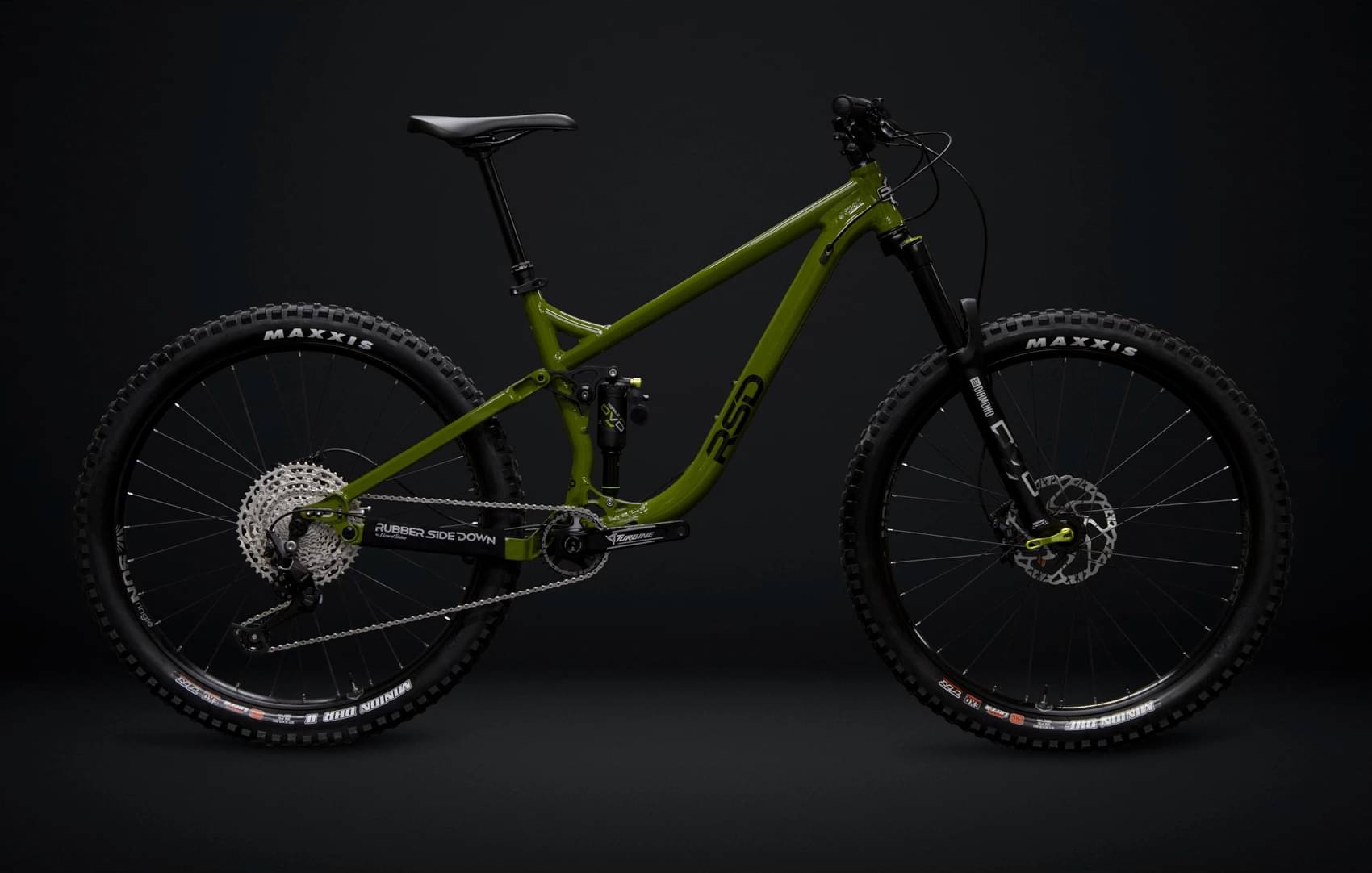

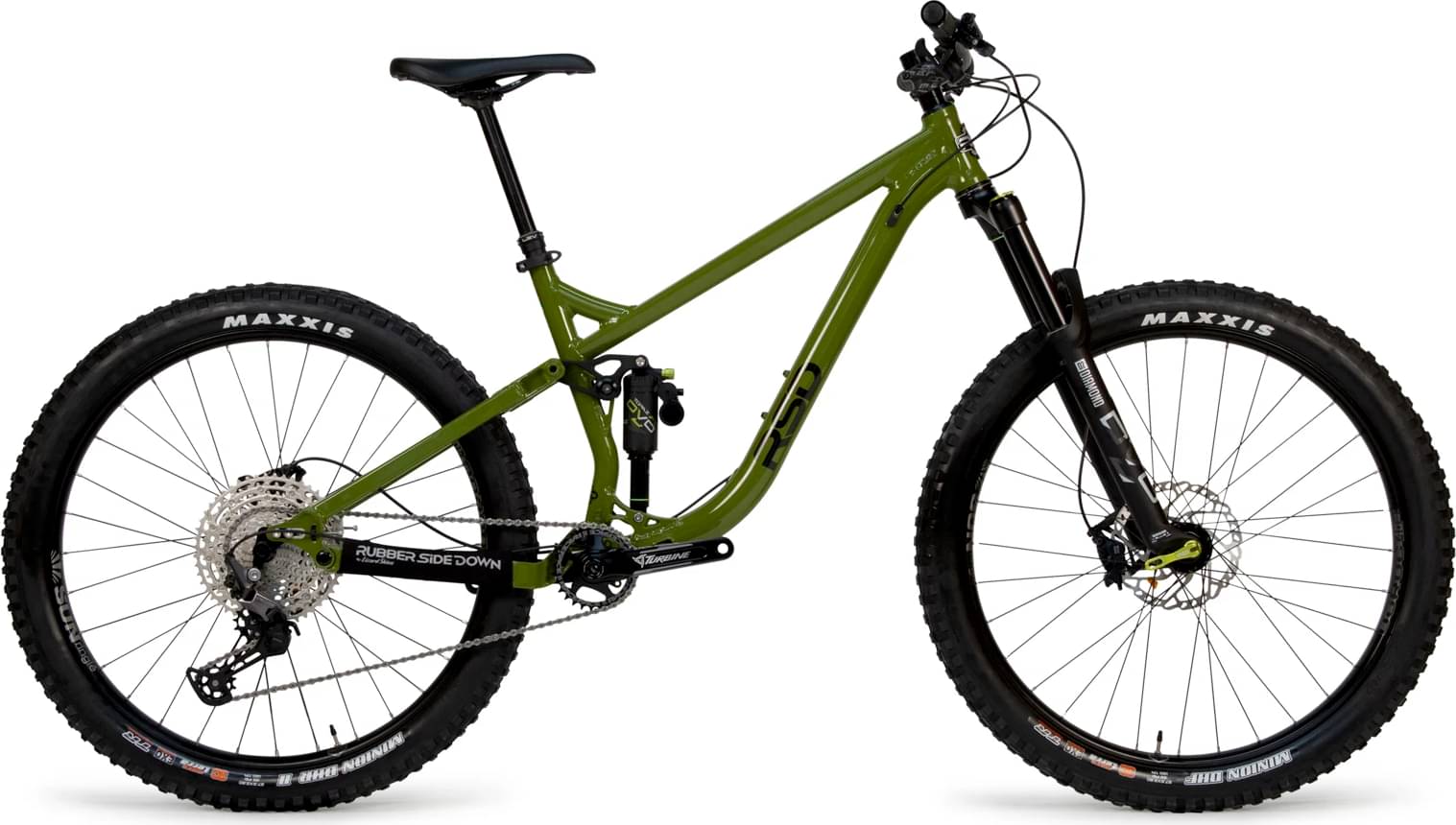

RSD WILDCAT 125 (V3) Aluminum GX/D2 Build 2023
2023 Mountain
Estimate price |
3,749$
Weight | 14.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 125mm -
Fork DVO Diamond
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components

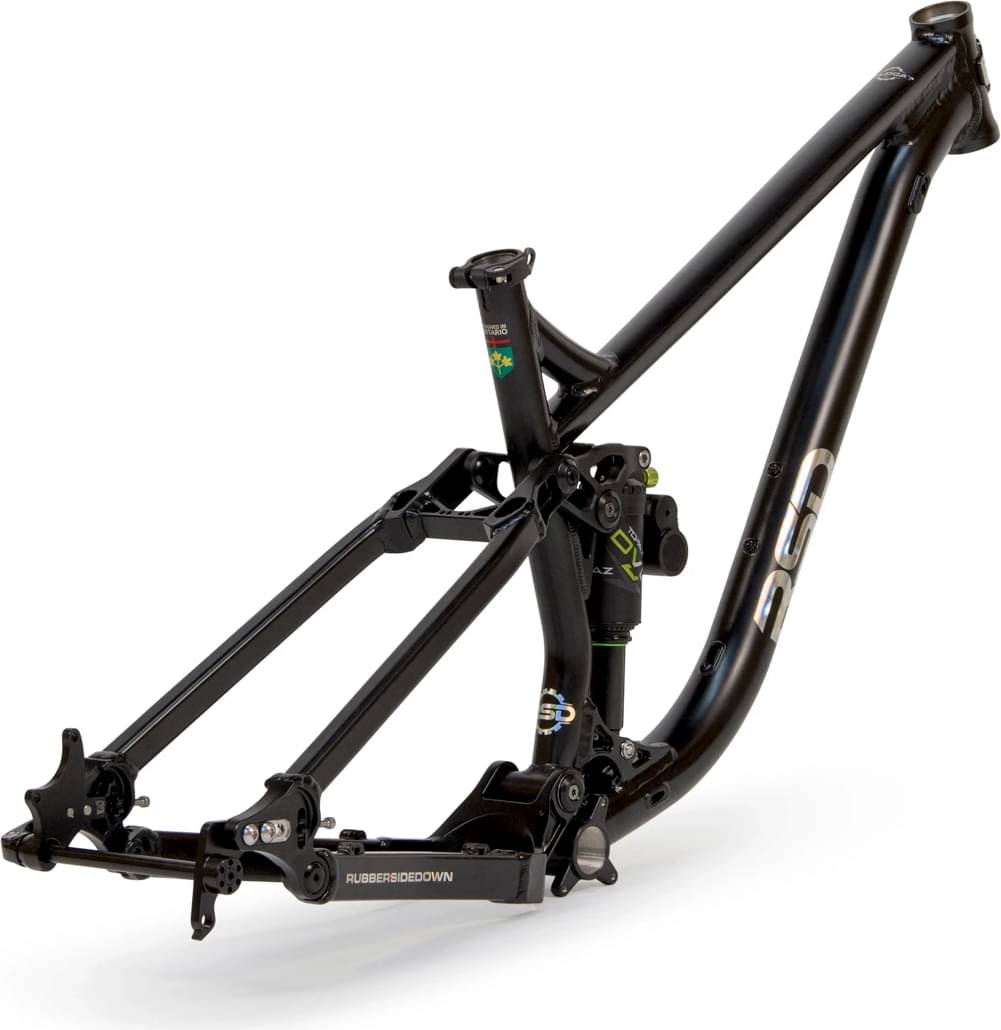

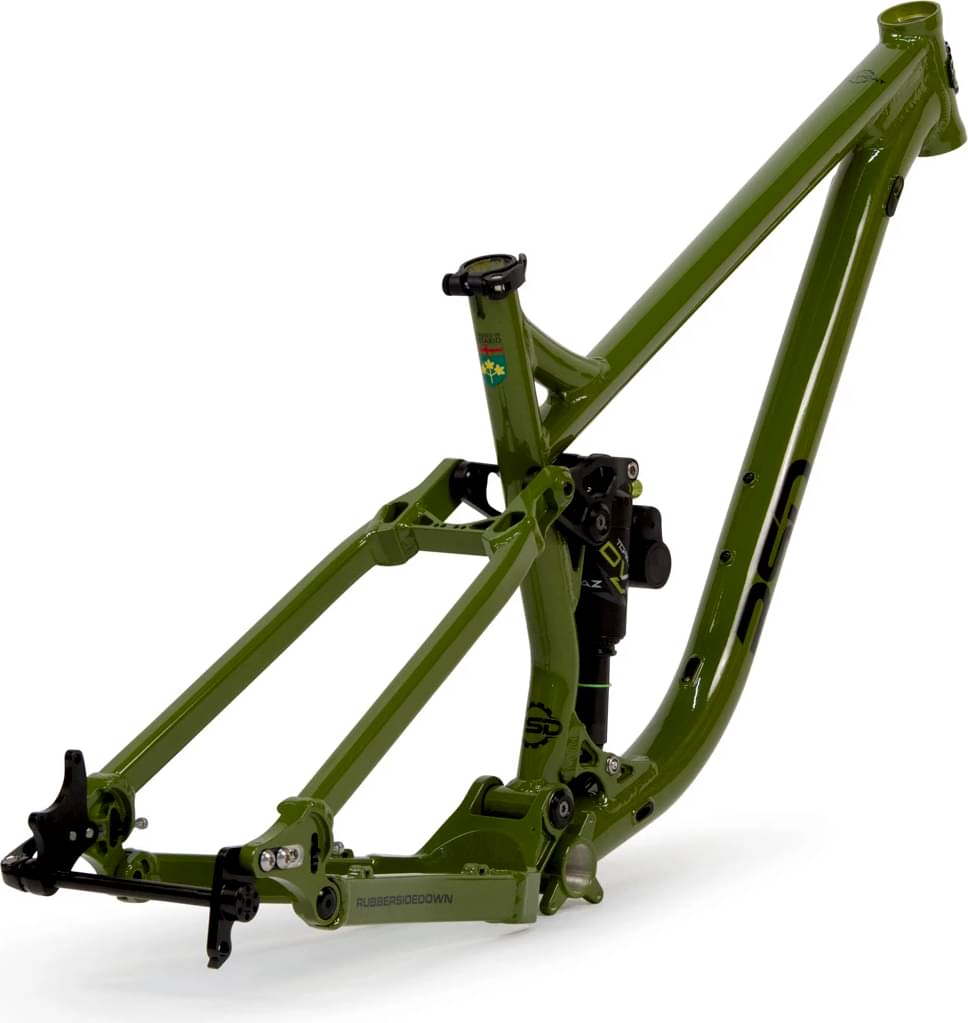

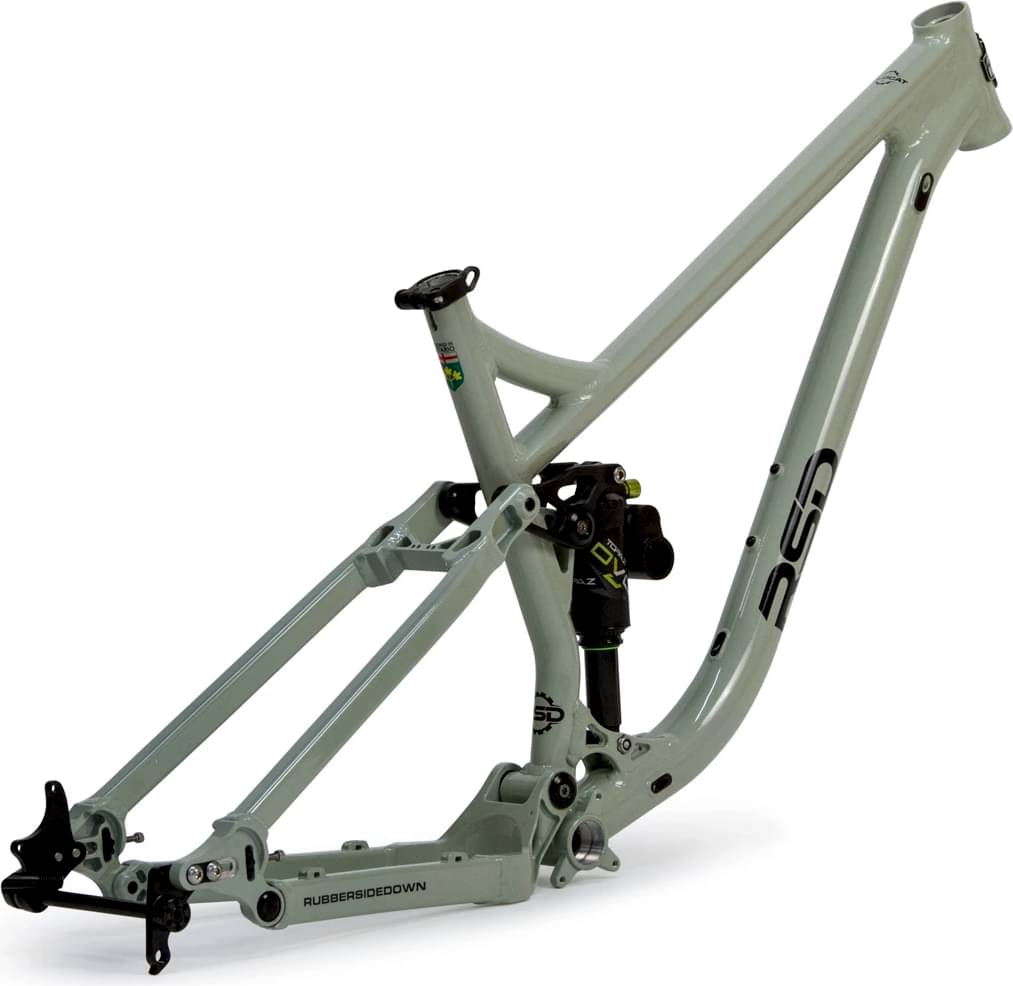

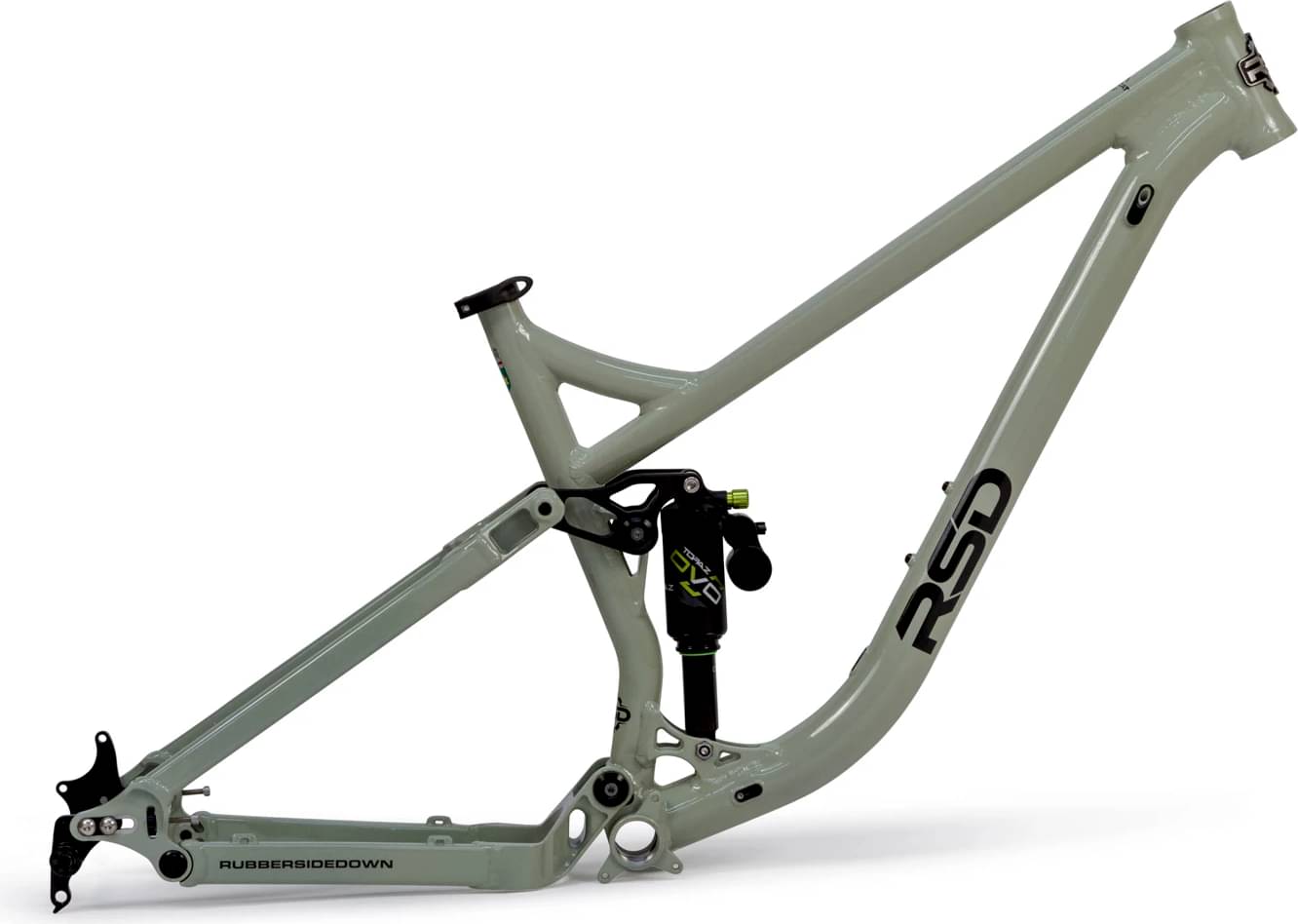

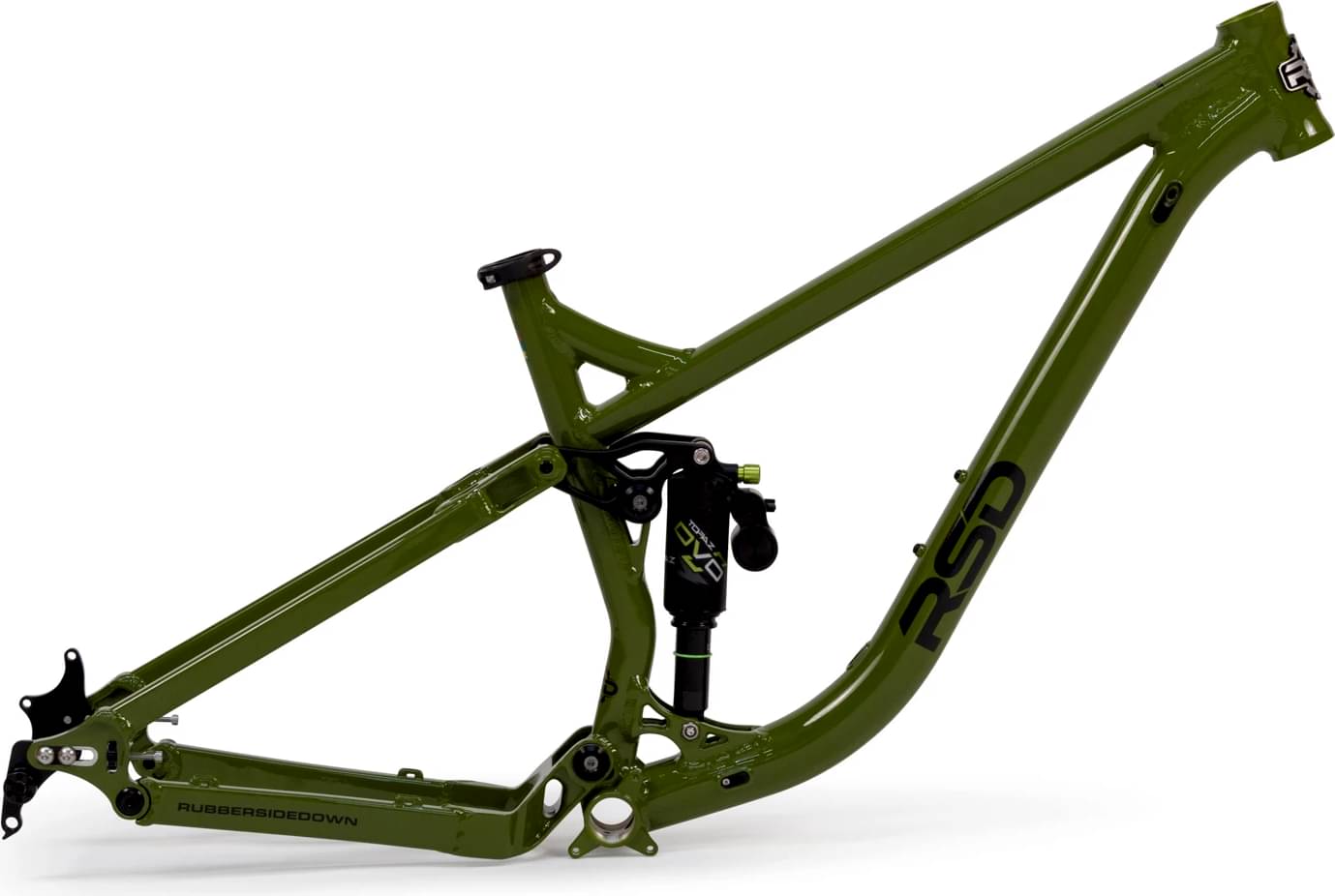

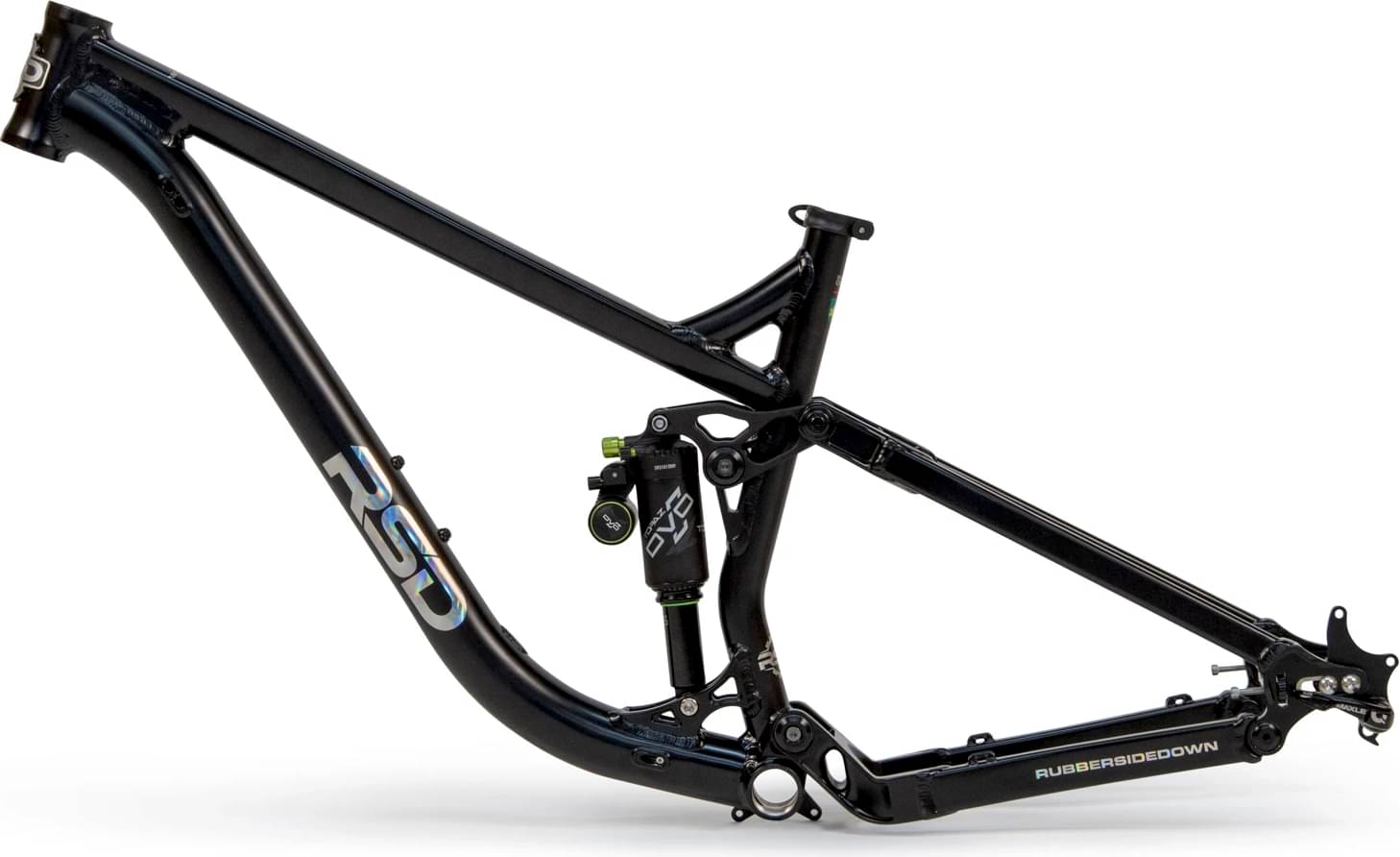

Frame
Frame

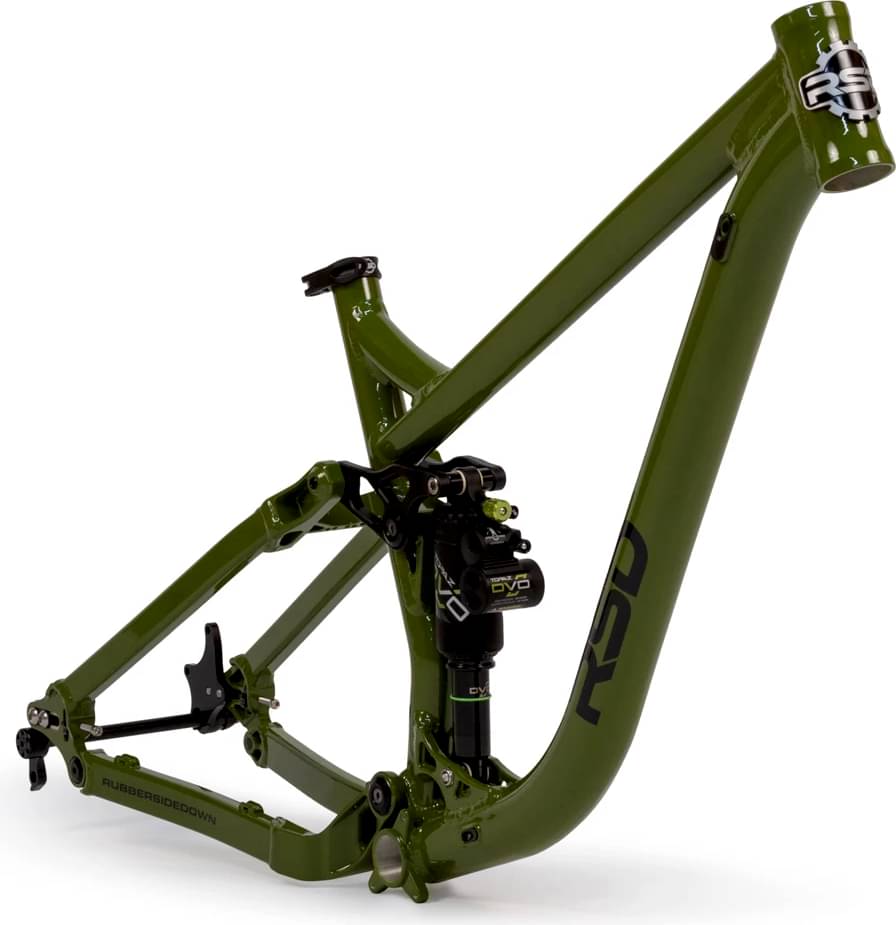

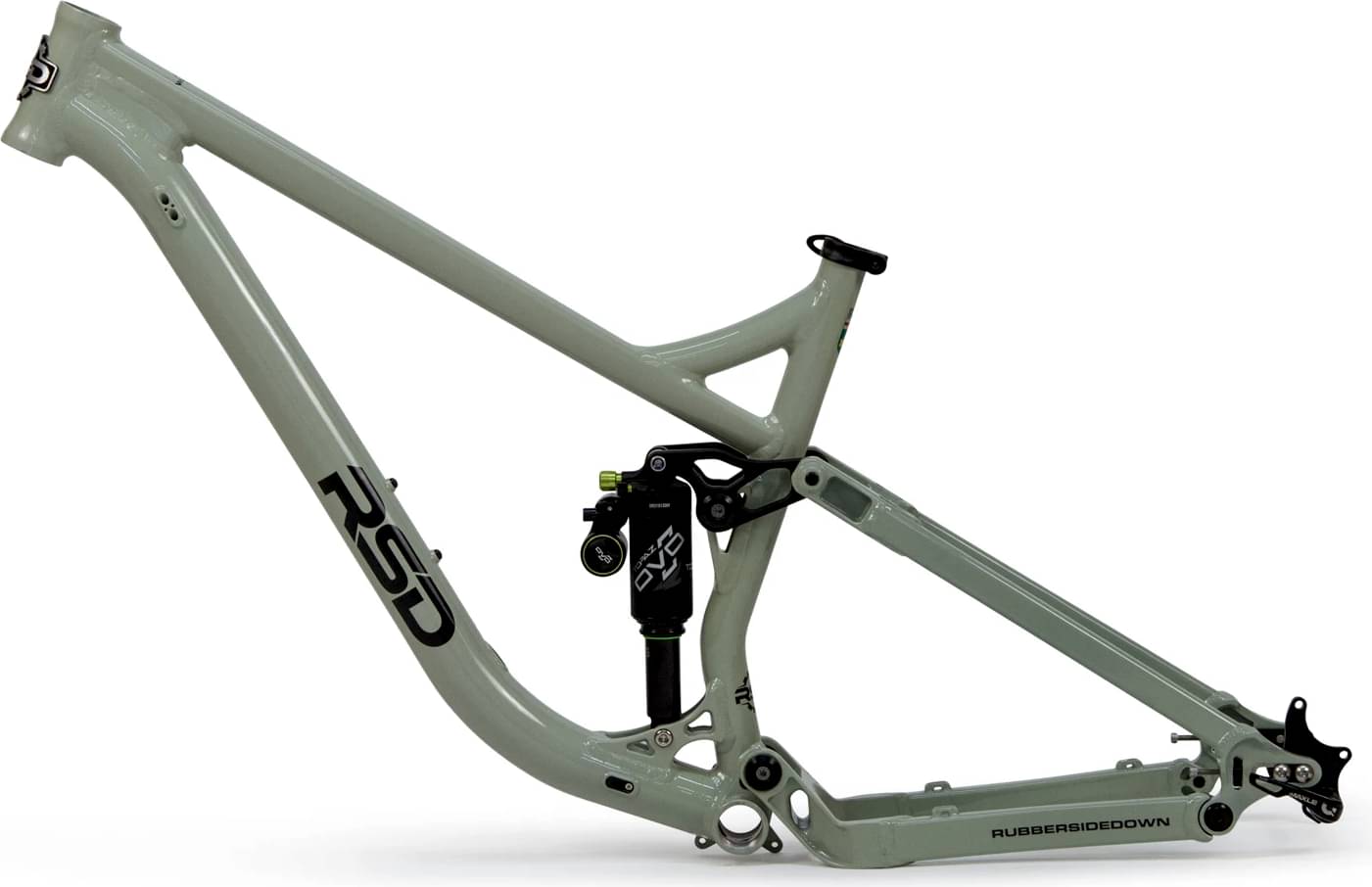

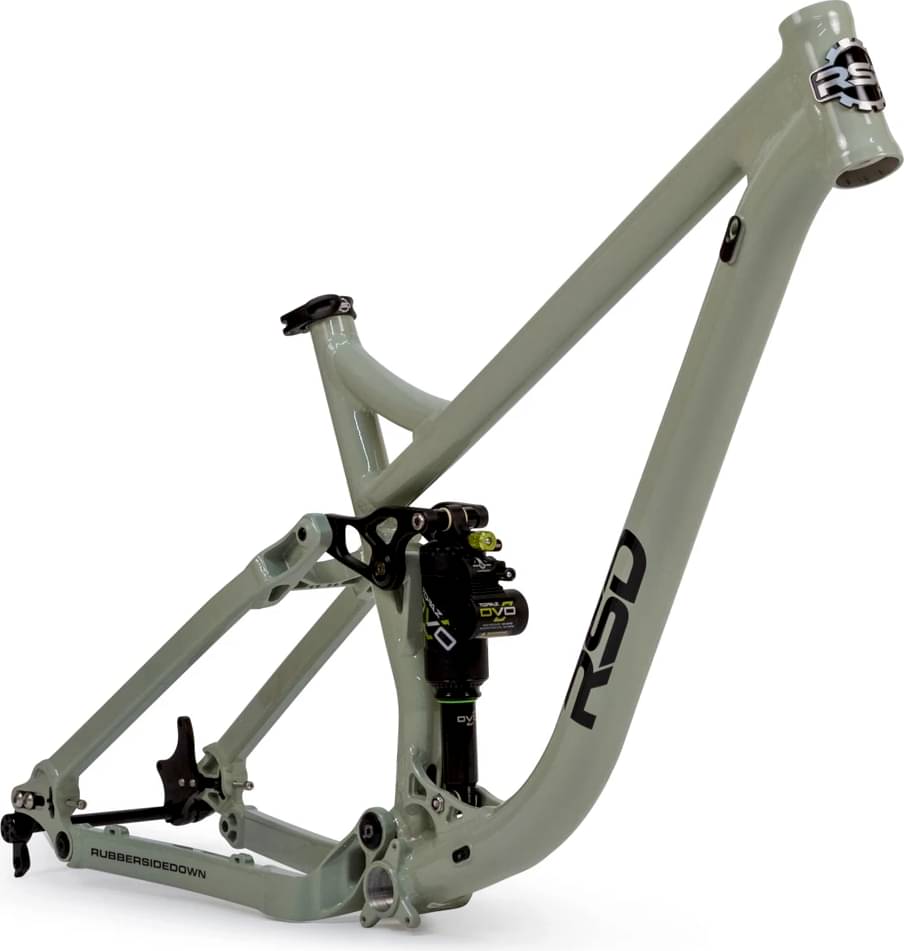

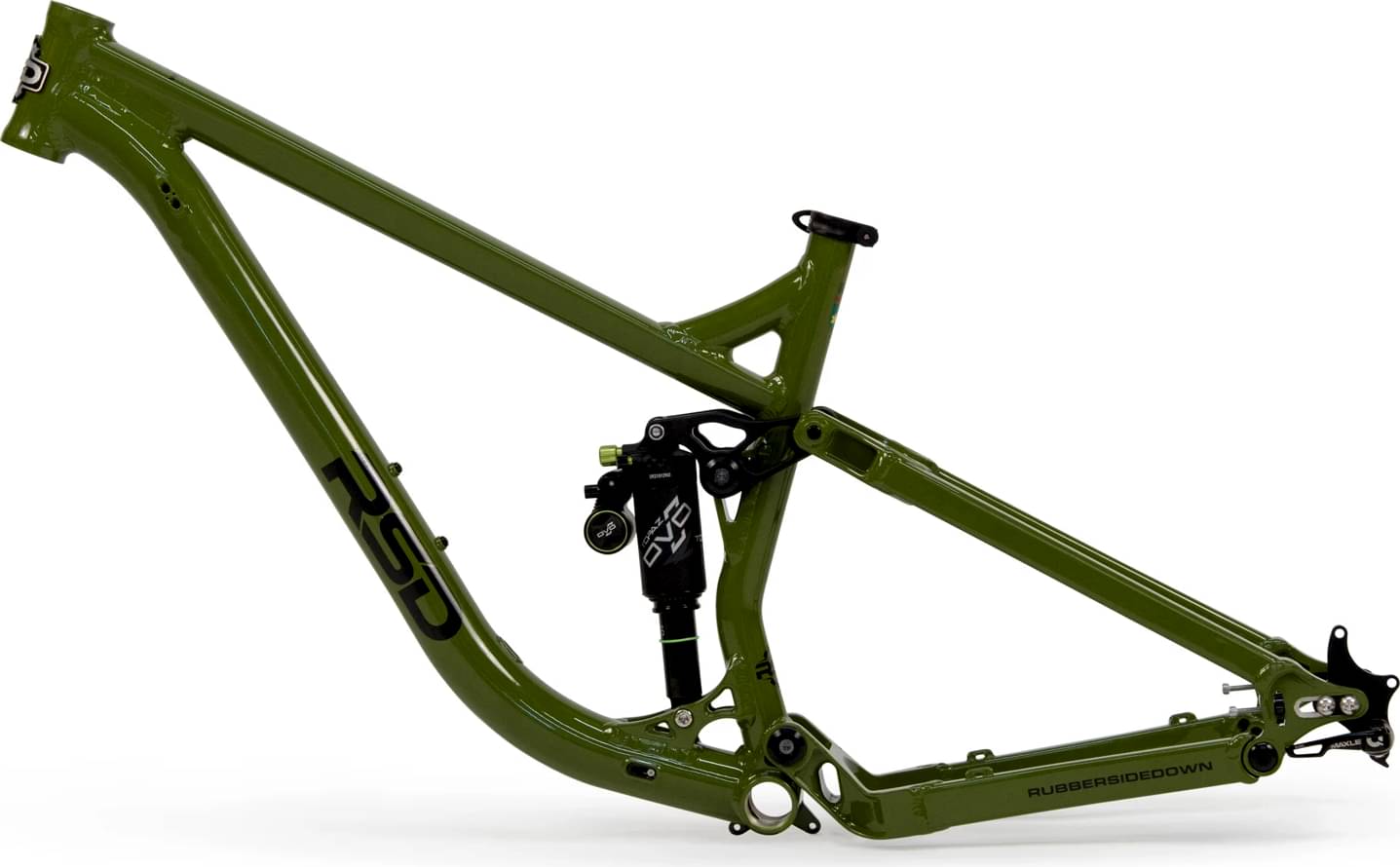

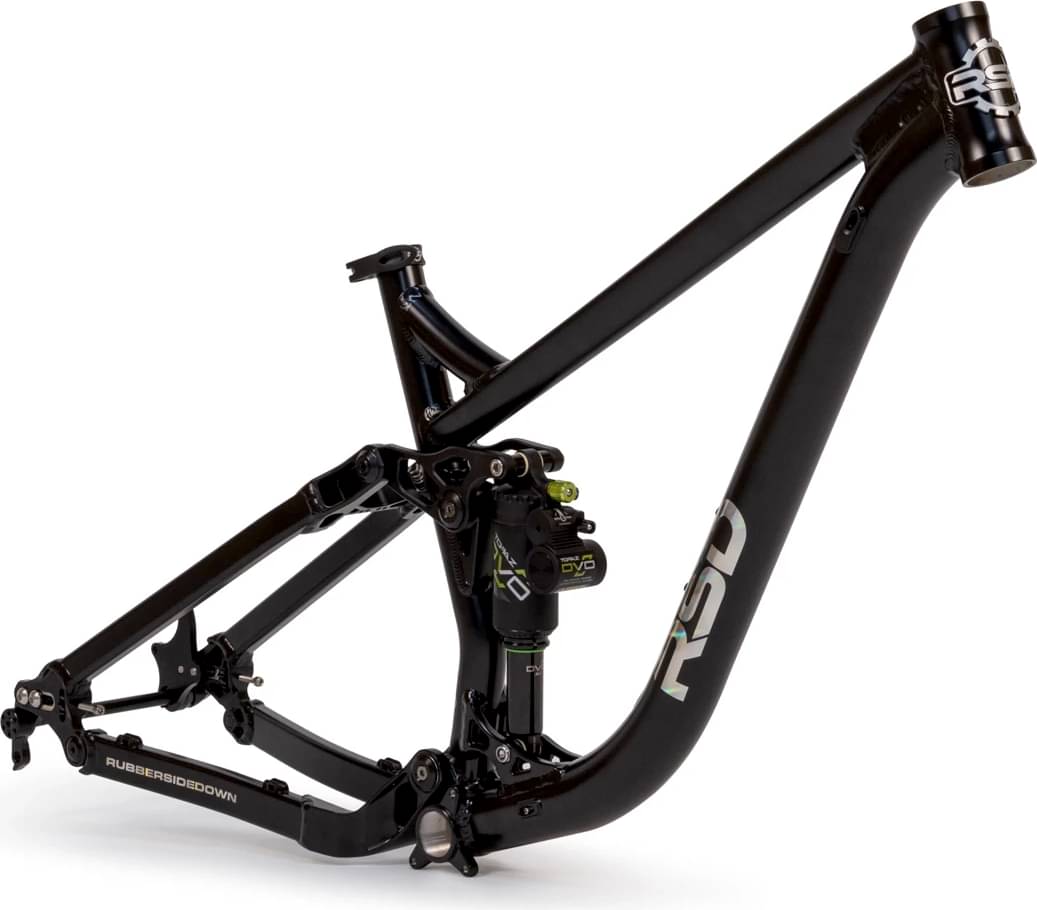

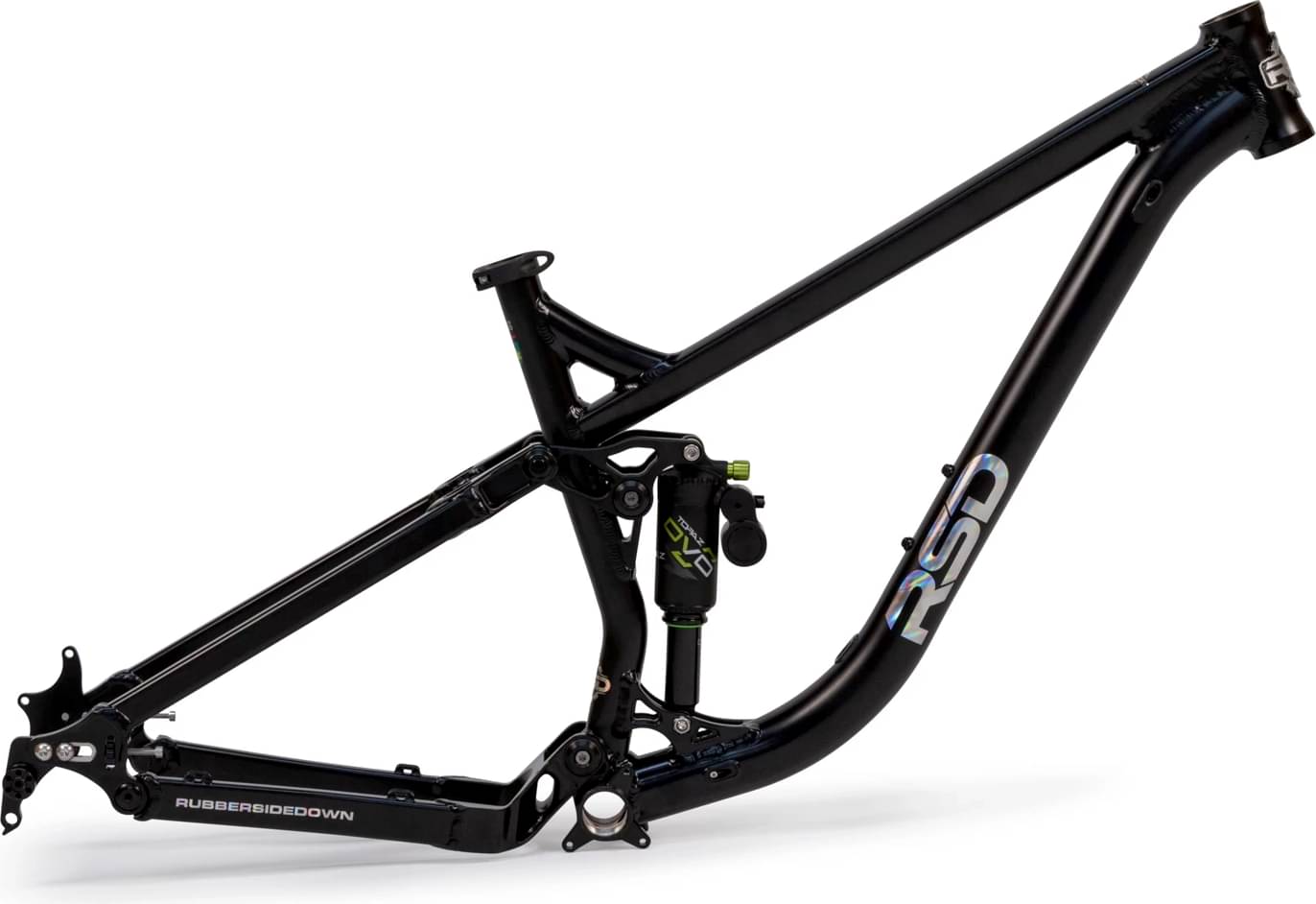

27.5+/29 Aluminum 6000 Series
Suspension Fork
DVO Diamond D2 27.5+/29 140mm 51mm
Rear Shock
DVO Topaz T2 210×52.5 (RC 425 – 125mm, RC 440 – 128mm)
Drivetrain
Rear Derailleur
SRAM GX Eagle Long Cage 12spd
Shift Levers
SRAM GX Eagle Trigger 12spd
Cassette
SRAM Eagle PG-1210 11-50T 12spd
Crank
SRAM GX Eagle 175mm DM
Bottom Bracket
SRAM DUB 73mm BSA
Chain
SRAM Eagle 12spd
Wheels
Rims
Sun Ringle Duroc 27.5x40mm 15x110mm & 12x148mm Boost
Tires
MAXXIS Minion DHF 29×2.5WT 3C/Max Terra/EXO Front and Aggressor 29×2.5WT 3C?Max Terra/EXO Rear, (Minimum Sliding Drop-Out Position – 435mm)
Brakes
Brakes
SRAM Guide R
Cockpit
Stem
FSA Comet 35 50mm
Handlebar
Race Face 35mm Aeffect 780mm
Grips
Lizard Skin Northshore
Headset
Cane Creek 40 Series ZS44/28.6 Top & EC44/40 Bottom
Seat
Saddle
Cionlli 142mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.394 mm | 1.329 mm | 1.287 mm | 1.259 mm |
| Bottom Bracket Height | 345 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 754 mm | 786 mm | 807 mm | 834 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 134 mm | 126 mm | 126 mm | 126 mm |
| Stack | 605 mm | 614 mm | 619 mm | 632 mm |
| Reach | 434 mm | 462 mm | 481 mm | 502 mm |
| Top Tube Length | 585 mm | 615 mm | 635 mm | 660 mm |
| Seat Tube Angle | 75.6 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 400 mm | 430 mm | 450 mm | 470 mm |
| Head Tube Angle | 64.6 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 115 mm | 130 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1178 mm | 1210 mm | 1231 mm | 1258 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 700 | 705 mm | 708 mm | 716 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
WILDCAT 125 (V3) Aluminum GX/D2 Build belongs to the Rsd Wildcat model. 32 bikes variations carry this model name so far. You can easily view all of the Rsd Wildcat bikes models from 2023, here.
Model range prices
The most economical model, the RSD WILDCAT 125 (V3) Aluminum SX/D3 Build 2023 has a starting price of 3749$. RSD WILDCAT 150 Aluminum 29in Deore Build 2023 on the other hand is the most expensive at 3999$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When RSD released this model in 2023, its price was 3749$. Comparing this to the average Trail bike price, we see that the price is 35.73% higher.
Average weight for Trail bikes
Trail bikes weigh an average of 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
considerably heavier than average, WILDCAT 125 (V3) Aluminum GX/D2 Build has a weight of 14.8 kg (32.63 lbs). In short, the average Trail bike weight is 14.02% lower than this one.
Overview of components
Fork
This bike has the DVO Diamond fork installed. The fork’s travel is 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.

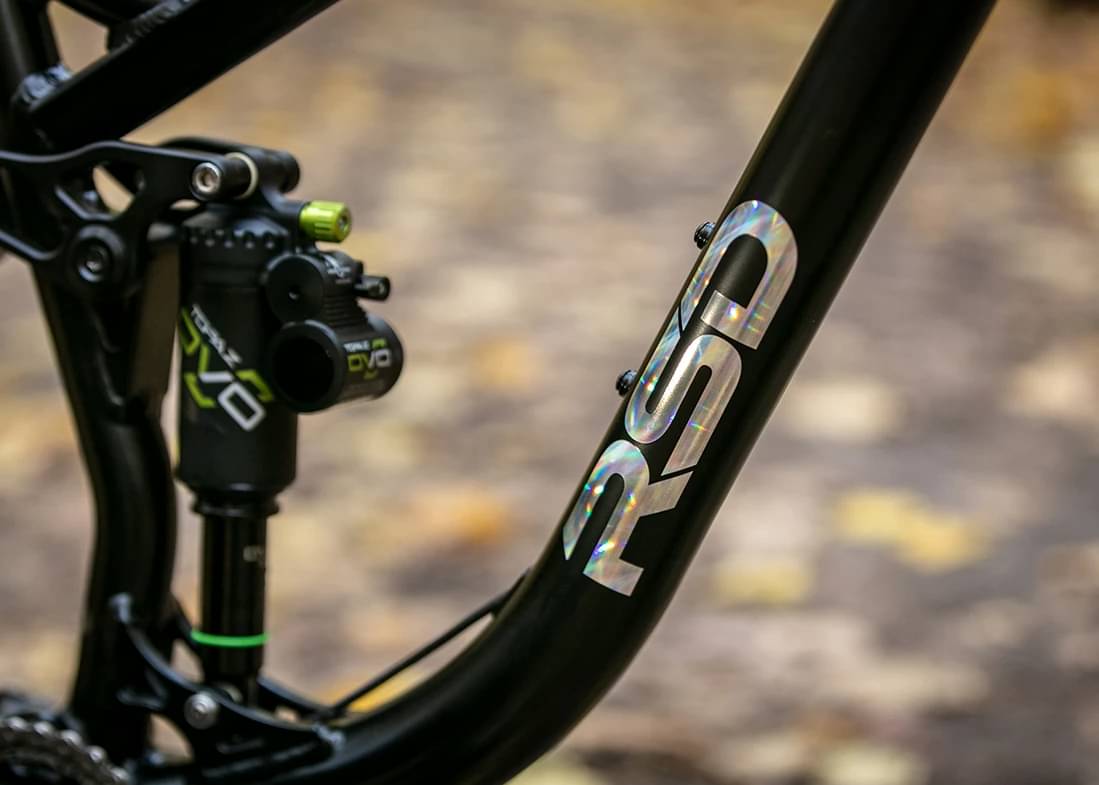

Rear Shock
As for the rear shock, this bike has the DVO Topaz T2 210×52.5 (RC 425 – 125mm model, with a travel of 125mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When leaving the production line, the WILDCAT 125 (V3) Aluminum GX/D2 Build model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The WILDCAT 125 (V3) Aluminum GX/D2 Build comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
