Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 130mm -
Fork RockShox Recon Silver RL
-
Groupset NX, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
RockShox Recon RL
Rear Shock
FOX Float Performance DSP
Drivetrain
Rear Derailleur
SRAM NX, 11-speed
Front Derailleur
N/A
Shift Levers
SRAM NX, 11-speed
Cassette
SRAM XG1150, 11-speed, 10-42 tooth
Crank
Race Face Aeffect
Bottom Bracket
Standard, threaded
Chain
SRAM PC1110
Chain Guide
none
Pedals
none
Wheels
Front Hub
Front: Novatec D711, 15mm x 110mm, 28 hole, Rear: Novatec D462, 12mm x 148mm, 28 hole, XD Driver
Rear Hub
Front: Novatec D711, 15mm x 110mm, 28 hole, Rear: Novatec D462, 12mm x 148mm, 28 hole, XD Driver
Rims
WTB ST i15 TSC
Spokes
DT Swiss Competition (28)
Tires
Front: Maxxis Minion DHF, 2.3", EXO, TR, Rear: Maxxis Crossmark II, 2.25", EXO, TR
Brakes
Brakes
SRAM Level T with Avid Centerline 180mm rotors front and rear, 6-bolt
Brake Levers
SRAM Level T
Cockpit
Stem
Race Face Ride, 50mm
Handlebar
Race Face Ride, 35mm diameter, 760mm width
Grips
Santa Cruz Palmdale, lock-on
Headset
Cane Creek 10, zero stack
Seat
Saddle
WTB Volt Race
Seatpost
Race Face Aeffect
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.4 mm | 1.36 mm | 1.29 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Stack | 580 mm | 590 mm | 599 mm | 608 mm |
| Reach | 400 mm | 420 mm | 440 mm | 470 mm |
| Top Tube Length | 571 mm | 593 mm | 616 mm | 649 mm |
| Seat Tube Angle | 73.8 ° | 73.8 ° | 73.8 ° | 73.8 ° |
| Seat Tube Length | 395 mm | 420 mm | 450 mm | 495 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 421 mm | 421 mm | 421 mm | 421 mm |
| Wheelbase | 1112 mm | 1136 mm | 1159 mm | 1193 mm |
| Bottom Bracket Drop | 21 mm | 21 mm | 21 mm | 21 mm |
| Standover Height | 706 mm | 712 mm | 714 mm | 727 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

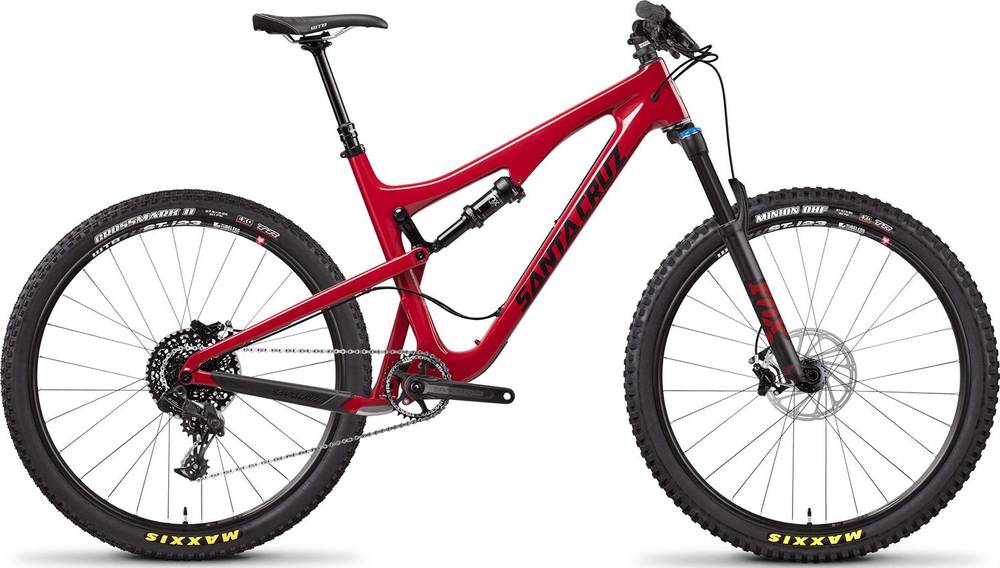

About this model
5010 C R completes the Santacruz 5010 model. 71 bikes variations carry this model name so far. Take a sneak peek at all Santacruz 5010 bikes models from 2018, by clicking here.
Model range prices
The most economical model, the Santa Cruz 5010 Aluminum D 2018 has a starting price of 2649$. Santa Cruz 5010 CC XX1 2018 on the other hand is the most expensive at 9199$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Santa Cruz released this model in 2018, its price was 3899$. Doing a quick comparison, we notice that 5010 C R price is 41.17% higher than the average cost of a Trail bike.
Overview of components
Fork
The RockShox Recon Silver RL is included from the factory. It has a travel distance of 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The 5010 C R has a rear shock with a travel of 130mm. The model FOX Float Performance DSP is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The 5010 C R 2018 bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Santa Cruz 5010 C R has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Santa Cruz 5010 C R bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Santa Cruz 5010 C R comes with a dropper post. Therefore, climbing or descending will be a breeze.
