Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 130mm -
Fork Fox Performance Elite Float 34
-
Groupset X01 Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 34 Float Performance Elite
Rear Shock
FOX Float Performance Elite DSP
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM X01 Eagle, 12-speed
Cassette
SRAM XG1295 Eagle, 12-speed, 10-50 tooth
Crank
SRAM X1 Eagle
Bottom Bracket
SRAM GXP Team
Chain
SRAM X01 Eagle, 12-speed
Chain Guide
none
Pedals
none
Wheels
Front Hub
Front: DT Swiss 350, 15mm x 110mm, 28 hole, Rear: DT Swiss 350, 12mm x 148mm, 28 hole, XD Driver
Rear Hub
Front: DT Swiss 350, 15mm x 110mm, 28 hole, Rear: DT Swiss 350, 12mm x 148mm, 28 hole, XD Driver
Rims
Standard: Race Face ARC 27, 28 hole, Upgrade: Santa Cruz Reserve 27 Carbon, 28 hole
Spokes
DT Swiss Competition (28)
Tires
Front: Maxxis Minion DHF, 2.3", 3c, EXO, TR, Rear: Maxxis Ardent Race, 2.35", 3c, EXO, TR
Brakes
Brakes
SRAM Guide RSC with Avid Centerline 180mm rotors front and rear, 6-bolt
Brake Levers
SRAM Guide RSC
Cockpit
Stem
Race Face Aeffect, 50mm
Handlebar
Santa Cruz Bicycles Carbon, 35mm diameter, 760mm width
Grips
Santa Cruz Palmdale, lock-on
Headset
Cane Creek 40, zero stack
Seat
Saddle
WTB Silverado Pro
Seatpost
RockShox Reverb Stealth
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.4 mm | 1.36 mm | 1.29 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Stack | 580 mm | 590 mm | 599 mm | 608 mm |
| Reach | 400 mm | 420 mm | 440 mm | 470 mm |
| Top Tube Length | 571 mm | 593 mm | 616 mm | 649 mm |
| Seat Tube Angle | 73.8 ° | 73.8 ° | 73.8 ° | 73.8 ° |
| Seat Tube Length | 395 mm | 420 mm | 450 mm | 495 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 421 mm | 421 mm | 421 mm | 421 mm |
| Wheelbase | 1112 mm | 1136 mm | 1159 mm | 1193 mm |
| Bottom Bracket Drop | 21 mm | 21 mm | 21 mm | 21 mm |
| Standover Height | 706 mm | 712 mm | 714 mm | 727 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

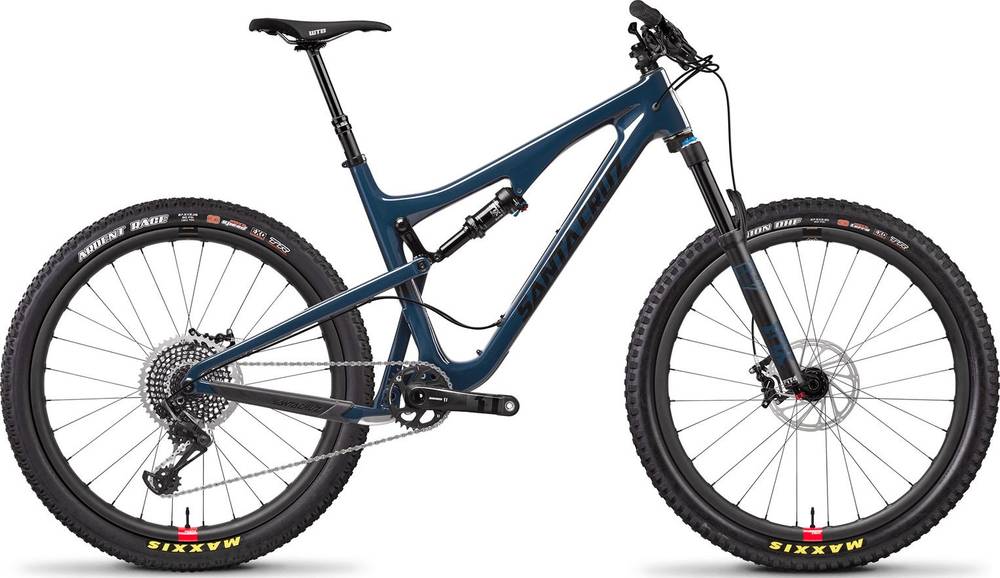

5010 CC X01 is part of the Santacruz 5010 model. There are 71 bikes that carry this model name. You can easily view all of the Santacruz 5010 bikes models from 2018, here.
Model range prices
Santa Cruz 5010 Aluminum D 2018 is the most affordable bike of this model and has a price of 2649$. On the other hand, Santa Cruz 5010 CC XX1 2018, is the most expensive and costs 9199$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 7999$. In conclusion, this bike price is 189.61% more expensive than the price of the average Trail bike.
5010 CC X01 components
Fork
This bike has the Fox Performance Elite Float 34 fork installed. The fork’s travel is 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Santa Cruz 5010 CC X01 bike has the FOX Float Performance Elite DSP model installed, and has a travel of 130mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The wheels on 5010 CC X01 are the 27.5″ carbon type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The 5010 CC X01 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
5010 CC X01 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Santa Cruz 5010 CC X01 includes a dropper post. Therefore, climbing or descending will be a breeze.
