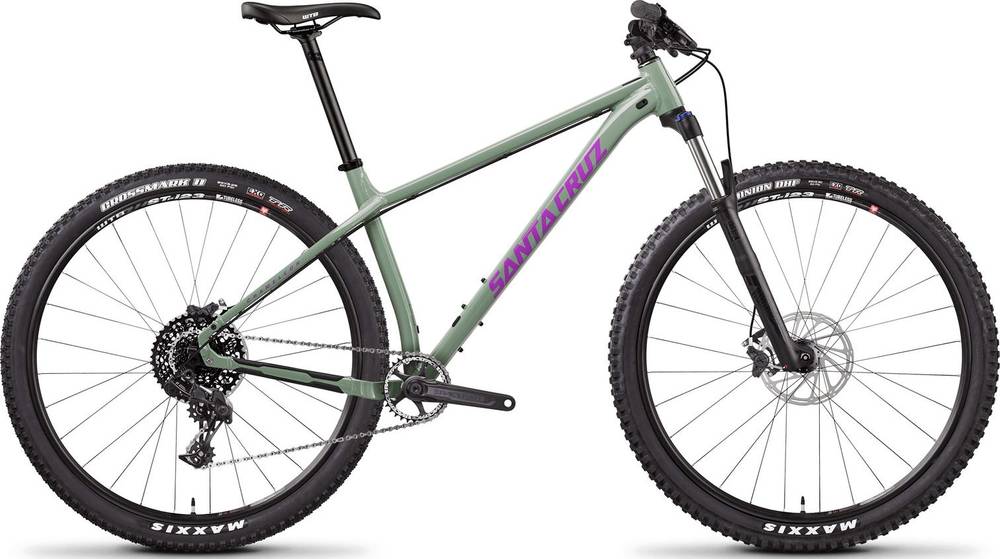

Santa Cruz Chameleon D 29 2018
2018 Mountain
Estimate price |
1,699$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork RockShox Recon Silver RL
-
Groupset NX, Race Face -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Recon RL
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM NX, long cage, 11-speed
Front Derailleur
N/A
Shift Levers
SRAM NX, 11-speed
Cassette
SRAM PG 1130, 11-42 tooth, 11-speed
Crank
Race Face Aeffect
Bottom Bracket
Standard, threaded
Chain
SRAM PC1110
Chain Guide
none
Pedals
none
Wheels
Front Hub
Front: Novatec D711, 15mm x 110mm, 28 hole, Rear: Novatec D462, 12mm x 148mm, 28 hole, HG
Rear Hub
Front: Novatec D711, 15mm x 110mm, 28 hole, Rear: Novatec D462, 12mm x 148mm, 28 hole, HG
Rims
WTB ST i23 TCS, 28 hole
Spokes
DT Competition (28)
Tires
Front: Maxxis Minion DHF, 2.3", EXO, TR, Rear: Maxxis Crossmark II, 2.25", DC, EXO, TR
Brakes
Brakes
SRAM Level with Avid Centerline 180mm rotors front and rear
Brake Levers
SRAM Level
Cockpit
Stem
Race Face Ride, 50mm
Handlebar
Race Face Ride, 35mm diameter, 760mm width
Grips
Santa Cruz Palmdale lock-on
Headset
Cane Creek 10, IS
Seat
Saddle
WTB Volt Sport
Seatpost
Race Face Ride
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.41 mm | 1.34 mm | 1.28 mm |
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm | 315 mm |
| Stack | 624 mm | 624 mm | 624 mm | 634 mm |
| Reach | 419 mm | 444 mm | 464 mm | 494 mm |
| Top Tube Length | 608 mm | 633 mm | 728 mm | 747 mm |
| Seat Tube Angle | 72.8 ° | 72.8 ° | 72.8 ° | 72.8 ° |
| Seat Tube Length | 390 mm | 420 mm | 450 mm | 490 mm |
| Head Tube Angle | 67.3 ° | 67.3 ° | 67.3 ° | 67.3 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 110 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1122 mm | 1147 mm | 1167 mm | 1201 mm |
| Bottom Bracket Drop | 59 mm | 59 mm | 59 mm | 59 mm |
| Standover Height | 696 mm | 703 mm | 728 mm | 747 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Chameleon D 29 completes the Santacruz Chameleon model. There are 57 bikes that carry this model name. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Santa Cruz Chameleon D 27.5 + 2018 is the cheapest bike model and costs 1699$. Santa Cruz Chameleon R 29 2018 is the most expensive one and costs 2349$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1699$. In conclusion, this bike price is 62.57% smaller than the price of the average Trail bike.
Chameleon D 29 components
Fork
Santa Cruz Chameleon D 29 2018 bike is equipped with the RockShox Recon Silver RL fork, and has 120mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the Chameleon D 29 bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
