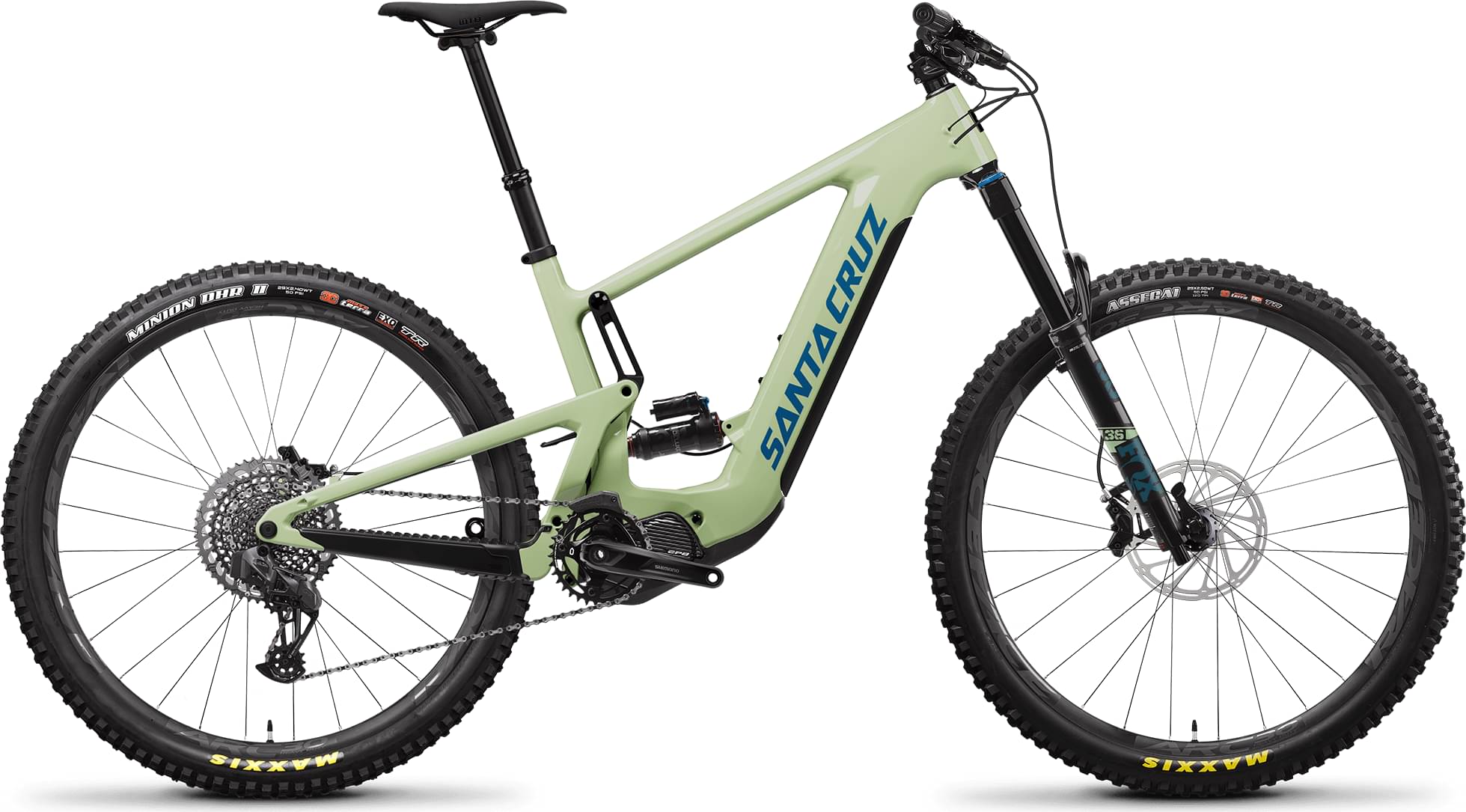

Santa Cruz HECKLER GX AXS / Carbon C / 29 2023
2023 E-bike
Estimate price |
12,796$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Performance Elite Float 36
-
Groupset GX Eagle AXS, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery 720Wh Integrated, removable -
Drivetrain Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HECKLER GX AXS / Carbon C / 29
Suspension Fork
FOX 36 Float Performance Elite, 160mm
Rear Shock
RockShox Super Deluxe Select+
Drivetrain
Rear Derailleur
SRAM GX AXS Eagle, 12spd
Shift Levers
SRAM GX AXS Controller
Cassette
SRAM XG1275 Eagle, 12spd, 10-50t
Crank
Shimano EM600 Crank Arms, 165mm
Chain
SRAM GX Eagle, 12spd
Chain Guide
E13 E-Spec+ AL
Wheels
Front Hub
Industry Nine 1/1, 110x15, 32h
Rear Hub
Industry Nine 1/1, 148x12, XD, 32h
Rims
RaceFace ARC HD 30 29" Rims
Spokes
Sapim Race
Tires
Front: Maxxis Assegai 29"x2.5", 3C, MaxxGRIP, EXO+, TR, Rear: Maxxis Minion DHR II 29"x2.4", 3C MaxxTerra, EXO+, TR
Brakes
Brakes
SRAM Code R
Disk Rotors
Avid Centerline 200mm
Cockpit
Stem
Burgtec Enduro MK3
Handlebar
Santa Cruz e35 Carbon Bar, 800mm, 35mm Rise
Grips
Santa Cruz House Grips
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Medium Cromoly SL Fusion Saddle or WTB Volt
Seatpost
Fox Transfer Performance Elite
Motor & Battery
Motor
Shimano Drive Unit DU-EP800
Battery
720Wh Integrated, removable
Remote
Shimano Display Unit SC-EM800
Charger
Smart-Plus 4A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD High | MD Low | LG High | LG Low | XL High | XL Low | XXL High | XXL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.36 mm | 1.32 mm | 1.34 mm | 1.31 mm | 1.32 mm | 1.28 mm | 1.29 mm |
| Bottom Bracket Height | 346 mm | 342 mm | 346 mm | 342 mm | 346 mm | 342 mm | 346 mm | 342 mm |
| Front Center | 781 mm | 781 mm | 807 mm | 807 mm | 836 mm | 836 mm | 869 mm | 869 mm |
| Rake | 44 mm | 45 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 128 mm | 129 mm | 128 mm | 130 mm | 128 mm | 130 mm | 128 mm | 130 mm |
| Stack | 621 mm | 623 mm | 634 mm | 637 mm | 653 mm | 655 mm | 671 mm | 673 mm |
| Reach | 460 mm | 457 mm | 480 mm | 477 mm | 500 mm | 497 mm | 525 mm | 522 mm |
| Top Tube Length | 604 mm | 605 mm | 629 mm | 630 mm | 650 | 651 mm | 679 mm | 680 mm |
| Seat Tube Angle | 76.8 ° | 76.6 ° | 76.7 ° | 76.4 ° | 77 ° | 76.7 ° | 77 ° | 76.8 ° |
| Seat Tube Length | 405 mm | 405 mm | 430 mm | 430 mm | 460 mm | 460 mm | 500 mm | 500 mm |
| Head Tube Angle | 64.8 ° | 64.5 ° | 64.8 ° | 64.5 ° | 64.8 ° | 64.5 ° | 64.8 ° | 64.5 ° |
| Head Tube Length | 100 mm | 100 mm | 115 mm | 115 mm | 135 mm | 135 mm | 155 mm | 155 mm |
| Chainstay Length | 465 mm | 466 mm | 465 mm | 466 mm | 465 mm | 466 mm | 465 mm | 466 mm |
| Wheelbase | 1246 mm | 1247 mm | 1272 mm | 1273 mm | 1301 mm | 1302 mm | 1334 mm | 1335 mm |
| Bottom Bracket Drop | 26 mm | 30 mm | 26 mm | 30 mm | 26 mm | 30 mm | 26 mm | 30 mm |
| Standover Height | 750 mm | 746 mm | 748 mm | 745 mm | 746 mm | 742 mm | 746 mm | 743 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
Model Overview
HECKLER GX AXS / Carbon C / 29 belongs to the Santacruz E Heckler model. There are 48 e-bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Santa Cruz HECKLER R / Carbon C / 29 2023 is the cheapest e-bike model and costs 8493$. Santa Cruz HECKLER X01 AXS RSV 29 / Carbon CC 2023 is the most expensive one and costs 13899$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro e-bikes average price
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Santa Cruz HECKLER GX AXS / Carbon C / 29 price was 11679$. If we compare this with the average Enduro e-bike cost we notice that the price is 144.08% more expensive.
Overview of components
Fork
The fork installed on this bike is the Fox Performance Elite Float 36 model. The travel on this model is 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this e-bike has the RockShox Super Deluxe Select+ model, with a travel of 150mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When leaving the production line, the HECKLER GX AXS / Carbon C / 29 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Santa Cruz HECKLER GX AXS / Carbon C / 29 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Dropper post
A dropper post is included with the HECKLER GX AXS / Carbon C / 29. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
