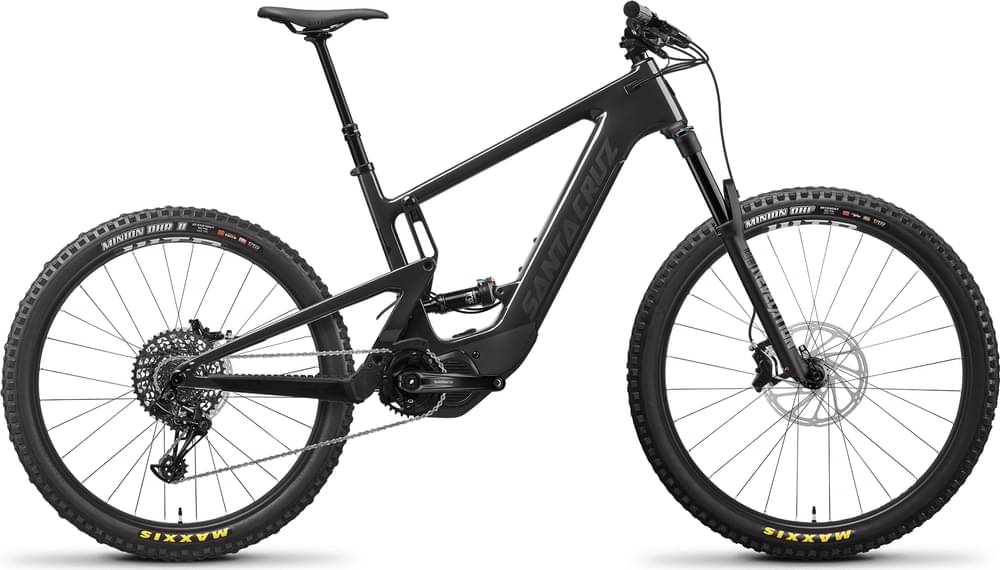

Santa Cruz Heckler R / Carbon CC / MX 2021
2021 E-bike
Estimate price |
7,699$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" / 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork RockShox Revelation RC
-
Groupset NX Eagle, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano 504Wh Integrated -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
174cm - 187cm
XL
184cm - 194cm
XXL
192cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Heckler R / Carbon CC / MX
Suspension Fork
RockShox Revelation RC, 140mm, 29"
Rear Shock
FOX Float Performance DPS
Drivetrain
Rear Derailleur
SRAM NX Eagle 12spd
Shift Levers
SRAM NX Eagle Single Click, 12spd
Cassette
SRAM PG1210, 12spd, 11-50t
Crank
Shimano E8000 Crank Arms 165mm
Chain
SRAM NX Eagle
Chain Guide
E13 E-Spec+ AL
Wheels
Front Hub
SRAM MTH 716, 15x110, Torque Cap, 32h
Rear Hub
SRAM MTH 746, 12x148, 32h
Rims
WTB ST i30 TCS 2.0 29" Rim (F) / WTB ST i30 TCS 2.0 27.5" Rim (R)
Spokes
Sapim Race
Tires
Front: Maxxis Minion DHF 29"x2.5, 3C, MaxxGrip, EXO, TR, Rear: Maxxis Minion DHR II 27.5"x2.4", 3C, EXO+
Brakes
Brakes
SRAM Guide RE
Disk Rotors
Avid Centerline 200mm
Cockpit
Stem
e.13 Base
Handlebar
E13 TRS Base
Grips
Santa Cruz Palmdale Grips
Headset
Cane Creek 10 IS Integrated Headset
Seat
Saddle
WTB Silverado Race Saddle
Seatpost
SDG Tellis Dropper, 31.6
Motor & Battery
Motor
Shimano DU-EP800
Battery
Shimano 504Wh Integrated
Remote
Shimano E7000 Mode Switch
Charger
Shimano Battery Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL | XXL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.37 mm | 1.33 mm | 1.31 mm |
| Bottom Bracket Height | 348 mm | 348 mm | 348 mm | 348 mm |
| Front Center | 763 mm | 790 mm | 821 mm | 865 mm |
| Rake | 35 mm | 35 mm | 35 mm | 35 mm |
| Trail | 139 mm | 139 mm | 139 mm | 139 mm |
| Stack | 618 mm | 632 mm | 646 mm | 669 mm |
| Reach | 441 mm | 461 mm | 486 mm | 510 mm |
| Top Tube Length | 603 mm | 628 mm | 657 mm | 690 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 405 mm | 430 mm | 460 mm | 500 mm |
| Head Tube Angle | 64.6 ° | 64.6 ° | 64.6 ° | 64.6 ° |
| Head Tube Length | 120 mm | 135 mm | 150 mm | 175 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1213 mm | 1240 mm | 1271 mm | 1306 mm |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm | 6 mm |
| Standover Height | 749 mm | 747 mm | 762 mm | 744 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 174 cm | 184 cm | 192 cm |
| Rider Max Height | 177 cm | 187 cm | 194 cm | 200 cm |
Model Overview
Heckler R / Carbon CC / MX completes the Santacruz E Heckler model. Santa Cruz released 48 e-bikes variations of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Santa Cruz Heckler R / Carbon CC / MX 2021 is the most economical model, with a starting price of 7699$. Santa Cruz Heckler X01 RSV / Carbon CC / 27.5 2021 on the other hand costs 12099$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail e-bikes average price
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When Santa Cruz released this model in 2021, its price was 7699$. In conclusion, this e-bike price is 128.8% higher than the price of the average Trail e-bike.
Overview of components
Fork
This e-bike has the RockShox Revelation RC fork installed. The fork’s travel is 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Santa Cruz Heckler R / Carbon CC / MX e-bike has the FOX Float Performance DPS model installed, and has a travel of 140mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The Heckler R / Carbon CC / MX 2021 e-bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Santa Cruz Heckler R / Carbon CC / MX is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 4 sizes. They vary from 165 cm – 200 cm (5.41 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The Santa Cruz model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
