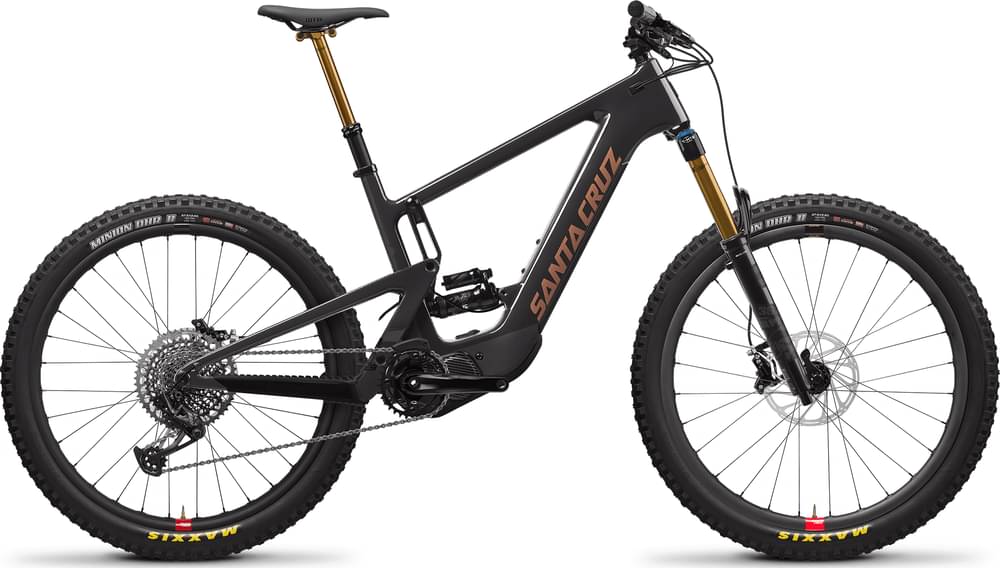

Santa Cruz Heckler X01 RSV / Carbon CC / 27.5 2021
2021 E-bike
Estimate price |
12,099$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset X01 Eagle, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano 504Wh Integrated -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 167cm
MD
164cm - 177cm
LG
174cm - 187cm
XL
184cm - 194cm
XXL
192cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Heckler X01 RSV / Carbon CC / 27.5
Suspension Fork
FOX 36-E Float Factory, 160mm, 27.5"
Rear Shock
RockShox Super Deluxe Select Ultimate
Drivetrain
Rear Derailleur
SRAM X01 Eagle
Shift Levers
SRAM X01 Eagle Single Click, 12spd
Cassette
SRAM XG1295 Eagle 10-50T
Crank
Shimano EM900 HollowTech Crank Arms, 165mm
Chain
SRAM X01 Eagle 12 SPD
Chain Guide
E13 E-Spec+ AL
Wheels
Front Hub
DT Swiss 350, 15x110, 28h
Rear Hub
DT Swiss 350, 12x148, XD, 32h
Rims
Reserve DH 27.5" Carbon
Spokes
Sapim D-light
Tires
Front: Maxxis Minion DHR II, 27.5x2.6 EXO+ TR, Rear: Maxxis Minion DHR II, 27.5x2.6 EXO+ TR
Brakes
Brakes
SRAM Code RSC
Disk Rotors
Avid Centerline 200mm
Cockpit
Stem
Burgtec Enduro MK3 42mm
Handlebar
Santa Cruz Bicycles Carbon Di2 Riser
Grips
Santa Cruz Palmdale Grips
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Team Saddle
Seatpost
Fox Transfer Factory
Motor & Battery
Motor
Shimano DU-EP800
Battery
Shimano 504Wh Integrated
Remote
Shimano Display Unit SC-EM800
Charger
Shimano Battery Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.36 mm | 1.33 mm | 1.29 mm | 1.27 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm | 346 mm |
| Front Center | 742 mm | 766 mm | 792 mm | 823 mm | 859 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 47 mm |
| Trail | 111 mm | 111 mm | 111 mm | 111 mm | 110 mm |
| Stack | 604 mm | 613 mm | 627 mm | 641 mm | 662 mm |
| Reach | 432 mm | 452 mm | 472 mm | 497 mm | 522 mm |
| Top Tube Length | 579 mm | 602 mm | 626 mm | 657 mm | 689 mm |
| Seat Tube Angle | 76.2 ° | 76.1 ° | 76 ° | 75.9 ° | 75.4 ° |
| Seat Tube Length | 390 mm | 405 mm | 430 mm | 460 mm | 500 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 110 mm | 120 mm | 135 mm | 150 mm | 175 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1194 mm | 1218 mm | 1244 mm | 1275 mm | 1311 mm |
| Bottom Bracket Drop | 13 mm | 13 mm | 13 mm | 13 mm | 13 mm |
| Standover Height | 727 mm | 752 mm | 750 mm | 748 mm | 748 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 154 cm | 164 cm | 174 cm | 184 cm | 192 cm |
| Rider Max Height | 167 cm | 177 cm | 187 cm | 194 cm | 200 cm |
About this model
Heckler X01 RSV / Carbon CC / 27.5 is a Santacruz E Heckler model. There are 48 e-bikes that carry this model name. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Santa Cruz Heckler R / Carbon CC / MX 2021 is the cheapest e-bike model and costs 7699$. Santa Cruz Heckler X01 RSV / Carbon CC / 27.5 2021 is the most expensive one and costs 12099$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail e-bikes average price
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2021 for 12099$. Comparing the average cost of a Trail e-bike to this one, you will see that Heckler X01 RSV / Carbon CC / 27.5 price is 259.55% higher.
Overview of components
Fork
The Fox Factory Float 36 is included from the factory. It has a travel distance of 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The Heckler X01 RSV / Carbon CC / 27.5 has a rear shock with a travel of 140mm. The model RockShox Super Deluxe Select Ultimate is the one installed in this e-bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
As for the wheels, Santa Cruz Heckler X01 RSV / Carbon CC / 27.5 2021, has a 27.5″ carbon model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Heckler X01 RSV / Carbon CC / 27.5 comes in 5 sizes, that range from 154 cm – 200 cm (5.05 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the Heckler X01 RSV / Carbon CC / 27.5. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
