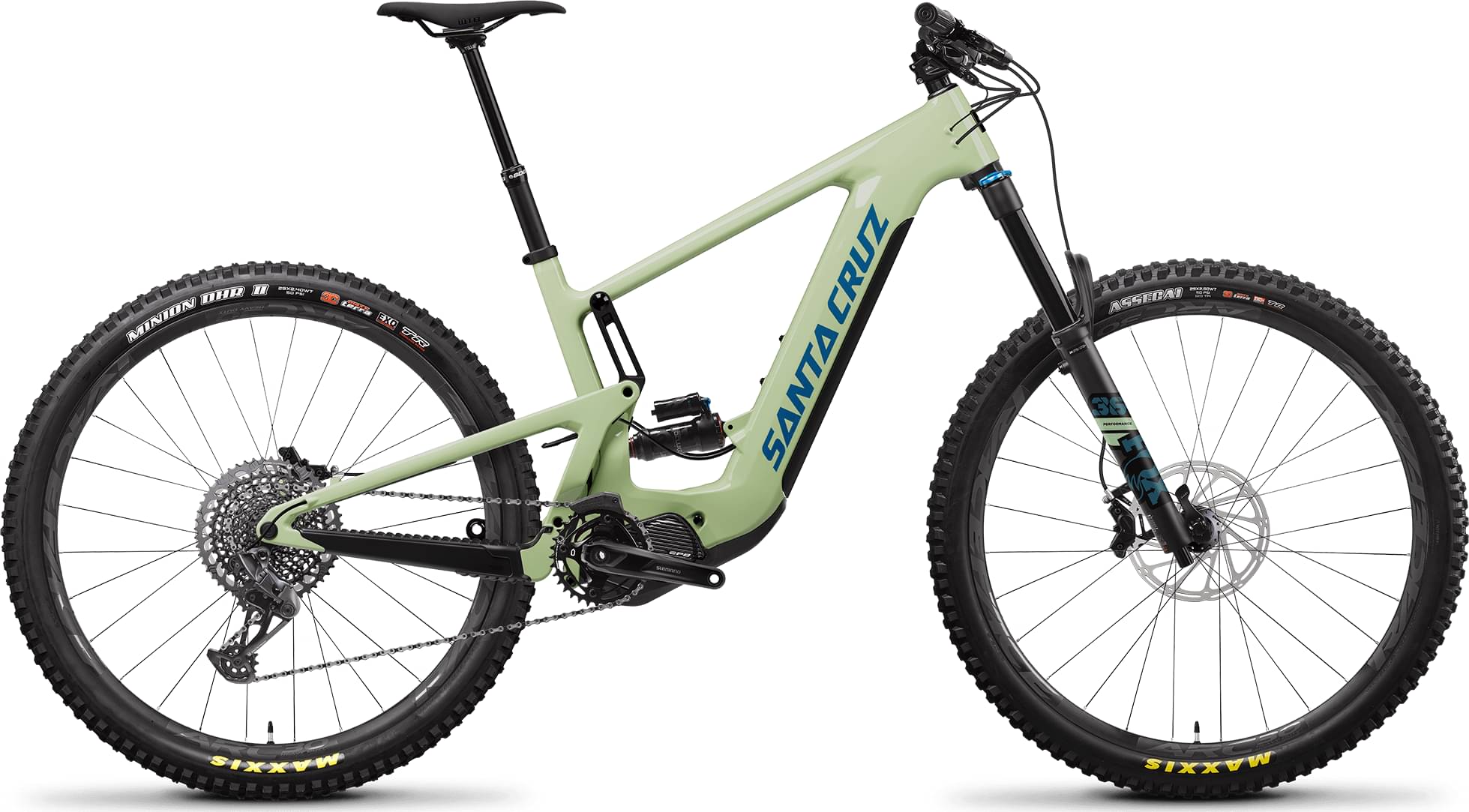

Santa Cruz HECKLER S / Carbon C / 29 2023
2023 E-bike
Estimate price |
10,469$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Performance Float 36
-
Groupset GX Eagle, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery 720Wh Integrated, removable -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HECKLER S / Carbon C / 29
Suspension Fork
FOX 36 Float Performance, 160mm
Rear Shock
RockShox Super Deluxe Select+
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12spd
Shift Levers
SRAM GX Eagle Single Click, 12spd
Cassette
SRAM XG1275 Eagle, 12spd, 10-50t
Crank
Shimano EM600 Crank Arms 165mm
Chain
SRAM GX Eagle, 12spd
Chain Guide
E13 E-Spec+ AL
Wheels
Front Hub
DT Swiss 370, 15x110, 6 bolt, 32h or E13 SL, 15x110, 6 bolt, 32h
Rear Hub
DT Swiss 370, 12x148, XD, 32h or E.13 SL E-Spec, 12x148, XD, 6 bolt, 32h
Rims
RaceFace ARC HD 30 29"
Spokes
Sapim Race
Tires
Front: Maxxis Assegai 29"x2.5", 3C, MaxxGRIP, EXO+, TR, Rear: Maxxis Minion DHR II 29"x2.4", 3C MaxxTerra, EXO+, TR
Brakes
Brakes
SRAM Code R
Disk Rotors
Avid Centerline 200mm
Cockpit
Stem
Burgtec Enduro MK3
Handlebar
Santa Cruz e35 Carbon Bar, 800mm, 35mm Rise
Grips
Santa Cruz House Grips
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Medium Cromoly SL Fusion Saddle or WTB Volt
Seatpost
SDG Tellis
Motor & Battery
Motor
Shimano Drive Unit DU-EP800
Battery
720Wh Integrated, removable
Remote
Shimano Display Unit SC-E7000
Charger
Smart-Plus 4A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD High | MD Low | LG High | LG Low | XL High | XL Low | XXL High | XXL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.36 mm | 1.32 mm | 1.34 mm | 1.31 mm | 1.32 mm | 1.28 mm | 1.29 mm |
| Bottom Bracket Height | 346 mm | 342 mm | 346 mm | 342 mm | 346 mm | 342 mm | 346 mm | 342 mm |
| Front Center | 781 mm | 781 mm | 807 mm | 807 mm | 836 mm | 836 mm | 869 mm | 869 mm |
| Rake | 44 mm | 45 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 128 mm | 129 mm | 128 mm | 130 mm | 128 mm | 130 mm | 128 mm | 130 mm |
| Stack | 621 mm | 623 mm | 634 mm | 637 mm | 653 mm | 655 mm | 671 mm | 673 mm |
| Reach | 460 mm | 457 mm | 480 mm | 477 mm | 500 mm | 497 mm | 525 mm | 522 mm |
| Top Tube Length | 604 mm | 605 mm | 629 mm | 630 mm | 650 | 651 mm | 679 mm | 680 mm |
| Seat Tube Angle | 76.8 ° | 76.6 ° | 76.7 ° | 76.4 ° | 77 ° | 76.7 ° | 77 ° | 76.8 ° |
| Seat Tube Length | 405 mm | 405 mm | 430 mm | 430 mm | 460 mm | 460 mm | 500 mm | 500 mm |
| Head Tube Angle | 64.8 ° | 64.5 ° | 64.8 ° | 64.5 ° | 64.8 ° | 64.5 ° | 64.8 ° | 64.5 ° |
| Head Tube Length | 100 mm | 100 mm | 115 mm | 115 mm | 135 mm | 135 mm | 155 mm | 155 mm |
| Chainstay Length | 465 mm | 466 mm | 465 mm | 466 mm | 465 mm | 466 mm | 465 mm | 466 mm |
| Wheelbase | 1246 mm | 1247 mm | 1272 mm | 1273 mm | 1301 mm | 1302 mm | 1334 mm | 1335 mm |
| Bottom Bracket Drop | 26 mm | 30 mm | 26 mm | 30 mm | 26 mm | 30 mm | 26 mm | 30 mm |
| Standover Height | 750 mm | 746 mm | 748 mm | 745 mm | 746 mm | 742 mm | 746 mm | 743 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
About this model
HECKLER S / Carbon C / 29 belongs to the Santacruz E Heckler model. There are 48 e-bikes that carry this model name. You can easily view all of the Santacruz E Heckler e-bikes models from 2023, here.
Model range prices
The most economical model, the Santa Cruz HECKLER R / Carbon C / 29 2023 has a starting price of 8493$. Santa Cruz HECKLER X01 AXS RSV 29 / Carbon CC 2023 on the other hand is the most expensive at 13899$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
When Santa Cruz released this model in 2023, its price was 9555$. Comparing the average cost of an Enduro e-bike to this one, you will see that HECKLER S / Carbon C / 29 price is 99.69% more expensive.
Overview of components
Fork
Santa Cruz HECKLER S / Carbon C / 29 2023 e-bike is equipped with the Fox Performance Float 36 fork, and has 160mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this e-bike has the RockShox Super Deluxe Select+ model, with a travel of 150mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
The HECKLER S / Carbon C / 29 2023 e-bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Dropper post
Santa Cruz HECKLER S / Carbon C / 29 comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
