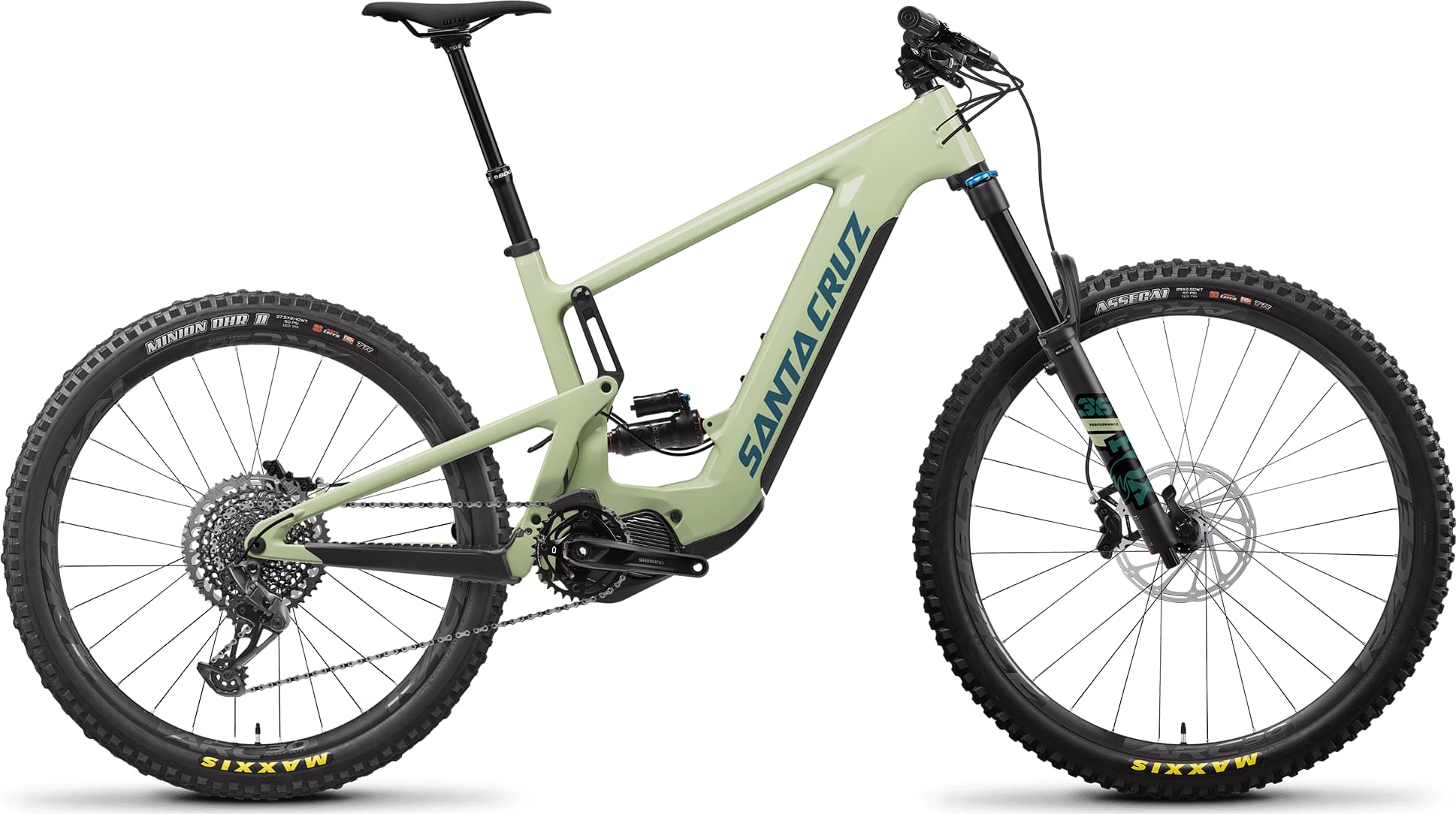

Santa Cruz HECKLER S / Carbon C / MX 2023
2023 E-bike
Estimate price |
10,469$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Performance Float 36
-
Groupset GX Eagle, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery 720Wh Integrated, removable -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HECKLER S / Carbon C / MX
Suspension Fork
FOX 36 Float Performance, 160mm
Rear Shock
RockShox Super Deluxe Select+
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12spd
Shift Levers
SRAM GX Eagle Single Click, 12spd
Cassette
SRAM XG1275 Eagle, 12spd, 10-50t
Crank
Shimano EM600 Crank Arms 165mm
Chain
SRAM GX Eagle, 12spd
Chain Guide
E13 E-Spec+ AL
Wheels
Front Hub
DT Swiss 370, 15x110, 6 bolt, 32h or E13 SL, 15x110, 6 bolt, 32h
Rear Hub
DT Swiss 370, 12x148, XD, 32h or E.13 SL E-Spec, 12x148, XD, 6 bolt, 32h
Rims
RaceFace ARC HD 30 29” (F), 27.5” (R) (Size Small is 27.5” Front and Rear)
Spokes
Sapim Race
Tires
Front: Maxxis Assegai 29"x2.5", 3C, MaxxGrip, EXO+, TR (Size Small is 27.5”), Rear: Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+, TR
Brakes
Brakes
SRAM Code R
Disk Rotors
Avid Centerline 200mm
Cockpit
Stem
Burgtec Enduro MK3
Handlebar
Santa Cruz e35 Carbon Bar, 800mm, 35mm Rise
Grips
Santa Cruz House Grips
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Medium Cromoly SL Fusion Saddle or WTB Volt
Seatpost
SDG Tellis
Motor & Battery
Motor
Shimano Drive Unit DU-EP800
Battery
720Wh Integrated, removable
Remote
Shimano Display Unit SC-E7000
Charger
Smart-Plus 4A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low | XXL High | XXL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.42 mm | 1.35 mm | 1.36 mm | 1.32 mm | 1.33 mm | 1.3 mm | 1.32 mm | 1.28 mm | 1.29 mm |
| Bottom Bracket Height | 346 mm | 342 mm | 346 mm | 342 mm | 346 mm | 342 mm | 346 mm | 342 mm | 346 mm | 342 mm |
| Front Center | 761 mm | 761 mm | 781 mm | 781 mm | 807 mm | 807 mm | 836 mm | 736 mm | 869 mm | 869 mm |
| Rake | 45 mm | 45 mm | 36 mm | 36 mm | 36 mm | 36 mm | 36 mm | 36 mm | 36 mm | 35 mm |
| Trail | 118 mm | 120 mm | 127 mm | 130 mm | 127 mm | 130 mm | 127 mm | 130 mm | 127 mm | 131 mm |
| Stack | 614 mm | 616 mm | 623 mm | 625 mm | 636 mm | 639 mm | 655 mm | 657 mm | 673 mm | 675 mm |
| Reach | 437 mm | 434 mm | 462 mm | 459 mm | 482 mm | 479 mm | 502 mm | 499 mm | 527 mm | 524 mm |
| Top Tube Length | 578 mm | 579 mm | 606 mm | 607 mm | 631 mm | 632 mm | 652 mm | 653 mm | 681 mm | 682 mm |
| Seat Tube Angle | 76.9 ° | 76.7 ° | 76.8 ° | 76.6 ° | 76.7 ° | 76.4 ° | 77 ° | 76.7 ° | 77 ° | 76.8 ° |
| Seat Tube Length | 390 mm | 390 mm | 405 mm | 405 mm | 430 mm | 430 mm | 460 mm | 460 mm | 500 mm | 500 mm |
| Head Tube Angle | 64.8 ° | 64.5 ° | 64.8 ° | 64.5 ° | 64.8 ° | 64.5 ° | 64.8 ° | 64.5 ° | 64.8 ° | 64.5 ° |
| Head Tube Length | 130 mm | 130 mm | 100 mm | 100 mm | 115 mm | 115 mm | 135 mm | 135 mm | 155 mm | 155 mm |
| Chainstay Length | 452 mm | 453 mm | 452 mm | 453 mm | 452 mm | 453 mm | 452 mm | 453 mm | 452 mm | 453 mm |
| Wheelbase | 1213 mm | 1214 mm | 1233 mm | 1234 mm | 1259 mm | 1260 mm | 1288 mm | 1289 mm | 1321 mm | 1322 mm |
| Bottom Bracket Drop | 8 mm | 12 mm | 8 mm | 12 mm | 8 mm | 12 mm | 8 mm | 12 mm | 8 mm | 12 mm |
| Standover Height | 727 mm | 723 mm | 752 mm | 748 mm | 750 mm | 747 mm | 748 mm | 744 mm | 748 mm | 745 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
Model Overview
HECKLER S / Carbon C / MX is a Santacruz E Heckler model. Santa Cruz released 48 e-bikes variations of this model so far. You can easily view all of the Santacruz E Heckler e-bikes models from 2023, here.
Model range prices
The most economical model, the Santa Cruz HECKLER R / Carbon C / 29 2023 has a starting price of 8493$. Santa Cruz HECKLER X01 AXS RSV 29 / Carbon CC 2023 on the other hand is the most expensive at 13899$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
When Santa Cruz released this model in 2023, its price was 9555$. Comparing the average cost of an Enduro e-bike to this one, you will see that HECKLER S / Carbon C / MX price is 99.69% higher.
Overview of components
Fork
The Fox Performance Float 36 is included from the factory. It has a travel distance of 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the RockShox Super Deluxe Select+ rear shock model, which has a travel of 150mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When it comes to wheels, the HECKLER S / Carbon C / MX e-bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Santa Cruz HECKLER S / Carbon C / MX is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Dropper post
Santa Cruz HECKLER S / Carbon C / MX comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
