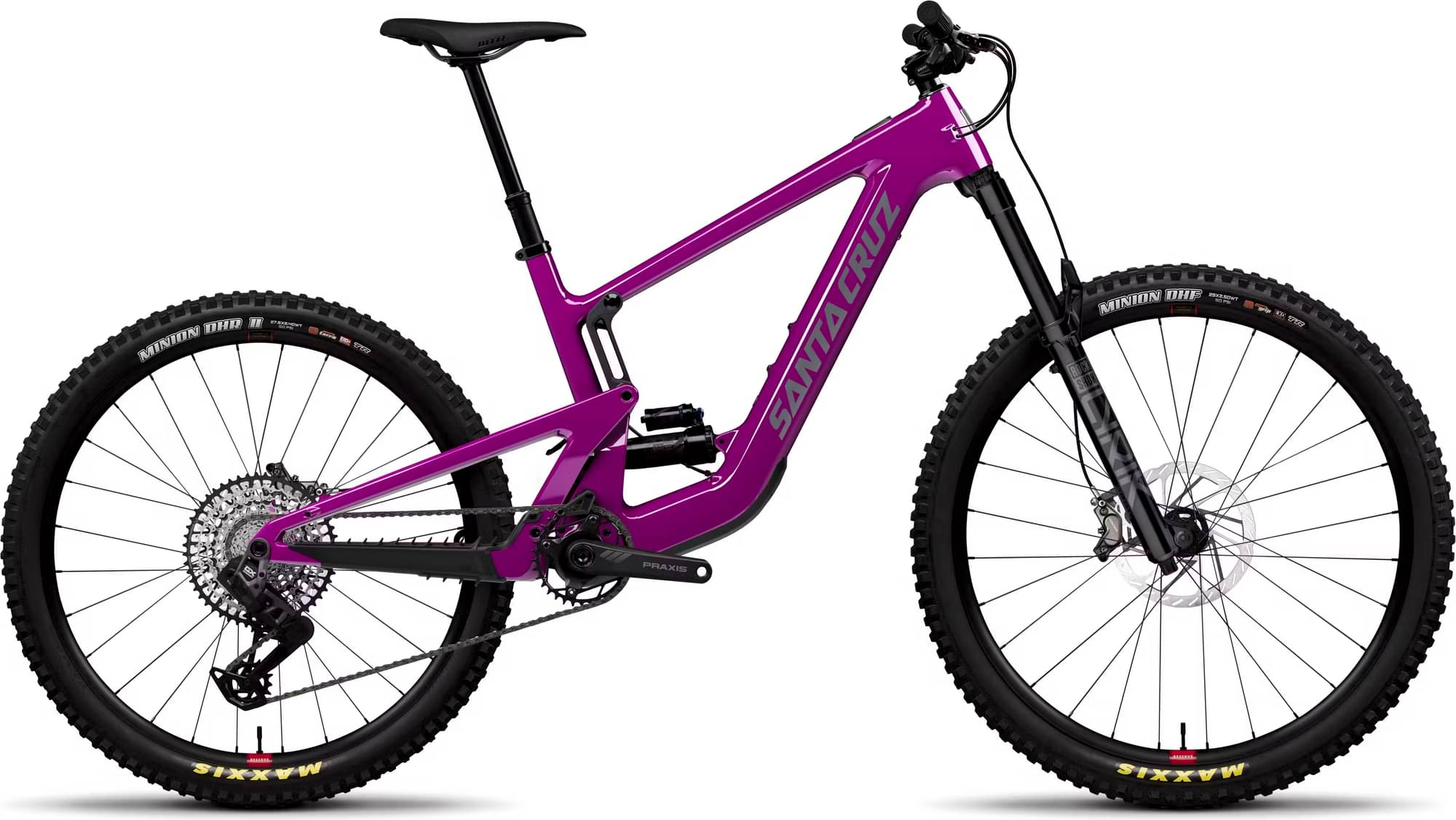

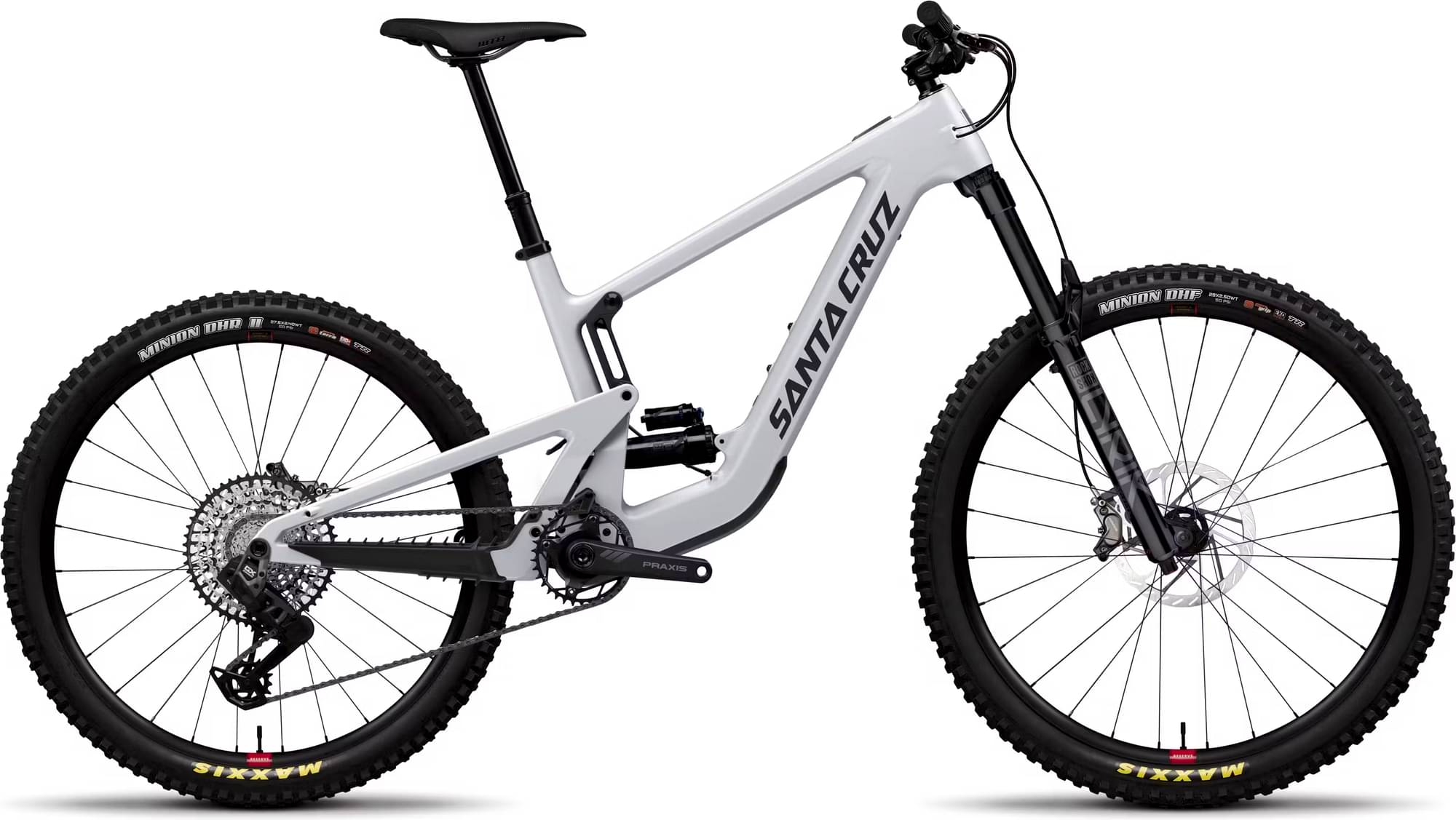

Santa Cruz HECKLER SL GX AXS / Carbon C 2024
2024 E-bike
Estimate price |
9,699$
Weight | 19.31 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox Lyrik Select+
-
Groupset GX Eagle Transmission, SRAM -
Suspension Full -
Motor Fazua mid-drive -
Battery FAZUA 430 Wh Integrated Battery -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
155cm - 166cm
SM Low
155cm - 166cm
MD High
164cm - 176cm
MD Low
164cm - 176cm
LG High
174cm - 186cm
LG Low
174cm - 186cm
XL High
184cm - 194cm
XL Low
184cm - 194cm
XXL High
192cm - 201cm
XXL Low
192cm - 201cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HECKLER SL GX AXS / Carbon C
Suspension Fork
RockShox Lyrik Select+, 160mm
Rear Shock
RockShox Super Deluxe Select+, 210x55
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS T-Type, 12spd
Shift Levers
SRAM AXS Pod Bridge
Cassette
SRAM GX Eagle T-Type, 10-52t
Crank
Praxis eTor AL, 104BCD, 165mm
Chain
SRAM GX Eagle T-Type, 12spd
Chain Guide
OneUp Chainguide
Wheels
Front Hub
DT Swiss 370, 12x110, Torque Cap, 6-Bolt, 28h
Rear Hub
DT Swis 370, 12x148, XD, 6-Bolt, 36t, 28h
Rims
Front: Reserve 30|SL AL 6069 29", Rear: Reserve 30|SL AL 6069 27.5"
Tires
Front: Maxxis Minion DHF 29"x2.5"WT, 3C MaxxGrip, EXO, Rear: Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+
Brakes
Brakes
SRAM Code Bronze Stealth
Cockpit
Stem
Burgtec Enduro MK3, 42mm
Handlebar
Santa Cruz 35 Carbon Bar, 800mm
Grips
Santa Cruz Bicycles House Grips or Burgtec Bartender Pro Grip Minnar
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Medium, CroMo
Seatpost
OneUp V2 Dropper Post, 31.6
Motor & Battery
Motor
FAZUA RIDE60
Battery
FAZUA 430 Wh Integrated Battery
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low | XXL High | XXL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.43 mm | 1.36 mm | 1.37 mm | 1.32 mm | 1.33 mm | 1.3 mm | 1.31 mm | 1.27 mm | 1.28 mm |
| Bottom Bracket Height | 344 mm | 340.7 mm | 344 mm | 340.7 mm | 344 mm | 340.7 mm | 344 mm | 340.7 mm | 344 mm | 340.7 mm |
| Front Center | 766.1 mm | 765.9 mm | 795.4 mm | 795.3 mm | 819.7 mm | 819.6 mm | 848.4 mm | 848.3 mm | 879.9 mm | 879.8 mm |
| Rake | 45 mm | 44 mm | 45 mm | 44 mm | 45 mm | 44 mm | 45 mm | 44 mm | 45 mm | 44 mm |
| Trail | 130 mm | 134 mm | 130 mm | 134 mm | 130 mm | 134 mm | 130 mm | 134 mm | 130 mm | 134 mm |
| Stack | 611.9 mm | 613.8 mm | 621 mm | 622.8 mm | 630 mm | 631.9 mm | 648 mm | 650 | 661.5 mm | 663.5 mm |
| Reach | 432 mm | 429.4 mm | 457 mm | 454.4 mm | 477 mm | 474.5 mm | 497 mm | 494.4 mm | 522 mm | 519.5 mm |
| Top Tube Length | 566.2 mm | 576.6 mm | 599.7 mm | 599.9 mm | 617.6 mm | 618.5 mm | 638.8 mm | 639.7 mm | 666.1 mm | 667 mm |
| Seat Tube Angle | 76.8 ° | 76.6 ° | 77.1 ° | 76.9 ° | 77.5 ° | 77.2 ° | 77.7 ° | 77.5 ° | 77.8 ° | 77.5 ° |
| Seat Tube Length | 380 mm | 380 mm | 405 mm | 405 mm | 430 mm | 430 mm | 460 mm | 460 mm | 500 mm | 500 mm |
| Head Tube Angle | 64.3 ° | 64 ° | 64.3 ° | 64 ° | 64.3 ° | 64 ° | 64.3 ° | 64 ° | 64.3 ° | 64 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm | 140 mm | 140 mm | 155 mm | 155 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm | 443 mm | 443 mm | 447 mm | 447 mm |
| Wheelbase | 1206 mm | 1206 mm | 1235 mm | 1236 mm | 1259 mm | 1260 mm | 1291 mm | 1292 mm | 1326 mm | 1327 mm |
| Bottom Bracket Drop | 28 mm | 31 mm | 28 mm | 31 mm | 28 mm | 31 mm | 28 mm | 31 mm | 28 mm | 31 mm |
| Standover Height | 717 mm | 713 mm | 730 mm | 725 mm | 730 mm | 726 mm | 728 mm | 728 mm | 738 mm | 735 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 155 cm | 164 cm | 164 cm | 174 cm | 174 cm | 184 cm | 184 cm | 192 cm | 192 cm |
| Rider Max Height | 166 cm | 166 cm | 176 cm | 176 cm | 186 cm | 186 cm | 194 cm | 194 cm | 201 cm | 201 cm |
About this model
HECKLER SL GX AXS / Carbon C belongs to the Santacruz E Heckler Sl model. There are 5 e-bikes that carry this model name. Check out the entire range from 2024 of this model, by clicking this link.
Model range prices
The most economical model, the Santa Cruz HECKLER SL R / Carbon C 2024 has a starting price of 7299$. Santa Cruz HECKLER SL XX AXS RSV / Carbon CC 2024 on the other hand is the most expensive at 12999$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 9699$. If we compare this with the average Enduro e-bike cost we notice that the price is 102.7% higher.
Average weight for Enduro e-bikes
The average weight for Enduro e-bikes is 23.3 kg (51.37 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
much lighter than average, HECKLER SL GX AXS / Carbon C has a weight of 19.31 kg (42.57 lbs). In conclusion, the average Enduro e-bike weighs 20.66% more than HECKLER SL GX AXS / Carbon C.
Overview of components
Fork
The RockShox Lyrik Select+ is included from the factory. It has a travel distance of 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Santa Cruz HECKLER SL GX AXS / Carbon C e-bike has the RockShox Super Deluxe Select+ model installed, and has a travel of 150mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When it comes to wheels, the HECKLER SL GX AXS / Carbon C e-bike is equipped with the 29″ carbon model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Santa Cruz HECKLER SL GX AXS / Carbon C is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Santa Cruz HECKLER SL GX AXS / Carbon C e-bike has 10 sizes, in the range of 155 cm – 201 cm (5.09 ft – 6.59 ft). In short, you can easily find one that suits you.
Dropper post
The Santa Cruz model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
