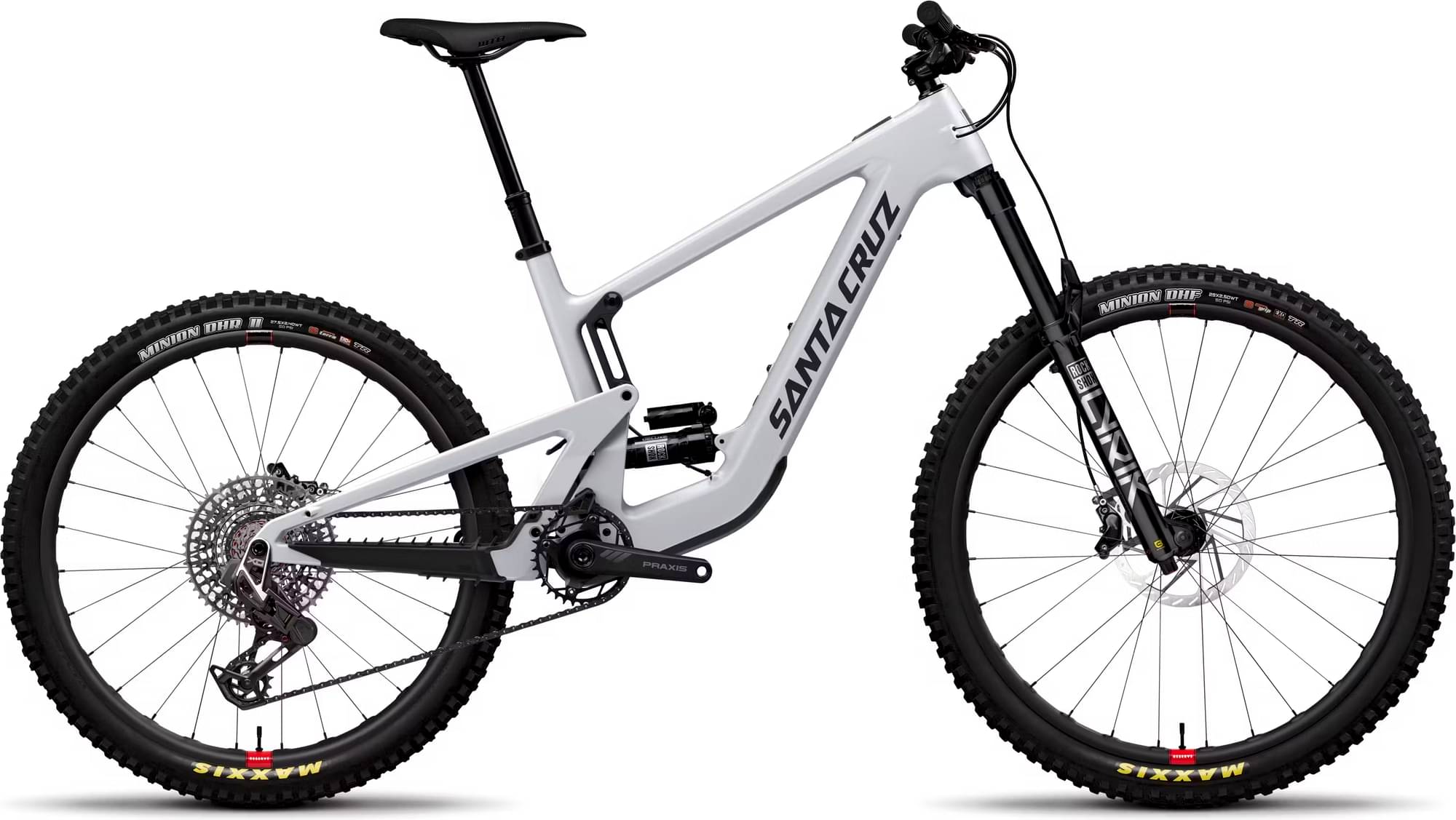

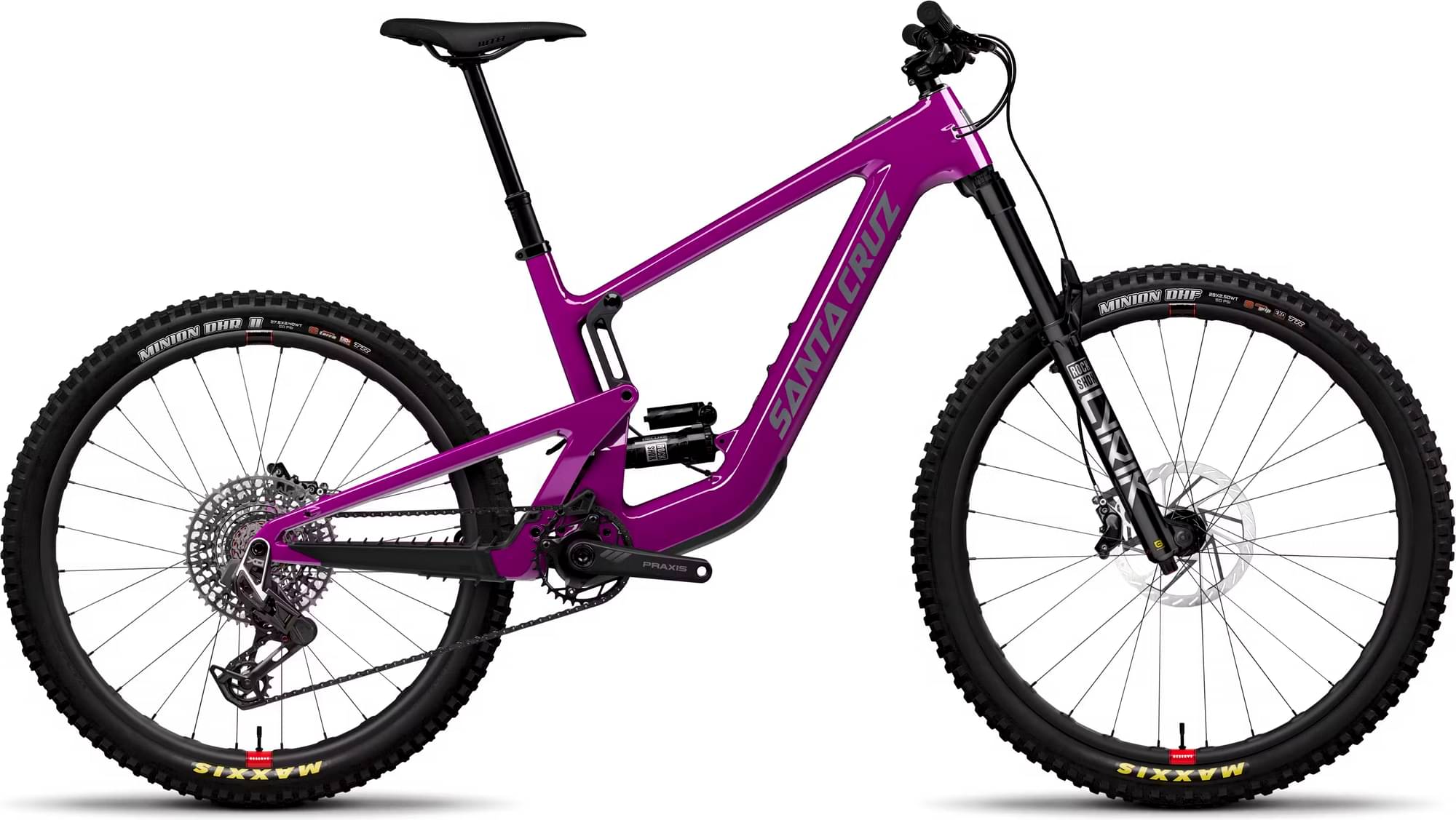

Santa Cruz HECKLER SL X0 AXS RSV / Carbon CC 2024
2024 E-bike
Estimate price |
11,699$
Weight | 19.01 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox Lyrik Ultimate
-
Groupset X0 Eagle Transmission, SRAM -
Suspension Full -
Motor Fazua mid-drive -
Battery FAZUA 430 Wh Integrated Battery -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
155cm - 166cm
SM Low
155cm - 166cm
MD High
164cm - 176cm
MD Low
164cm - 176cm
LG High
174cm - 186cm
LG Low
174cm - 186cm
XL High
184cm - 194cm
XL Low
184cm - 194cm
XXL High
192cm - 201cm
XXL Low
192cm - 201cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HECKLER SL X0 AXS RSV / Carbon CC
Suspension Fork
RockShox Lyrik Ultimate, 160mm
Rear Shock
RockShox Super Deluxe Ultimate, 210x55
Drivetrain
Rear Derailleur
SRAM X0 Eagle AXS T-Type, 12spd
Shift Levers
SRAM AXS Pod Bridge
Cassette
SRAM X0 Eagle T-Type, 10-52t
Crank
Praxis eTor AL, 104BCD, 165mm
Chain
SRAM X0 Eagle T-Type, Flattop, 12spd
Chain Guide
OneUp Chainguide
Wheels
Front Hub
Industry Nine 1/1, 15x110, Torque Cap, 6-Bolt, 28h
Rear Hub
Industry Nine 1/1, 12x148, XD, 6-Bolt, 28h
Rims
Front: Reserve 30|HD 29", Rear: Reserve 30|HD 27.5"
Tires
Front: Maxxis Minion DHF 29"x2.5"WT, 3C MaxxGrip, EXO, Rear: Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+
Brakes
Brakes
SRAM Code Silver Stealth
Cockpit
Stem
Burgtec Enduro MK3, 42mm
Handlebar
Santa Cruz 35 Carbon Bar, 800mm
Grips
Santa Cruz Bicycles House Grips or Burgtec Bartender Pro Grip Minnar
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Medium, Ti
Seatpost
OneUp V2 Dropper Post, 31.6
Motor & Battery
Motor
FAZUA RIDE60
Battery
FAZUA 430 Wh Integrated Battery
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low | XXL High | XXL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.43 mm | 1.36 mm | 1.37 mm | 1.32 mm | 1.33 mm | 1.3 mm | 1.31 mm | 1.27 mm | 1.28 mm |
| Bottom Bracket Height | 344 mm | 340.7 mm | 344 mm | 340.7 mm | 344 mm | 340.7 mm | 344 mm | 340.7 mm | 344 mm | 340.7 mm |
| Front Center | 766.1 mm | 765.9 mm | 795.4 mm | 795.3 mm | 819.7 mm | 819.6 mm | 848.4 mm | 848.3 mm | 879.9 mm | 879.8 mm |
| Rake | 45 mm | 44 mm | 45 mm | 44 mm | 45 mm | 44 mm | 45 mm | 44 mm | 45 mm | 44 mm |
| Trail | 130 mm | 134 mm | 130 mm | 134 mm | 130 mm | 134 mm | 130 mm | 134 mm | 130 mm | 134 mm |
| Stack | 611.9 mm | 613.8 mm | 621 mm | 622.8 mm | 630 mm | 631.9 mm | 648 mm | 650 | 661.5 mm | 663.5 mm |
| Reach | 432 mm | 429.4 mm | 457 mm | 454.4 mm | 477 mm | 474.5 mm | 497 mm | 494.4 mm | 522 mm | 519.5 mm |
| Top Tube Length | 566.2 mm | 576.6 mm | 599.7 mm | 599.9 mm | 617.6 mm | 618.5 mm | 638.8 mm | 639.7 mm | 666.1 mm | 667 mm |
| Seat Tube Angle | 76.8 ° | 76.6 ° | 77.1 ° | 76.9 ° | 77.5 ° | 77.2 ° | 77.7 ° | 77.5 ° | 77.8 ° | 77.5 ° |
| Seat Tube Length | 380 mm | 380 mm | 405 mm | 405 mm | 430 mm | 430 mm | 460 mm | 460 mm | 500 mm | 500 mm |
| Head Tube Angle | 64.3 ° | 64 ° | 64.3 ° | 64 ° | 64.3 ° | 64 ° | 64.3 ° | 64 ° | 64.3 ° | 64 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm | 140 mm | 140 mm | 155 mm | 155 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm | 443 mm | 443 mm | 447 mm | 447 mm |
| Wheelbase | 1206 mm | 1206 mm | 1235 mm | 1236 mm | 1259 mm | 1260 mm | 1291 mm | 1292 mm | 1326 mm | 1327 mm |
| Bottom Bracket Drop | 28 mm | 31 mm | 28 mm | 31 mm | 28 mm | 31 mm | 28 mm | 31 mm | 28 mm | 31 mm |
| Standover Height | 717 mm | 713 mm | 730 mm | 725 mm | 730 mm | 726 mm | 728 mm | 728 mm | 738 mm | 735 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 155 cm | 164 cm | 164 cm | 174 cm | 174 cm | 184 cm | 184 cm | 192 cm | 192 cm |
| Rider Max Height | 166 cm | 166 cm | 176 cm | 176 cm | 186 cm | 186 cm | 194 cm | 194 cm | 201 cm | 201 cm |
Model Overview
HECKLER SL X0 AXS RSV / Carbon CC is part of the Santacruz E Heckler Sl model. There are 5 e-bikes that carry this model name. You can easily view all of the Santacruz E Heckler Sl e-bikes models from 2024, here.
Model range prices
Santa Cruz HECKLER SL R / Carbon C 2024 is the most affordable e-bike of this model and has a price of 7299$. On the other hand, Santa Cruz HECKLER SL XX AXS RSV / Carbon CC 2024, is the most expensive and costs 12999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro e-bikes average price
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2024 and its price was 11699$. Comparing this to the average Enduro e-bike price, we see that the price is 144.49% more expensive.
Enduro e-bikes average weight
On a deeper look, we notice that the average weight of an Enduro e-bike is 23.3 kg (51.37 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 19.01 kg (41.91 lbs), Santa Cruz e-bike is much lighter than average. In short, the average Enduro e-bike weight is 22.57% higher than this one.
Overview of components
Fork
The RockShox Lyrik Ultimate is included from the factory. It has a travel distance of 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this e-bike is RockShox Super Deluxe Ultimate, with a travel distance of 150mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When leaving the production line, the HECKLER SL X0 AXS RSV / Carbon CC model has 29″ carbon wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The HECKLER SL X0 AXS RSV / Carbon CC has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Santa Cruz HECKLER SL X0 AXS RSV / Carbon CC e-bike has 10 sizes, in the range of 155 cm – 201 cm (5.09 ft – 6.59 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the HECKLER SL X0 AXS RSV / Carbon CC. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
