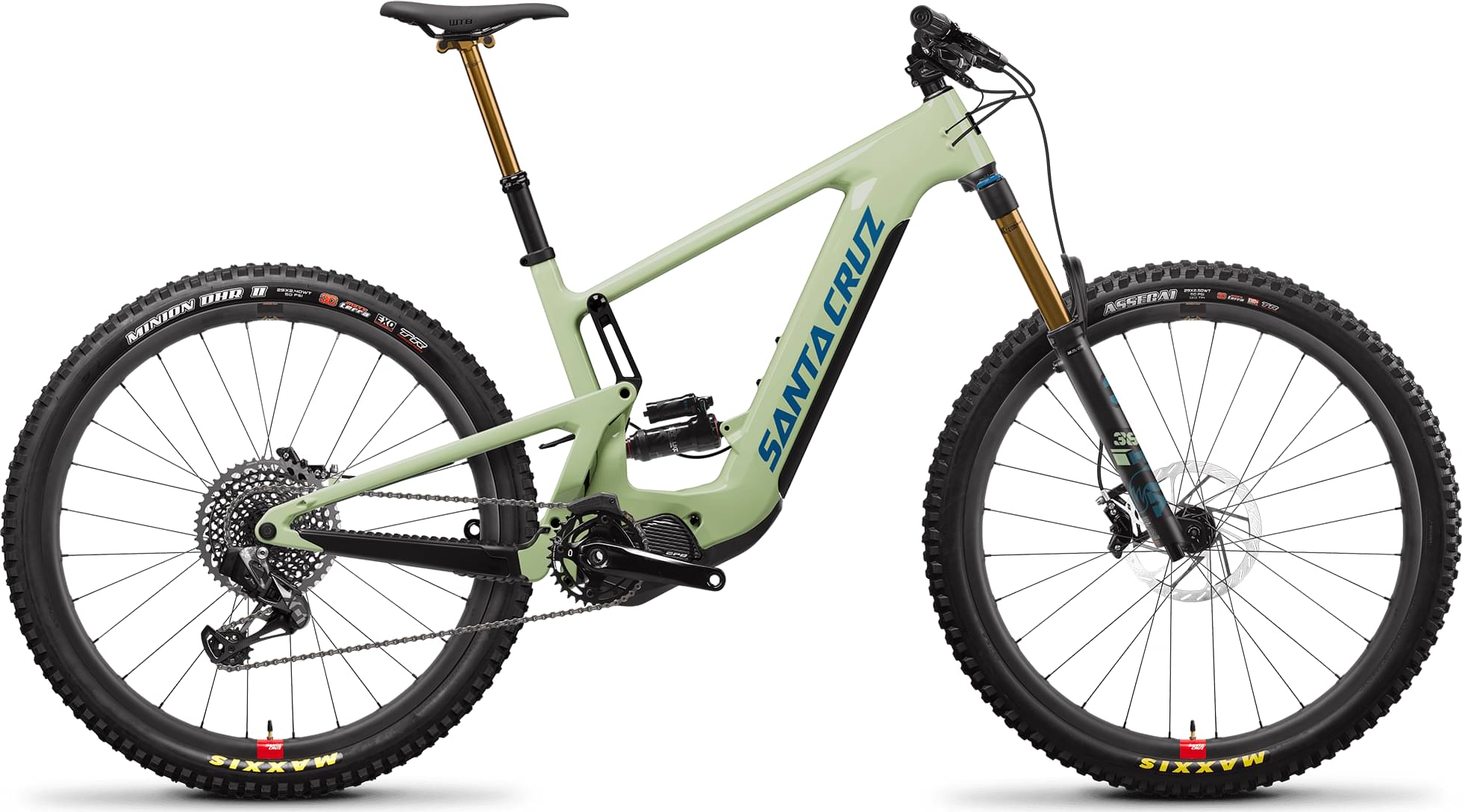

Santa Cruz HECKLER X01 AXS RSV / Carbon CC / 29 2023
2023 E-bike
Estimate price |
15,122$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Factory Float 36
-
Groupset X01 Eagle AXS, GX Eagle AXS -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery 720Wh Integrated, removable -
Drivetrain Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HECKLER X01 AXS RSV / Carbon CC / 29
Suspension Fork
FOX 36 Float Factory, 160mm
Rear Shock
RockShox Super Deluxe Ultimate
Drivetrain
Rear Derailleur
SRAM X01 Eagle AXS, 12spd
Shift Levers
SRAM GX AXS Controller
Cassette
SRAM XG1295 Eagle, 12spd, 10-50t
Crank
Shimano EM900 HollowTech Crank Arms 165mm
Chain
SRAM X01 Eagle, 12spd
Chain Guide
E13 E-Spec+ AL
Wheels
Front Hub
Industry Nine 1/1, 110x15, 28h
Rear Hub
Industry Nine 1/1, 148x12, XD, 32h
Rims
Reserve 30 29” Carbon (F), Reserve DH 29” Carbon (R)
Spokes
Sapim D-light
Tires
Front: Maxxis Assegai 29"x2.5", 3C, MaxxGRIP, EXO+, TR, Rear: Maxxis Minion DHR II 29"x2.4", 3C MaxxTerra, EXO+, TR
Brakes
Brakes
SRAM Code RSC
Disk Rotors
SRAM HS2 Rotor 200mm
Cockpit
Stem
Burgtec Enduro MK3
Handlebar
Santa Cruz e35 Carbon Bar, 800mm, 35mm Rise
Grips
Santa Cruz House Grips
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Medium Stainless Fusion Saddle or WTB Volt
Seatpost
Fox Transfer Performance Elite
Motor & Battery
Motor
Shimano Drive Unit DU-EP800
Battery
720Wh Integrated, removable
Remote
Shimano Display Unit SC-EM800
Charger
Smart-Plus 4A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD High | MD Low | LG High | LG Low | XL High | XL Low | XXL High | XXL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.36 mm | 1.32 mm | 1.34 mm | 1.31 mm | 1.32 mm | 1.28 mm | 1.29 mm |
| Bottom Bracket Height | 346 mm | 342 mm | 346 mm | 342 mm | 346 mm | 342 mm | 346 mm | 342 mm |
| Front Center | 781 mm | 781 mm | 807 mm | 807 mm | 836 mm | 836 mm | 869 mm | 869 mm |
| Rake | 44 mm | 45 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 128 mm | 129 mm | 128 mm | 130 mm | 128 mm | 130 mm | 128 mm | 130 mm |
| Stack | 621 mm | 623 mm | 634 mm | 637 mm | 653 mm | 655 mm | 671 mm | 673 mm |
| Reach | 460 mm | 457 mm | 480 mm | 477 mm | 500 mm | 497 mm | 525 mm | 522 mm |
| Top Tube Length | 604 mm | 605 mm | 629 mm | 630 mm | 650 | 651 mm | 679 mm | 680 mm |
| Seat Tube Angle | 76.8 ° | 76.6 ° | 76.7 ° | 76.4 ° | 77 ° | 76.7 ° | 77 ° | 76.8 ° |
| Seat Tube Length | 405 mm | 405 mm | 430 mm | 430 mm | 460 mm | 460 mm | 500 mm | 500 mm |
| Head Tube Angle | 64.8 ° | 64.5 ° | 64.8 ° | 64.5 ° | 64.8 ° | 64.5 ° | 64.8 ° | 64.5 ° |
| Head Tube Length | 100 mm | 100 mm | 115 mm | 115 mm | 135 mm | 135 mm | 155 mm | 155 mm |
| Chainstay Length | 465 mm | 466 mm | 465 mm | 466 mm | 465 mm | 466 mm | 465 mm | 466 mm |
| Wheelbase | 1246 mm | 1247 mm | 1272 mm | 1273 mm | 1301 mm | 1302 mm | 1334 mm | 1335 mm |
| Bottom Bracket Drop | 26 mm | 30 mm | 26 mm | 30 mm | 26 mm | 30 mm | 26 mm | 30 mm |
| Standover Height | 750 mm | 746 mm | 748 mm | 745 mm | 746 mm | 742 mm | 746 mm | 743 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
Model Overview
HECKLER X01 AXS RSV / Carbon CC / 29 completes the Santacruz E Heckler model. Santa Cruz launched 48 e-bikes of this model so far. You can easily view all of the Santacruz E Heckler e-bikes models from 2023, here.
Model range prices
Santa Cruz HECKLER R / Carbon C / 29 2023 is the most affordable e-bike of this model and has a price of 8493$. On the other hand, Santa Cruz HECKLER X01 AXS RSV 29 / Carbon CC 2023, is the most expensive and costs 13899$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Enduro e-bikes
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2023 for 13802$. Doing a quick comparison, we notice that HECKLER X01 AXS RSV / Carbon CC / 29 price is 188.44% more expensive than the average cost of an Enduro e-bike.
Overview of components
Fork
The fork installed on this bike is the Fox Factory Float 36 model. The travel on this model is 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Santa Cruz HECKLER X01 AXS RSV / Carbon CC / 29 e-bike has the RockShox Super Deluxe Ultimate model installed, and has a travel of 150mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When leaving the production line, the HECKLER X01 AXS RSV / Carbon CC / 29 model has 29″ carbon wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Santa Cruz HECKLER X01 AXS RSV / Carbon CC / 29 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
