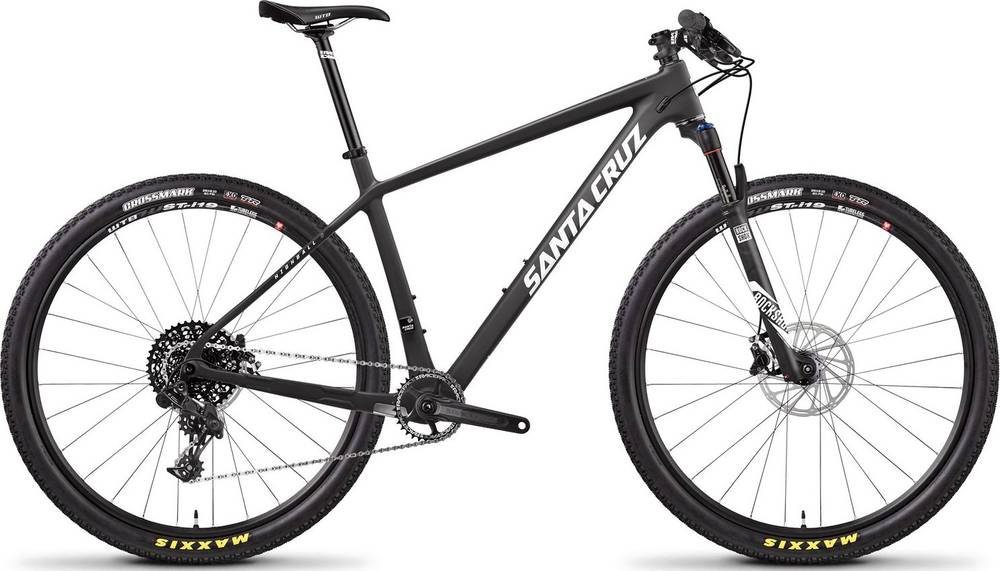

Santa Cruz Highball 29 C R 2018
2018 Mountain
Estimate price |
2,599$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Reba
-
Groupset NX, Race Face -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
RockShox Reba RL
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM NX, 11-speed, long cage
Front Derailleur
N/A
Shift Levers
SRAM NX, 11-speed
Cassette
SRAM XG1150, 11 speed, 10-42 tooth
Crank
Race Face Aeffect
Bottom Bracket
SRAM GXP Team
Chain
SRAM NX, 11-speed
Chain Guide
none
Pedals
none
Wheels
Front Hub
Front: Novatec D711, 15mm x 110mm, 28 hole, Rear: Novatec D462, 12mm x 142mm, XD driver, 28 hole
Rear Hub
Front: Novatec D711, 15mm x 110mm, 28 hole, Rear: Novatec D462, 12mm x 142mm, XD driver, 28 hole
Rims
WTB STP i19, 28 hole
Spokes
DT Swiss Competition (28)
Tires
Front: Maxxis Crossmark, 2.1", DC, EXO, TR, front and rear
Brakes
Brakes
SRAM Level T with Avid Centerline 160mm rotors front and rear
Brake Levers
SRAM Level T
Cockpit
Stem
Race Face Ride, 50mm
Handlebar
Race Face Evolve, 31.8mm diameter, 720mm width, flat
Grips
Santa Cruz Palmdale, lock-on
Headset
Cane Creek 10, IS
Seat
Saddle
WTB Volt Race
Seatpost
Race Face Ride
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.6 mm | 1.5 mm | 1.45 mm | 1.4 mm | 1.35 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm | 314 mm |
| Stack | 618 mm | 620 mm | 629 mm | 639 mm | 648 mm |
| Reach | 387 mm | 412 mm | 435 mm | 456 mm | 479 mm |
| Top Tube Length | 580 mm | 606 mm | 631 mm | 656 mm | 681 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 406 mm | 432 mm | 476 mm | 533 mm | 572 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1065 mm | 1085 mm | 1106 mm | 1136 mm | 1161 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 737 mm | 740 mm | 762 mm | 807 mm | 842 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview
Highball 29 C R completes the Santacruz Highball model. Santa Cruz released 49 bikes variations of this model so far. Take a sneak peek at all Santacruz Highball bikes models from 2018, by clicking here.
Model range prices
Santa Cruz Highball 29 C R 2018 is the most economical model, with a starting price of 2599$. Santa Cruz Highball 29 CC X01 2018 on the other hand costs 5999$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2018 for 2599$. If we compare this with the average Crosscountry bike cost we notice that the price is 36.43% higher.
Overview of components
Fork
Santa Cruz Highball 29 C R 2018 bike is equipped with the RockShox Reba fork, and has 100mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When it comes to wheels, the Highball 29 C R bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Santa Cruz Highball 29 C R has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
