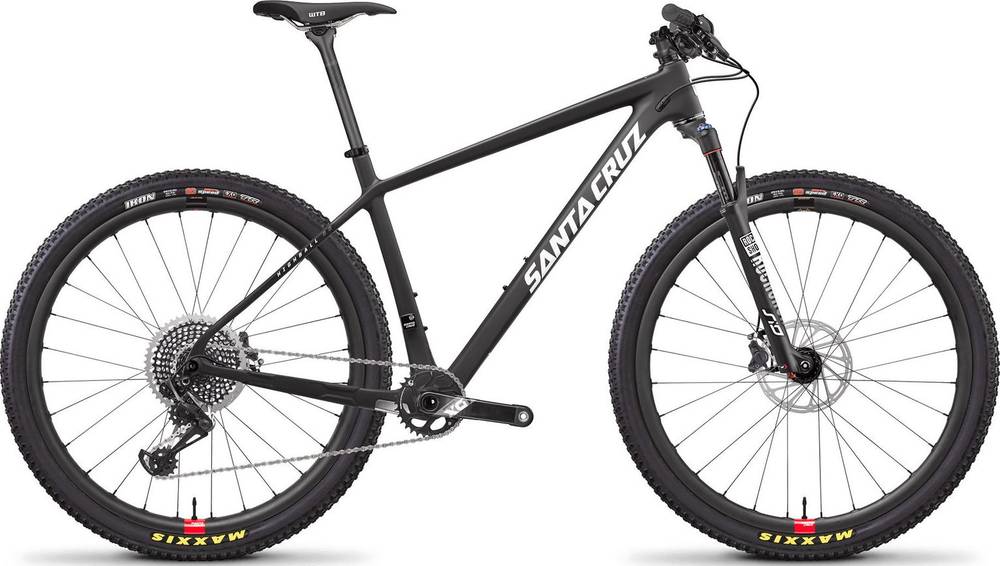

Santa Cruz Highball 29 CC X01 2018
2018 Mountain
Estimate price |
5,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork RockShox SID
-
Groupset X01 Eagle, X1 -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
RockShox SID RLC
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM X01 Eagle, 12-speed
Cassette
SRAM XG1295 Eagle, 12-speed, 10-50 tooth
Crank
SRAM X1 Eagle Carbon
Bottom Bracket
SRAM GXP Team
Chain
SRAM X01 Eagle, 12-speed
Chain Guide
none
Pedals
none
Wheels
Front Hub
Front: DT Swiss 350, 15mm x 110mm, 28 hole, torque cap, Rear: DT Swiss 350, 12mm x 142mm
Rear Hub
Front: DT Swiss 350, 15mm x 110mm, 28 hole, torque cap, Rear: DT Swiss 350, 12mm x 142mm
Rims
Standard: Race Face ARC 24, 28 hole, Upgrade: Santa Cruz Reserve Carbon 25, 28 hole
Spokes
DT Swiss Competition (28)
Tires
Maxxis Ikon, 2.2", TR, EXO, front and rear
Brakes
Brakes
SRAM Level TLM with Avid Centerline 160mm rotors front and rear, 6-bolt
Brake Levers
SRAM Level TCL
Cockpit
Stem
Race Face Turbine, 50mm
Handlebar
Santa Cruz Carbon, 31.8mm diameter, 750mm width, flat
Grips
Santa Cruz Palmdale, lock-on
Headset
Cane Creek 40, IS
Seat
Saddle
WTB Silverado Pro
Seatpost
Easton EC 70
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.6 mm | 1.5 mm | 1.45 mm | 1.4 mm | 1.35 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm | 314 mm |
| Stack | 618 mm | 620 mm | 629 mm | 639 mm | 648 mm |
| Reach | 387 mm | 412 mm | 435 mm | 456 mm | 479 mm |
| Top Tube Length | 580 mm | 606 mm | 631 mm | 656 mm | 681 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 406 mm | 432 mm | 476 mm | 533 mm | 572 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1065 mm | 1085 mm | 1106 mm | 1136 mm | 1161 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 737 mm | 740 mm | 762 mm | 807 mm | 842 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview
Highball 29 CC X01 completes the Santacruz Highball model. Santa Cruz launched 49 bikes of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Santa Cruz Highball 29 C R 2018 is the most economical model, with a starting price of 2599$. Santa Cruz Highball 29 CC X01 2018 on the other hand costs 5999$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2018 for 5999$. If we compare this with the average Crosscountry bike cost we notice that the price is 214.91% more expensive.
Overview of components
Fork
The fork installed on this bike is the RockShox SID model. The travel on this model is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The Highball 29 CC X01 2018 bike is equipped with 29″ carbon wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
