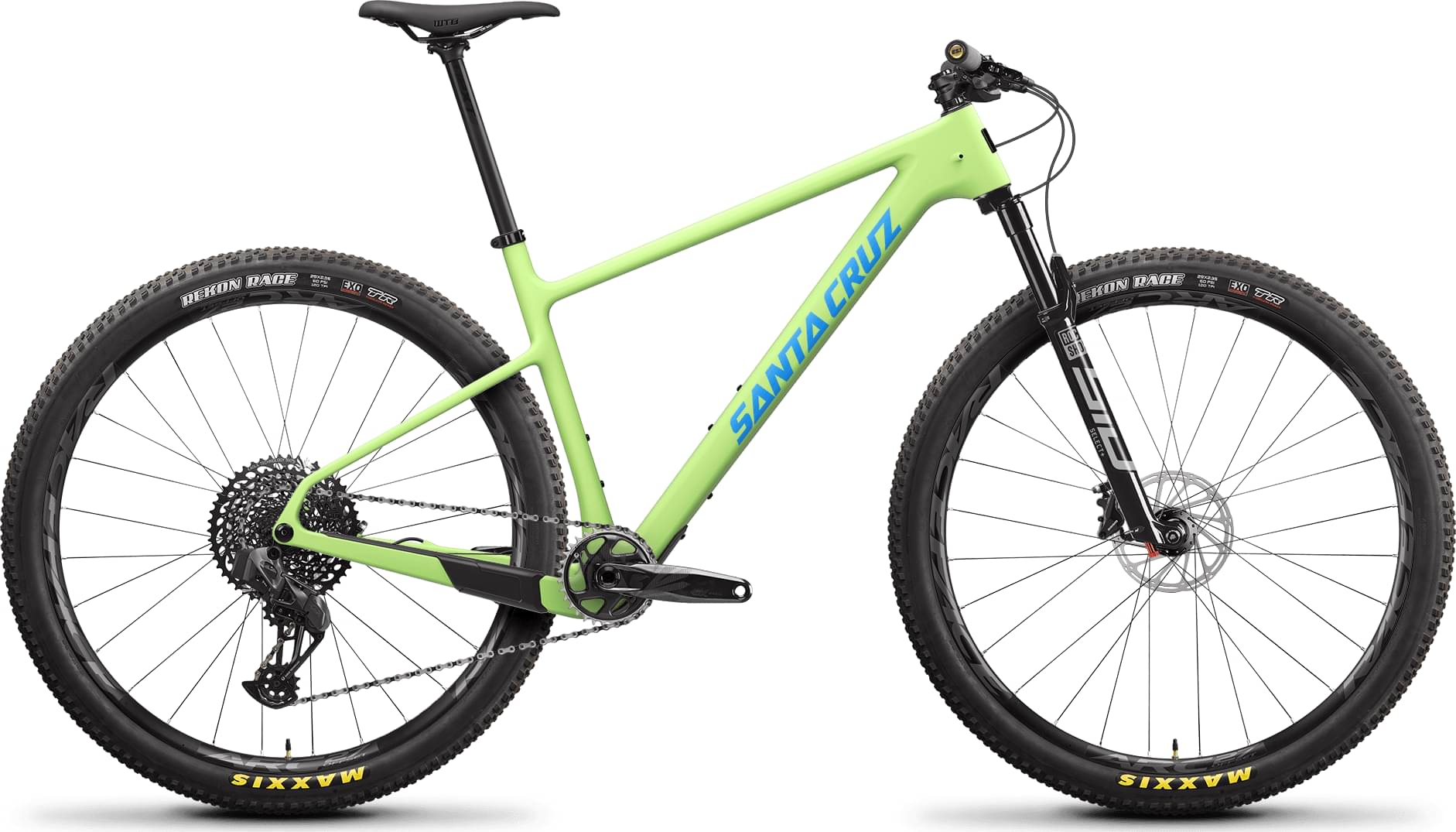

Santa Cruz HIGHBALL GX AXS / Carbon C / 29 2022
2022 Mountain
Estimate price |
5,799$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork RockShox SID SL Select
-
Groupset GX Eagle AXS, SRAM -
Suspension Hardtail -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HIGHBALL GX AXS / Carbon C / 29
Suspension Fork
RockShox Sid SL Select+, 100mm w/Remote
Drivetrain
Rear Derailleur
SRAM GX AXS Eagle, 12spd
Front Derailleur
SRAM OneLoc
Shift Levers
SRAM GX AXS Controller
Cassette
SRAM XG1275 Eagle, 12spd, 10-50t
Crank
SRAM GX Eagle 148 DUB 34t
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM GX Eagle, 12spd
Wheels
Front Hub
i9 1/1, 15x110, Centerlock, 28h
Rear Hub
i9 1/1, 12x148, XD, Centerlock, 28h
Rims
RaceFace ARC Offset 27 29"
Tires
Front: Maxxis Rekon Race 29"x2.35", EXO, TR, Rear: Maxxis Rekon Race 29"x2.35", EXO, TR
Brakes
Brakes
SRAM Level TL
Cockpit
Stem
SRAM Atmos 6k Stem, 70mm
Handlebar
Santa Cruz Bicycles Carbon, 760x7mm rise
Grips
ESI Chunky Grips
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Medium CroMo
Seatpost
RaceFace Next, 27.2, 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.37 mm | 1.33 mm | 1.29 mm |
| Bottom Bracket Height | 313 mm | 313 mm | 313 mm | 313 mm |
| Front Center | 693 mm | 719 mm | 743 mm | 781 mm |
| Rake | 50 mm | 48 mm | 48 mm | 48 mm |
| Trail | 105 mm | 107 mm | 107 mm | 107 mm |
| Stack | 601 mm | 610 mm | 619 mm | 638 mm |
| Reach | 420 mm | 445 mm | 465 mm | 495 mm |
| Top Tube Length | 600 mm | 624 mm | 647 mm | 682 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 405 mm | 430 mm | 470 mm | 530 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 135 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1124 mm | 1150 mm | 1174 mm | 1212 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 712 mm | 709 mm | 744 mm | 760 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
HIGHBALL GX AXS / Carbon C / 29 completes the Santacruz Highball model. There are 49 bikes that carry this model name. You can easily view all of the Santacruz Highball bikes models from 2022, here.
Model range prices
Santa Cruz Highball R / Carbon C / 29 2022 is the most economical model, with a starting price of 3299$. Santa Cruz HIGHBALL X01 AXS / RSV / Carbon CC / 29 2022 on the other hand costs 9024$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Santa Cruz HIGHBALL GX AXS / Carbon C / 29 price was 5799$. In conclusion, this bike price is 204.41% higher than the price of the average Crosscountry bike.
HIGHBALL GX AXS / Carbon C / 29 components
Fork
The RockShox SID SL Select is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When leaving the production line, the HIGHBALL GX AXS / Carbon C / 29 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Santa Cruz HIGHBALL GX AXS / Carbon C / 29 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Santa Cruz HIGHBALL GX AXS / Carbon C / 29 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
