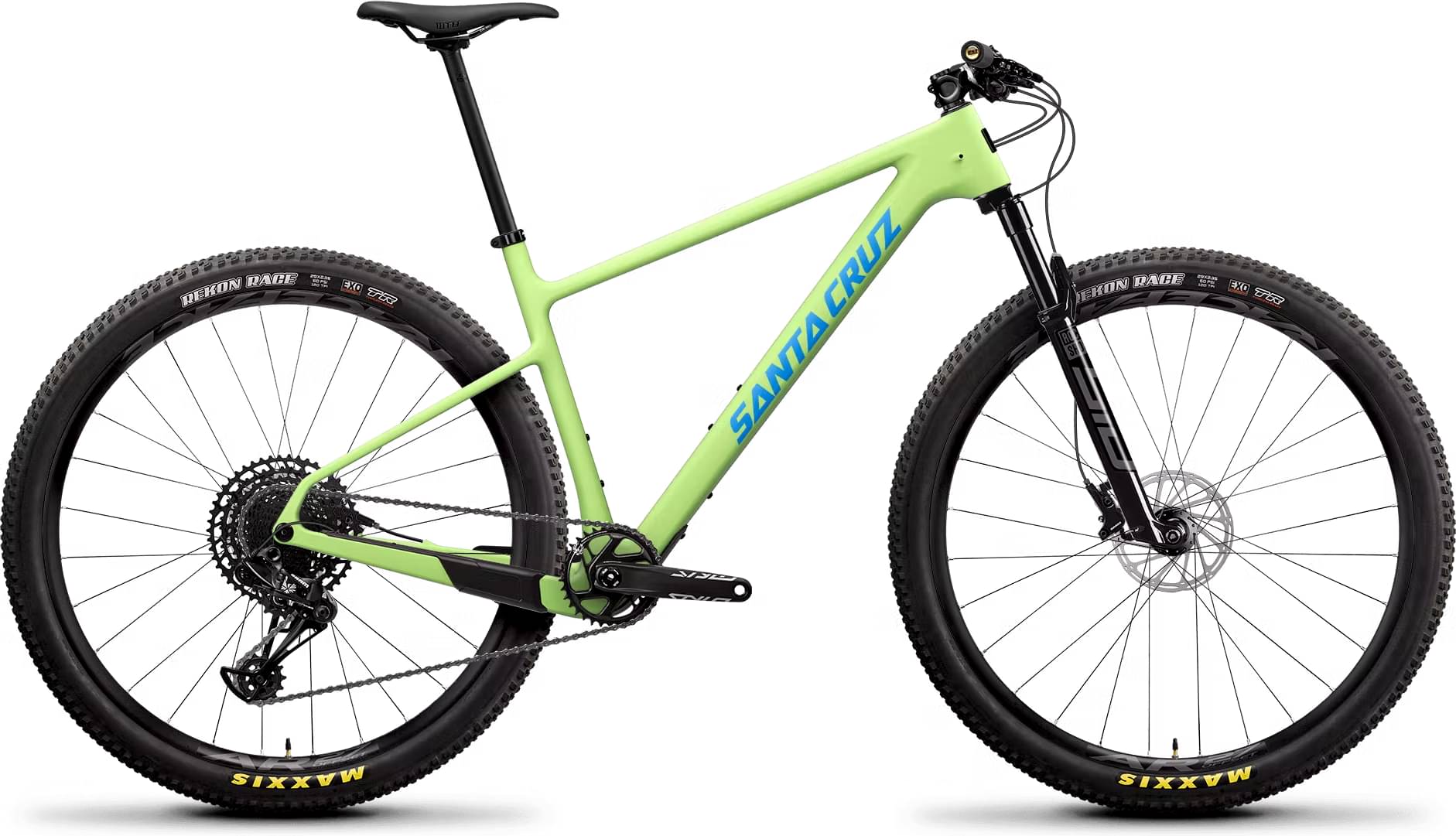

Santa Cruz HIGHBALL R / Carbon C 2023
2023 Mountain
Estimate price |
3,549$
Weight | 11.26 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork RockShox SID
-
Groupset NX Eagle, Truvativ Stylo -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 166cm
MD
164cm - 179cm
LG
177cm - 186cm
XL
184cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HIGHBALL R / Carbon C
Suspension Fork
RockShox Sid SL Base, 100mm, w/Remote
Drivetrain
Rear Derailleur
SRAM NX Eagle, 12spd
Shift Levers
SRAM NX Eagle, 12spd
Cassette
SRAM PG1230, 12spd, 11-50t
Crank
SRAM Stylo 6K 148 DUB 34t
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM NX Eagle, 12spd
Wheels
Front Hub
Front: SRAM MTH 716, 15x110, Torque Cap, 32h, Rear: SRAM MTH 746, 12x148, 32h
Rear Hub
Front: SRAM MTH 716, 15x110, Torque Cap, 32h, Rear: SRAM MTH 746, 12x148, 32h
Rims
Front: RaceFace AR Offset 27 29", Rear: RaceFace AR Offset 27 29"
Tires
Front: Maxxis Rekon Race 29"x2.35", EXO, TR, Rear: Maxxis Rekon Race 29"x2.35", EXO, TR
Brakes
Brakes
SRAM Level T
Cockpit
Stem
RaceFace Aeffect
Handlebar
RaceFace Ride, 760mm
Grips
ESI Chunky Grips
Headset
Cane Creek 10 IS Integrated Headset
Seat
Saddle
WTB Silverado Medium CroMo
Seatpost
RaceFace Ride, 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.37 mm | 1.33 mm | 1.29 mm |
| Bottom Bracket Height | 313 mm | 313 mm | 313 mm | 313 mm |
| Front Center | 693 mm | 719 mm | 743 mm | 781 mm |
| Rake | 50 mm | 48 mm | 48 mm | 48 mm |
| Trail | 105 mm | 107 mm | 107 mm | 107 mm |
| Stack | 601 mm | 610 mm | 619 mm | 638 mm |
| Reach | 420 mm | 445 mm | 465 mm | 495 mm |
| Top Tube Length | 600 mm | 624 mm | 647 mm | 682 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 405 mm | 430 mm | 470 mm | 530 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 135 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1124 mm | 1150 mm | 1174 mm | 1212 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 712 mm | 709 mm | 744 mm | 760 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 164 cm | 177 cm | 184 cm |
| Rider Max Height | 166 cm | 179 cm | 186 cm | 198 cm |
Model Overview
HIGHBALL R / Carbon C is part of the Santacruz Highball model. Santa Cruz launched 49 bikes of this model so far. You can easily view all of the Santacruz Highball bikes models from 2023, here.
Model range prices
Santa Cruz HIGHBALL R / Carbon C 2023 is the most affordable bike of this model and has a price of 3549$. On the other hand, Santa Cruz HIGHBALL X01 AXS RSV / Carbon CC 2023, is the most expensive and costs 8299$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2023 for 3549$. If we compare this with the average Crosscountry bike cost we notice that the price is 86.3% more expensive.
Crosscountry bikes average weight
Crosscountry bikes weigh an average of 12.31 kg (27.14 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 11.26 kg (24.82 lbs), Santa Cruz bike is a bit lighter than average. In conclusion, the average Crosscountry bike weighs 9.33% more than HIGHBALL R / Carbon C.
Overview of components
Fork
Santa Cruz HIGHBALL R / Carbon C 2023 bike is equipped with the RockShox SID fork, and has 100mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When it comes to wheels, the HIGHBALL R / Carbon C bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Santa Cruz HIGHBALL R / Carbon C has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Santa Cruz HIGHBALL R / Carbon C bike has 4 sizes, in the range of 152 cm – 198 cm (4.99 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
