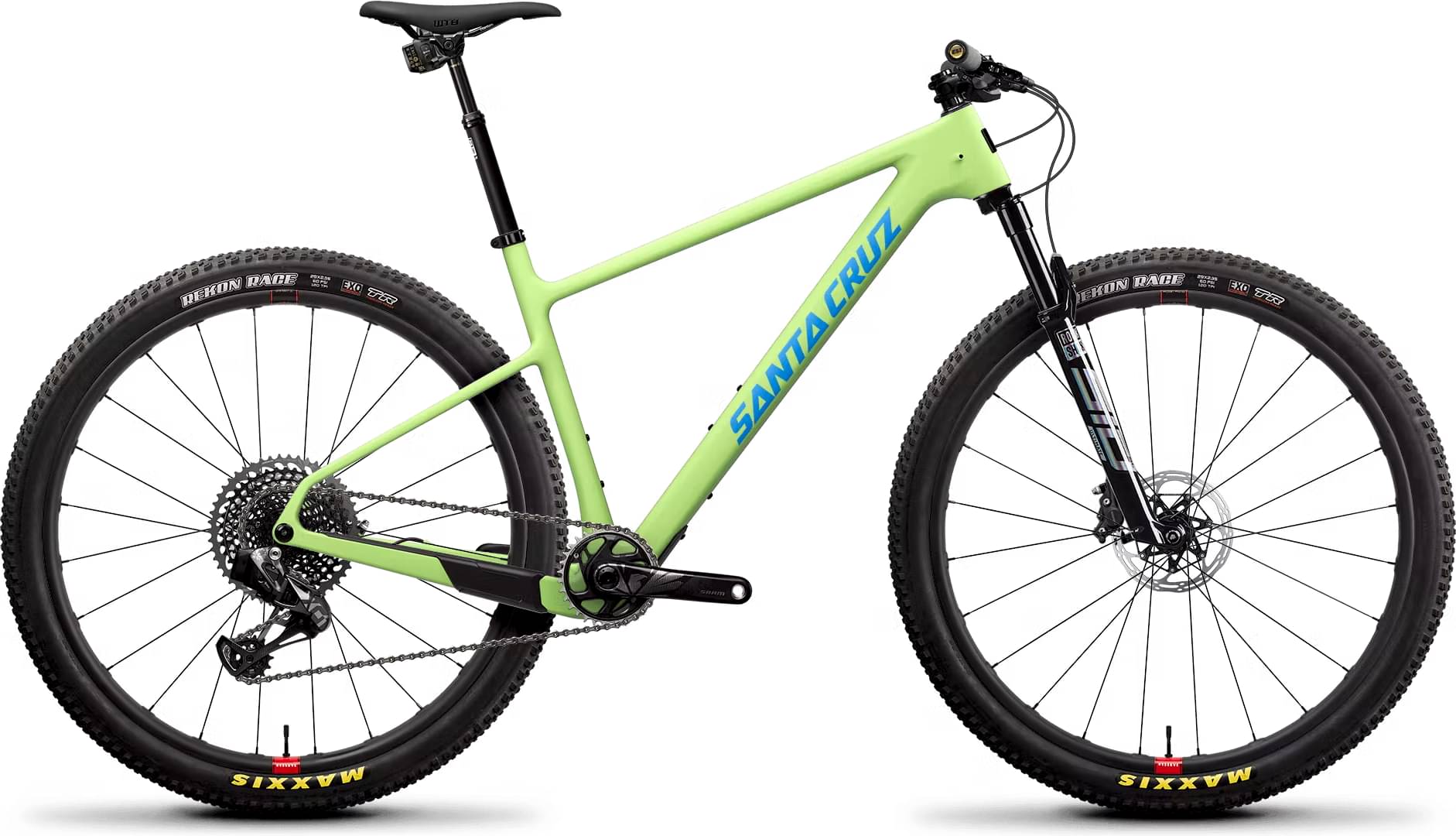

Santa Cruz HIGHBALL X01 AXS RSV / Carbon CC 2023
2023 Mountain
Estimate price |
8,299$
Weight | 9.77 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork RockShox SID SL Ultimate
-
Groupset X01 Eagle AXS, GX Eagle AXS -
Suspension Hardtail -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 166cm
MD
164cm - 179cm
LG
177cm - 186cm
XL
184cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HIGHBALL X01 AXS RSV / Carbon CC
Suspension Fork
RockShox Sid SL Ultimate, 100mm, w/Remote
Drivetrain
Rear Derailleur
SRAM X01 Eagle AXS, 12spd
Shift Levers
GX AXS Controller
Cassette
SRAM XG1295 Eagle, 12spd, 10-50t
Crank
SRAM X1 Carbon Eagle 148 DUB, 34t
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM X01 Eagle, 12spd
Wheels
Front Hub
Front: i9 1/1, 15x110, Centerlock, 24h, Rear: i9 1/1, 12x148, XD, Centerlock, 24h
Rear Hub
Front: i9 1/1, 15x110, Centerlock, 24h, Rear: i9 1/1, 12x148, XD, Centerlock, 24h
Rims
Front: Reserve 28|XC 29", 24h, Rear: Reserve 28|XC 29", 24h
Tires
Front: Maxxis Rekon Race 29"x2.35", EXO, TR, Rear: Maxxis Rekon Race 29"x2.35", EXO, TR
Brakes
Brakes
SRAM Level TLM
Cockpit
Stem
SRAM Atmos 7k Stem, 60mm
Handlebar
Santa Cruz Bicycles Carbon, 760x7mm rise
Grips
SRAM TwistLoc
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Medium Ti
Seatpost
RockShox Reverb AXS XPLR, 27.2, 75mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.37 mm | 1.33 mm | 1.29 mm |
| Bottom Bracket Height | 313 mm | 313 mm | 313 mm | 313 mm |
| Front Center | 693 mm | 719 mm | 743 mm | 781 mm |
| Rake | 50 mm | 48 mm | 48 mm | 48 mm |
| Trail | 105 mm | 107 mm | 107 mm | 107 mm |
| Stack | 601 mm | 610 mm | 619 mm | 638 mm |
| Reach | 420 mm | 445 mm | 465 mm | 495 mm |
| Top Tube Length | 600 mm | 624 mm | 647 mm | 682 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 405 mm | 430 mm | 470 mm | 530 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 135 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1124 mm | 1150 mm | 1174 mm | 1212 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 712 mm | 709 mm | 744 mm | 760 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 164 cm | 177 cm | 184 cm |
| Rider Max Height | 166 cm | 179 cm | 186 cm | 198 cm |
About this model
HIGHBALL X01 AXS RSV / Carbon CC is part of the Santacruz Highball model. Santa Cruz launched 49 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Santa Cruz HIGHBALL R / Carbon C 2023 has a starting price of 3549$. Santa Cruz HIGHBALL X01 AXS RSV / Carbon CC 2023 on the other hand is the most expensive at 8299$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2023 for 8299$. Comparing this to the average Crosscountry bike price, we see that the price is 335.64% more expensive.
Crosscountry bikes average weight
Crosscountry bikes weigh an average of 12.31 kg (27.14 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 9.77 kg (21.54 lbs), the HIGHBALL X01 AXS RSV / Carbon CC model is much lighter than average. To sum up, it’s 26% lighter than the average weight of Crosscountry bikes.
HIGHBALL X01 AXS RSV / Carbon CC components
Fork
Santa Cruz HIGHBALL X01 AXS RSV / Carbon CC 2023 bike is equipped with the RockShox SID SL Ultimate fork, and has 100mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The HIGHBALL X01 AXS RSV / Carbon CC 2023 bike is equipped with 29″ carbon wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The HIGHBALL X01 AXS RSV / Carbon CC has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Santa Cruz HIGHBALL X01 AXS RSV / Carbon CC bike has 4 sizes, in the range of 152 cm – 198 cm (4.99 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the HIGHBALL X01 AXS RSV / Carbon CC. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
