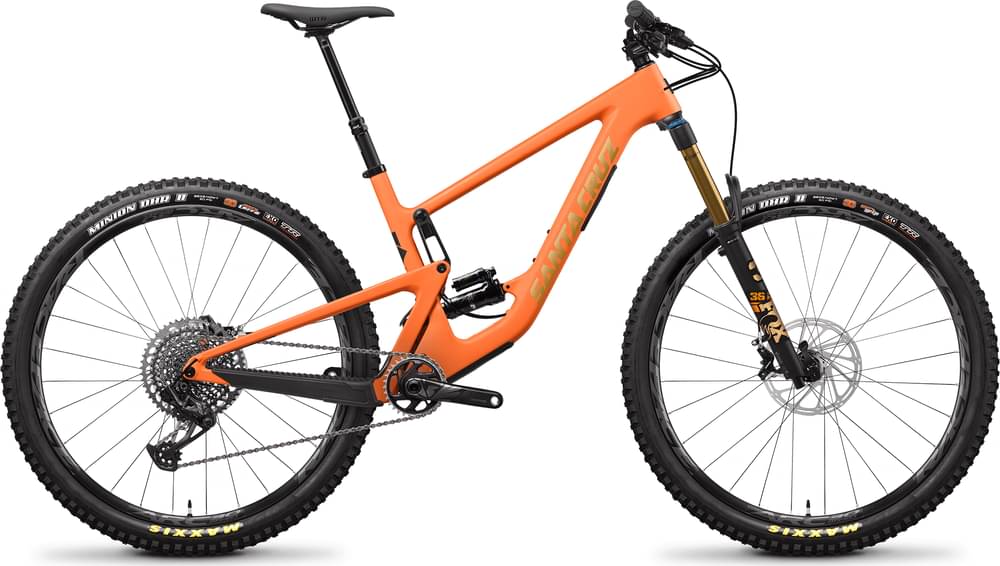

Santa Cruz Hightower X01 / Carbon CC / 29 2022
2022 Mountain
Estimate price |
8,049$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 145mm -
Fork Fox Factory Float 36
-
Groupset X01 Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
155cm - 166cm
SM Low
155cm - 166cm
MD High
164cm - 176cm
MD Low
164cm - 176cm
LG High
174cm - 185cm
LG Low
174cm - 185cm
XL High
183cm - 194cm
XL Low
183cm - 194cm
XXL High
192cm - 201cm
XXL Low
192cm - 201cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hightower X01 / Carbon CC / 29
Suspension Fork
FOX 36 Float Factory, 150mm, 29"
Rear Shock
RockShox Super Deluxe Ultimate
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12spd
Shift Levers
SRAM X01 Eagle, 12spd
Cassette
SRAM XG1295 Eagle, 12spd, 10-52t
Crank
SRAM X1 Eagle DUB, 30t
Bottom Bracket
SRAM DUB 68/73mm
Chain
SRAM X01 Eagle, 12spd
Wheels
Front Hub
Industry Nine 1/1, 110x15, 6 Bolt, 28h
Rear Hub
Industry Nine 1/1, 148x12, XD, 6 Bolt, 28h
Rims
RaceFace ARC Offset 30 29"
Spokes
Sapim Race
Tires
Front: Maxxis Minion DHR II 29"x2.4", 3C, MaxxGRIP, EXO, TR, Rear: Maxxis Minion DHR 29"x2.4", 3C, EXO, MaxxTerra
Brakes
Brakes
SRAM Code RSC
Disk Rotors
Avid Centerline 180mm
Cockpit
Stem
Burgtec Enduro MK3, 42.5mm
Handlebar
Santa Cruz 35 Carbon Bar, 800mm, 35mm Rise
Grips
Santa Cruz House Grips or Burgtec Bartender Pro Grip Minnaar
Headset
Cane Creek 40 IS Integrated
Seat
Saddle
WTB Silverado Team Saddle or WTB Volt
Seatpost
RockShox Reverb Stealth
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low | XXL High | XXL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.42 mm | 1.35 mm | 1.36 mm | 1.31 mm | 1.32 mm | 1.29 mm | 1.31 mm | 1.28 mm | 1.29 mm |
| Bottom Bracket Height | 344 mm | 340 mm | 344 mm | 340 mm | 344 mm | 340 mm | 344 mm | 340 mm | 344 mm | 340 mm |
| Front Center | 745 mm | 745 mm | 774 mm | 774 mm | 798 mm | 798 mm | 827 mm | 827 mm | 862 mm | 862 mm |
| Rake | 52 mm | 53 mm | 52 mm | 52 mm | 52 mm | 52 mm | 53 mm | 53 mm | 52 mm | 47 mm |
| Trail | 114 mm | 115 mm | 114 mm | 116 mm | 114 mm | 116 mm | 112 mm | 115 mm | 114 mm | 121 mm |
| Stack | 598 mm | 600 mm | 607 mm | 609 mm | 616 mm | 618 mm | 634 mm | 636 mm | 657 mm | 659 mm |
| Reach | 425 mm | 422 mm | 450 mm | 447 mm | 470 mm | 467 mm | 490 mm | 487 mm | 515 mm | 512 mm |
| Top Tube Length | 563 mm | 564 mm | 591 mm | 593 mm | 615 mm | 616 mm | 642 mm | 643 mm | 676 mm | 677 mm |
| Seat Tube Angle | 77.1 ° | 76.7 ° | 77 ° | 76.6 ° | 76.8 ° | 76.5 ° | 76.6 ° | 76.3 ° | 76.3 ° | 76 ° |
| Seat Tube Length | 380 mm | 380 mm | 405 mm | 405 mm | 430 mm | 430 mm | 460 mm | 460 mm | 500 mm | 500 mm |
| Head Tube Angle | 65.5 ° | 65.2 ° | 65.5 ° | 65.2 ° | 65.5 ° | 65.2 ° | 65.5 ° | 65.2 ° | 65.5 ° | 65.2 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 100 mm | 110 mm | 110 mm | 130 mm | 130 mm | 155 mm | 155 mm |
| Chainstay Length | 430 mm | 431 mm | 430 mm | 431 mm | 430 mm | 431 mm | 430 mm | 431 mm | 436 mm | 437 mm |
| Wheelbase | 1175 mm | 1176 mm | 1204 mm | 1205 mm | 1228 mm | 1229 mm | 1257 mm | 1258 mm | 1298 mm | 1293 mm |
| Bottom Bracket Drop | 29 mm | 33 mm | 29 mm | 33 mm | 29 mm | 33 mm | 29 mm | 33 mm | 29 mm | 33 mm |
| Standover Height | 701 mm | 696 mm | 715 mm | 710 mm | 714 mm | 710 mm | 715 mm | 710 mm | 706 mm | 701 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 155 cm | 164 cm | 164 cm | 174 cm | 174 cm | 183 cm | 183 cm | 192 cm | 192 cm |
| Rider Max Height | 166 cm | 166 cm | 176 cm | 176 cm | 185 cm | 185 cm | 194 cm | 194 cm | 201 cm | 201 cm |
Model Overview
Hightower X01 / Carbon CC / 29 completes the Santacruz Hightower model. Santa Cruz launched 66 bikes of this model so far. Take a sneak peek at all Santacruz Hightower bikes models from 2022, by clicking here.
Model range prices
The most economical model, the Santa Cruz Hightower D / Aluminum / 29 2022 has a starting price of 3549$. Santa Cruz Hightower X01 / AXS / RSV / Carbon CC / 29 2022 on the other hand is the most expensive at 9849$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2022 for 8049$. Comparing this to the average Trail bike price, we see that the price is 191.42% more expensive.
Overview of components
Fork
The fork installed on this bike is the Fox Factory Float 36 model. The travel on this model is 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Santa Cruz Hightower X01 / Carbon CC / 29 bike has the RockShox Super Deluxe Ultimate model installed, and has a travel of 145mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When leaving the production line, the Hightower X01 / Carbon CC / 29 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Santa Cruz Hightower X01 / Carbon CC / 29 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 10 sizes. They vary from 155 cm – 201 cm (5.09 ft – 6.59 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Santa Cruz Hightower X01 / Carbon CC / 29 includes a dropper post. Therefore, climbing or descending will be a breeze.
