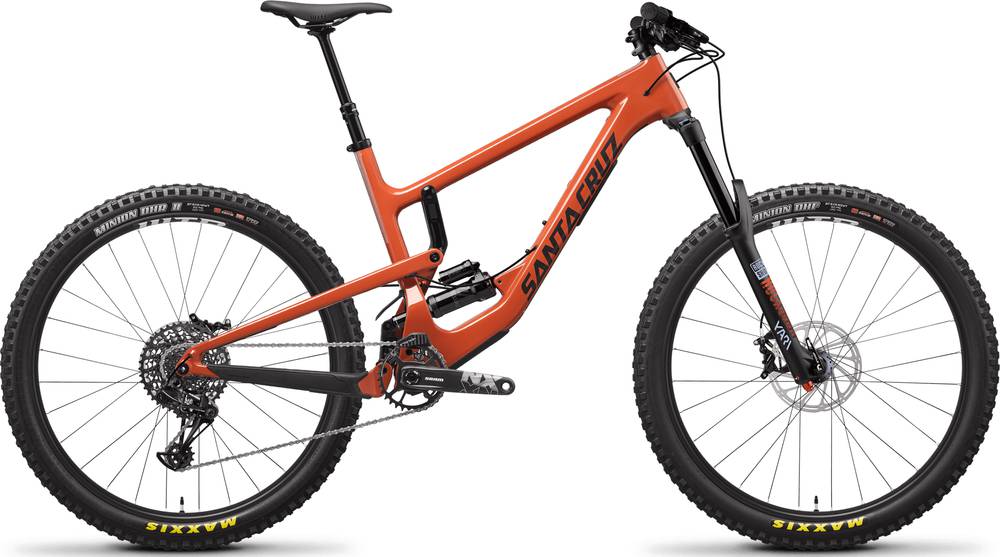

Santa Cruz Nomad R / Carbon C / 27.5 2019
2019 Mountain
Estimate price |
4,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 170mm -
Fork RockShox Yari RC
-
Groupset NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Nomad R / Carbon C / 27.5
Suspension Fork
RockShox Yari RC 170
Rear Shock
RockShox Super Deluxe R
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
SRAM NX
Cassette
SRAM PG1230 11-50t
Crank
SRAM NX Eagle 148 DUB, 32t - 170mm (XS,S), 175mm (M-XL)
Chain
SRAM NX Eagle
Chain Guide
E13 TRS Race Carbon ISCG05
Wheels
Front Hub
SRAM MTH 716, 15x110, Torque Cap, 32h
Rear Hub
SRAM MTH 746, 12x148, 32h
Rims
WTB ST i29 TCS 2.0 27.5" Rims
Spokes
DT Competition (32)
Tires
Maxxis Minion DHF, 27.5"x2.5", 3C Silkshield
Brakes
Brakes
SRAM Guide RE
Disk Rotors
Avid Centerline 200mm
Cockpit
Stem
Race Face Ride Stem
Handlebar
Race Face Aeffect R
Grips
Santa Cruz Palmdale Grips
Headset
Cane Creek 10 IS Integrated Headset
Seat
Saddle
WTB Silverado Race Saddle
Seatpost
Race Face Aeffect, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.53 mm | 1.42 mm | 1.44 mm | 1.38 mm | 1.39 mm | 1.33 mm | 1.35 mm | 1.27 mm | 1.29 mm |
| Bottom Bracket Height | 344 mm | 339 mm | 344 mm | 339 mm | 344 mm | 339 mm | 344 mm | 339 mm | 344 mm | 339 mm |
| Front Center | 704 mm | 704 mm | 738 mm | 738 mm | 762 mm | 762 mm | 787 mm | 787 mm | 821 mm | 821 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm | 43 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 119 mm | 122 mm | 119 mm | 122 mm | 119 mm | 121 mm | 119 mm | 122 mm | 119 mm | 122 mm |
| Stack | 576 mm | 579 mm | 585 mm | 588 mm | 594 mm | 597 mm | 603 mm | 606 mm | 612 mm | 615 mm |
| Reach | 382 mm | 378 mm | 412 mm | 408 mm | 432 mm | 428 mm | 452 mm | 448 mm | 482 mm | 478 mm |
| Top Tube Length | 532 mm | 533 mm | 565 mm | 566 mm | 588 mm | 590 mm | 611 mm | 613 mm | 645 mm | 646 mm |
| Seat Tube Angle | 74.5 ° | 74.1 ° | 74.5 ° | 74.1 ° | 74.5 ° | 74.1 ° | 74.5 ° | 74.1 ° | 74.5 ° | 74.1 ° |
| Seat Tube Length | 375 mm | 375 mm | 390 mm | 390 mm | 420 mm | 420 mm | 450 mm | 450 mm | 480 mm | 480 mm |
| Head Tube Angle | 65 ° | 64.6 ° | 65 ° | 64.6 ° | 65 ° | 64.6 ° | 65 ° | 64.6 ° | 65 ° | 64.6 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm | 130 mm | 130 mm |
| Chainstay Length | 422 mm | 423 mm | 422 mm | 423 mm | 422 mm | 423 mm | 422 mm | 423 mm | 422 mm | 423 mm |
| Wheelbase | 1126 mm | 1127 mm | 1160 mm | 1161 mm | 1184 mm | 1186 mm | 1208 mm | 1210 mm | 1243 mm | 1244 mm |
| Bottom Bracket Drop | 10 mm | 15 mm | 10 mm | 15 mm | 10 mm | 15 mm | 10 mm | 15 mm | 10 mm | 15 mm |
| Standover Height | 702 mm | 696 mm | 704 mm | 698 mm | 720 mm | 714 mm | 718 mm | 712 mm | 710 mm | 710 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
About this model
Nomad R / Carbon C / 27.5 is a Santacruz Nomad model. 68 bikes variations carry this model name so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Santa Cruz Nomad R / Aluminum / 27.5 2019 is the most economical model, with a starting price of 3599$. Santa Cruz Nomad XTR Reserve / Carbon CC / 27.5 2019 on the other hand costs 9799$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro bikes
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Santa Cruz released this model in 2019, its price was 4499$. In conclusion, this bike price is 25.01% higher than the price of the average Enduro bike.
Nomad R / Carbon C / 27.5 components
Fork
The Nomad R / Carbon C / 27.5 comes factory-installed with the RockShox Yari RC fork. This has a travel range of 170mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The Nomad R / Carbon C / 27.5 has a rear shock with a travel of 170mm. The model RockShox Super Deluxe R is the one installed in this bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
As for the wheels, Santa Cruz Nomad R / Carbon C / 27.5 2019, has a 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Nomad R / Carbon C / 27.5 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Dropper post
Santa Cruz Nomad R / Carbon C / 27.5 includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
