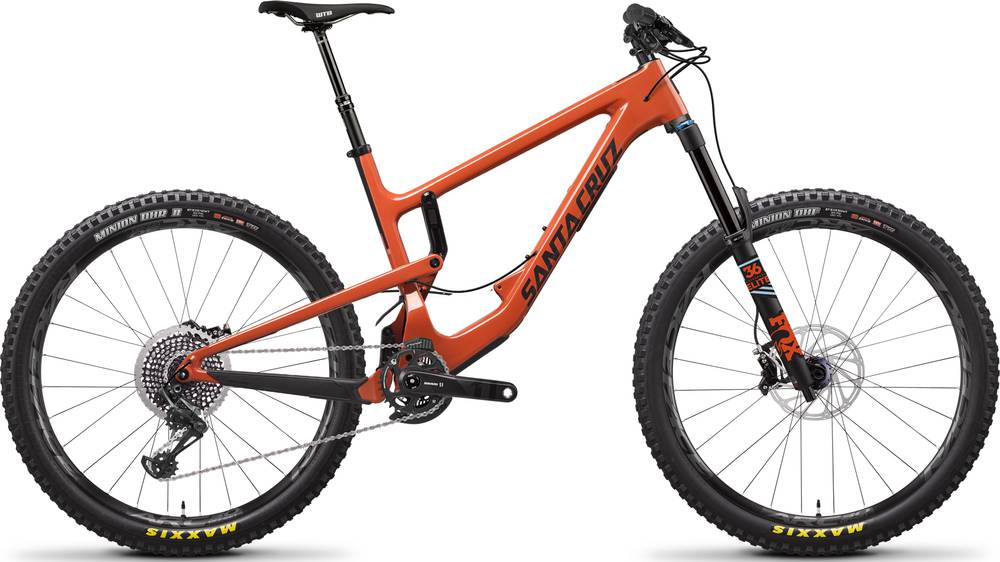

Santa Cruz Nomad X01 / Carbon CC / 27.5 2019
2019 Mountain
Estimate price |
7,199$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 170mm -
Fork Fox Performance Elite Float 36
-
Groupset X01 Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Nomad X01 / Carbon CC / 27.5
Suspension Fork
FOX 36 Float Performance Elite 170
Rear Shock
RockShox Super Deluxe RCT
Drivetrain
Rear Derailleur
SRAM X01 Eagle
Shift Levers
SRAM X01 Eagle
Cassette
SRAM XG1295 Eagle 10-50T
Crank
SRAM X1 Eagle Carbon 148 DUB, 32t - 170mm (XS-S), 175mm (M-XL)
Chain
SRAM X01 Eagle 12 SPD
Chain Guide
E13 TRS+ 1x Guide ISCG05
Wheels
Front Hub
DT 350 15x110 28H
Rear Hub
DT 350 148x12 28h XD
Rims
Race Face ARC Offset 30 27.5" Rims
Spokes
DT Competition Race (28)
Tires
Maxxis Minion DHF, 27.5"x2.5", 3C Silkshield
Brakes
Brakes
SRAM Code RSC
Disk Rotors
Avid Centerline 200mm
Cockpit
Stem
Race Face Aeffect R 50mm
Handlebar
SCB AM Carbon Bar 35x800
Grips
Santa Cruz Palmdale Grips
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Team Saddle
Seatpost
RockShox Reverb Stealth 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.53 mm | 1.42 mm | 1.44 mm | 1.38 mm | 1.39 mm | 1.33 mm | 1.35 mm | 1.27 mm | 1.29 mm |
| Bottom Bracket Height | 344 mm | 339 mm | 344 mm | 339 mm | 344 mm | 339 mm | 344 mm | 339 mm | 344 mm | 339 mm |
| Front Center | 704 mm | 704 mm | 738 mm | 738 mm | 762 mm | 762 mm | 787 mm | 787 mm | 821 mm | 821 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm | 43 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 119 mm | 122 mm | 119 mm | 122 mm | 119 mm | 121 mm | 119 mm | 122 mm | 119 mm | 122 mm |
| Stack | 576 mm | 579 mm | 585 mm | 588 mm | 594 mm | 597 mm | 603 mm | 606 mm | 612 mm | 615 mm |
| Reach | 382 mm | 378 mm | 412 mm | 408 mm | 432 mm | 428 mm | 452 mm | 448 mm | 482 mm | 478 mm |
| Top Tube Length | 532 mm | 533 mm | 565 mm | 566 mm | 588 mm | 590 mm | 611 mm | 613 mm | 645 mm | 646 mm |
| Seat Tube Angle | 74.5 ° | 74.1 ° | 74.5 ° | 74.1 ° | 74.5 ° | 74.1 ° | 74.5 ° | 74.1 ° | 74.5 ° | 74.1 ° |
| Seat Tube Length | 375 mm | 375 mm | 390 mm | 390 mm | 420 mm | 420 mm | 450 mm | 450 mm | 480 mm | 480 mm |
| Head Tube Angle | 65 ° | 64.6 ° | 65 ° | 64.6 ° | 65 ° | 64.6 ° | 65 ° | 64.6 ° | 65 ° | 64.6 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm | 130 mm | 130 mm |
| Chainstay Length | 422 mm | 423 mm | 422 mm | 423 mm | 422 mm | 423 mm | 422 mm | 423 mm | 422 mm | 423 mm |
| Wheelbase | 1126 mm | 1127 mm | 1160 mm | 1161 mm | 1184 mm | 1186 mm | 1208 mm | 1210 mm | 1243 mm | 1244 mm |
| Bottom Bracket Drop | 10 mm | 15 mm | 10 mm | 15 mm | 10 mm | 15 mm | 10 mm | 15 mm | 10 mm | 15 mm |
| Standover Height | 702 mm | 696 mm | 704 mm | 698 mm | 720 mm | 714 mm | 718 mm | 712 mm | 710 mm | 710 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
Model Overview
Nomad X01 / Carbon CC / 27.5 belongs to the Santacruz Nomad model. 68 bikes variations carry this model name so far. You can easily view all of the Santacruz Nomad bikes models from 2019, here.
Model range prices
The most economical model, the Santa Cruz Nomad R / Aluminum / 27.5 2019 has a starting price of 3599$. Santa Cruz Nomad XTR Reserve / Carbon CC / 27.5 2019 on the other hand is the most expensive at 9799$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro bikes average price
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2019 and its price was 7199$. In conclusion, this bike price is 100.03% more expensive than the price of the average Enduro bike.
Nomad X01 / Carbon CC / 27.5 components
Fork
This bike has the Fox Performance Elite Float 36 fork installed. The fork’s travel is 170mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this bike has the RockShox Super Deluxe RCT model, with a travel of 170mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
As for the wheels, Santa Cruz Nomad X01 / Carbon CC / 27.5 2019, has a 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Santa Cruz Nomad X01 / Carbon CC / 27.5 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Dropper post
A dropper post is included with the Nomad X01 / Carbon CC / 27.5. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
