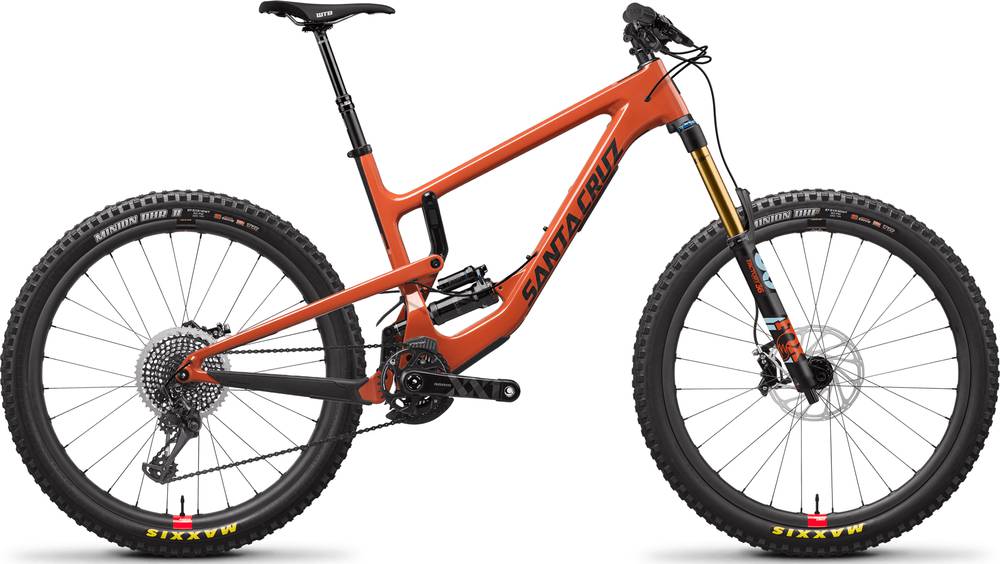

Santa Cruz Nomad XX1 Reserve / Carbon CC / 27.5 2019
2019 Mountain
Estimate price |
9,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 170mm -
Travel Rear 170mm -
Fork Fox Factory Float 36
-
Groupset XX1 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Nomad XX1 Reserve / Carbon CC / 27.5
Suspension Fork
FOX 36 Float Factory 170
Rear Shock
RockShox Super Deluxe RCT
Drivetrain
Rear Derailleur
SRAM XX1 Eagle
Shift Levers
SRAM XX1 Eagle
Cassette
SRAM XG1295 Eagle 10-50T
Crank
SRAM XX1 Eagle 148 DUB, 32t - 170mm (XS-S), 175mm (M-XL)
Chain
SRAM XX1 Eagle 12 SPD
Chain Guide
E13 TRS+ 1x Guide ISCG05
Wheels
Front Hub
I9 15x110 28H
Rear Hub
I9 148x12 28H XD
Rims
Santa Cruz Reserve 30 Carbon Rim - 27.5 28h
Spokes
DT Competition Race (28)
Tires
Maxxis Minion DHF, 27.5"x2.5", 3C Silkshield
Brakes
Brakes
SRAM Code RSC
Disk Rotors
Avid Centerline 200mm
Cockpit
Stem
Race Face Turbine R 50mm
Handlebar
SCB AM Carbon Bar 35x800
Grips
Santa Cruz Palmdale Grips
Headset
Cane Creek 110 IS Integrated Headset
Seat
Saddle
WTB Silverado Team Saddle
Seatpost
RockShox Reverb Stealth 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.53 mm | 1.42 mm | 1.44 mm | 1.38 mm | 1.39 mm | 1.33 mm | 1.35 mm | 1.27 mm | 1.29 mm |
| Bottom Bracket Height | 344 mm | 339 mm | 344 mm | 339 mm | 344 mm | 339 mm | 344 mm | 339 mm | 344 mm | 339 mm |
| Front Center | 704 mm | 704 mm | 738 mm | 738 mm | 762 mm | 762 mm | 787 mm | 787 mm | 821 mm | 821 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm | 43 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 119 mm | 122 mm | 119 mm | 122 mm | 119 mm | 121 mm | 119 mm | 122 mm | 119 mm | 122 mm |
| Stack | 576 mm | 579 mm | 585 mm | 588 mm | 594 mm | 597 mm | 603 mm | 606 mm | 612 mm | 615 mm |
| Reach | 382 mm | 378 mm | 412 mm | 408 mm | 432 mm | 428 mm | 452 mm | 448 mm | 482 mm | 478 mm |
| Top Tube Length | 532 mm | 533 mm | 565 mm | 566 mm | 588 mm | 590 mm | 611 mm | 613 mm | 645 mm | 646 mm |
| Seat Tube Angle | 74.5 ° | 74.1 ° | 74.5 ° | 74.1 ° | 74.5 ° | 74.1 ° | 74.5 ° | 74.1 ° | 74.5 ° | 74.1 ° |
| Seat Tube Length | 375 mm | 375 mm | 390 mm | 390 mm | 420 mm | 420 mm | 450 mm | 450 mm | 480 mm | 480 mm |
| Head Tube Angle | 65 ° | 64.6 ° | 65 ° | 64.6 ° | 65 ° | 64.6 ° | 65 ° | 64.6 ° | 65 ° | 64.6 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm | 130 mm | 130 mm |
| Chainstay Length | 422 mm | 423 mm | 422 mm | 423 mm | 422 mm | 423 mm | 422 mm | 423 mm | 422 mm | 423 mm |
| Wheelbase | 1126 mm | 1127 mm | 1160 mm | 1161 mm | 1184 mm | 1186 mm | 1208 mm | 1210 mm | 1243 mm | 1244 mm |
| Bottom Bracket Drop | 10 mm | 15 mm | 10 mm | 15 mm | 10 mm | 15 mm | 10 mm | 15 mm | 10 mm | 15 mm |
| Standover Height | 702 mm | 696 mm | 704 mm | 698 mm | 720 mm | 714 mm | 718 mm | 712 mm | 710 mm | 710 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" | 27" |
Model Overview
Nomad XX1 Reserve / Carbon CC / 27.5 is a Santacruz Nomad model. Santa Cruz launched 68 bikes of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
The most economical model, the Santa Cruz Nomad R / Aluminum / 27.5 2019 has a starting price of 3599$. Santa Cruz Nomad XTR Reserve / Carbon CC / 27.5 2019 on the other hand is the most expensive at 9799$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro bikes
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Santa Cruz released this model in 2019, its price was 9499$. Comparing this to the average Enduro bike price, we see that the price is 163.93% higher.
Overview of components
Fork
Santa Cruz Nomad XX1 Reserve / Carbon CC / 27.5 2019 bike is equipped with the Fox Factory Float 36 fork, and has 170mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this bike is RockShox Super Deluxe RCT, with a travel distance of 170mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The wheels on Nomad XX1 Reserve / Carbon CC / 27.5 are the 27.5″ carbon type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Nomad XX1 Reserve / Carbon CC / 27.5 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Dropper post
The Santa Cruz model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
