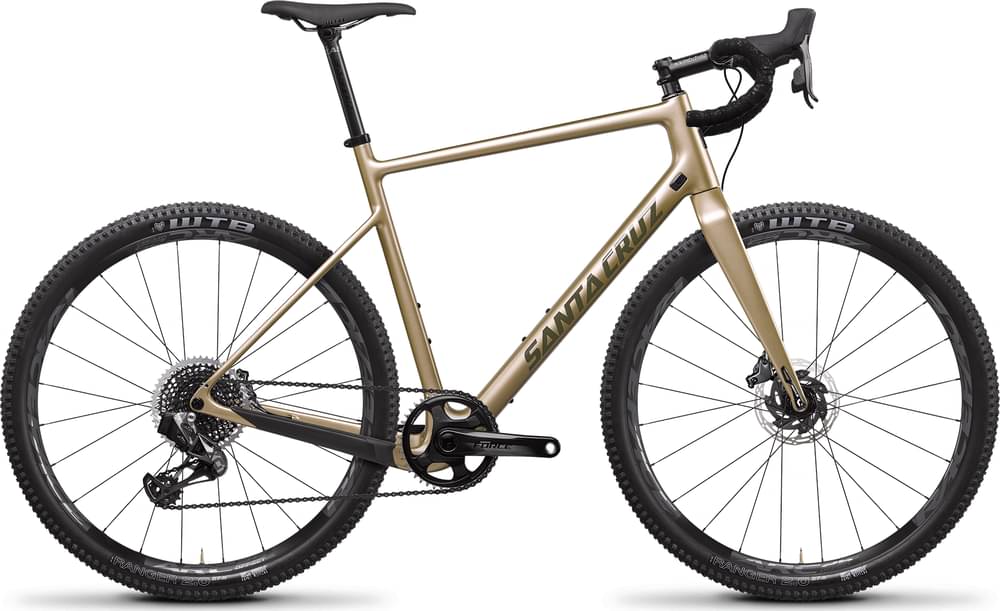

Santa Cruz Stigmata Force / 1X / Carbon CC / 650b 2022
2022 Road
Estimate price |
6,299$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 650b -
Groupset X01 Eagle AXS, Force eTAP -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
52cm
160cm - 169cm
54cm
167cm - 176cm
56cm
174cm - 184cm
58cm
182cm - 189cm
60cm
187cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Stigmata Force / 1X / Carbon CC / 650b
Drivetrain
Rear Derailleur
SRAM X01 Eagle AXS, 12spd
Shift Levers
SRAM Force eTap AXS, 12spd
Cassette
SRAM XG1295 Eagle, 12spd, 10-50t
Crank
SRAM Force 1, 42t
Bottom Bracket
SRAM DUB
Chain
SRAM XX1 Eagle, 12spd
Wheels
Front Hub
DT Swiss 350, 12x100, Centerlock, 28h
Rear Hub
DT 350, 12x142, XDr, Centerlock, 28h
Rims
RaceFace ARC Offset 25 650b
Spokes
Sapim Race
Tires
Front: WTB Ranger 27.5"x2.0", TCS, Rear: WTB Ranger 27.5"x2.0", TCS
Brakes
Brakes
SRAM Force
Disk Rotors
SRAM CLX R Center Lock 160mm
Cockpit
Stem
Easton EA90
Handlebar
Easton EA70 AX
Grips
Velo Bar Tape
Headset
Cane Creek 40 IS Integrated
Seat
Saddle
WTB Silverado Team Saddle or WTB Volt
Seatpost
Easton EC70, Zero Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 52cm | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.53 mm | 1.55 mm | 1.56 mm | 1.56 mm |
| Bottom Bracket Height | 277 mm | 279 mm | 279 mm | 281 mm | 281 mm |
| Front Center | 595 mm | 600 mm | 610 mm | 618 mm | 637 mm |
| Rake | 50 mm | 45 mm | 46 mm | 45 mm | 45 mm |
| Trail | 61 mm | 63 mm | 59 mm | 60 mm | 60 mm |
| Stack | 548 mm | 569 mm | 589 mm | 602 mm | 621 mm |
| Reach | 365 mm | 373 mm | 381 mm | 385 mm | 398 mm |
| Top Tube Length | 519 mm | 538 mm | 558 mm | 565 mm | 584 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 495 mm | 520 mm | 545 mm | 565 mm | 590 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 185 mm | 205 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1002 mm | 1008 mm | 1018 mm | 1027 mm | 1046 mm |
| Bottom Bracket Drop | 74 mm | 72 mm | 72 mm | 70 mm | 70 mm |
| Standover Height | 747 mm | 769 mm | 790 mm | 809 mm | 827 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 160 cm | 167 cm | 174 cm | 182 cm | 187 cm |
| Rider Max Height | 169 cm | 176 cm | 184 cm | 189 cm | 196 cm |
About this model
Stigmata Force / 1X / Carbon CC / 650b belongs to the Santacruz Stigmata model. There are 43 bikes that carry this model name. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Santa Cruz Stigmata Rival / Carbon CC / 700c 2022 is the most affordable bike of this model and has a price of 4299$. On the other hand, Santa Cruz STIGMATA Force AXS / RSV / 1X / Carbon CC / 700c 2022, is the most expensive and costs 8149$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Gravel bikes average price
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2022 and its price was 6299$. Comparing this to the average Gravel bike price, we see that the price is 155.85% more expensive.
Stigmata Force / 1X / Carbon CC / 650b components
Fork material
Stigmata Force / 1X / Carbon CC / 650b has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
As for the wheels, Santa Cruz Stigmata Force / 1X / Carbon CC / 650b 2022, has a aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Santa Cruz Stigmata Force / 1X / Carbon CC / 650b is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 5 sizes. They vary from 160 cm – 196 cm (5.25 ft – 6.43 ft). In conclusion, finding one for you shouldn’t be a problem.
