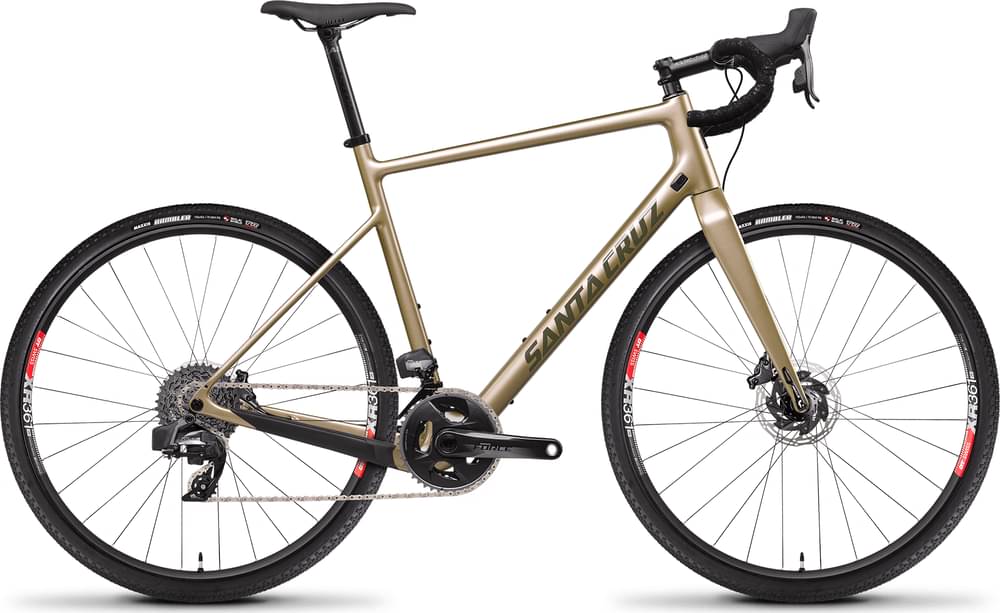

Santa Cruz Stigmata Force / 2X / Carbon CC / 700c 2022
2022 Road
Estimate price |
6,099$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force eTAP -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
52cm
160cm - 169cm
54cm
167cm - 176cm
56cm
174cm - 184cm
58cm
182cm - 189cm
60cm
187cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Stigmata Force / 2X / Carbon CC / 700c
Drivetrain
Rear Derailleur
SRAM Force eTap AXS Medium Cage, 12spd
Front Derailleur
SRAM Force Wide eTap AXS, 12spd
Shift Levers
SRAM Force eTap AXS, 12spd
Cassette
SRAM XG1270, 10-36t
Crank
SRAM Force Wide, 43/30t
Bottom Bracket
SRAM DUB 68mm Road Wide
Chain
SRAM Force, 12spd
Wheels
Front Hub
DT Swiss 350, 12x100, Centerlock, 24h
Rear Hub
DT Swiss 350, 12x142, XDr, Centerlock, 24h
Rims
DT Swiss XR 361 Asym 29"
Spokes
Sapim Race
Tires
Front: Maxxis Rambler, 700x40c, Rear: Maxxis Rambler, 700x40c
Brakes
Brakes
SRAM Force
Disk Rotors
SRAM CLX R Center Lock 160mm
Cockpit
Stem
Easton EA90
Handlebar
Easton EA70 AX
Grips
Velo Bar Tape
Headset
Cane Creek 40 IS Integrated
Seat
Saddle
WTB Silverado Team Saddle or WTB Volt
Seatpost
Easton EC70, Zero Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 52cm | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.53 mm | 1.55 mm | 1.56 mm | 1.56 mm |
| Bottom Bracket Height | 280 mm | 282 mm | 282 mm | 284 mm | 284 mm |
| Front Center | 595 mm | 600 mm | 610 mm | 618 mm | 637 mm |
| Rake | 50 mm | 45 mm | 46 mm | 45 mm | 45 mm |
| Trail | 67 mm | 69 mm | 65 mm | 66 mm | 66 mm |
| Stack | 548 mm | 569 mm | 589 mm | 602 mm | 621 mm |
| Reach | 365 mm | 373 mm | 381 mm | 385 mm | 398 mm |
| Top Tube Length | 519 mm | 538 mm | 558 mm | 565 mm | 584 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 495 mm | 520 mm | 545 mm | 565 mm | 590 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 185 mm | 205 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1002 mm | 1008 mm | 1018 mm | 1027 mm | 1046 mm |
| Bottom Bracket Drop | 74 mm | 72 mm | 72 mm | 70 mm | 70 mm |
| Standover Height | 747 mm | 769 mm | 790 mm | 809 mm | 827 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 167 cm | 174 cm | 182 cm | 187 cm |
| Rider Max Height | 169 cm | 176 cm | 184 cm | 189 cm | 196 cm |
Model Overview
Stigmata Force / 2X / Carbon CC / 700c is a Santacruz Stigmata model. Santa Cruz released 43 bikes variations of this model so far. You can easily view all of the Santacruz Stigmata bikes models from 2022, here.
Model range prices
Santa Cruz Stigmata Rival / Carbon CC / 700c 2022 is the most economical model, with a starting price of 4299$. Santa Cruz STIGMATA Force AXS / RSV / 1X / Carbon CC / 700c 2022 on the other hand costs 8149$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel bikes
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2022 for 6099$. Comparing the average cost of a Gravel bike to this one, you will see that Stigmata Force / 2X / Carbon CC / 700c price is 147.73% more expensive.
Stigmata Force / 2X / Carbon CC / 700c components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When leaving the production line, the Stigmata Force / 2X / Carbon CC / 700c model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Stigmata Force / 2X / Carbon CC / 700c has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 5 sizes. They vary from 160 cm – 196 cm (5.25 ft – 6.43 ft). In short, it won’t be difficult to find the right one for you.
