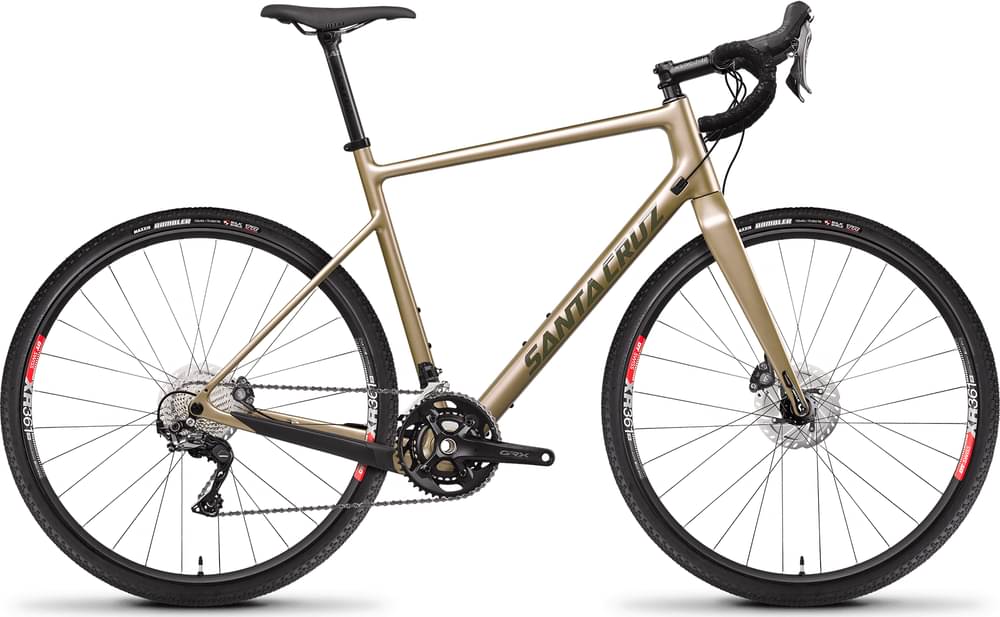

Santa Cruz Stigmata GRX / Carbon CC / 700c 2022
2022 Road
Estimate price |
4,799$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX 800 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
52cm
160cm - 169cm
54cm
167cm - 176cm
56cm
174cm - 184cm
58cm
182cm - 189cm
60cm
187cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Stigmata GRX / Carbon CC / 700c
Drivetrain
Rear Derailleur
Shimano GRX, 11spd
Front Derailleur
Shimano GRX Braze-On, 11spd
Shift Levers
Shimano GRX 810
Cassette
Shimano Ultegra 6800, 11-34t
Crank
Shimano GRX 11spd, 48/31t
Bottom Bracket
Shimano Ultegra BB
Chain
Shimano SLX M7000, 11spd
Wheels
Front Hub
DT Swiss 350, 12x100, Centerlock, 28h
Rear Hub
DT Swiss 350, 12x142, 11spd, Centerlock, 28h
Rims
DT Swiss XR 361 Asym 29"
Spokes
Sapim Race
Tires
Front: Maxxis Rambler, 700x40c, Rear: Maxxis Rambler, 700x40c
Brakes
Brakes
Shimano GRX 810
Disk Rotors
Shimano RT80 Ice Tech Centerlock, 160mm
Cockpit
Stem
Easton EA90
Handlebar
Easton EA70 AX
Grips
Velo Bar Tape
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Team Saddle or WTB Volt
Seatpost
Easton EC70, Zero Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 52cm | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.53 mm | 1.55 mm | 1.56 mm | 1.56 mm |
| Bottom Bracket Height | 280 mm | 282 mm | 282 mm | 284 mm | 284 mm |
| Front Center | 595 mm | 600 mm | 610 mm | 618 mm | 637 mm |
| Rake | 50 mm | 45 mm | 46 mm | 45 mm | 45 mm |
| Trail | 67 mm | 69 mm | 65 mm | 66 mm | 66 mm |
| Stack | 548 mm | 569 mm | 589 mm | 602 mm | 621 mm |
| Reach | 365 mm | 373 mm | 381 mm | 385 mm | 398 mm |
| Top Tube Length | 519 mm | 538 mm | 558 mm | 565 mm | 584 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 495 mm | 520 mm | 545 mm | 565 mm | 590 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 185 mm | 205 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1002 mm | 1008 mm | 1018 mm | 1027 mm | 1046 mm |
| Bottom Bracket Drop | 74 mm | 72 mm | 72 mm | 70 mm | 70 mm |
| Standover Height | 747 mm | 769 mm | 790 mm | 809 mm | 827 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 167 cm | 174 cm | 182 cm | 187 cm |
| Rider Max Height | 169 cm | 176 cm | 184 cm | 189 cm | 196 cm |
Model Overview
Stigmata GRX / Carbon CC / 700c is part of the Santacruz Stigmata model. Santa Cruz released 43 bikes variations of this model so far. You can easily view all of the Santacruz Stigmata bikes models from 2022, here.
Model range prices
Santa Cruz Stigmata Rival / Carbon CC / 700c 2022 is the most affordable bike of this model and has a price of 4299$. On the other hand, Santa Cruz STIGMATA Force AXS / RSV / 1X / Carbon CC / 700c 2022, is the most expensive and costs 8149$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Gravel bikes average price
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Santa Cruz released this model in 2022, its price was 4799$. Comparing this to the average Gravel bike price, we see that the price is 94.92% more expensive.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When it comes to wheels, the Stigmata GRX / Carbon CC / 700c bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Stigmata GRX / Carbon CC / 700c has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Santa Cruz Stigmata GRX / Carbon CC / 700c bike has 5 sizes, in the range of 160 cm – 196 cm (5.25 ft – 6.43 ft). In short, it won’t be difficult to find the right one for you.
