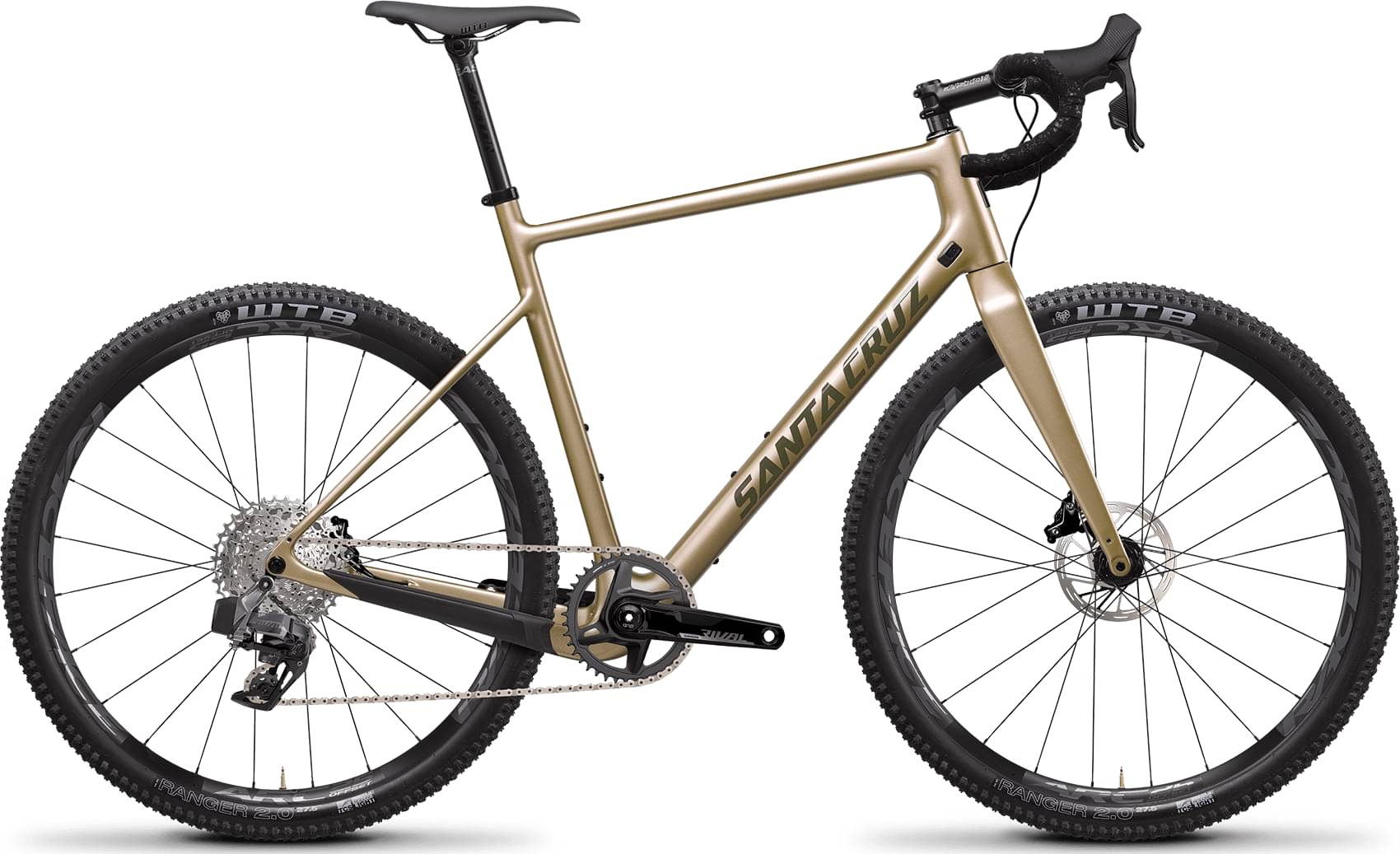

Santa Cruz STIGMATA Rival AXS / 1X / Carbon CC / 650b 2022
2022 Road
Estimate price |
5,799$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Rival XPLR AXS, Rival AXS -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
STIGMATA Rival AXS / 1X / Carbon CC / 650b
Drivetrain
Rear Derailleur
SRAM Rival XPLR AXS
Shift Levers
Rival eTap AXS HRD
Cassette
SRAM XPLR XG 1251, 10-44
Crank
SRAM Rival 1 DUB Wide, 38t
Bottom Bracket
SRAM DUB 68mm Road Wide BB
Chain
SRAM Rival, 12spd
Wheels
Front Hub
i9 1/1, 12x100, Centerlock, 28h
Rear Hub
i9 1/1 12x142, XDr, Centerlock, 28h
Rims
RaceFace ARC Offset 25 650b
Spokes
Sapim Race
Tires
Front: WTB Ranger 27.5"x2.0", TCS, Rear: WTB Ranger 27.5"x2.0", TCS
Brakes
Brakes
SRAM Rival 1 Flat Mount
Cockpit
Stem
Easton EA90
Handlebar
Easton EA70 AX
Grips
Velo Bar Tape
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Medium CroMo
Seatpost
Easton EC70 27.2 Zero Offset 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 52cm | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.53 mm | 1.55 mm | 1.56 mm | 1.56 mm |
| Bottom Bracket Height | 277 mm | 279 mm | 279 mm | 281 mm | 281 mm |
| Front Center | 595 mm | 600 mm | 610 mm | 618 mm | 637 mm |
| Rake | 50 mm | 45 mm | 46 mm | 45 mm | 45 mm |
| Trail | 61 mm | 63 mm | 59 mm | 60 mm | 60 mm |
| Stack | 548 mm | 569 mm | 589 mm | 602 mm | 621 mm |
| Reach | 365 mm | 373 mm | 381 mm | 385 mm | 398 mm |
| Top Tube Length | 519 mm | 538 mm | 558 mm | 565 mm | 584 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 495 mm | 520 mm | 545 mm | 565 mm | 590 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 185 mm | 205 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1002 mm | 1008 mm | 1018 mm | 1027 mm | 1046 mm |
| Bottom Bracket Drop | 74 mm | 72 mm | 72 mm | 70 mm | 70 mm |
| Standover Height | 747 mm | 769 mm | 790 mm | 809 mm | 827 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
Model Overview
STIGMATA Rival AXS / 1X / Carbon CC / 650b completes the Santacruz Stigmata model. There are 43 bikes that carry this model name. Take a sneak peek at all Santacruz Stigmata bikes models from 2022, by clicking here.
Model range prices
The most economical model, the Santa Cruz Stigmata Rival / Carbon CC / 700c 2022 has a starting price of 4299$. Santa Cruz STIGMATA Force AXS / RSV / 1X / Carbon CC / 700c 2022 on the other hand is the most expensive at 8149$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Santa Cruz released this model in 2022, its price was 5799$. If we compare this with the average Gravel bike cost we notice that the price is 135.54% higher.
STIGMATA Rival AXS / 1X / Carbon CC / 650b components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The wheels on STIGMATA Rival AXS / 1X / Carbon CC / 650b are the aluminum type. After 700c wheels, 650b is the second most popular choice for road bikes. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
