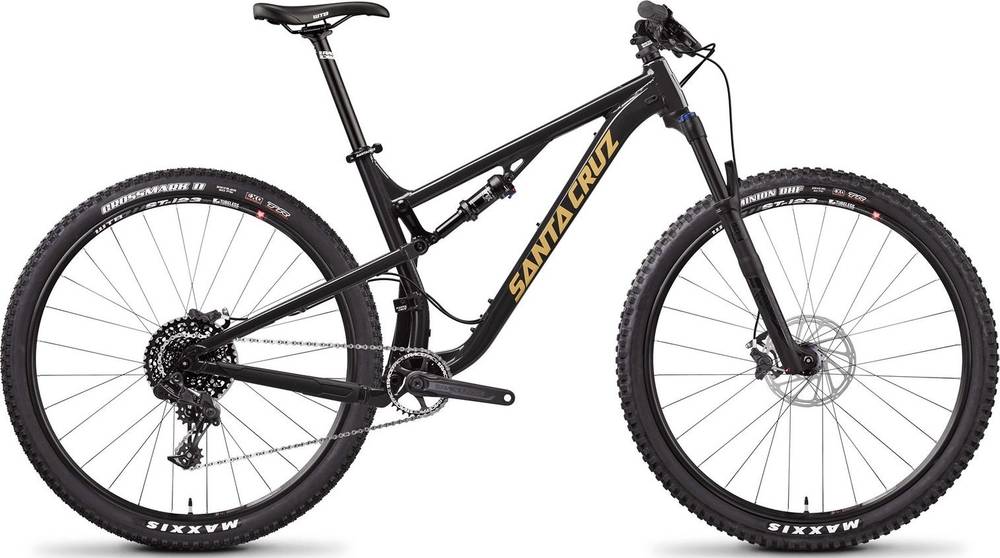

Santa Cruz Tallboy Aluminum D 2018
2018 Mountain
Estimate price |
2,699$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Travel Rear 110mm -
Fork RockShox Recon Silver RL
-
Groupset NX, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Recon RL
Rear Shock
FOX Float Performance DPS
Drivetrain
Rear Derailleur
SRAM NX, long cage, 11 speed
Front Derailleur
N/A
Shift Levers
SRAM NX, 11 speed
Cassette
SRAM PG1130, 11-42 tooth
Crank
Race Face Aeffect
Bottom Bracket
threaded
Chain
SRAM PC1110, 11 speed
Chain Guide
none
Pedals
none
Wheels
Front Hub
Front: Novatec D711, 15mm x 110mm, 28 hole, Rear: Novatec D462, 12mm x 148mm, 28 hole
Rear Hub
Front: Novatec D711, 15mm x 110mm, 28 hole, Rear: Novatec D462, 12mm x 148mm, 28 hole
Rims
WTB ST i23 TCS
Spokes
DT Competition with Sapim secure lock brass nipples
Tires
Front: Maxxis Crossmark II, 2.25", DC EXO TR, Rear: Maxxis Minion 2.3" DHF EXO TR
Brakes
Brakes
SRAM Level, 180mm Centerline rotors front and rear
Brake Levers
SRAM Level
Cockpit
Stem
Race Face Ride, 50mm
Handlebar
Race Face Ride, 35mm diameter, 760mm wide
Grips
Santa Cruz Palmdale, lock-on
Headset
Cane Creek 10
Seat
Saddle
WTB Volt Sport
Seatpost
Race Face Ride
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.4 mm | 1.33 mm | 1.29 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm |
| Stack | 601 mm | 610 mm | 610 mm | 624 mm |
| Reach | 412 mm | 437 mm | 457 mm | 482 mm |
| Top Tube Length | 581 mm | 610 mm | 630 mm | 660 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 390 mm | 420 mm | 450 mm | 480 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1123 mm | 1152 mm | 1172 mm | 1202 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm | 44 mm |
| Standover Height | 712 mm | 713 mm | 714 mm | 716 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Tallboy Aluminum D completes the Santacruz Tallboy model. Santa Cruz launched 64 bikes of this model so far. Take a sneak peek at all Santacruz Tallboy bikes models from 2018, by clicking here.
Model range prices
Santa Cruz Tallboy Aluminum D 2018 is the most economical model, with a starting price of 2699$. Santa Cruz Tallboy Carbon CC XX1 2018 on the other hand costs 9199$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2699$. If we compare this with the average Crosscountry bike cost we notice that the price is 41.68% higher.
Tallboy Aluminum D components
Fork
Santa Cruz Tallboy Aluminum D 2018 bike is equipped with the RockShox Recon Silver RL fork, and has 120mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the FOX Float Performance DPS rear shock model, which has a travel of 110mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
The wheels on Tallboy Aluminum D are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Santa Cruz Tallboy Aluminum D bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
