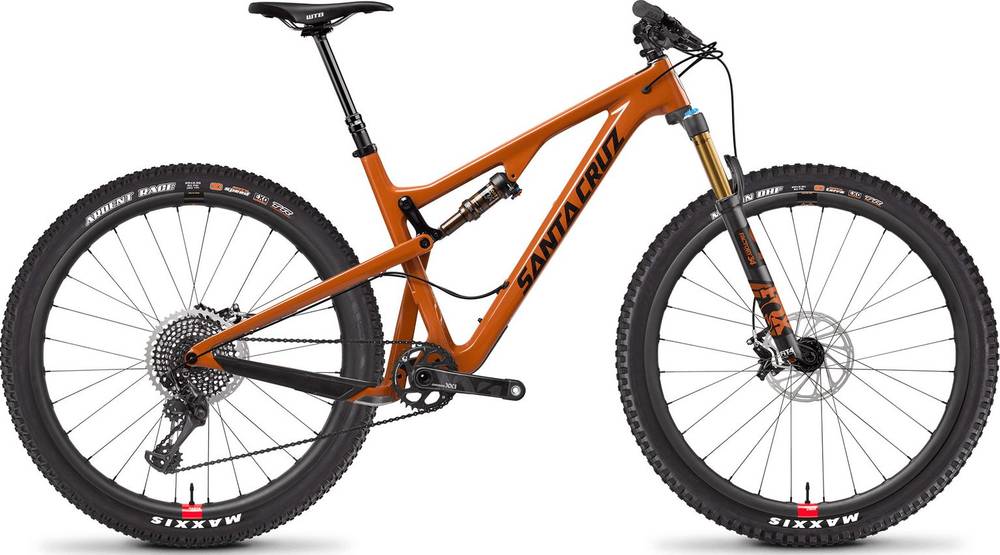

Santa Cruz Tallboy Carbon CC XX1 2018
2018 Mountain
Estimate price |
9,199$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 110mm -
Fork Fox Factory Float 34
-
Groupset XX1 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX Float Factory 34, Kashima
Rear Shock
FOX Float Factory DPS, Kashima
Drivetrain
Rear Derailleur
SRAM XX1 Eagle, 12 speed
Front Derailleur
N/A
Shift Levers
SRAM XX1 Eagle, 12 speed
Cassette
SRAM XG1295 Eagle, 10-50 tooth
Crank
SRAM XX1 Eagle Carbon
Bottom Bracket
SRAM GXP Team
Chain
SRAM XX1 Eagle, 12 speed
Chain Guide
none
Pedals
none
Wheels
Front Hub
Front: Industry Nine, 15mm x 110mm, 28 hole, Rear: Industry Nine, 12mm x 148mm, 28 hole
Rear Hub
Front: Industry Nine, 15mm x 110mm, 28 hole, Rear: Industry Nine, 12mm x 148mm, 28 hole
Rims
Standard: Race Face ARC 24, Upgrade: Santa Cruz Reserve 27 Carbon
Spokes
DT Competition with Sapim secure lock silver nipples
Tires
Front: Maxxis Minion DHF, 2.3", 3c EXO TR, Rear: Maxxis Ardent Race, 2.35" EXO TR
Brakes
Brakes
SRAM Level Ultimate, 180mm Avid Centerline rotors front and rear
Brake Levers
SRAM Level Ultimate
Cockpit
Stem
Easton Haven, 55mm
Handlebar
Santa Cruz XC, 31.8mm diameter, 750mm wide, flat
Grips
Santa Cruz Palmdale lock-on
Headset
Cane Creek 110, integrated
Seat
Saddle
WTB Silverado Race
Seatpost
RockShox Reverb Stealth
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.4 mm | 1.33 mm | 1.29 mm | 1.25 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm | 330 mm |
| Stack | 601 mm | 610 mm | 610 mm | 624 mm | 638 mm |
| Reach | 412 mm | 437 mm | 457 mm | 482 mm | 512 mm |
| Top Tube Length | 581 mm | 610 mm | 630 mm | 660 mm | 696 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 390 mm | 420 mm | 450 mm | 480 mm | 510 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1123 mm | 1152 mm | 1172 mm | 1202 mm | 1238 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Standover Height | 712 mm | 713 mm | 714 mm | 716 mm | 711 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview
Tallboy Carbon CC XX1 is a Santacruz Tallboy model. Santa Cruz released 64 bikes variations of this model so far. You can easily view all of the Santacruz Tallboy bikes models from 2018, here.
Model range prices
Santa Cruz Tallboy Aluminum D 2018 is the cheapest bike model and costs 2699$. Santa Cruz Tallboy Carbon CC XX1 2018 is the most expensive one and costs 9199$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Santa Cruz Tallboy Carbon CC XX1 price was 9199$. Comparing the average cost of a Crosscountry bike to this one, you will see that Tallboy Carbon CC XX1 price is 382.89% more expensive.
Overview of components
Fork
This bike has the Fox Factory Float 34 fork installed. The fork’s travel is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Santa Cruz Tallboy Carbon CC XX1 bike has the FOX Float Factory DPS model installed, and has a travel of 110mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The Tallboy Carbon CC XX1 2018 bike is equipped with 29″ carbon wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Santa Cruz Tallboy Carbon CC XX1 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Dropper post
The Santa Cruz model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
