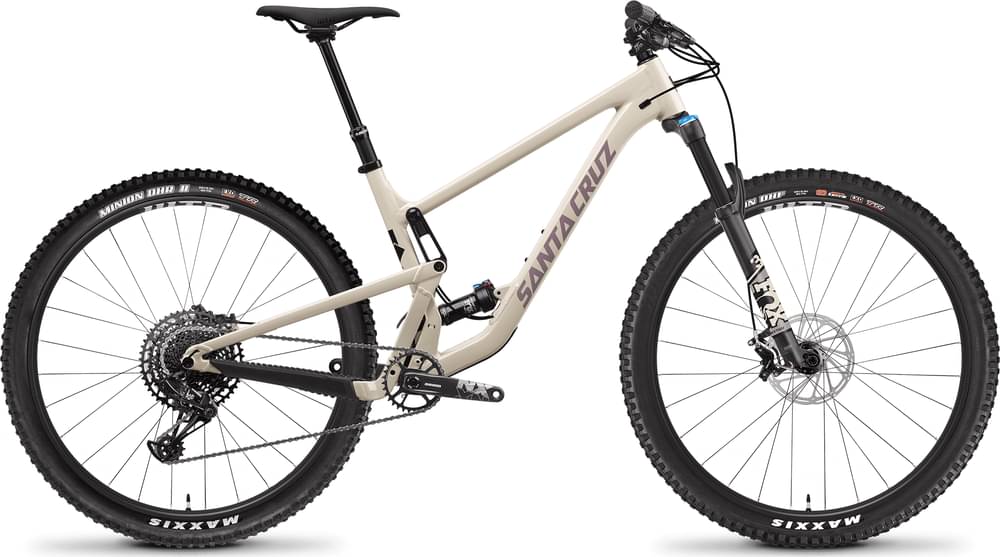

Santa Cruz Tallboy R / Aluminum / 29 2021
2021 Mountain
Estimate price |
3,749$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Rhythm Float 34
-
Groupset NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS High
142cm - 156cm
XS Low
142cm - 156cm
SM High
153cm - 167cm
SM Low
153cm - 167cm
MD High
164cm - 177cm
MD Low
164cm - 177cm
LG High
174cm - 187cm
LG Low
174cm - 187cm
XL High
184cm - 194cm
XL Low
184cm - 194cm
XXL High
192cm - 200cm
XXL Low
192cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tallboy R / Aluminum / 29
Suspension Fork
FOX Rhythm 34, 130mm, 29"
Rear Shock
FOX Float Performance DPS
Drivetrain
Rear Derailleur
SRAM NX Eagle, 12spd
Shift Levers
SRAM NX Eagle, 12spd
Cassette
SRAM PG1230, 12spd, 11-50t
Crank
SRAM NX Eagle 148 DUB, 32t
Bottom Bracket
SRAM DUB 68/73mm
Chain
SRAM NX Eagle, 12spd
Wheels
Front Hub
SRAM MTH 716, 15x110, 32h
Rear Hub
SRAM MTH 746, 12x148, 32h
Rims
WTB ST i25 TCS 2.0 29"
Spokes
Sapim Race
Tires
Front: Maxxis Minion DHF, 29"x2.3", 3C EXO TR, Rear: Maxxis Minion DHR II 29"x2.3" EXO TR
Brakes
Brakes
SRAM Guide T
Disk Rotors
Avid Centerline 180mm
Cockpit
Stem
RaceFace Ride
Handlebar
RaceFace Ride
Grips
Santa Cruz Palmdale Grips
Headset
Cane Creek 10 IS Integrated Headset
Seat
Saddle
WTB Silverado Race
Seatpost
SDG Tellis
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low | XXL High | XXL Low |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.49 mm | 1.41 mm | 1.42 mm | 1.35 mm | 1.36 mm | 1.31 mm | 1.32 mm | 1.3 mm | 1.31 mm | 1.27 mm | 1.28 mm |
| Bottom Bracket Height | 335 mm | 332 mm | 335 mm | 332 mm | 335 mm | 332 mm | 335 mm | 332 mm | 335 mm | 332 mm | 335 mm | 332 mm |
| Front Center | 699 mm | 698 mm | 728 mm | 727 mm | 757 mm | 757 mm | 781 mm | 781 mm | 809 mm | 809 mm | 842 mm | 842 mm |
| Rake | 46 mm | 46 mm | 46 mm | 45 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm | 45 mm | 46 mm |
| Trail | 119 mm | 120 mm | 119 mm | 121 mm | 119 mm | 120 mm | 119 mm | 120 mm | 119 mm | 120 mm | 120 mm | 120 mm |
| Stack | 596 mm | 597 mm | 605 mm | 607 mm | 614 mm | 616 mm | 623 mm | 625 mm | 641 mm | 643 mm | 660 mm | 661 mm |
| Reach | 404 mm | 402 mm | 429 mm | 427 mm | 454 mm | 452 mm | 474 mm | 472 mm | 494 mm | 492 mm | 519 mm | 517 mm |
| Top Tube Length | 543 mm | 544 mm | 571 mm | 572 mm | 600 mm | 601 mm | 623 mm | 626 mm | 650 | 651 mm | 682 mm | 683 mm |
| Seat Tube Angle | 76.8 ° | 76.5 ° | 76.7 ° | 76.4 ° | 76.6 ° | 76.3 ° | 76.4 ° | 76.2 ° | 76.2 ° | 76 ° | 76 ° | 75.8 ° |
| Seat Tube Length | 370 mm | 370 mm | 380 mm | 380 mm | 405 mm | 405 mm | 430 mm | 430 mm | 460 mm | 460 mm | 500 mm | 500 mm |
| Head Tube Angle | 65.7 ° | 65.5 ° | 65.7 ° | 65.5 ° | 65.7 ° | 65.5 ° | 65.7 ° | 65.5 ° | 65.7 ° | 65.5 ° | 65.7 ° | 65.5 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm | 140 mm | 140 mm | 160 mm | 160 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1133 mm | 1132 mm | 1162 mm | 1161 mm | 1191 mm | 1191 mm | 1215 mm | 1215 mm | 1243 mm | 1243 mm | 1276 mm | 1276 mm |
| Bottom Bracket Drop | 38 mm | 41 mm | 38 mm | 41 mm | 38 mm | 41 mm | 38 mm | 41 mm | 38 mm | 41 mm | 38 mm | 41 mm |
| Standover Height | 685 mm | 682 mm | 700 | 696 mm | 712 mm | 708 mm | 710 mm | 707 mm | 706 mm | 702 mm | 706 mm | 702 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 142 cm | 142 cm | 153 cm | 153 cm | 164 cm | 164 cm | 174 cm | 174 cm | 184 cm | 184 cm | 192 cm | 192 cm |
| Rider Max Height | 156 cm | 156 cm | 167 cm | 167 cm | 177 cm | 177 cm | 187 cm | 187 cm | 194 cm | 194 cm | 200 cm | 200 cm |
About this model
Tallboy R / Aluminum / 29 belongs to the Santacruz Tallboy model. Santa Cruz released 64 bikes variations of this model so far. You can easily view all of the Santacruz Tallboy bikes models from 2021, here.
Model range prices
Santa Cruz Tallboy D / Aluminum / 29 2021 is the most affordable bike of this model and has a price of 3099$. On the other hand, Santa Cruz Tallboy XX1 RSV / Carbon CC / 29 2021, is the most expensive and costs 11549$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2021 and its price was 3749$. Comparing this to the average Trail bike price, we see that the price is 35.73% higher.
Tallboy R / Aluminum / 29 components
Fork
The Fox Rhythm Float 34 is included from the factory. It has a travel distance of 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The Tallboy R / Aluminum / 29 has a rear shock with a travel of 120mm. The model FOX Float Performance DPS is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The wheels on Tallboy R / Aluminum / 29 are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The Tallboy R / Aluminum / 29 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Tallboy R / Aluminum / 29 comes in 12 sizes, that range from 142 cm – 200 cm (4.66 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The Santa Cruz model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
